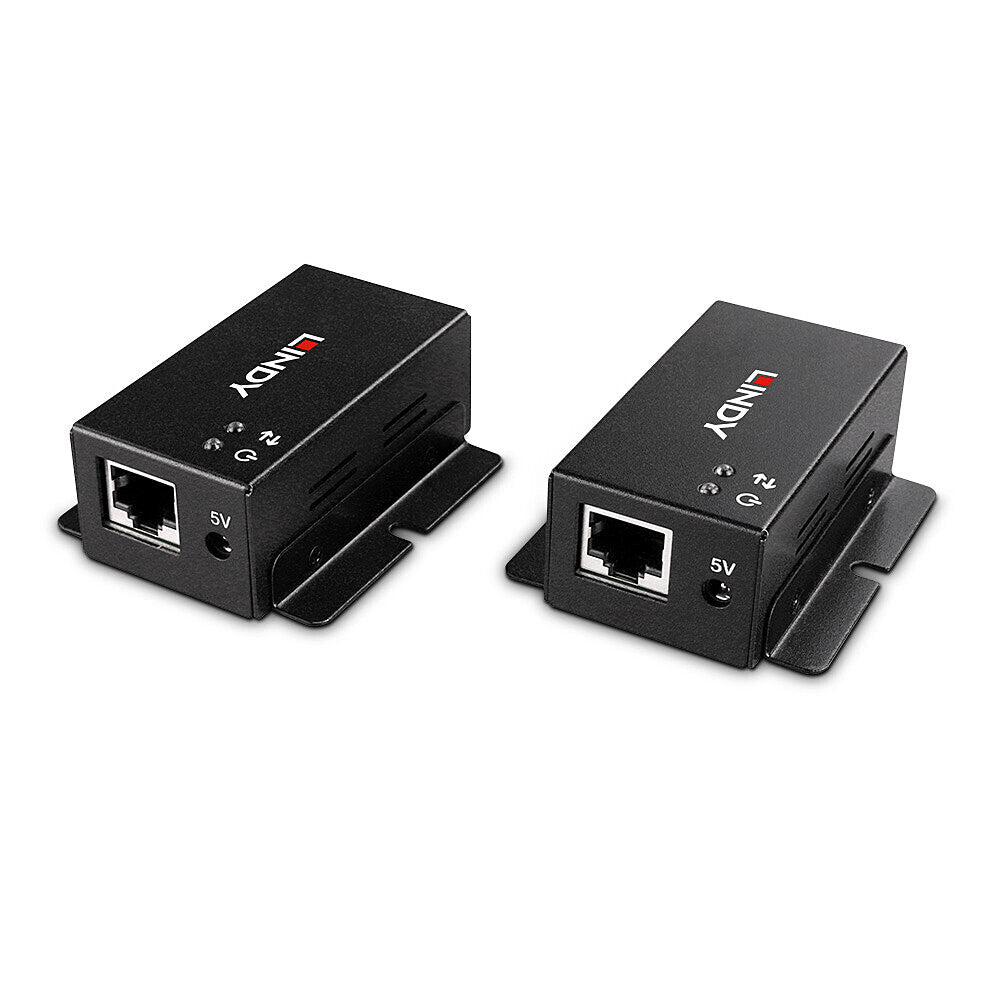

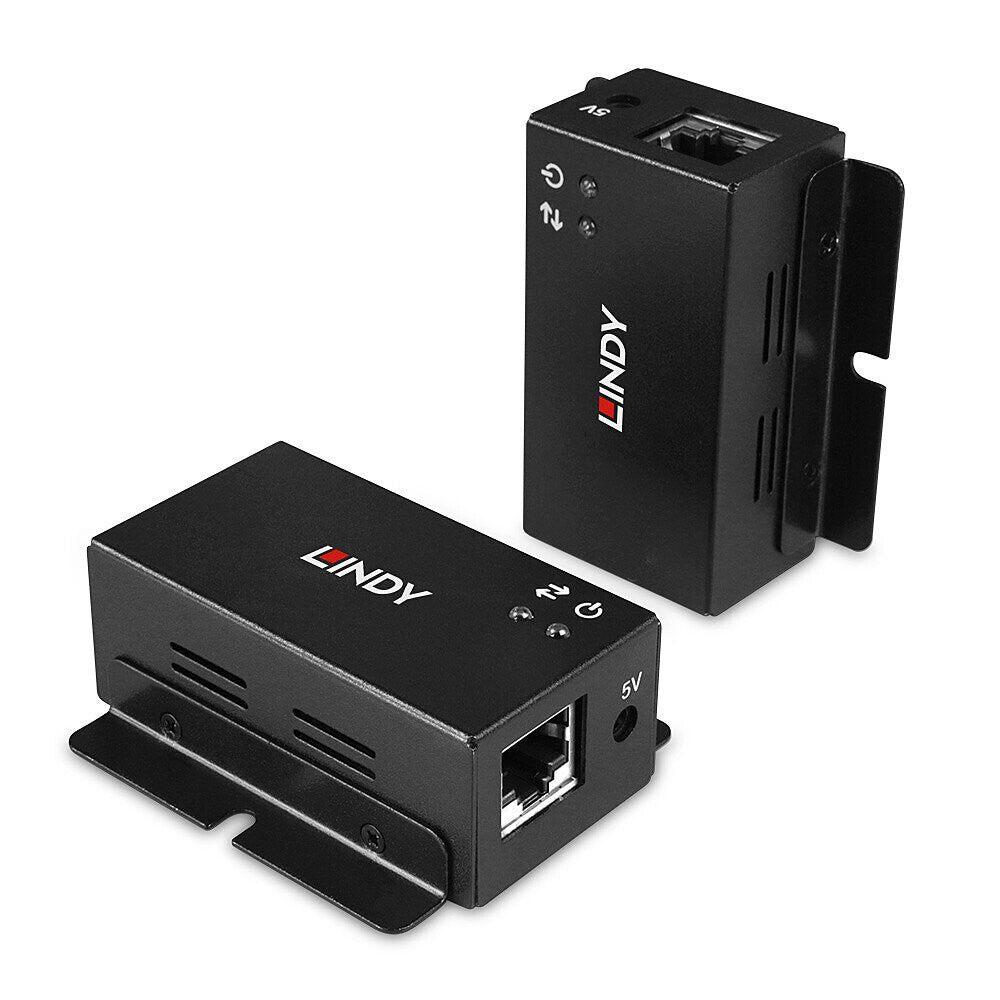

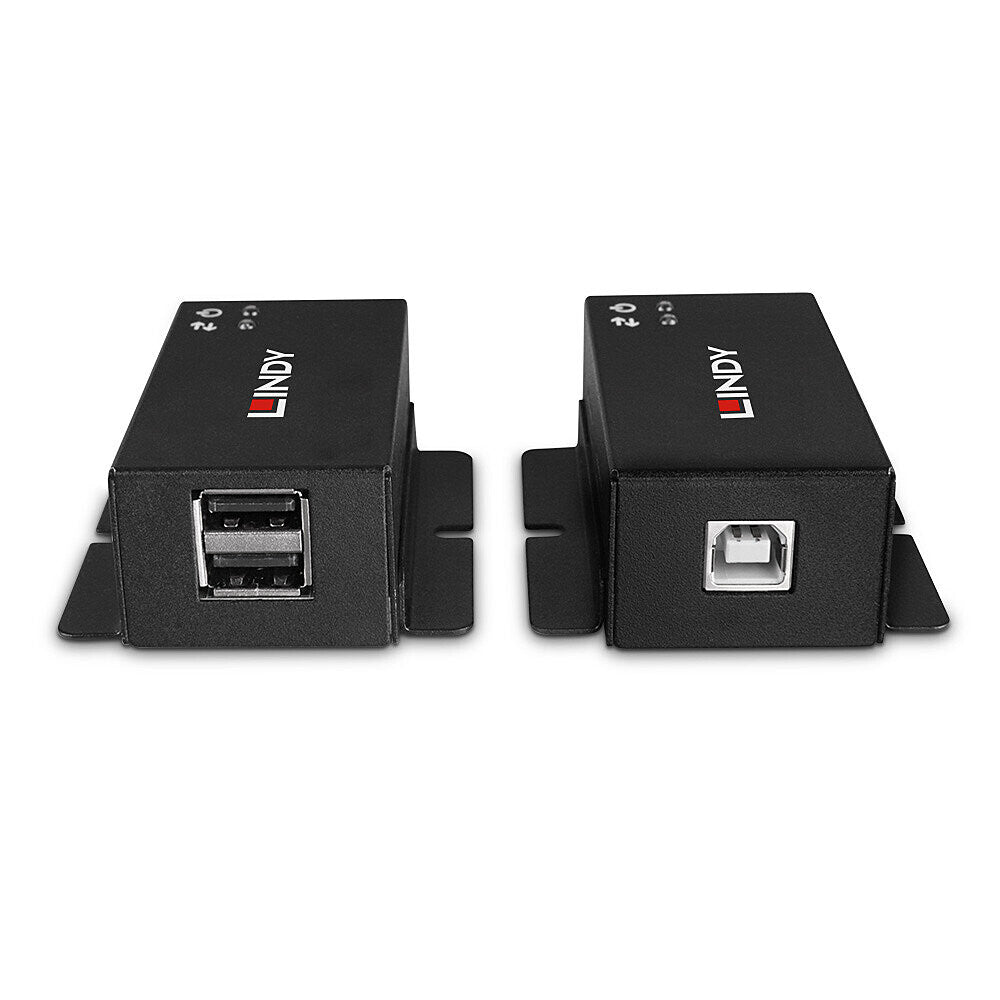

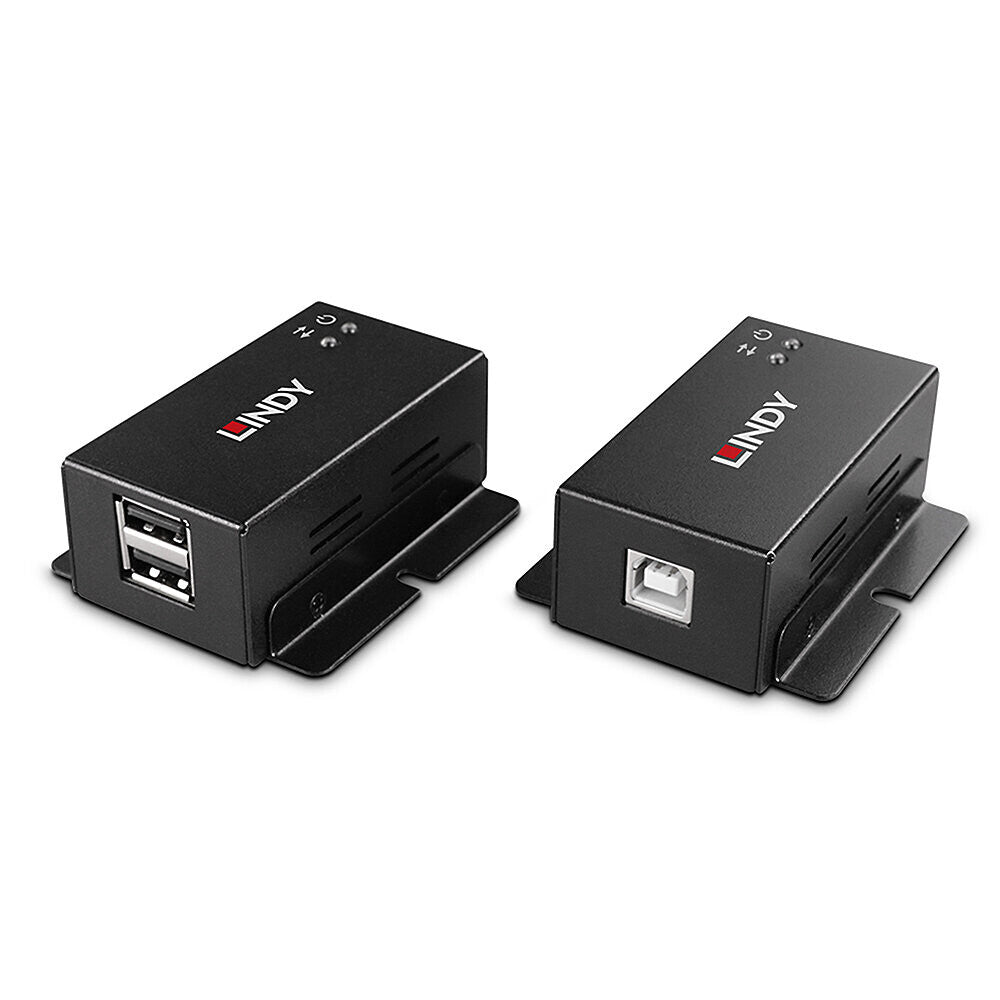

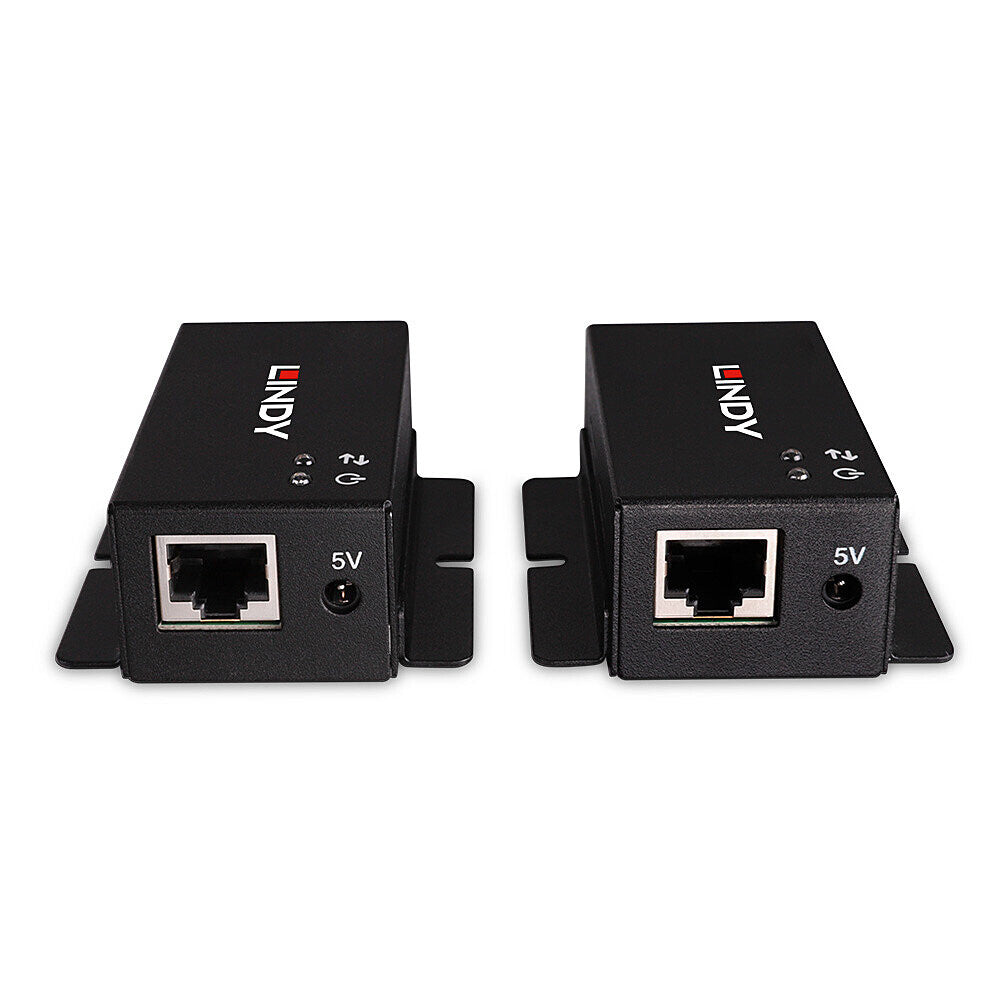

Lindy 50m 2 Port USB 2.0 Cat. 6 Extender
Couldn't load pickup availability
- Extend 2 USB 2.0 ports up to 50m using low cost Cat.6 network cable (not included)
- Bi-directional PoC (Power over Cable) requires a power supply connection from only one side of the installation
- Supports USB 2.0 High Speed and USB 1.1 Full Speed / Low Speed
- Plug and Play installation
- 2 year warranty
This Lindy USB 2.0 Cat.6 Extender can be used to extend the distance between two USB peripheral devices and the host computer by up to 50m. A standard, low cost Cat.6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core patched cables.
The Extender features bidirectional Power over Cable (PoC) functionality, which provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter or receiver unit.
With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.
| Performance | |
|---|---|
| Plug and Play | Yes |
| Chipset | NS1021 |
| Cable types supported | Cat5e, Cat6 |
| Data transfer rate | 480 Mbit/s |
| Maximum transfer distance | 50 m |
| Type | Network transmitter & receiver |
| Ports & interfaces | |
|---|---|
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| DC-in jack | Yes |
| USB 2.0 ports quantity | 3 |
| RJ-45 ports quantity (receiver) | 1 |
| RJ-45 ports quantity (transmitter) | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Design | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Product colour | Black |
| Power | |
|---|---|
| Input current | 2 A |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 - 90% |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -40 - 125 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Receiver weight | 195 g |
| Receiver height | 2.6 cm |
| Receiver depth | 6.7 cm |
| Receiver width | 6.02 cm |
| Transmitter weight | 195 g |
| Transmitter height | 2.37 cm |
| Transmitter depth | 6.7 cm |
| Transmitter width | 6.02 cm |
| Packaging content | |
|---|---|
| Manual | Yes |
| Cables included | USB |
| AC adapter included | Yes |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Certificates | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
