£231.99

Stock Available: 0

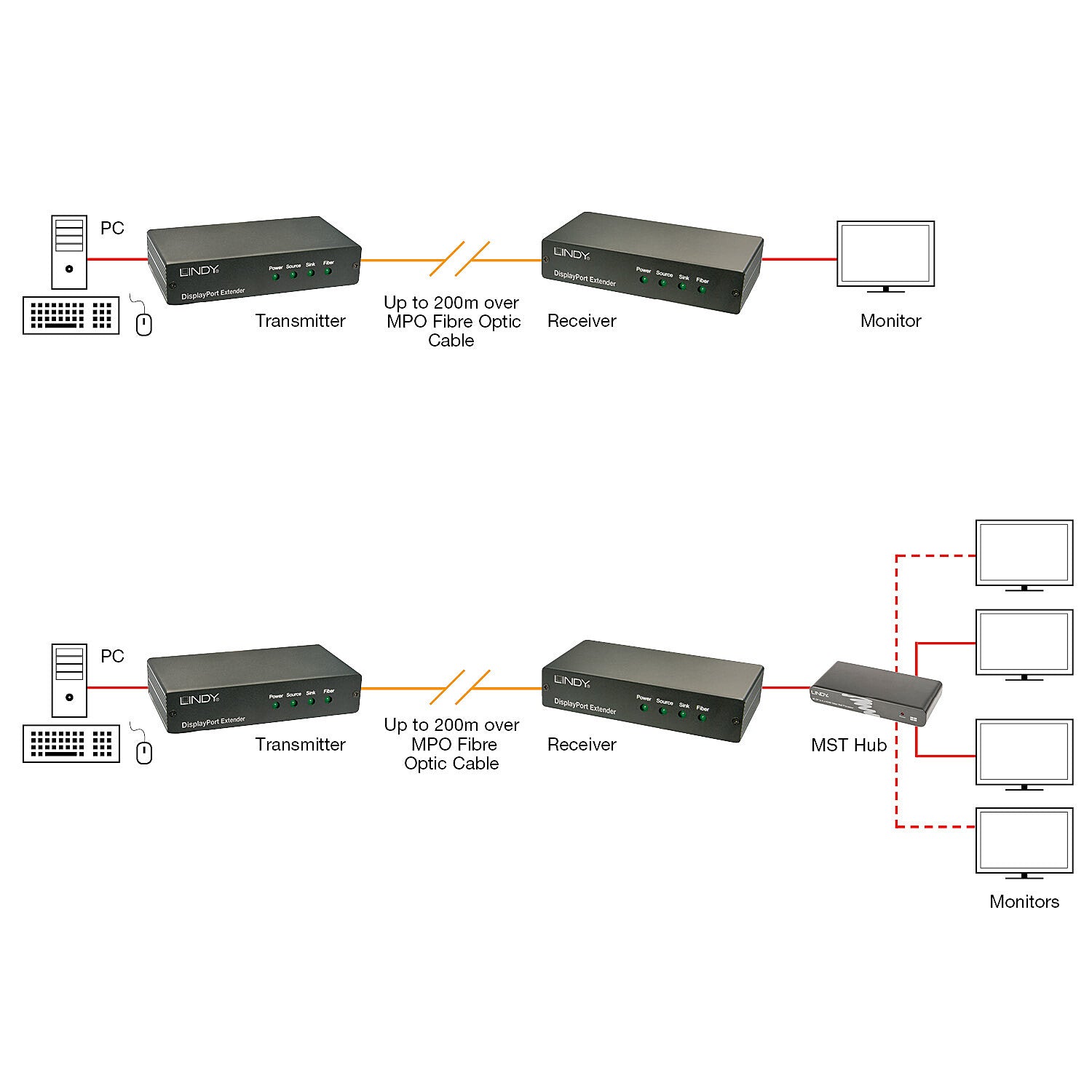

  • Sends DisplayPort signals up to 200m using a single fibre optic cable
  • Transmits high-resolution DisplayPort signals up to 200m via MPO fibre optic cable
  • Supports DisplayPort 1.2 signals with audio & DisplayPort Content Protection – DPCP
  • Supports resolutions up to 4K 60Hz (3840 x 2160p @ 60Hz), HBR2 & MST Uncompressed

Sends DisplayPort signals up to 200m using a single fibre optic cable
Transmits high-resolution DisplayPort signals up to 200m via MPO fibre optic cable
Supports DisplayPort 1.2 signals with audio & DisplayPort Content Protection – DPCP
Supports resolutions up to 4K 60Hz (3840 x 2160p @ 60Hz), HBR2 & MST Uncompressed
2 year warranty

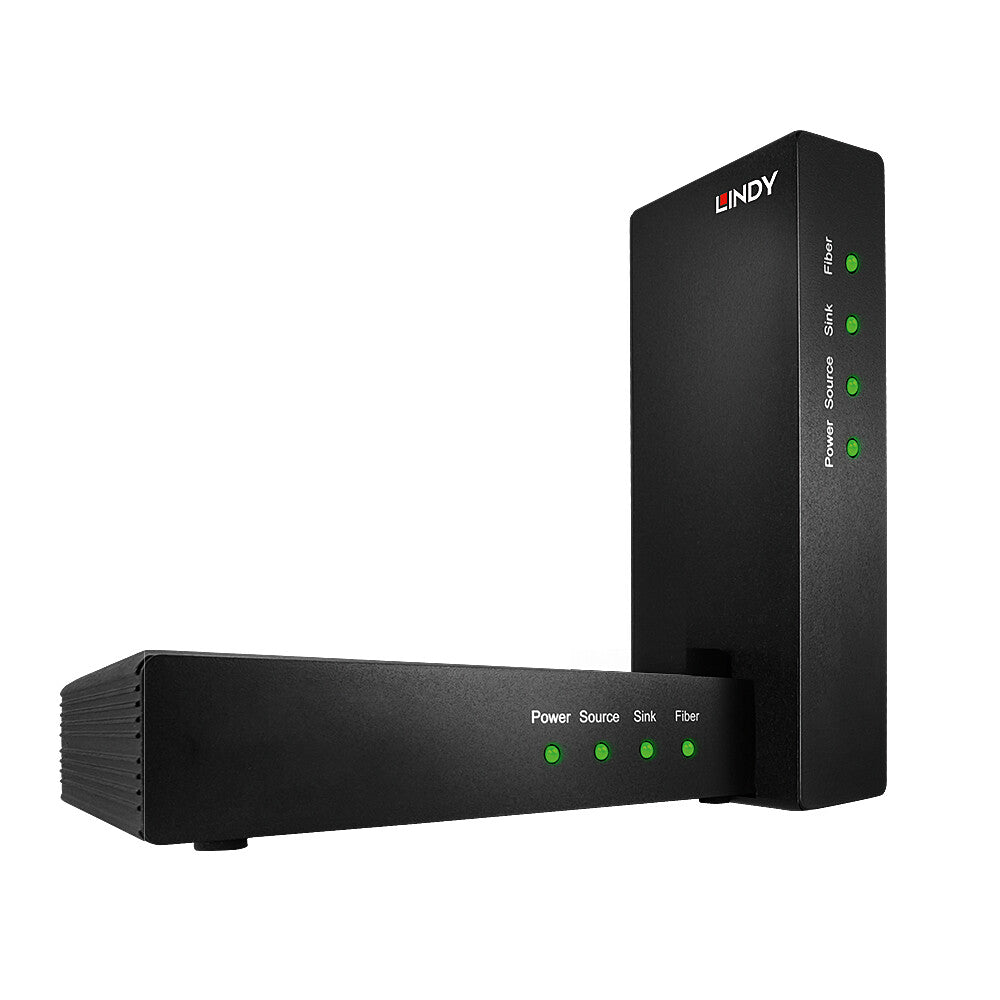

The LINDY Fibre Optic DisplayPort Extender sends signals over MPO fibre optic cable with no loss of quality or signal degradation from compression artifacts or electromagnetic interference. This means it is highly suited to the demanding standards required for professional signal transmission in the medical, military and presentation industries.

Note: For indoor use only - in non-condensing humidity environments. You must use 12 Core 50/125µ MPO fibre optic cable with Method A termination (1:1)

Package Contents:

1 x Fibre Optic DisplayPort Extender Unit
1 x Fibre Optic DisplayPort Receiver Unit
2 x Multi-Country Wall Mount Power Supplies with UK, Euro, US and AUS adapters

Performance
Type Network transmitter & receiver
Maximum transfer distance 200 m
Cable types supported Fiber
Network
Wi-Fi No
Design
Product colour Black
Housing material Metal
LED indicators Yes
Power
AC input voltage 100-240 V
AC input frequency 50 - 60 Hz
Input current 2 A
Power consumption (typical) 6 W
Operational conditions
Operating temperature (transmitter) -10 - 50 °C
Storage temperature (transmitter) -20 - 75 °C
Operating temperature (receiver) -10 - 50 °C
Storage temperature (receiver) -20 - 75 °C
Weight & dimensions
Weight 718 g
Transmitter width 14 cm
Transmitter depth 7.5 cm
Transmitter height 3 cm
Transmitter weight 250 g
Receiver width 14 cm
Receiver depth 7.5 cm
Receiver height 3 cm
Receiver weight 250 g
Logistics data
Harmonized System (HS) code 85176990
