Lindy 100m USB 2.0 Type C Cat.6 Extender
Couldn't load pickup availability
- Extends a single USB Type C port up to 100m using Cat.5e/6 network cable (not included)
- Plug and Play installation, OS independent
- Perfect for use with USB 2.0 devices such as storage devices, printers, scanners, mice and keyboards*
- Supports USB 2.0 High Speed and USB 1.1 Full Speed / Low Speed
- 2 year warranty
The Lindy 100m USB 2.0 Type C Cat.6 Extender can be used to extend the distance between a USB peripheral device and a Type C equipped host computer by up to 100m.

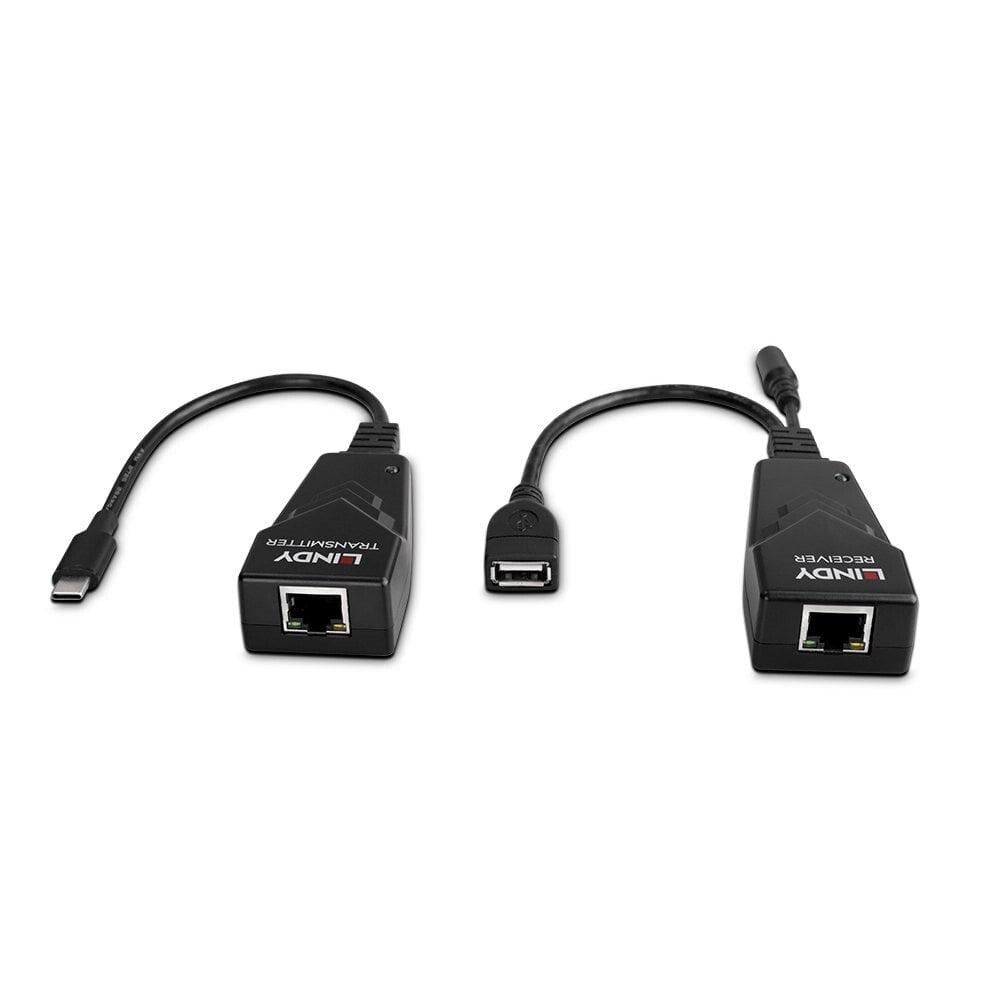

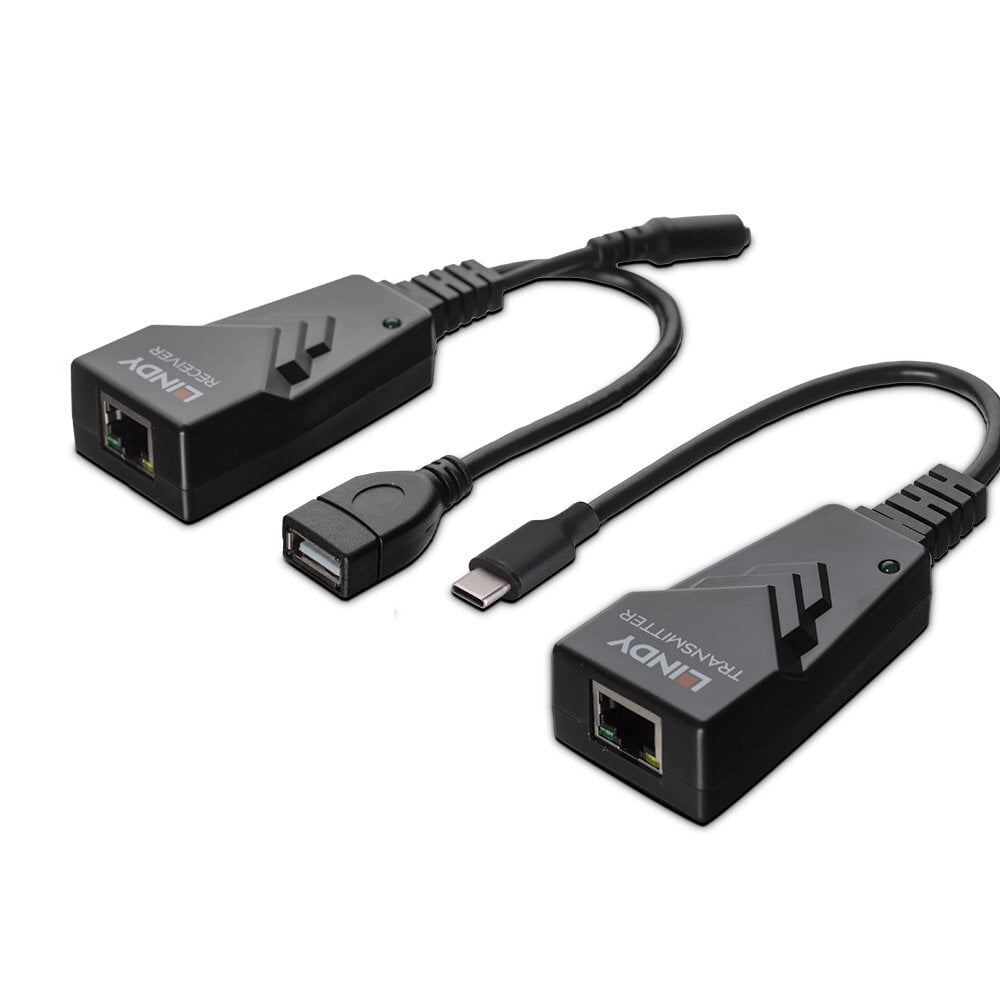

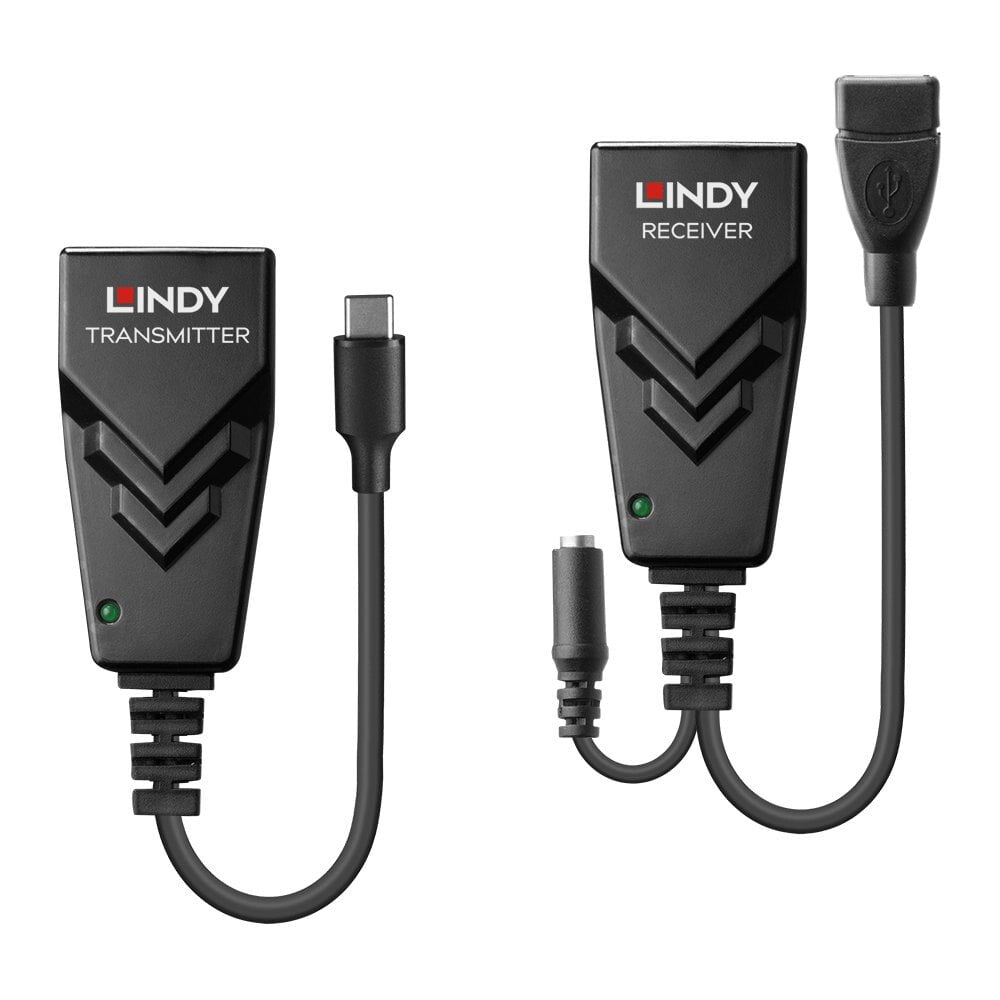

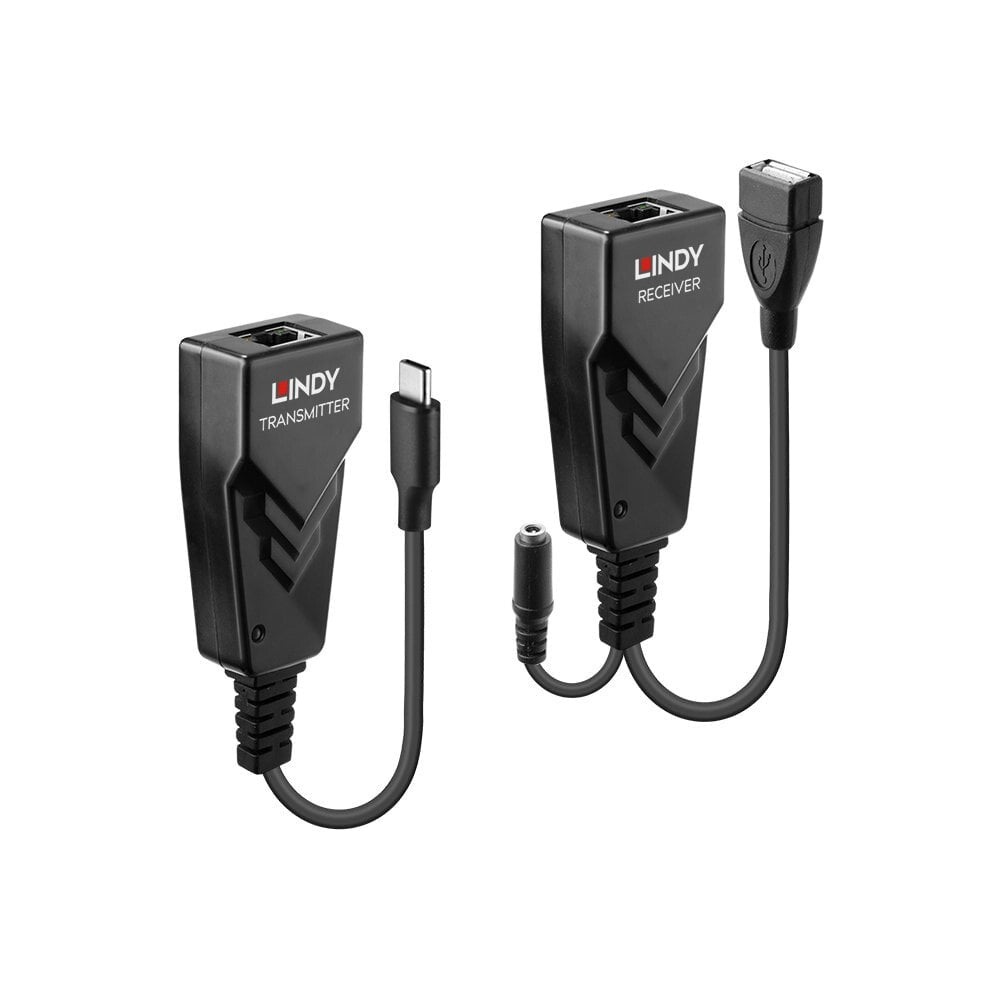

It consists of a transmitter unit which connects to the computer via USB Type C and a receiver unit that connects to a USB Type A device. Standard Cat.5e/6 network cable (not included) is then used to bridge the connection between the two units. For best performance and compatibility, we recommend the use of solid core patched cables.
For added convenience this USB 2.0 Extender is supplied with a power supply, which can be connected should additional power be required.
*Please note: This extender might not support USB devices that require high bandwidths such as FullHD webcams.
| Performance | |
|---|---|
| Chipset | CH317Q, CH9317, RTL8211E |
| Cable types supported | Cat5e, Cat6 |
| Data transfer rate | 480 Mbit/s |
| Maximum transfer distance | 100 m |
| Type | Network transmitter & receiver |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| USB Type-C ports quantity (receiver) | 1 |
| USB Type-C ports quantity (transmitter) | 1 |
| RJ-45 ports quantity (receiver) | 1 |
| RJ-45 ports quantity (transmitter) | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Design | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Housing material | Plastic |
| Product colour | Black |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 - 80% |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 50 g |
| Height | 22 mm |
| Depth | 36 mm |
| Width | 69 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
| AC adapter included | Yes |
| Packaging data | |
|---|---|
| Package volume | 380 cm³ |
| Package height | 48 mm |
| Package depth | 200 mm |
| Package width | 200 mm |
| Package type | Box |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Certificates | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
