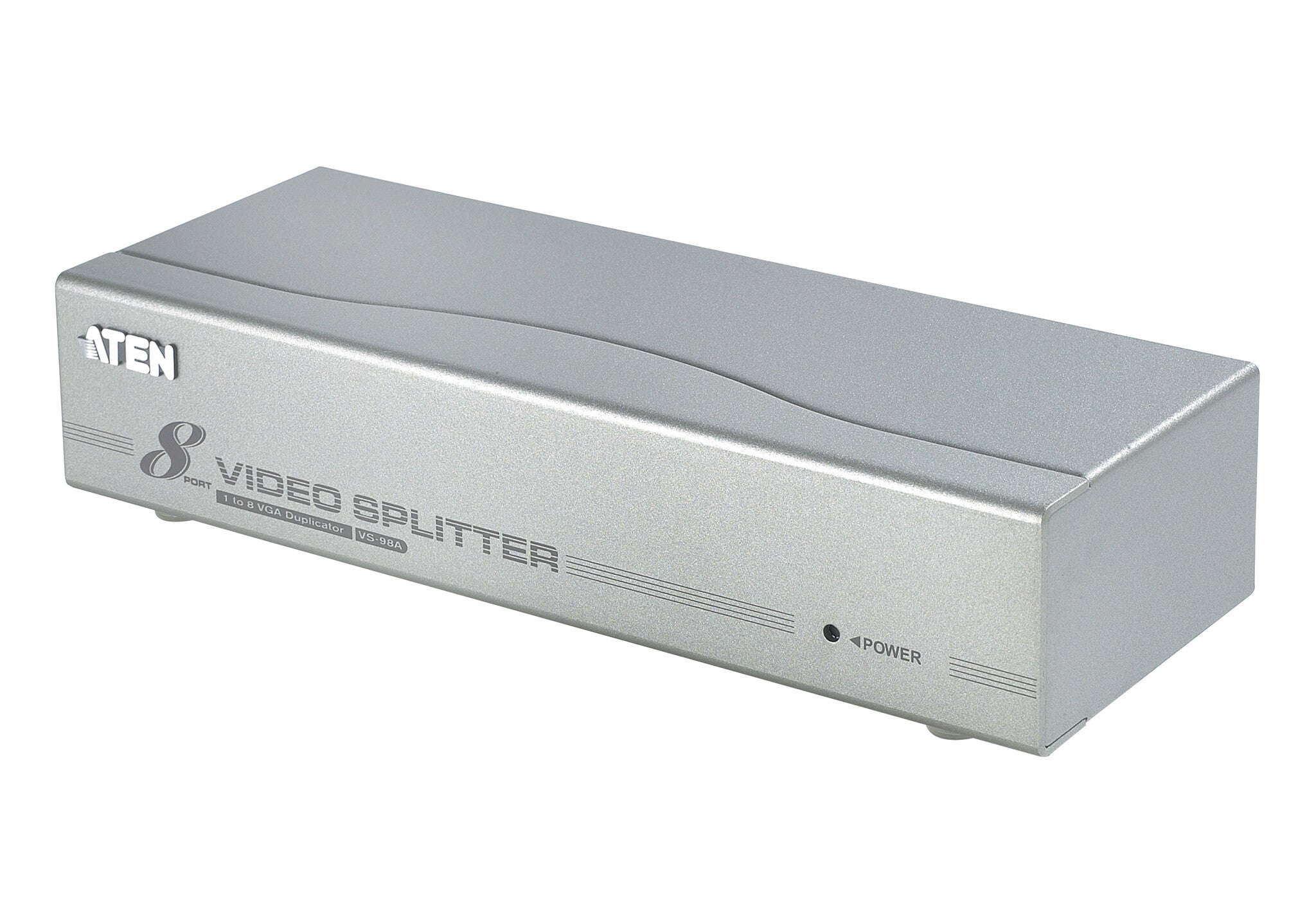

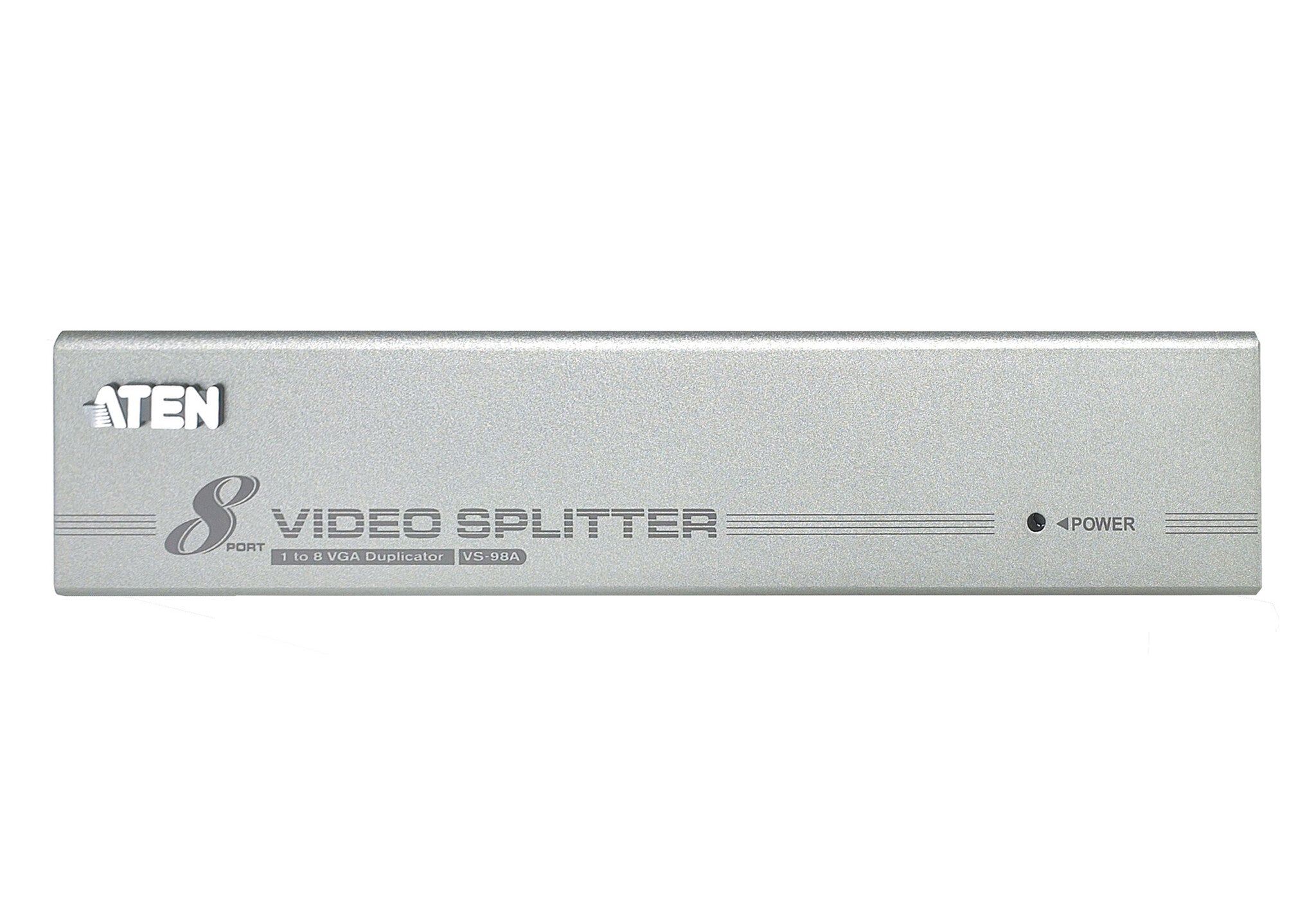

ATEN VS98A video splitter VGA 8x VGA
£75.99
Couldn't load pickup availability
- One video input to 8 video outputs
- Cascadable to 3 levels - provides up to 512 video signals
- Supports 350 MHz bandwidth
- Long-distance transmission - up to 30 m *
- Superior video quality - 1920 x 1440@60Hz
- DDC, DDC2, DDC2B Compatible (Port 1 only)
- Supports VGA, XGA, SVGA, UXGA,WUXGA and multisync monitors
- All metal casing
The VS98A is a video splitter that not only duplicates the video signal from any VGA, XGA, SVGA, UXGA, or multisync monitor to eight outputs, but also boosts the video signal over a distance of up to 30 meters. Cascadable to support up to 512 displays, and offering bandwidth up to 300 MHz, the VS98A is ideal for broadcasting and enhancing video information to the public, monitoring your work environments from safe locations, or offering superior video for company or classroom training.

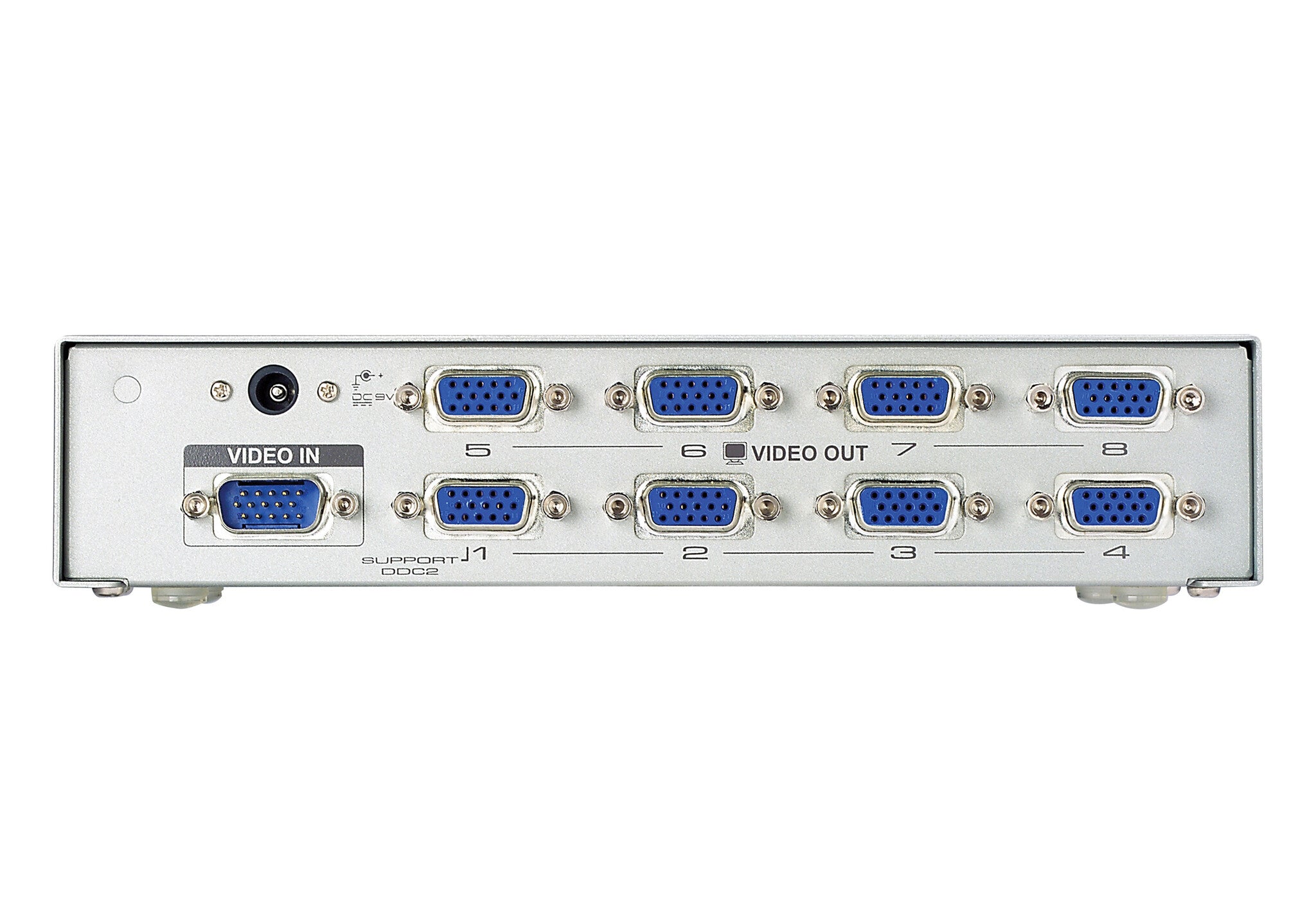

| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Connector(s) | HDB-15 |
| Video out | 8x VGA |
| Video port type | VGA |
| Video ports quantity | 8 |
| Features | |
|---|---|
| Power LED | Yes |
| HDCP | No |
| Remote control included | No |
| Bandwidth | 350 MHz |
| Maximum operating distance | 65 m |
| 3D | No |
| Maximum resolution | 1600 x 1200 pixels |
| Product colour | Silver |
| Network | |
|---|---|
| Ethernet LAN | No |
| Power | |
|---|---|
| USB powered | No |
| Power consumption (typical) | 3.6 W |
| Weight & dimensions | |
|---|---|
| Dimensions (WxDxH) | 200 x 75 x 45 mm |
| Weight | 690 g |
| Packaging content | |
|---|---|
| Manual | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
