ATEN VS94A video splitter VGA 4x VGA
£45.99
Couldn't load pickup availability
- One video input to 4 video outputs
- Cascadable to 3 levels - provides up to 64 video signals
- Supports 350 MHz bandwidth
- Long-distance transmission - up to 30 m *
- Superior video quality - 1920 x 1440@60Hz
- DDC, DDC2, DDC2B Compatible (Port 1 only)
- Supports VGA, XGA, SVGA, UXGA,WUXGA and multisync monitors
- All metal casing
- * Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality.

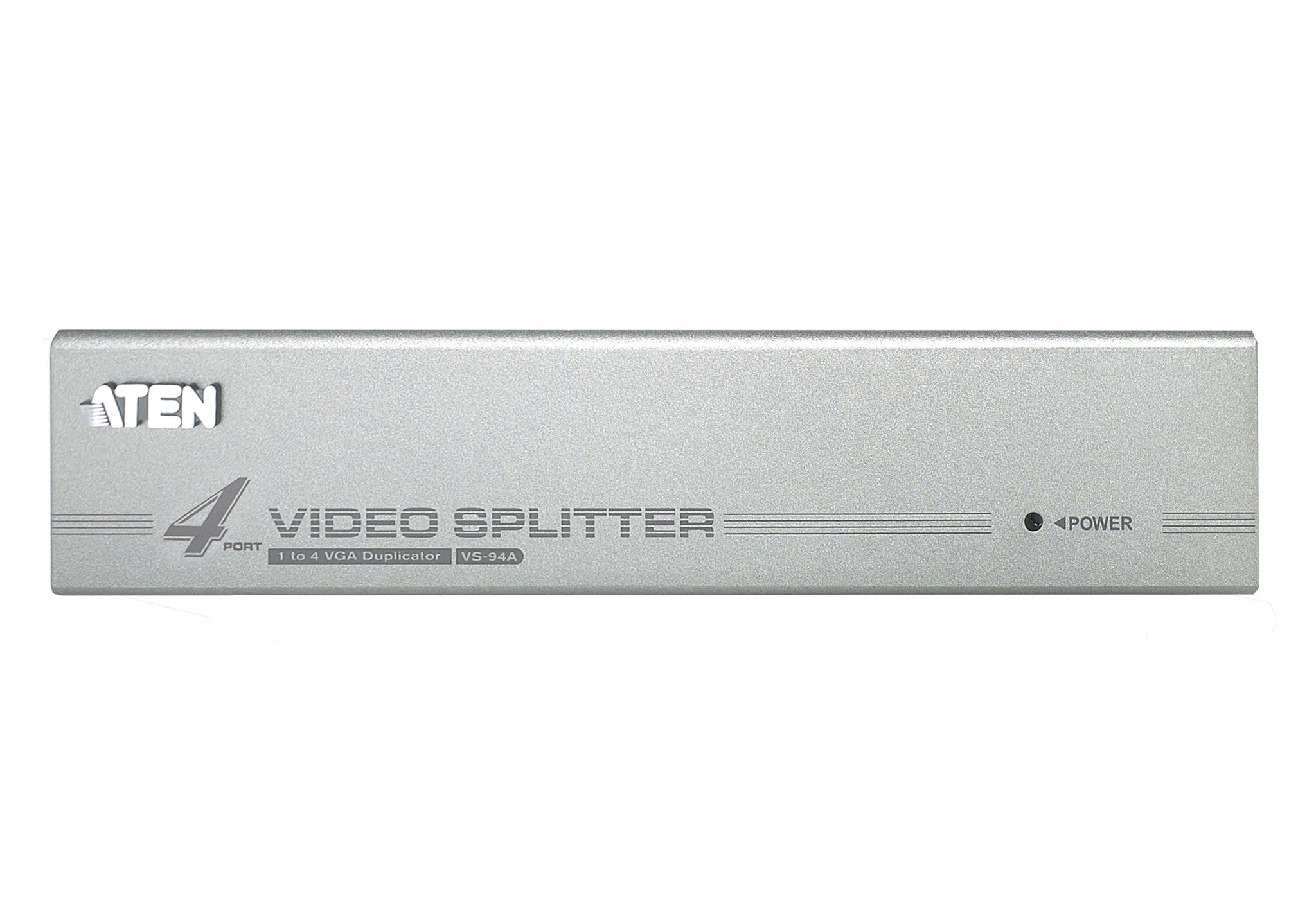

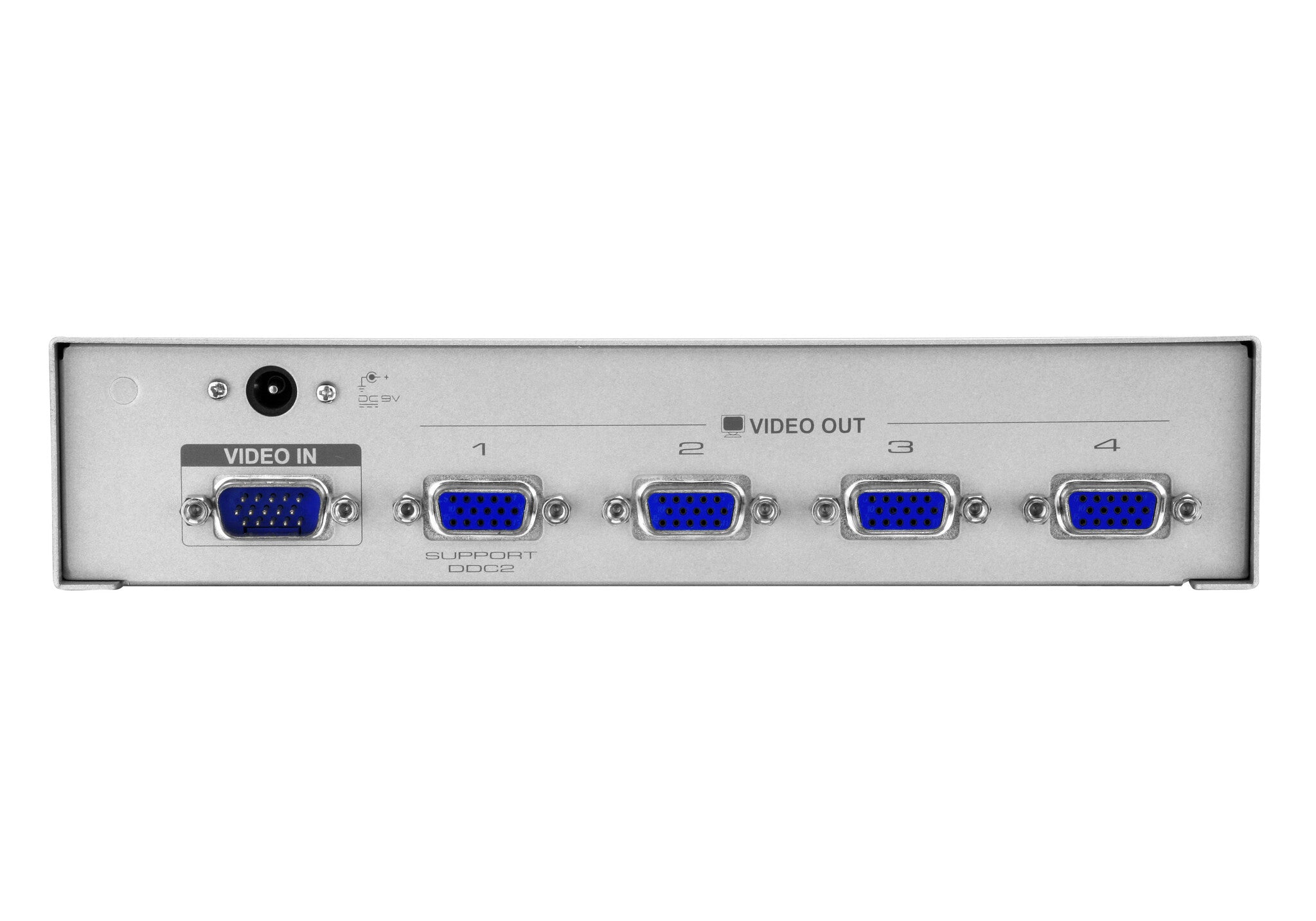

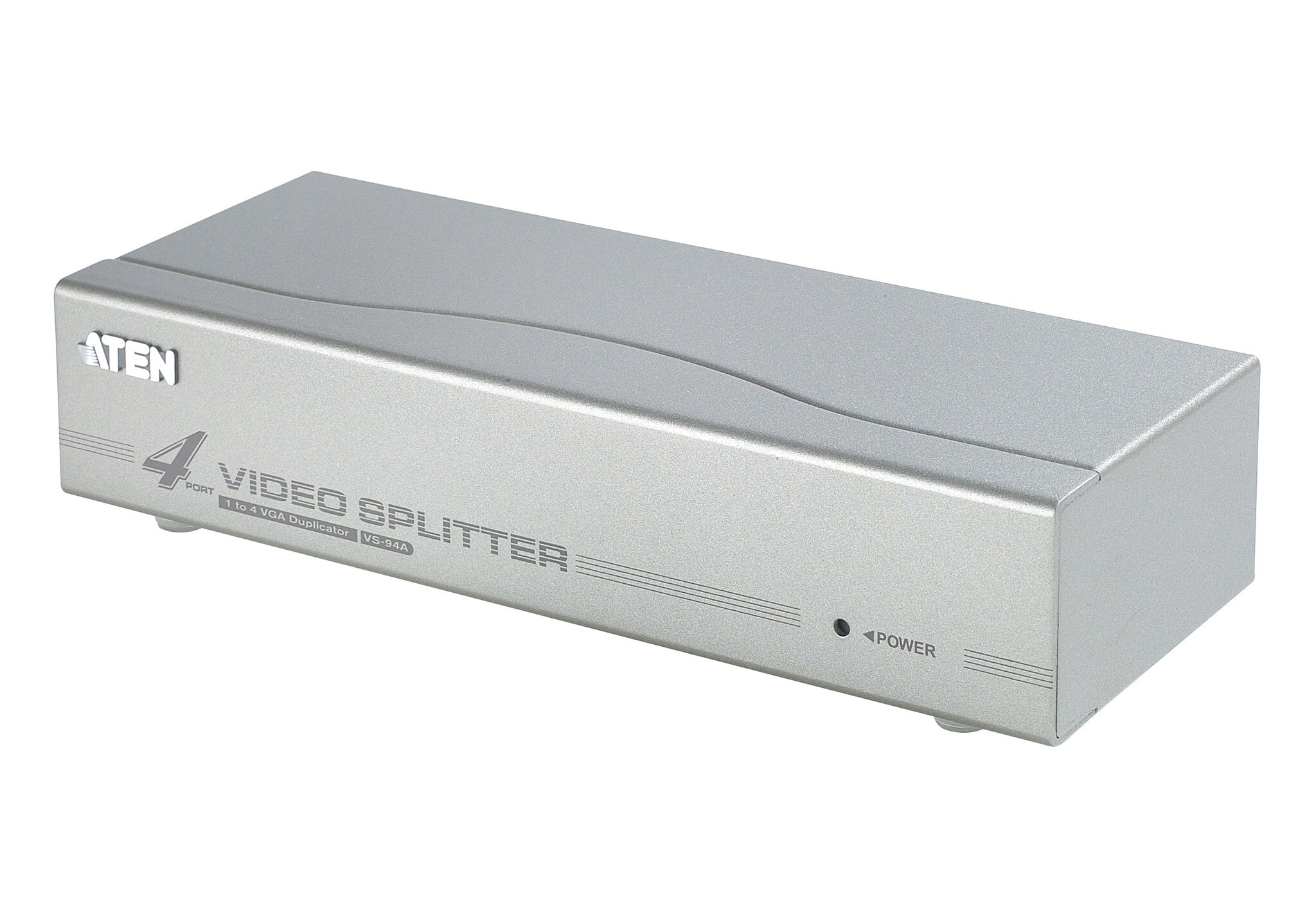

The VS94A is a video splitter that not only duplicates the video signal from any VGA, XGA, SVGA, UXGA, or multisync monitor to four outputs, but also boosts the video signal over a distance of up to 30 meters. Cascadable to support up to 64 displays, and offering bandwidth up to 350 MHz, the VS94A is ideal for broadcasting and enhancing video information to the public, monitoring your work environments from safe locations, or offering superior video for company or classroom training.
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Video out | 4x VGA |
| Video in | 1 x HDB-15 Male (Blue) |
| Video port type | VGA |
| Video ports quantity | 4 |
| Features | |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Mac compatibility | Yes |
| Rack mounting | Yes |
| Bandwidth | 350 MHz |
| Maximum operating distance | 30 m |
| Full HD | Yes |
| Maximum resolution | 1920 x 1400 pixels |
| Power | |
|---|---|
| Power consumption (typical) | 2.03 W |
| AC input voltage | 9 V |
| Weight & dimensions | |
|---|---|
| Dimensions (WxDxH) | 200 x 75.1 x 44 mm |
| Weight | 610 g |
| Packaging content | |
|---|---|
| AC adapter included | Yes |
| User guide | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
