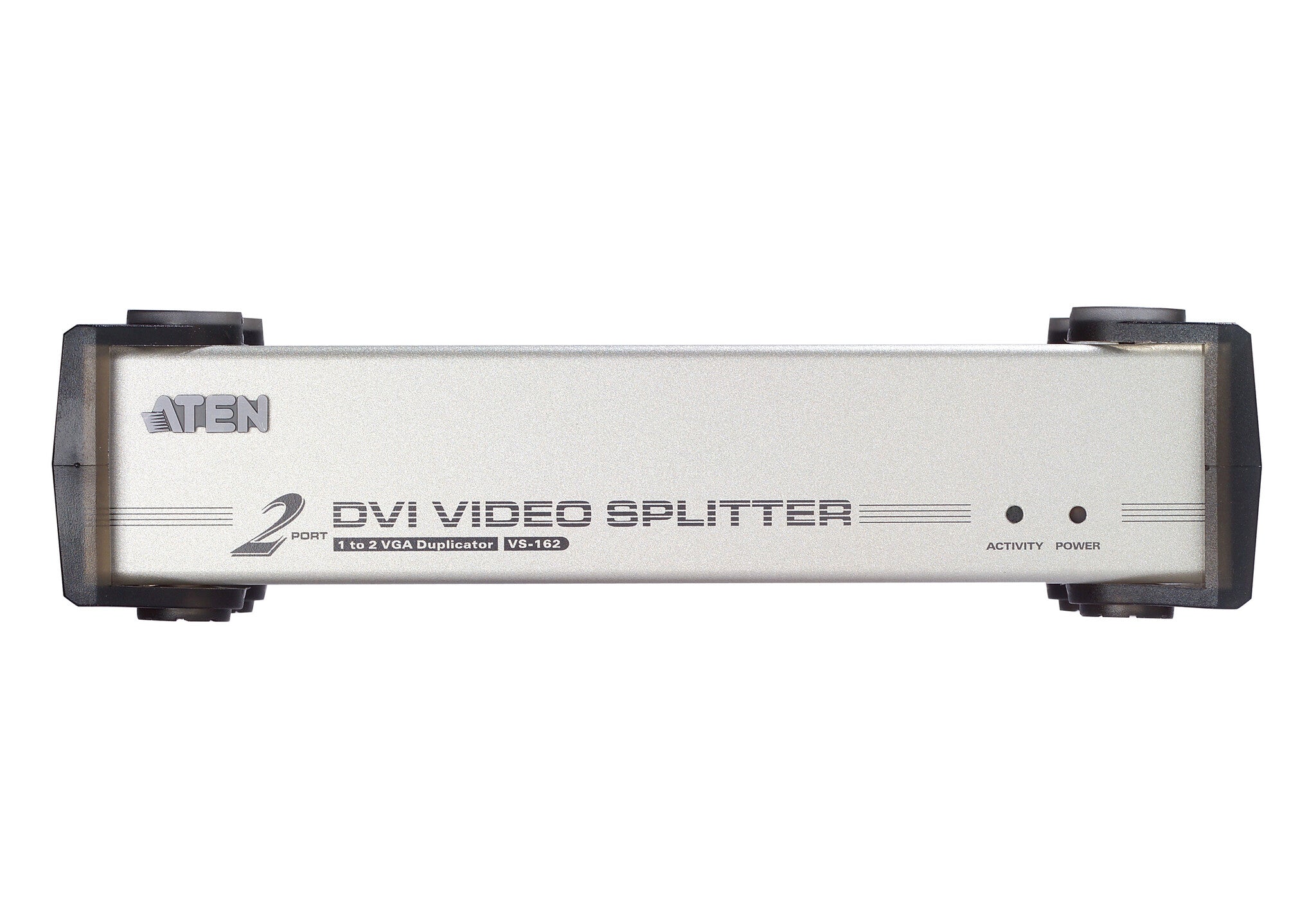

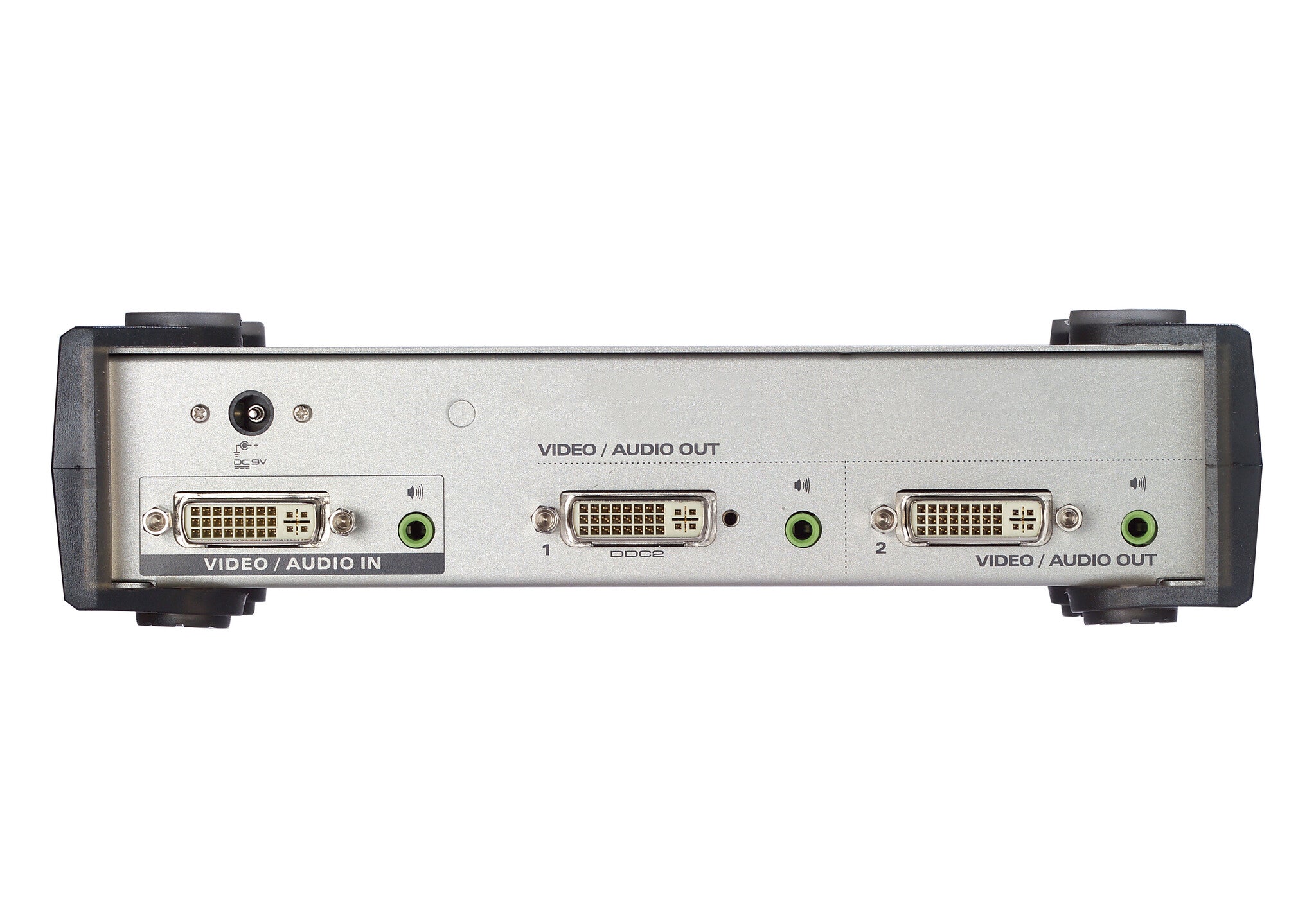

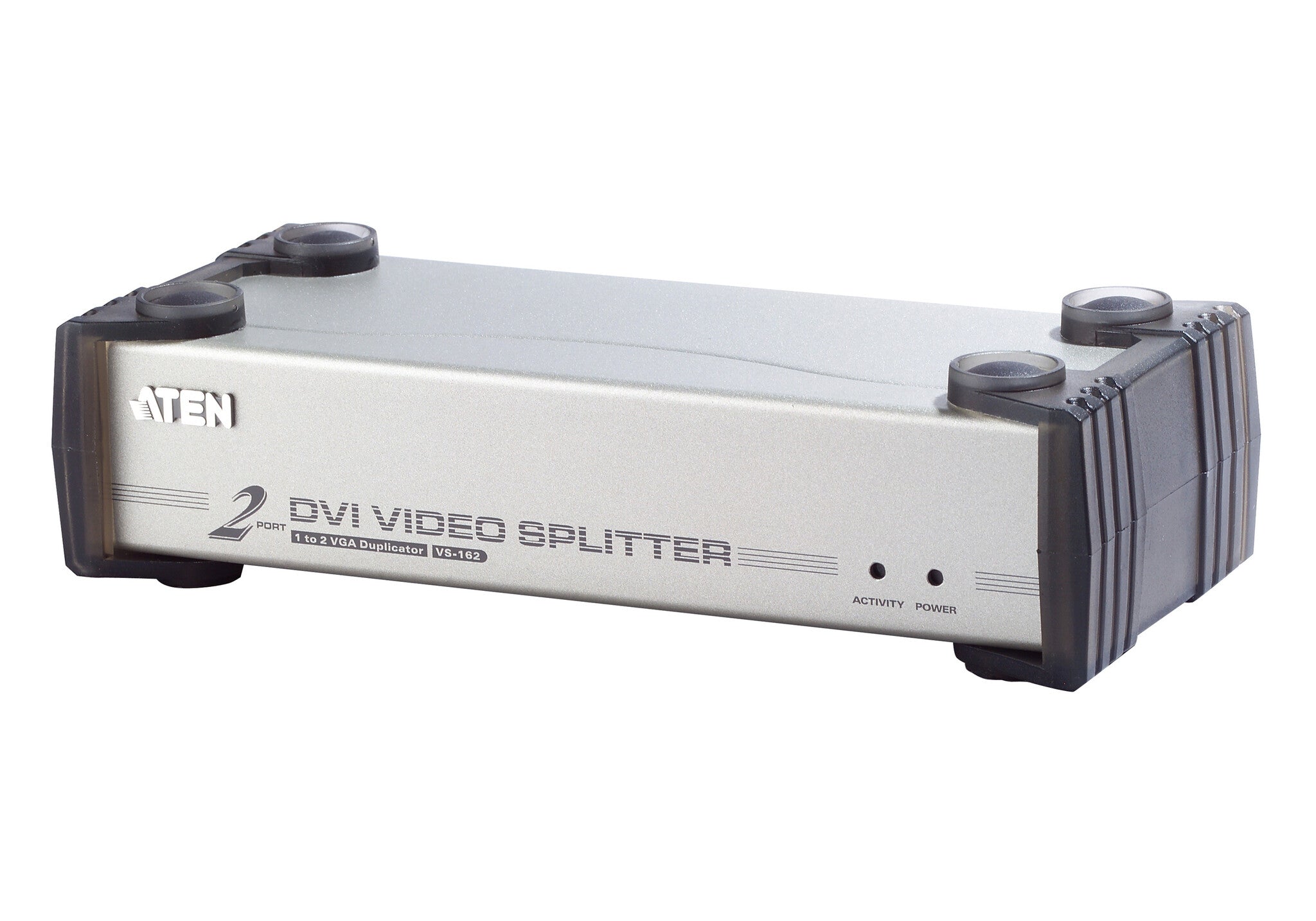

ATEN VS162 video splitter DVI 2x DVI-I
£95.99
Couldn't load pickup availability
- Connects computers with DVI graphics to multiple DVI compatible monitors or projectors.
- Fully compliant with DVI-Digital and DVI-Analog.
- Supports DDWG (Digital Display Working Group) standard for DVI compliant monitors.
- Speaker enabled for audio enjoyment.
- Cascadable to 3 levels - provides up to 8 video signals.
- Cascade distance: Source to Device -1.8m, Device to Device-5m,Device to Display-5m.
- Installs in minutes.
- Maintains highest single link video resolution (up to 1920 x 1200).
- DDC, DDC2, DDC2B Compatible (Port 1 only).
- HDCP Compliant.
- OS Support: Windows 2000, Windows XP, Linux, Mac and Sun
VS162 Video Splitter provides DVI video and audio input signals to 2 DVI video and audio outputs after duplication and boosting. They are ideal for any type of broadcasting environment, classrooms, or by power computer users.
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Connector(s) | 2 |
| Audio ports quantity | 3 |
| Video out | 2x DVI-I |
| Video in | 1 x DVI-I Female |
| Video port type | DVI |
| Video ports quantity | 3 |
| Features | |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Mac compatibility | Yes |
| LED indicators | Activity |
| Power LED | Yes |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
| HDCP | Yes |
| Rack mounting | Yes |
| Remote control included | No |
| Maximum operating distance | 5 m |
| 3D | No |
| Maximum resolution | 1920 x 1200 pixels |
| Product colour | Black, Grey |
| Power | |
|---|---|
| USB powered | No |
| Power consumption (typical) | 2.36 W |
| AC input voltage | 5.3 V |
| Weight & dimensions | |
|---|---|
| Dimensions (WxDxH) | 210 x 88 x 55.5 mm |
| Weight | 620 g |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Technical details | |
|---|---|
| Audio input | 1 |
| Audio output | 2 |
| Resolution | 1920 x 1200 pixels |
| Maximum video resolution | 1920 x 1200 pixels |
| Exterior material | Plastic |
| Cascadable | Yes |
| Maximum cable length | 5 m |
| Connector type | DVI-I Female |
| Number of connectors | 2 |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
