• One video input to 2 video outputs
• Supports up to 450 MHz bandwidth
• Cascadable to 3 levels - provides up to 8 video signals
• Long distance transmission - up to 30m *
• Superior video quality - up to 2048 x 1536
• Supports VGA, XGA, SVGA, UXGA, QXGA, WUXGA and multisync monitors
• Built-in 1.5 GHz amplifier to ensure video system maintain excellent fidelity
• All-metal casing
• * Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality.

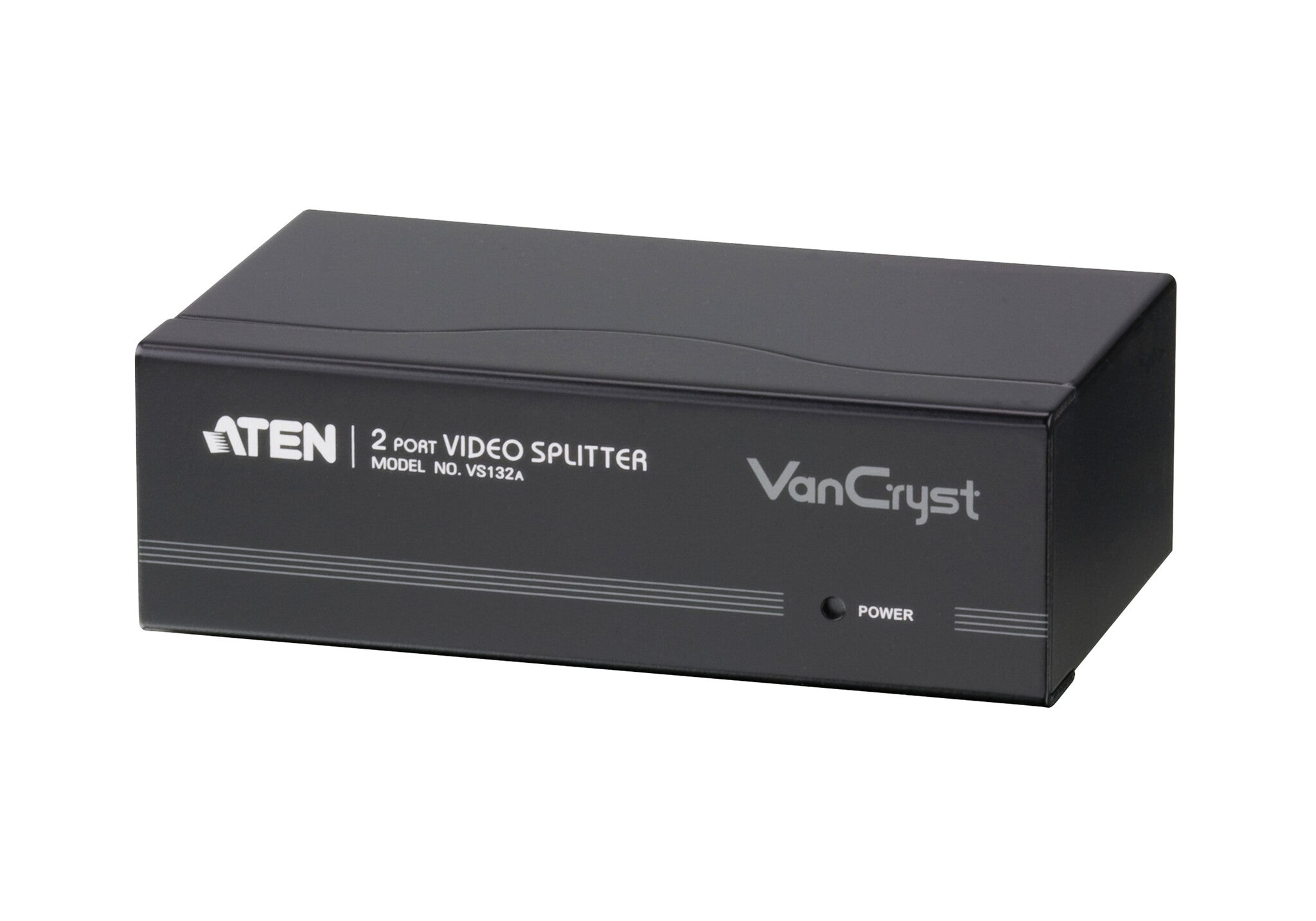

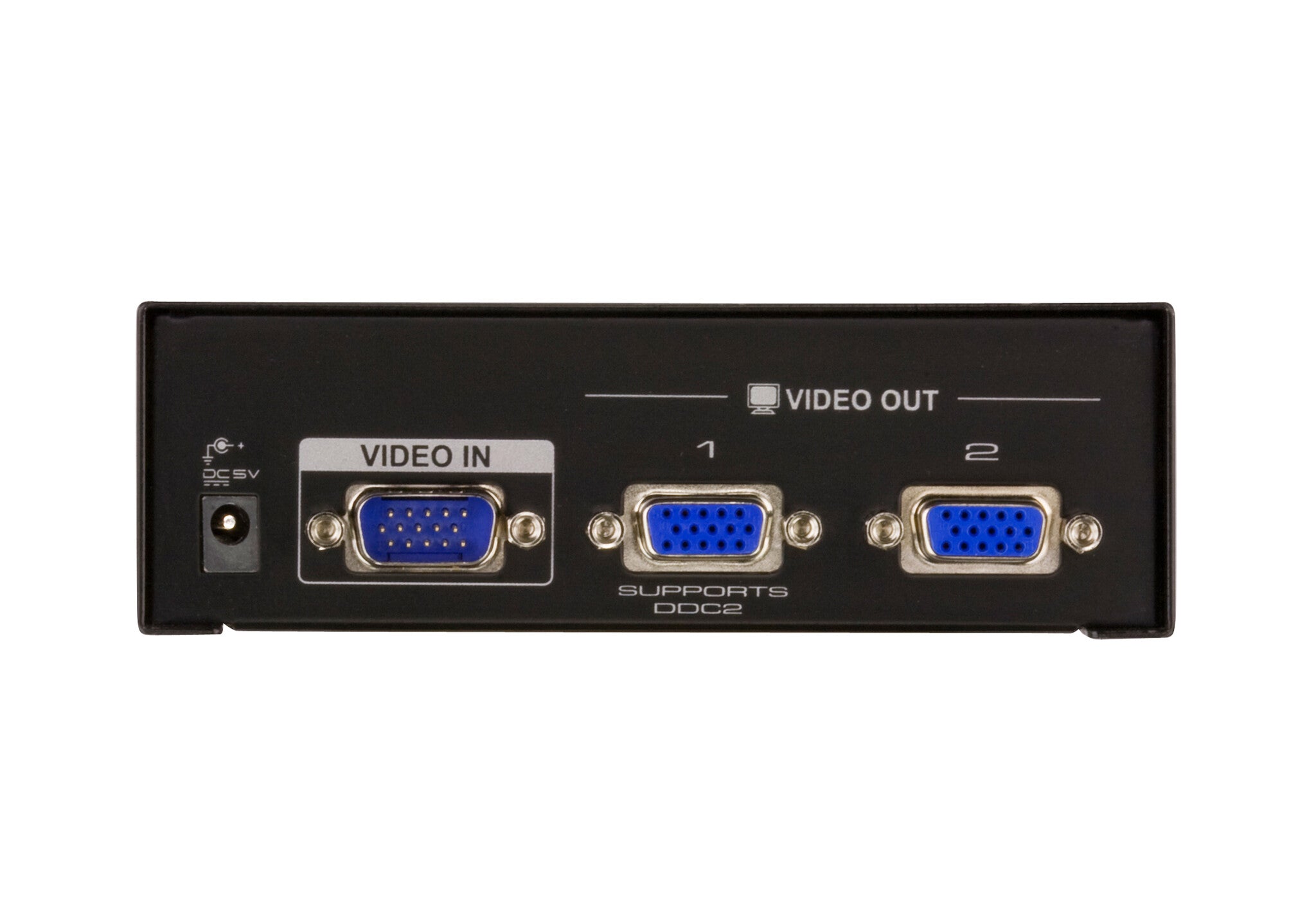

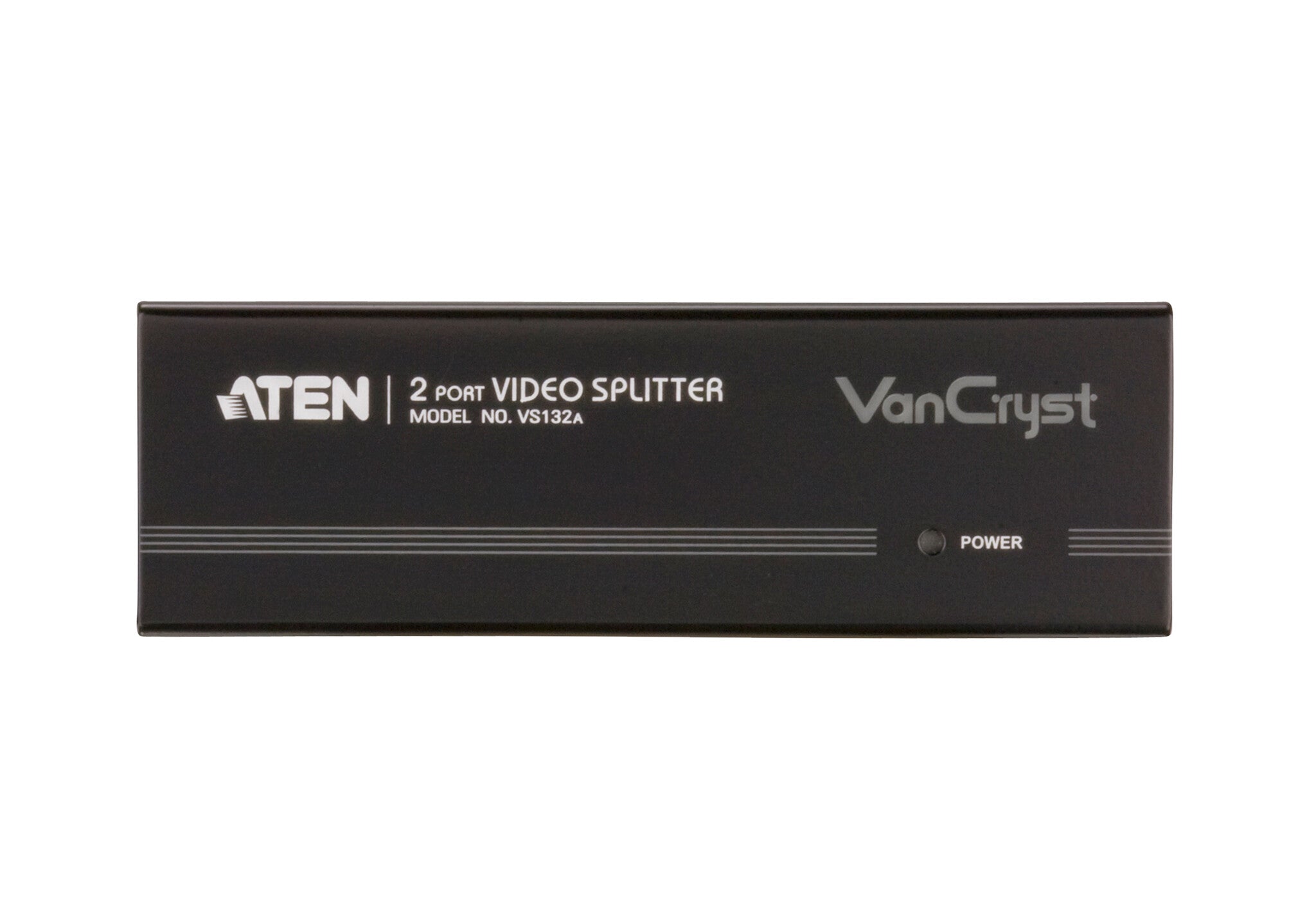

The VS132A Video Splitter is a boosting device that duplicates a video signal from one source to 2 output devices. Cascadable to three levels, the VS132A provides up to 8 video signals, in addition to extending transmission distance up to 30 m, making it excellent for public broadcast systems.

To transmit multiple, high-quality VGA, XGA, SVGA, UXGA, QXGA, WUXGA and multisync video signals over long distance without hassle, the VS132A is your best choice.

Applications include:
• Financial - the remote display of stock market information
• Education - the remote display of lectures and lessons to halls and classrooms
• Business - the remote display of addresses to overflow rooms; video conferencing; and demos
