ATEN AT-VS92AUK
£30.99
Couldn't load pickup availability
- One video input to 2 video outputs
- Cascadable to 3 levels - provides up to 8 video signals
- Supports 350 MHz bandwidth
- Long-distance transmission - up to 30 m *
- Superior video quality - 1920 x 1440@60Hz
- DDC, DDC2, DDC2B Compatible (Port 1 only)
- Supports VGA, XGA, SVGA, UXGA,WUXGA and multisync monitors
- All metal casing
- * Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality.

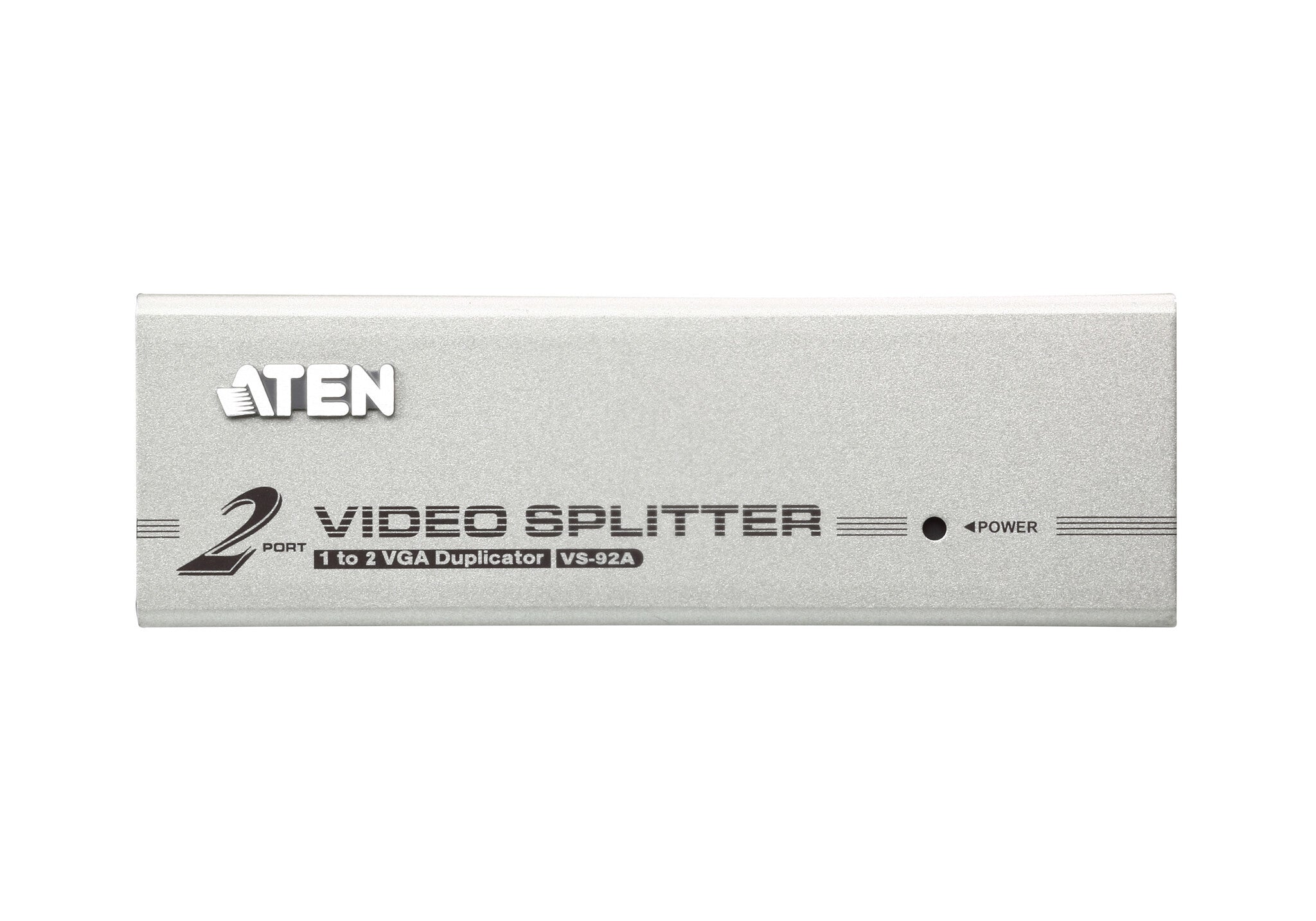

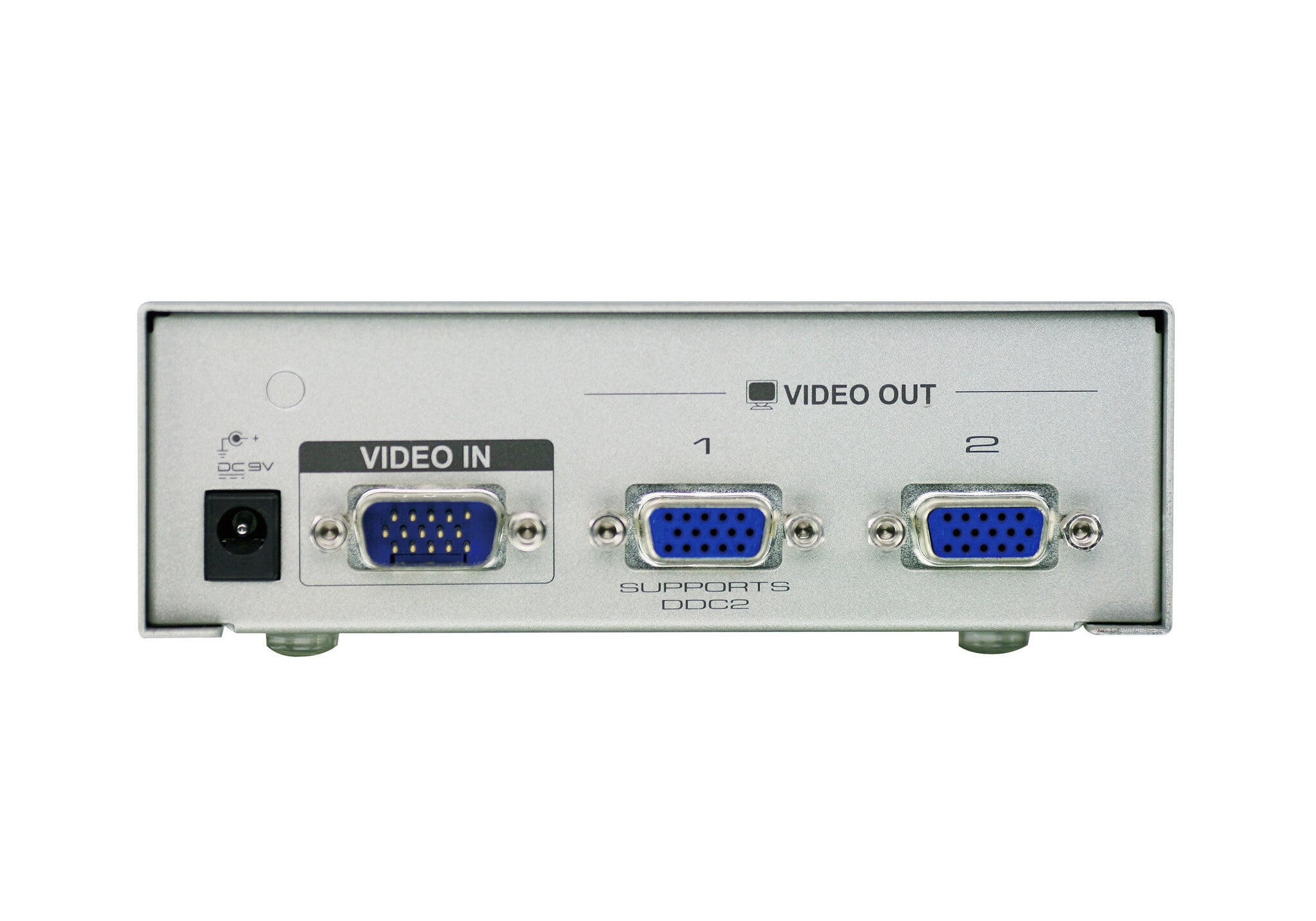

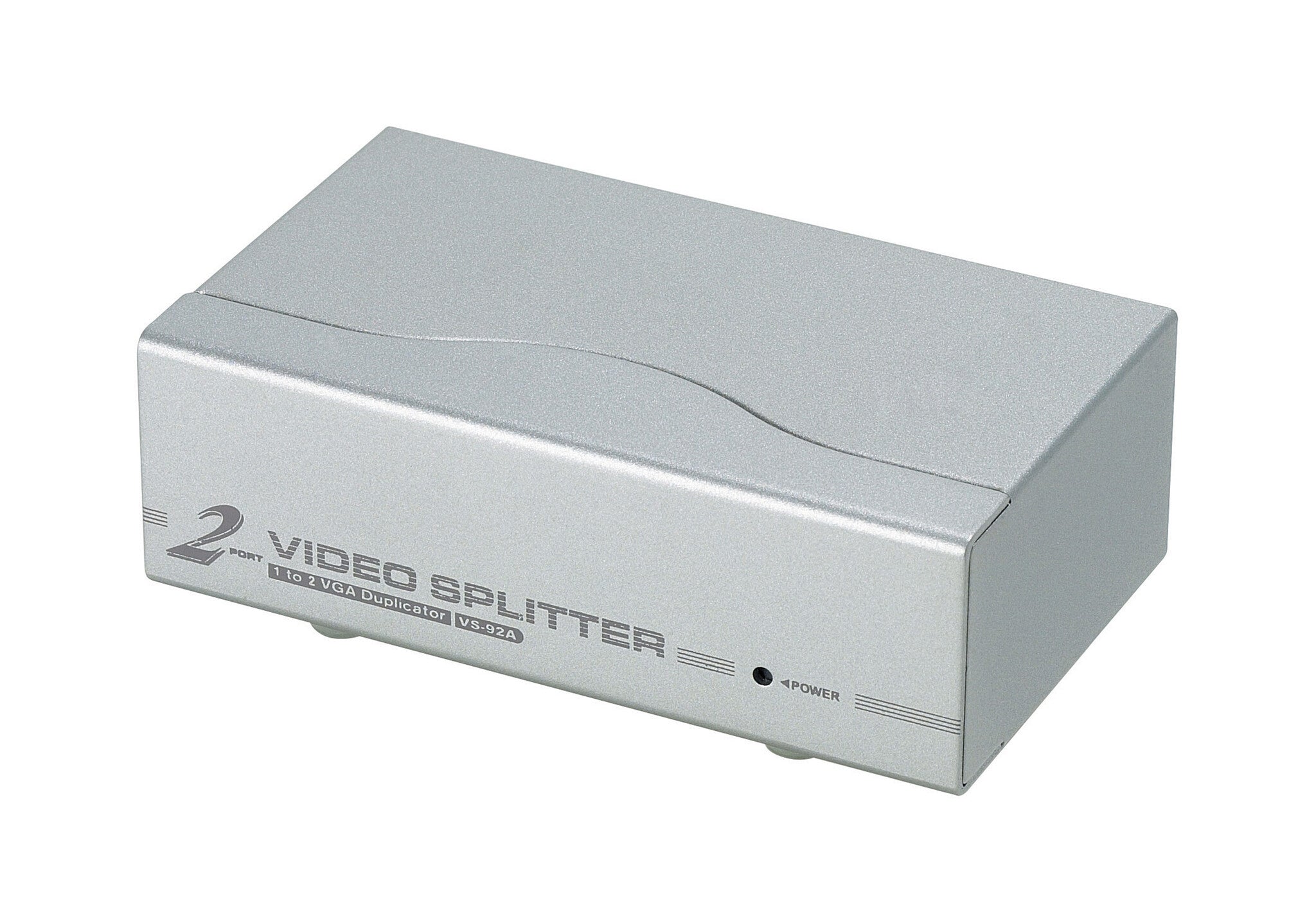

The VS92A is a video splitter that not only duplicates the video signal from any VGA, XGA, SVGA, UXGA, or multisync monitor to two outputs, but also boosts the video signal over a distance of up to 30 meters. Cascadable to support up to 8 displays, and offering bandwidth up to 350 MHz, the VS92A is ideal for broadcasting and enhancing video information to the public, monitoring your work environments from safe locations, or offering superior video for company or classroom training.
| Ports & interfaces | |
|---|---|
| Connector(s) | HDB-15 |
| Video out | 2x VGA |
| Video port type | VGA |
| Video ports quantity | 2 |
| Features | |
|---|---|
| Power LED | Yes |
| HDCP | No |
| Remote control included | No |
| Bandwidth | 350 MHz |
| Maximum operating distance | 65 m |
| 3D | No |
| Maximum resolution | 1920 x 1440 pixels |
| Product colour | Silver |
| Network | |
|---|---|
| Ethernet LAN | No |
| Power | |
|---|---|
| USB powered | No |
| Power consumption (typical) | 0.85 W |
| Weight & dimensions | |
|---|---|
| Dimensions (WxDxH) | 130 x 75 x 45 mm |
| Weight | 420 g |
| Packaging content | |
|---|---|
| Manual | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 85% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
