Logitech Rally Bar + Tap IP
Couldn't load pickup availability
- Group video conferencing system
- 4K Ultra HD 30 fps
- Built-in speaker(s) RMS rated power: 8 W
- DC-in jack Ethernet LAN 10,100,1000 Mbit/s Wi-Fi
- Omnidirectional
- Power source type: AC Lithium 220 mAh
- Graphite

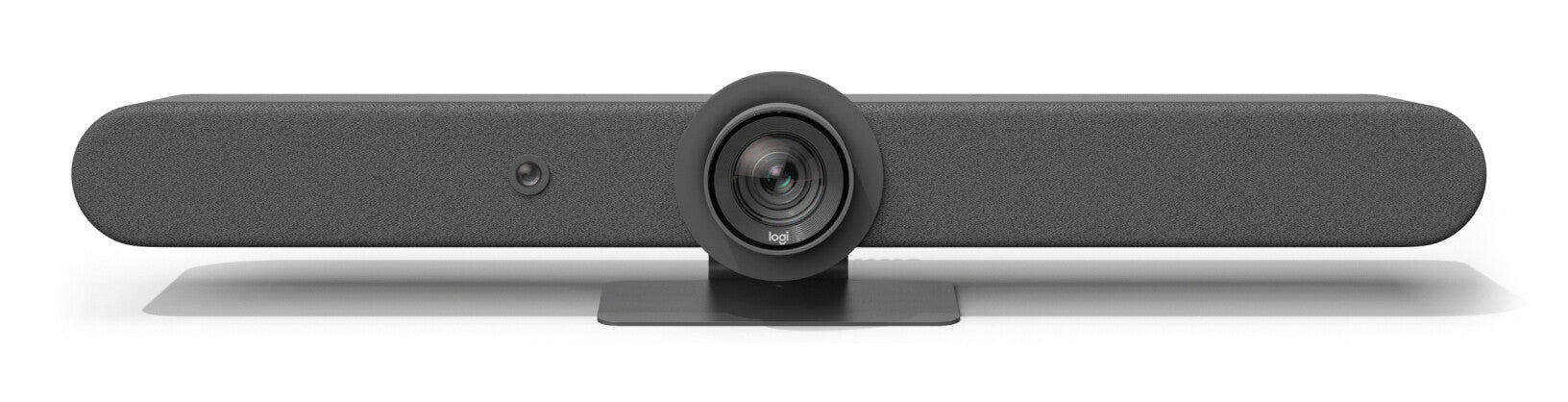

Rally Bar sets a new standard for video meetings in medium to large rooms, with expansion options for larger groups and settings. It’s remarkably simple to use, manage, and deploy at scale, delivering cinema-quality video and audio in a sleek, all-in-one form factor. Leverage the built-in compute to run video conferencing applications directly on the device.

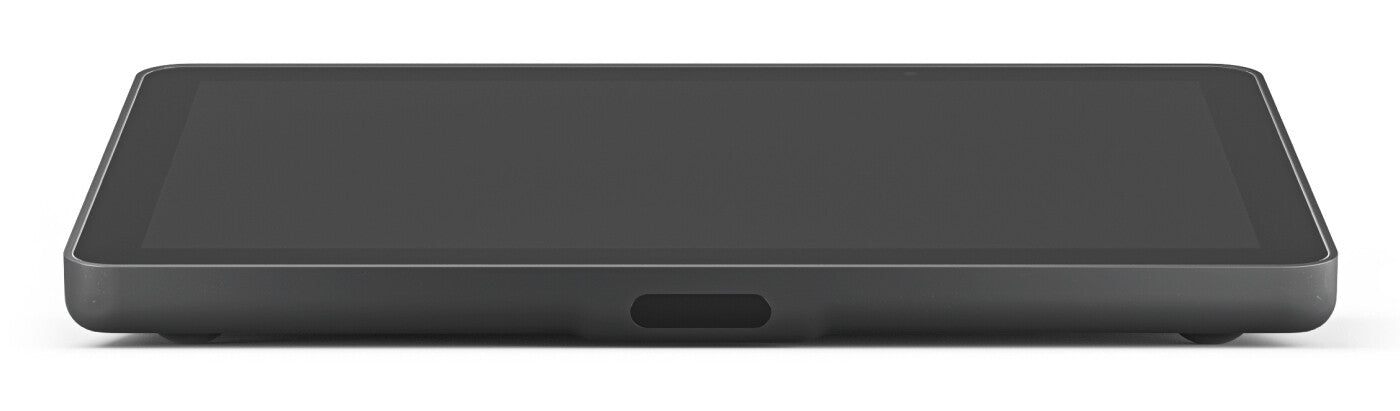

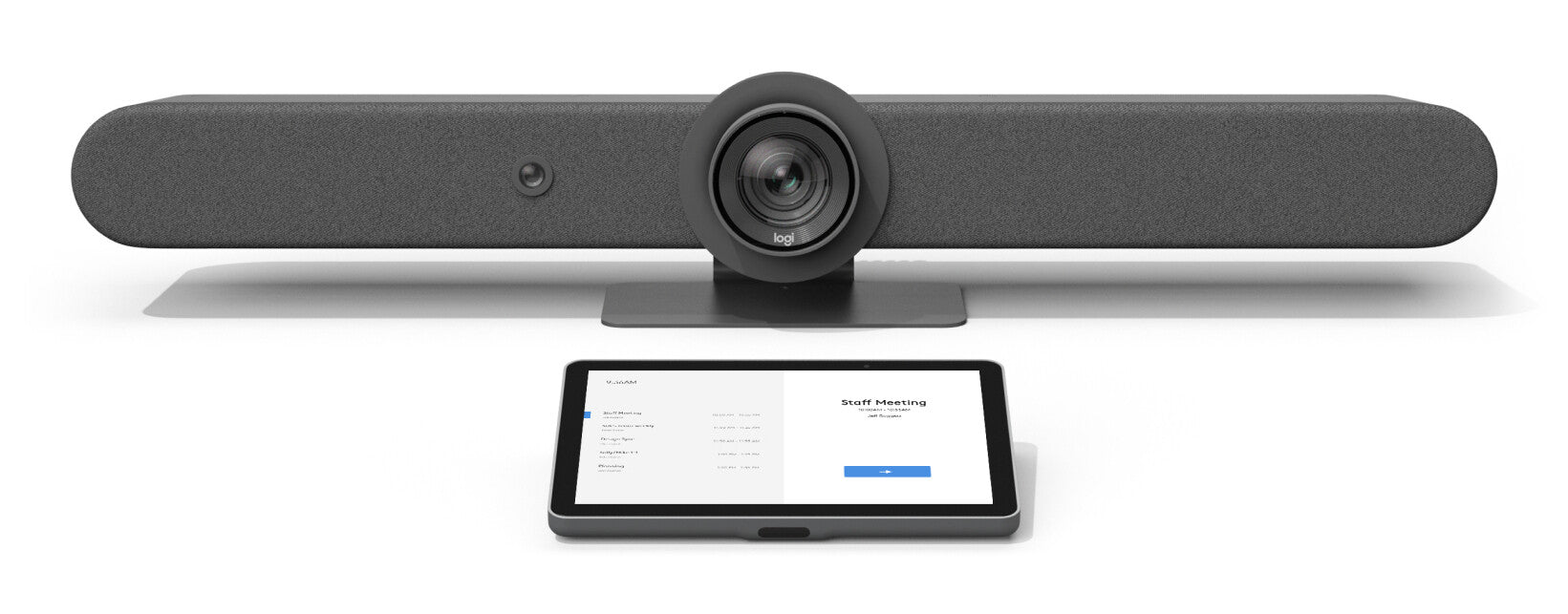

Together with Tap IP, the purpose-built touch controller has just the right presence with a spacious 10.1” display and sleek, low profile. Take advantage of its single Power over Ethernet (PoE) connection and variety of mounting options to install the touch controller anywhere in the room.
Prevent accidental disconnections thanks to built-in cable retention and strain relief, and be confident that each room stays ready for the next video meeting.
| Performance | |
|---|---|
| PTZ control | Yes |
| Tilt angle range | -15 - 15° |
| Pan range | -25 - 25° |
| Product colour | Graphite |
| Product type | Group video conferencing system |
| Video | |
|---|---|
| Maximum frame rate | 30 fps |
| Supported video modes | 576p, 720p, 900p, 1440p, 2160p |
| HD type | 4K Ultra HD |
| Audio | |
|---|---|
| Sample rates | 0 - 48 kHz |
| Noise reduction | Yes |
| Echo cancellation | Yes |
| RMS rated power | 8 W |
| Microphone pick-up range | 4.5 m |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Audio beamforming | Yes |
| Line-out impedance | 4 Ω |
| Output level | 92/99 dB |
| Built-in speaker(s) | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB connector type | USB Type-A, USB Type-C |
| HDMI output ports quantity | 2 |
| HDMI input ports quantity | 1 |
| HDMI ports quantity | 3 |
| Interface module | |
|---|---|
| Interface module RJ-45 ports quantity | 1 |
| Network | |
|---|---|
| Security algorithms | 128-bit AES |
| Supported network protocols | IPv4, IPv6 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Camera | |
|---|---|
| Remote control interface | Bluetooth |
| Diagonal field of view | 90° |
| Vertical field of view | 52.2° |
| Horizontal field of view | 82.1° |
| Display | |
|---|---|
| Oleophobic coating | Yes |
| Viewing angle, horizontal | 85° |
| Viewing angle, vertical | 85° |
| Display brightness | 400 cd/m² |
| Touchscreen type | Capacitive |
| Touchscreen | Yes |
| Contrast ratio (typical) | 1000:1 |
| Display resolution | 1280 x 800 pixels |
| Display diagonal | 25.6 cm (10.1") |
| Display | IPS |
| Microphone | |
|---|---|
| Number of microphones | 6 |
| Sound pressure level (max) | 90 dB |
| Microphone direction type | Omnidirectional |
| Microphone frequency | 90 - 16000 Hz |
| Microphone sensitivity | -36 dB |
| Computer system | |
|---|---|
| Mac operating systems supported | MacOS |
| Windows operating systems supported | Yes |
| Battery | |
|---|---|
| Battery capacity | 0.675 Wh |
| Logistics data | |
|---|---|
| Master (outer) case gross weight | 13 kg |
| Master (outer) case length | 1013 mm |
| Master (outer) case width | 270 mm |
| Master (outer) case height | 327 mm |
| Harmonized System (HS) code | 85176990 |
| Features | |
|---|---|
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Motion sensor | Yes |
| Telepresence | No |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Power | |
|---|---|
| Power plug type | Type G |
| Battery technology | Lithium |
| Battery capacity | 220 mAh |
| Number of batteries supported | 1 |
| DC input voltage | 19 V |
| Current | 4.754 A |
| AC input voltage | 100 - 240 V |
| Power source type | AC |
| Weight & dimensions | |
|---|---|
| Package weight | 13 kg |
| Package height | 314 mm |
| Package depth | 1007 mm |
| Package width | 264 mm |
| Weight | 7.08 kg |
| Height | 164 mm |
| Depth | 160 mm |
| Width | 910 mm |
| Interface module weight | 1 kg |
| Interface module dimensions (W x D x H) | 246.2 x 171.3 x 56.1 mm |
| Packaging content | |
|---|---|
| Packaging content | Logitech Rally Bar video bar Rally Bar Power supply Cables Lens caps Remote control User documentation Logitech Tap IP touch controller Tap IP VESA mounting screws (4) Microfiber Cloth Documentation |
| Quick start guide | Yes |
| Camera included | Yes |
| Remote control included | Yes |
| Batteries included | Yes |
| Mounting kit | Yes |
| HDMI cable length | 2 m |
| Power cable length | 2.5 m |
| Cables included | AC, DC, HDMI, USB Type-A to USB Type-C |
