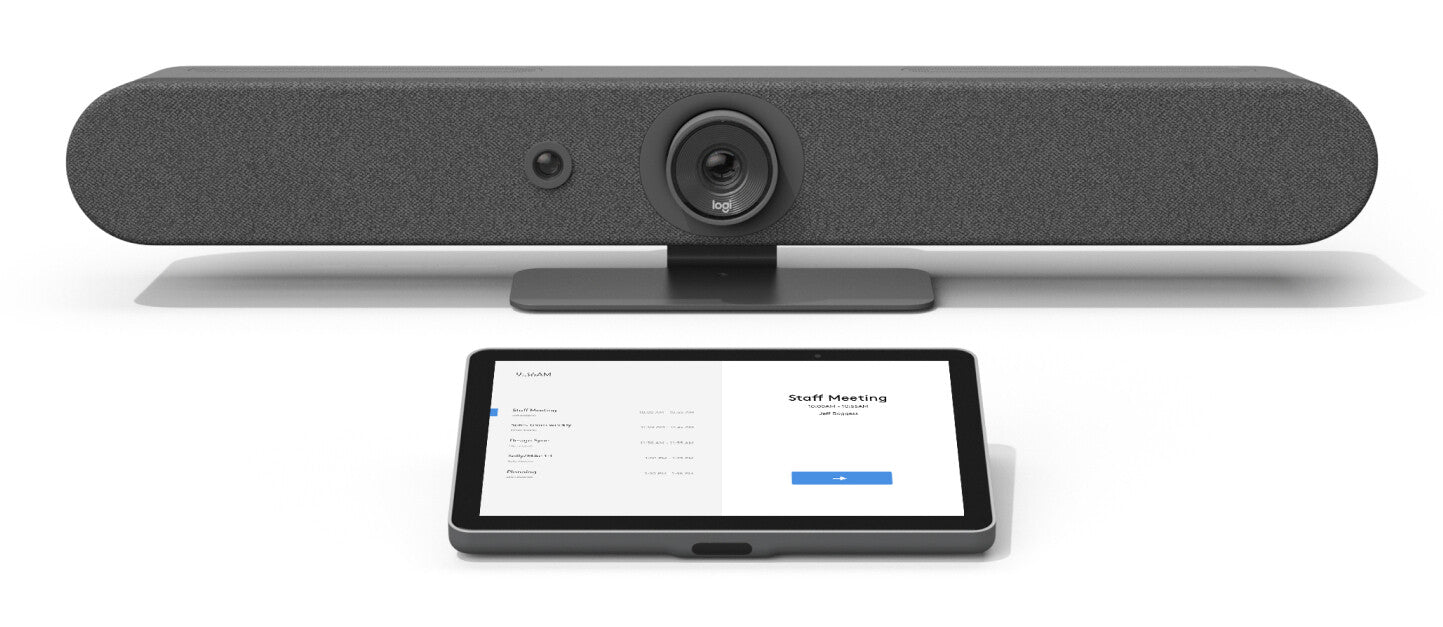

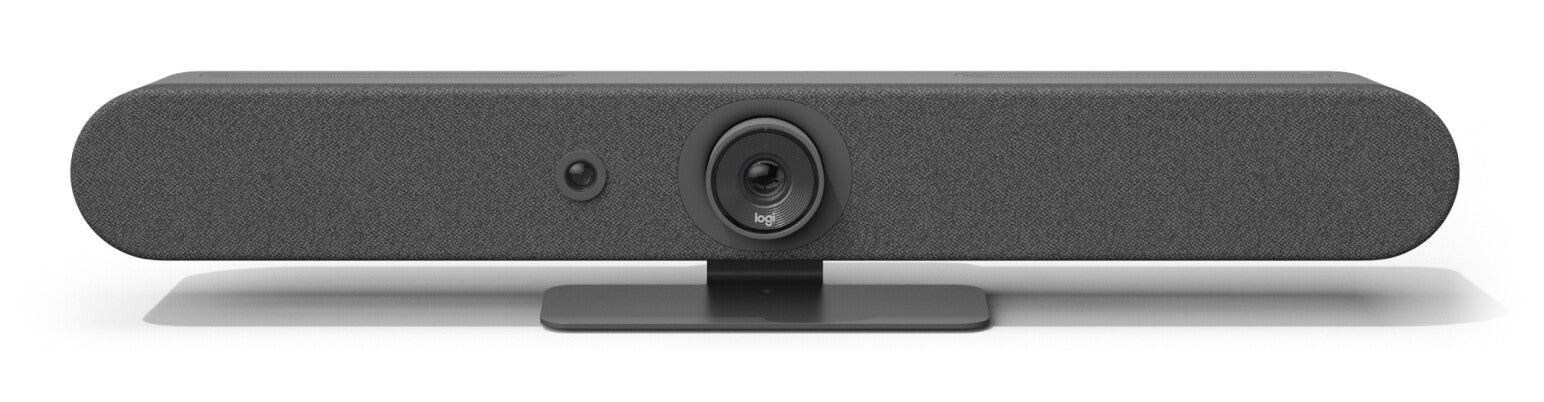

Logitech Rally Bar Mini
£3,067.99
Couldn't load pickup availability
- 4K Ultra HD 3840 x 2160 pixels 30 fps
- Built-in speaker(s) RMS rated power: 8 W
- DC-in jack Ethernet LAN 10,100,1000 Mbit/s Wi-Fi
- 4x
- Omnidirectional
- Power source type: AC Lithium 220 mAh
- Graphite
| Performance | |
|---|---|
| PTZ control | Yes |
| Tilt angle range | -15 - 15° |
| Pan range | -25 - 25° |
| Product colour | Graphite |
| Video | |
|---|---|
| Maximum frame rate | 30 fps |
| Supported video modes | 576p, 720p, 900p, 1440p, 2160p |
| Maximum video resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| Audio | |
|---|---|
| Sample rates | 0 - 48 kHz |
| Noise reduction | Yes |
| Echo cancellation | Yes |
| RMS rated power | 8 W |
| Microphone pick-up range | 4.5 m |
| Driver diameter | 7 cm |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Audio beamforming | Yes |
| Line-out impedance | 4 Ω |
| Output level | 92/99 dB |
| Built-in speaker(s) | Yes |
| Ports & interfaces | |
|---|---|
| Microphone in | Yes |
| DC-in jack | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB connector type | USB Type-A, USB Type-C |
| HDMI output ports quantity | 2 |
| HDMI input ports quantity | 1 |
| HDMI ports quantity | 3 |
| Network | |
|---|---|
| Security algorithms | 128-bit AES |
| Supported network protocols | IPv4, IPv6 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Camera | |
|---|---|
| Remote control interface | Bluetooth |
| Diagonal field of view | 120° |
| Vertical field of view | 80.7° |
| Horizontal field of view | 113° |
| Digital zoom | 4x |
| Zoom capability | Yes |
| Display | |
|---|---|
| Oleophobic coating | Yes |
| Viewing angle, horizontal | 85° |
| Viewing angle, vertical | 85° |
| Display brightness | 400 cd/m² |
| Touchscreen type | Capacitive |
| Touchscreen | Yes |
| Contrast ratio (typical) | 1000:1 |
| Display resolution | 1280 x 800 pixels |
| Display diagonal | 25.6 cm (10.1") |
| Display | IPS |
| Microphone | |
|---|---|
| Number of microphones | 6 |
| Sound pressure level (max) | 90 dB |
| Microphone direction type | Omnidirectional |
| Microphone frequency | 90 - 16000 Hz |
| Microphone sensitivity | -36 dB |
| Computer system | |
|---|---|
| Mac operating systems supported | MacOS |
| Windows operating systems supported | Yes |
| Battery | |
|---|---|
| Battery capacity | 0.675 Wh |
| Logistics data | |
|---|---|
| Master (outer) case gross weight | 8.87 kg |
| Master (outer) case length | 808 mm |
| Master (outer) case width | 258 mm |
| Master (outer) case height | 302 mm |
| Features | |
|---|---|
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Motion sensor | Yes |
| Telepresence | No |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Heat dissipation | 64 BTU/h |
| Power | |
|---|---|
| Power plug type | Type C |
| Battery technology | Lithium |
| Battery capacity | 220 mAh |
| Number of batteries supported | 1 |
| DC input voltage | 19 V |
| Current | 4.74 A |
| AC input voltage | 100 - 240 V |
| Power source type | AC |
| Weight & dimensions | |
|---|---|
| Package weight | 8.87 kg |
| Package height | 289 mm |
| Package depth | 802 mm |
| Package width | 252 mm |
| Weight | 4.03 kg |
| Height | 91.4 mm |
| Depth | 101 mm |
| Width | 719 mm |
| Interface module weight | 1 kg |
| Interface module dimensions (W x D x H) | 246.2 x 171.3 x 56.1 mm |
| Packaging content | |
|---|---|
| Packaging content | Logitech Rally Bar Mini video bar Rally Bar Mini Power supply Cables Lens caps Remote control User documentation Logitech Tap IP touch controller Tap IP VESA mounting screws (4) Microfiber Cloth Documentation |
| Quick start guide | Yes |
| Camera included | Yes |
| Remote control included | Yes |
| Batteries included | Yes |
| Mounting kit | Yes |
| AC adapter included | Yes |
| HDMI cable length | 2 m |
| Power cable length | 1.5 m |
| Cables included | AC, DC, HDMI, USB Type-A to USB Type-C |
