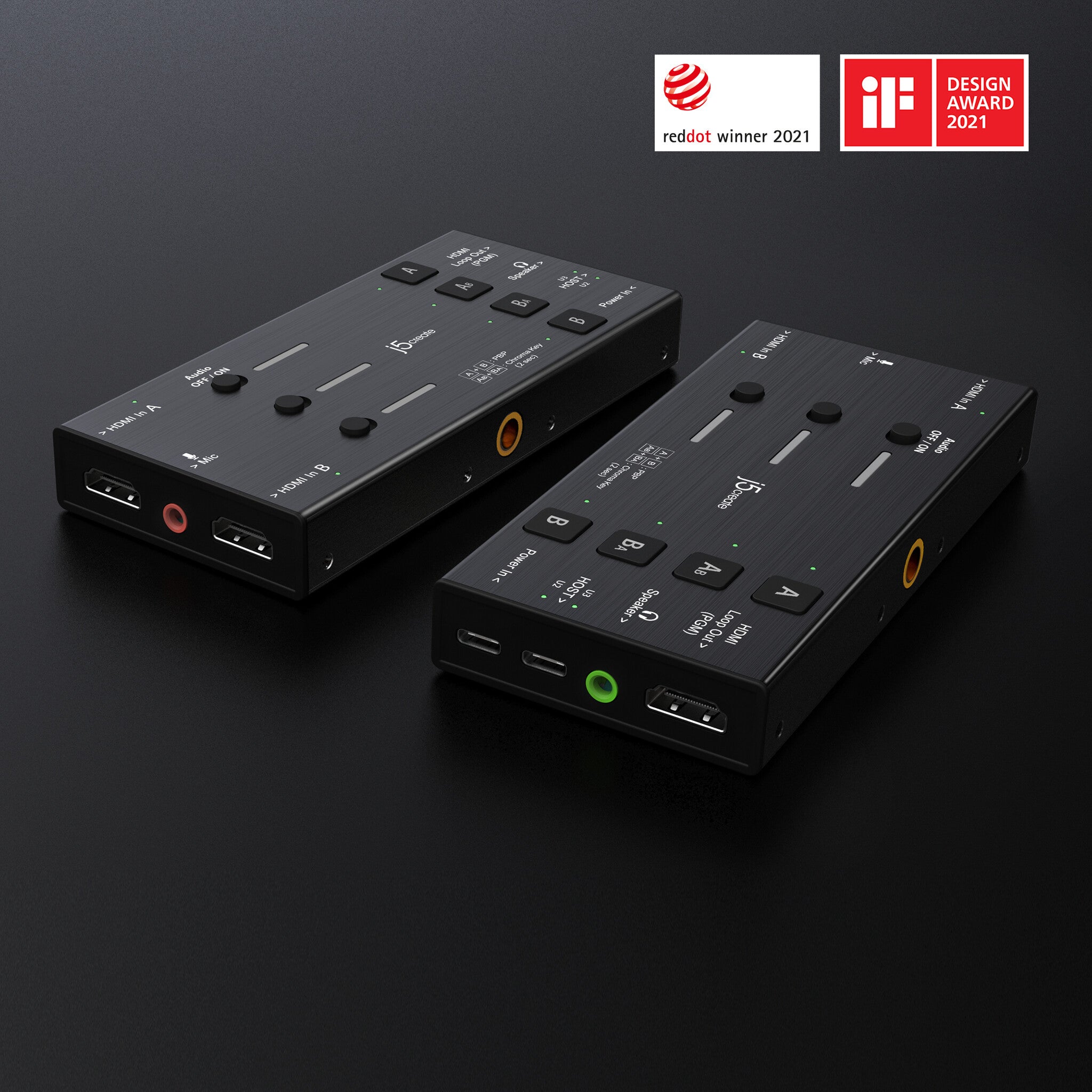

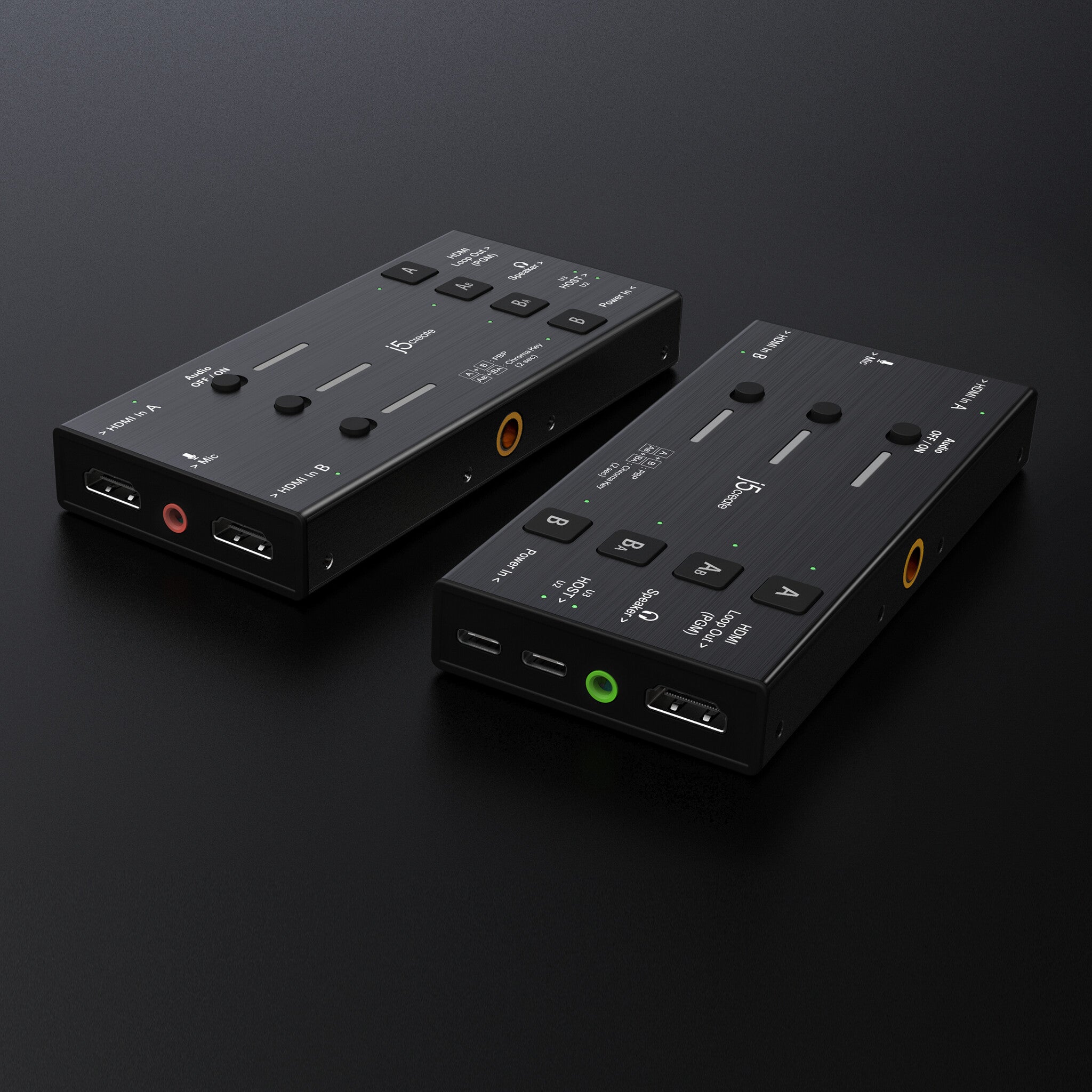

j5create JVA06 Dual HDMI™ Video Capture Card, 1920*1080 Video Capture Resolution, 3 x HDMI ports and 2 x USB ports, Black
Couldn't load pickup availability
- Dual HDMI™ input for capturing 2 channels
- Full HD video and audio high performance record/playback through USB-C™ 3.1 Gen1
- Uncompressed 1080p @ 60 FPS capture via HDMI™ 1.3a

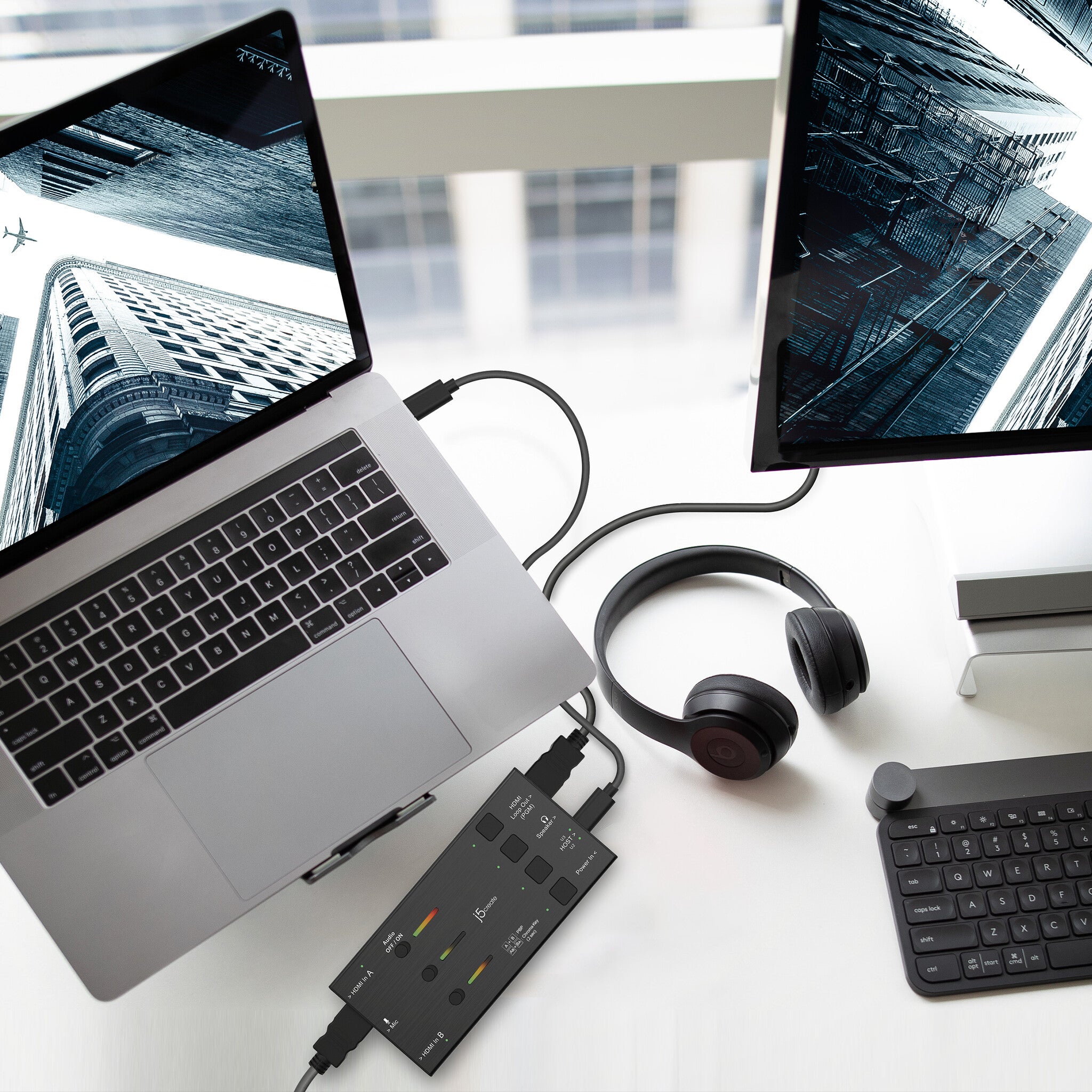

- Supports 1080p 60 HDMI™ loop out (PGM out)
- Six screen mode configurations with PIP (Picture in Picture) and PBP (Picture by Picture)

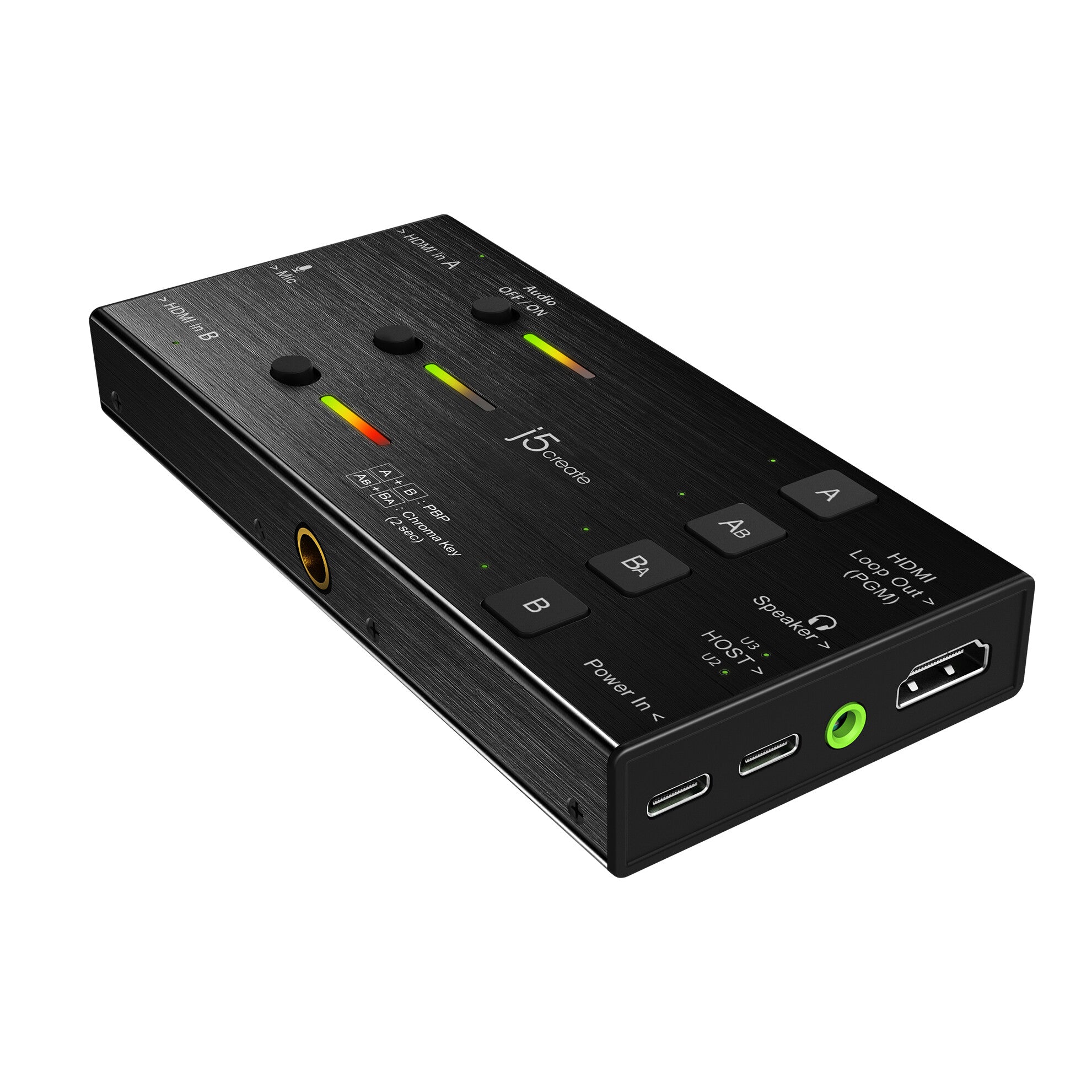

- Easily switch between different screen modes and adjust transition effects with the built-in buttons
- Directly activate Chroma Key features through the built-in controls

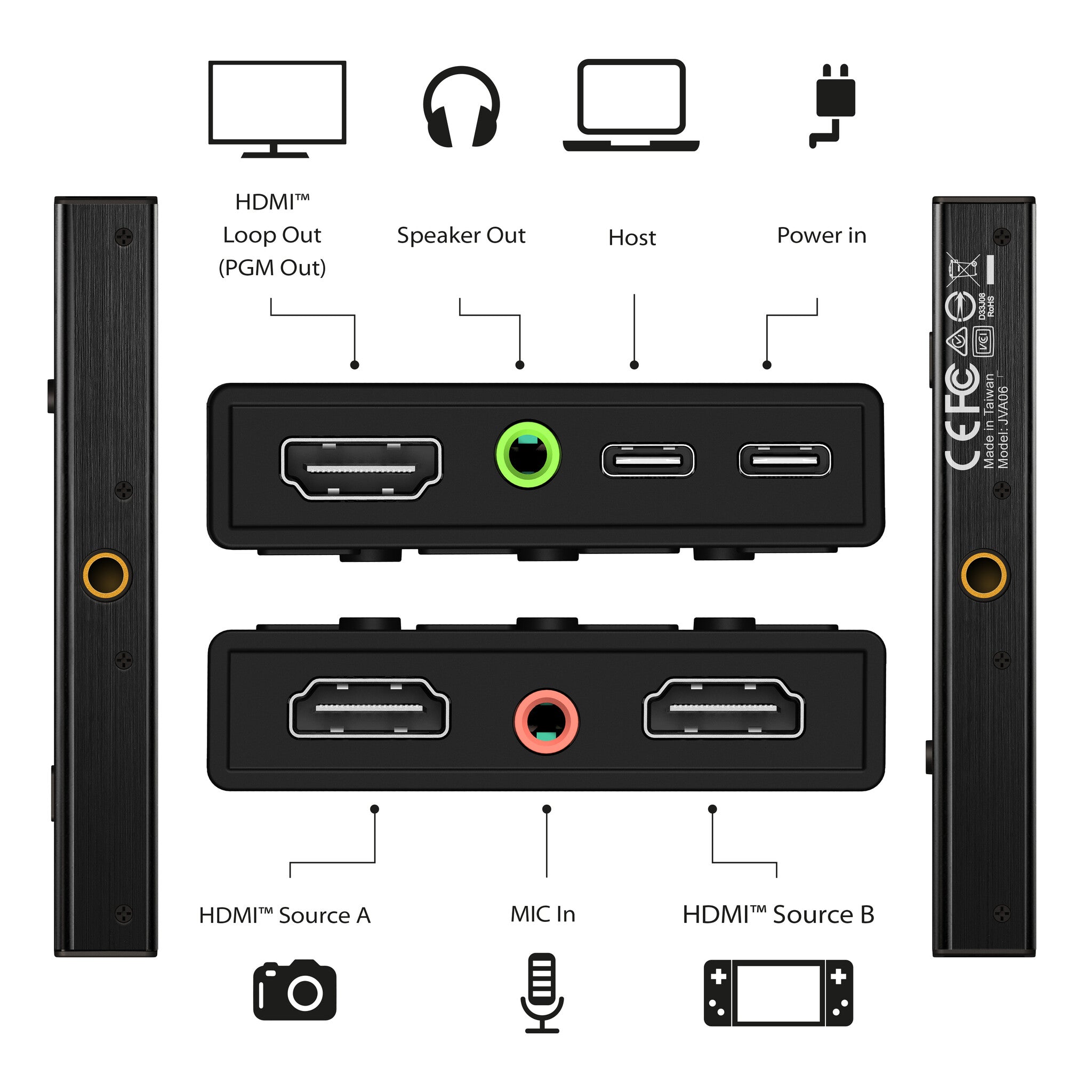

- Adjustable segmented window arrangements in PBP (Picture by Picture) mode. Flexible audio connection via HDMI™ or add external audio with 3.5 mm mic-in and speaker out audio jack
- 3 individual audio mixer on/off switches supported. 3 channel volume indicators. Easy DSLR attachment with 2 cold shoe adapters (included). Supports USB-C™ Power Delivery 3.0
- UVC standard, plug & play. LED activity indicator

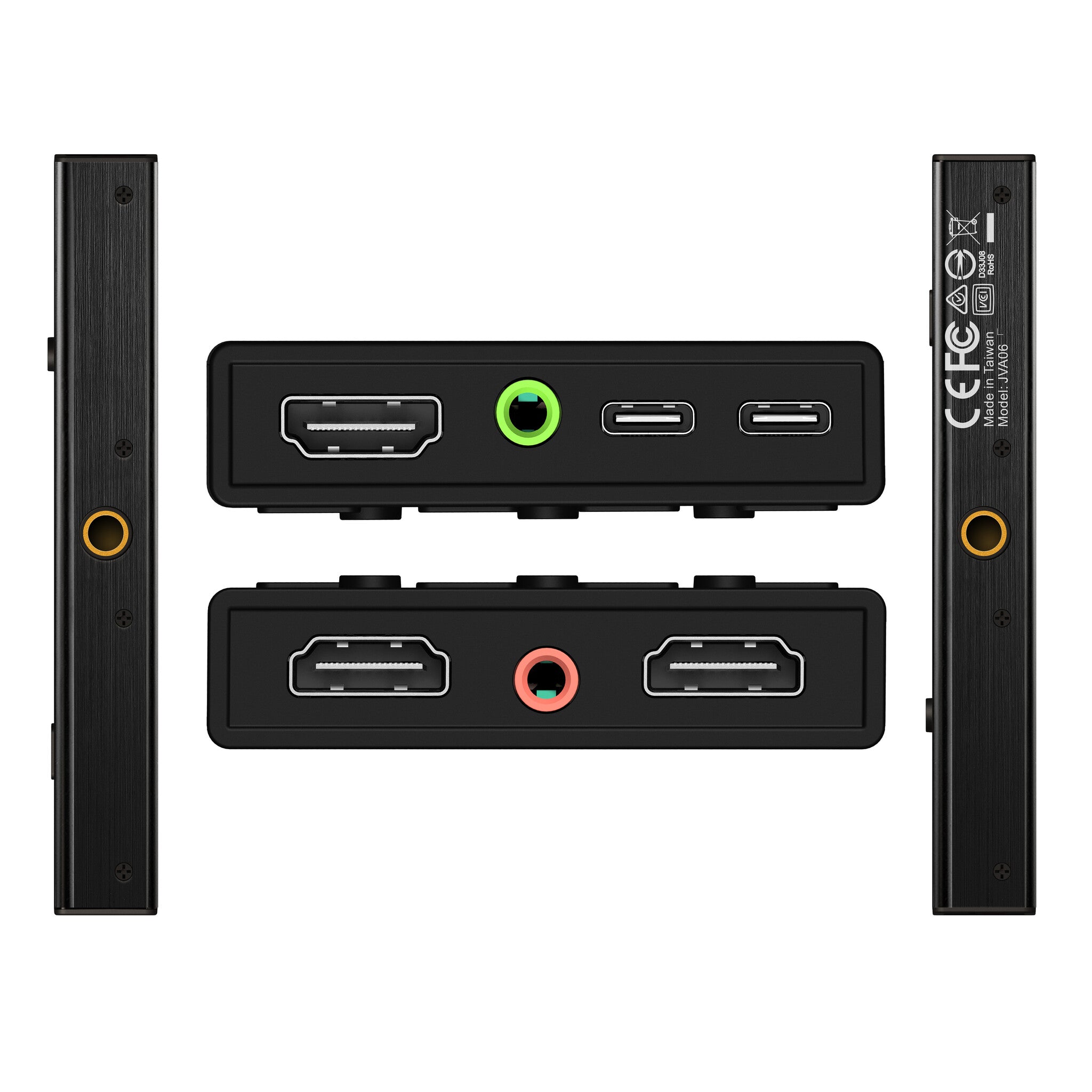

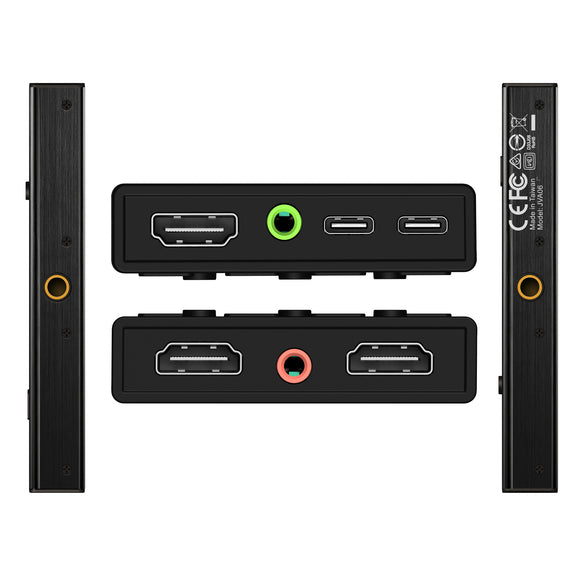

- • HDMI™ IN
- • USB™ Link
- • Volume Unit

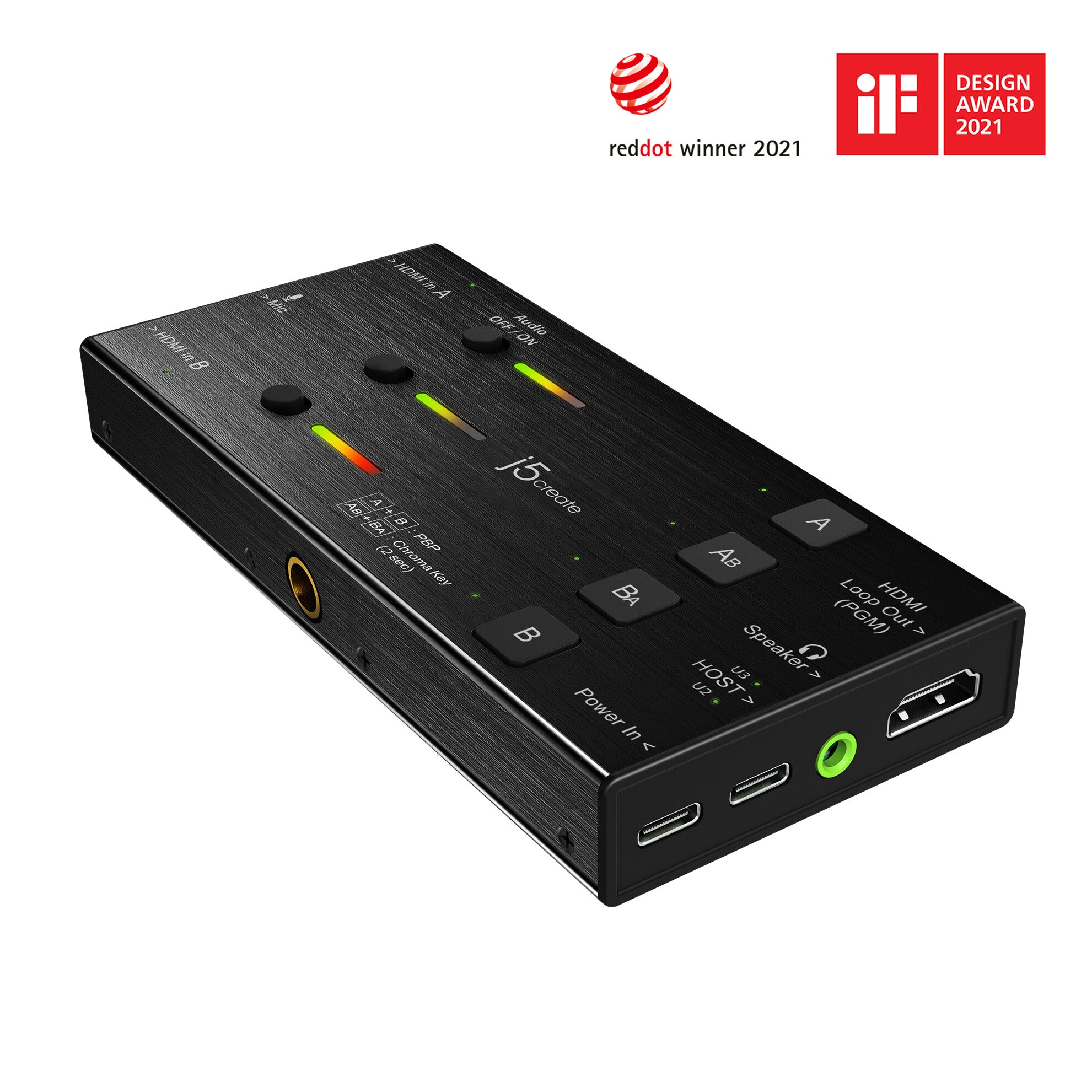

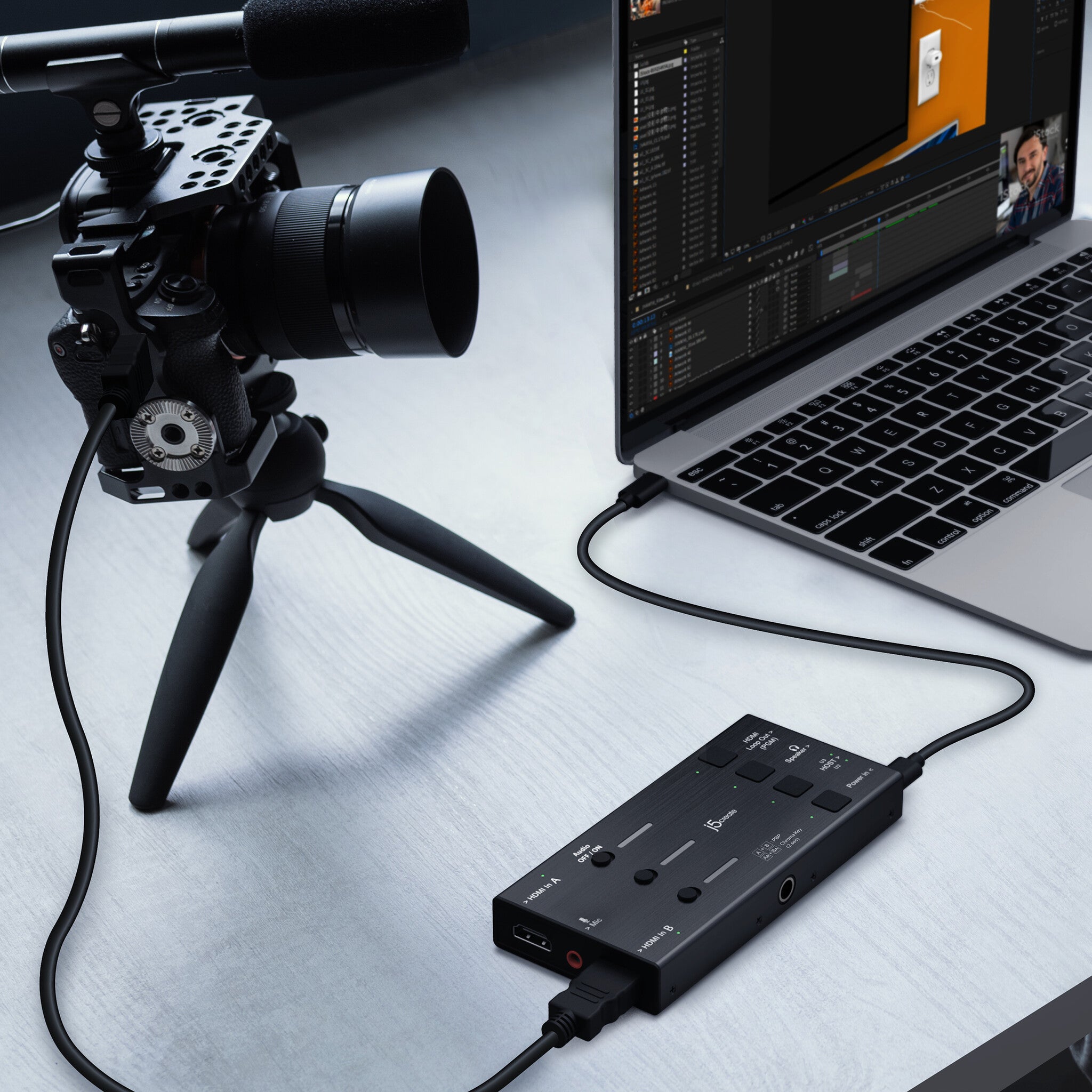

The JVA06 Dual HDMI™ Video Capture allows users to capture uncompressed 1080p video from two HDMI™ sources simultaneously and customize the content in real time. Whether you’re live streaming or recording, there are six screen mode configurations available, including PIP (Picture in Picture) and PBP (Picture by Picture) displays. You can quickly adjust the display settings and transitions with the built-in buttons on the device. The JVA06 also features a Chroma Key application allowing users to drop in a new background image.
With a flexible audio connection via HDMI™ or analog 3.5 mm port, you can record audio directly from your HDMI™ sources and microphone. It has a built-in audio mixer function allowing users to toggle between four different audio settings and three audio inputs (Mic In, HDMI™ A and HDMI™ B).

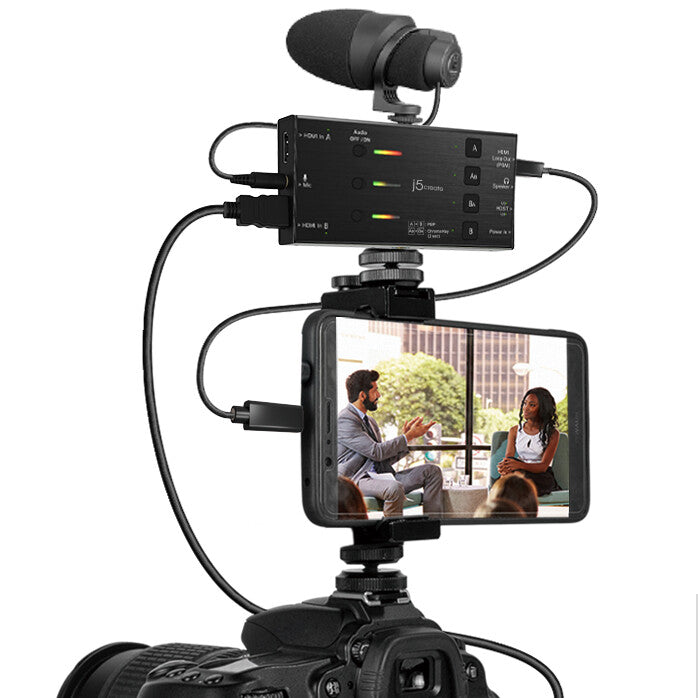

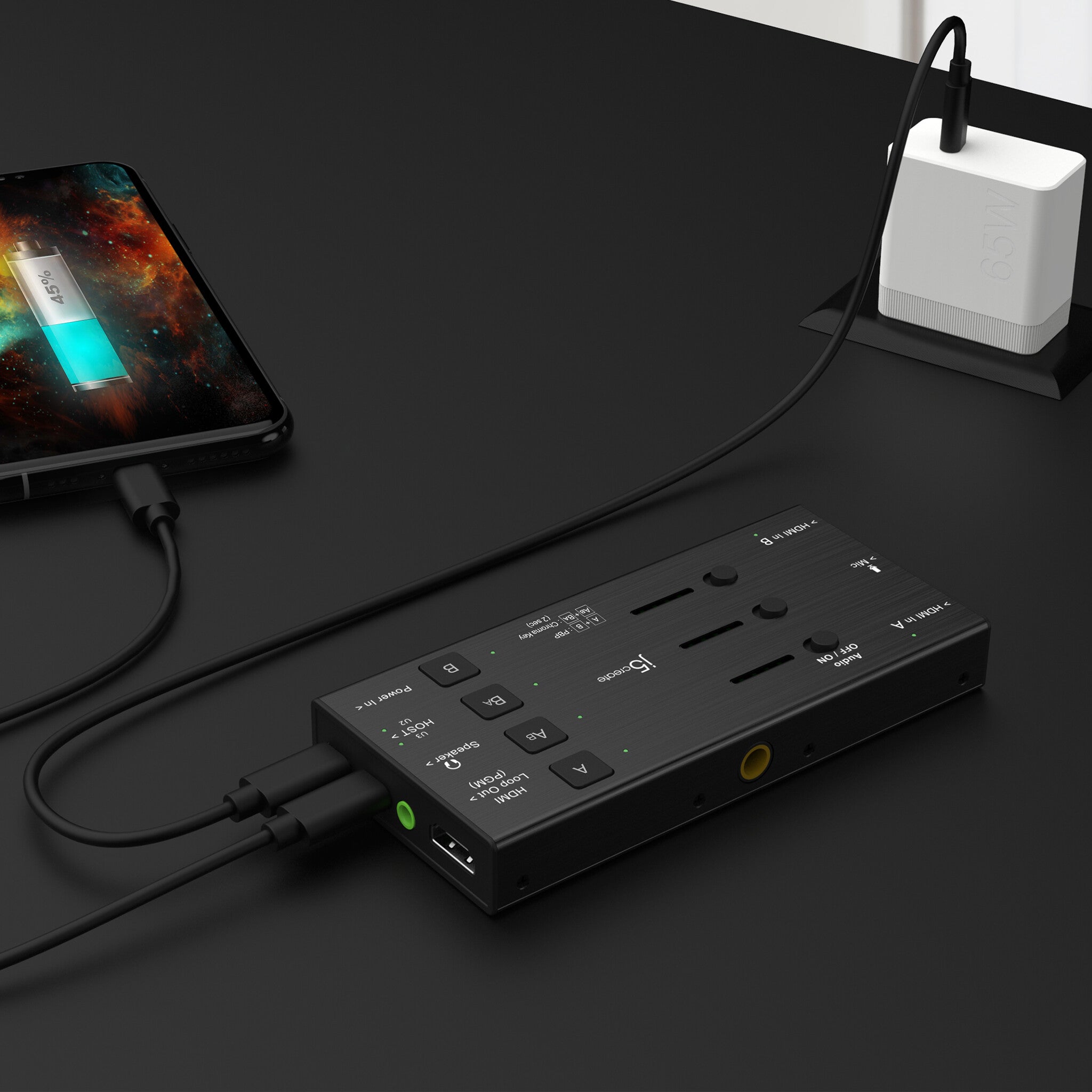

The JVA06 is perfect for content creators/producers who want to level up their content without spending a fortune and live streamers who want to simplify their setup without compromising the quality of their content. It features a USB-C® host connection with Power Delivery 3.0 and two cold shoe adapters to attach to your DSLR for the perfect combination of ease-of-use and mobility, giving you the ability to live stream without interruptions and charge your connected USB-C device at the same time.
| Performance | |
|---|---|
| Country of origin | Taiwan |
| Housing material | Aluminium |
| Supported aspect ratios | 16:9 |
| LED indicators | USB |
| Cable length | 0.6 m |

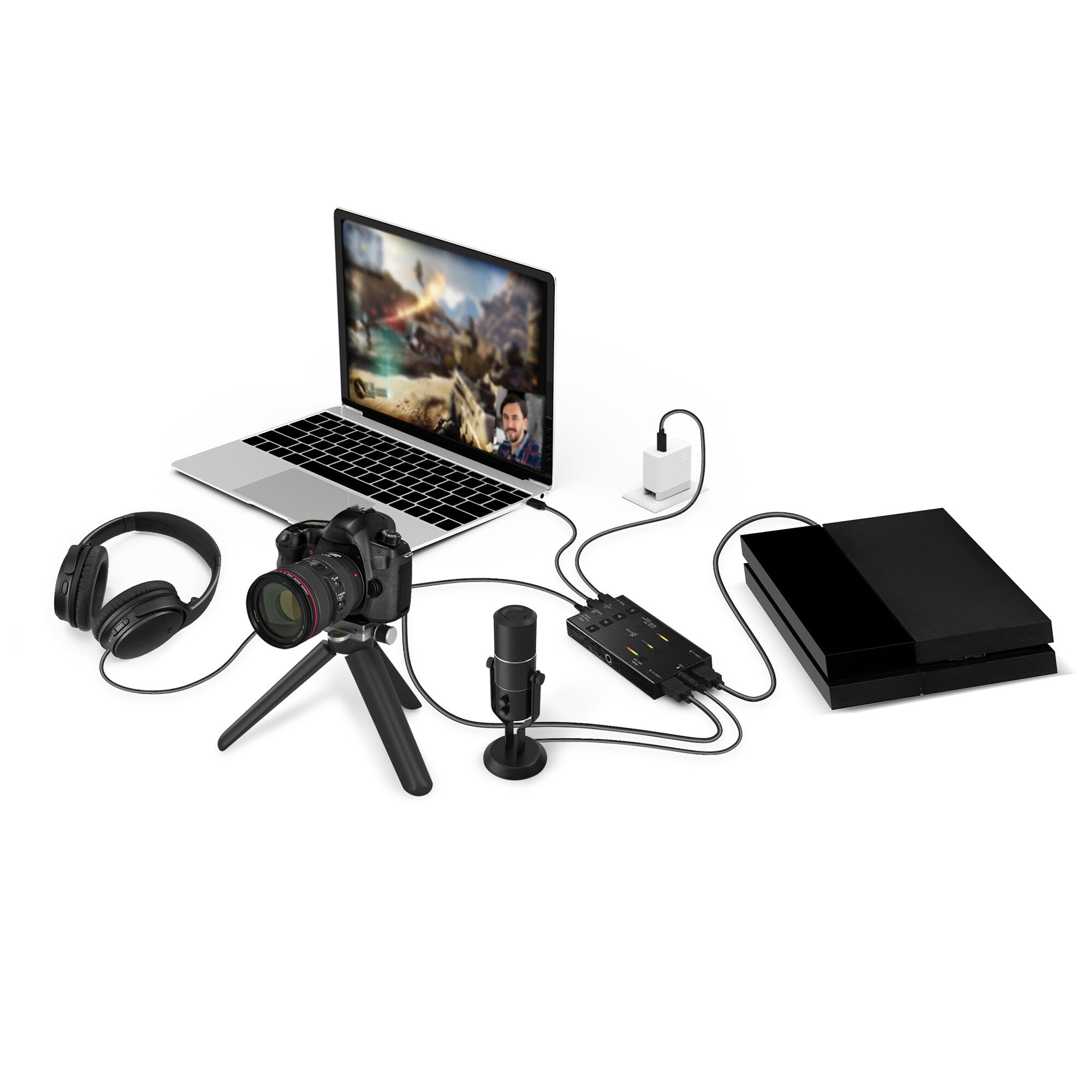

| Capturing from | Digital camera, Game console, PC |
| Video capture resolution (max) | 1920 x 1080 pixels |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| Internal | No |
| Product colour | Black |
| Video | |
|---|---|
| Supported video modes | 1080p |
| Maximum frame rate | 60 fps |
| Supported resolutions | 640 x 480 720 x 480 720 x 576 800 x 600 1280 x 720 1024 x 768 1360 x 768 1280 x 800 1152 x 864 1440 x 900 1280 x 1024 1400 x 1050 1680 x 1050 1600 x 1200 1920 x 1080 |
| Analog signal format system | Not supported |
| Audio | |
|---|---|
| Supported audio channels | 2 |

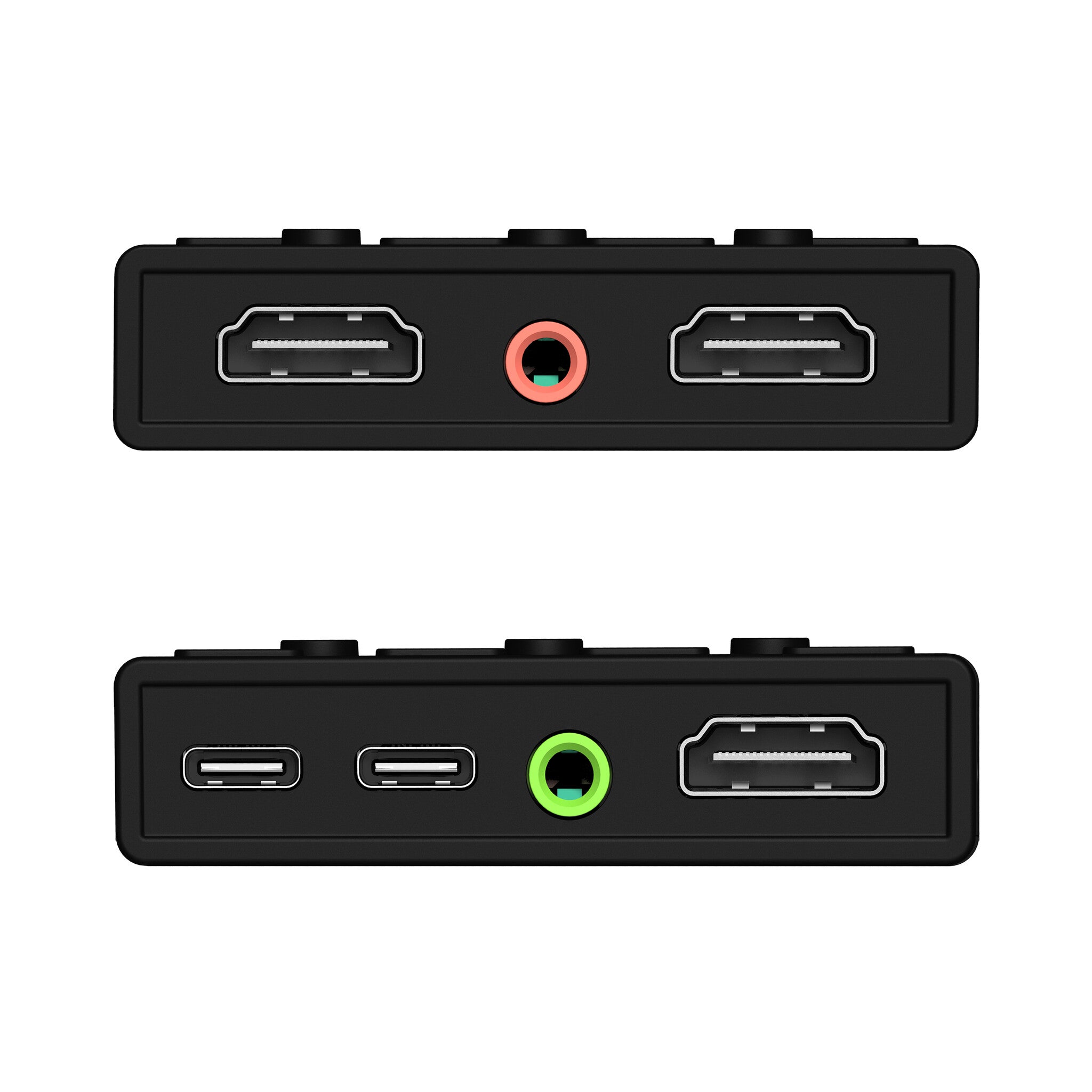

| Ports & interfaces | |
|---|---|
| Number of HDMI outputs | 1 |
| HDMI in | 2 |
| HDMI ports quantity | 3 |
| USB ports quantity | 2 |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-A, USB Type-C |
| USB port | Yes |
| Power | |
|---|---|
| Output voltage | 20 V |
| Output current | 0.9 A |
| Power supply type | USB |
| Software | |
|---|---|
| Bundled software | Recommended software: OBS™ |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Yes |
| Mac compatibility | Yes |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 - 85% |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -10 - 65 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Technical details | |
|---|---|
| Warranty period | 2 year(s) |
| Weight & dimensions | |
|---|---|
| Weight | 175 g |
| Height | 18.4 mm |
| Depth | 63.7 mm |
| Width | 134.6 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package height | 70 mm |
| Package width | 155 mm |
| Package depth | 95 mm |
| Package weight | 415 g |
| Packaging content | |
|---|---|
| Packaging content | 1 x JVA06 Dual HDMI™ Video Capture, 1 x Quick Installation Guide, 1 x USBxC™ 2.0 to USBxC™ cable, 1 x USBxC™ 3.0 to USB™ TypexA cable, 1 x 39.4 in./100 cm HDMI™ cable |
| Quantity | 1 |
| Manual | Yes |
| Quick installation guide | Yes |
| Cables included | HDMI, USB Type-C, USB Type-C to USB Type-A |
