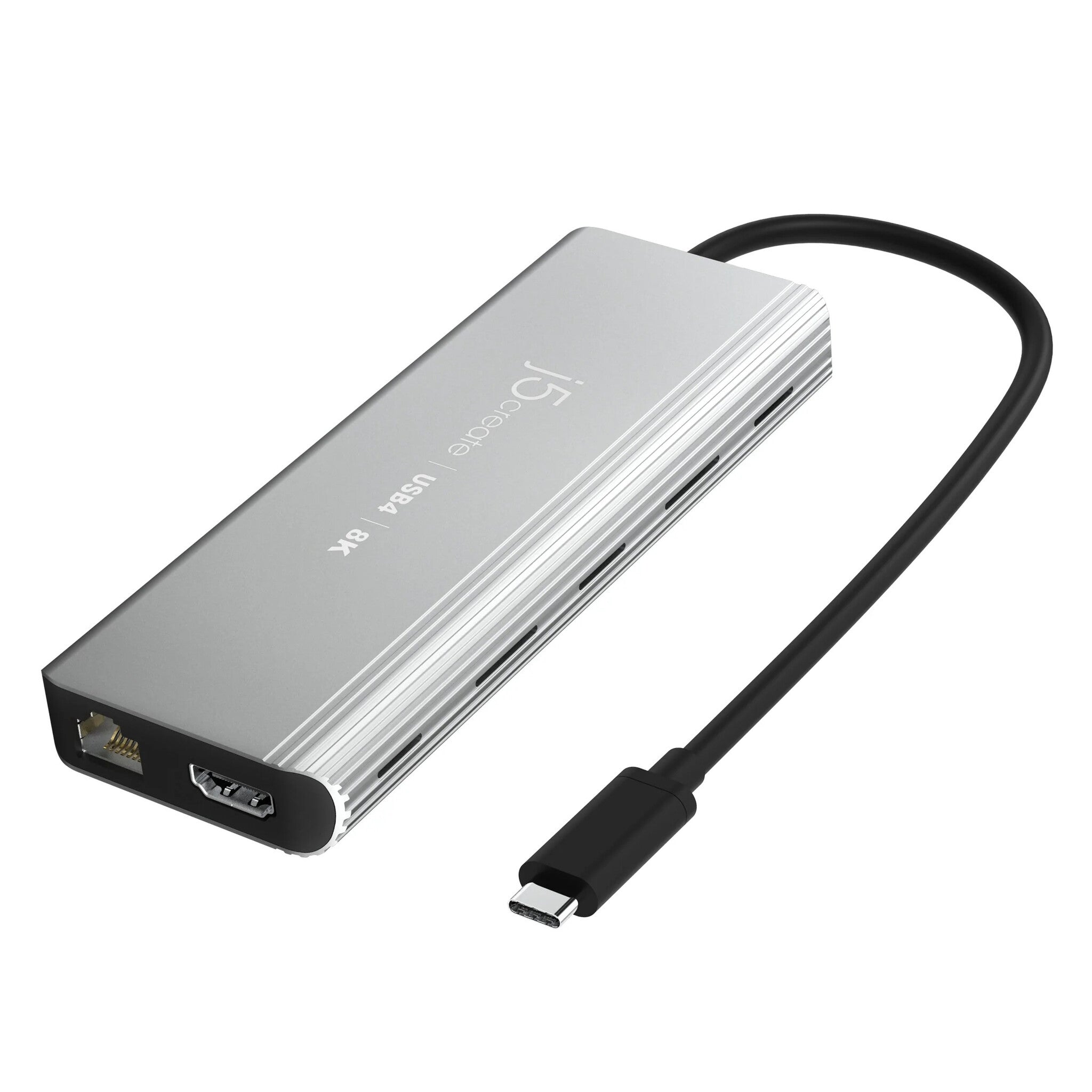

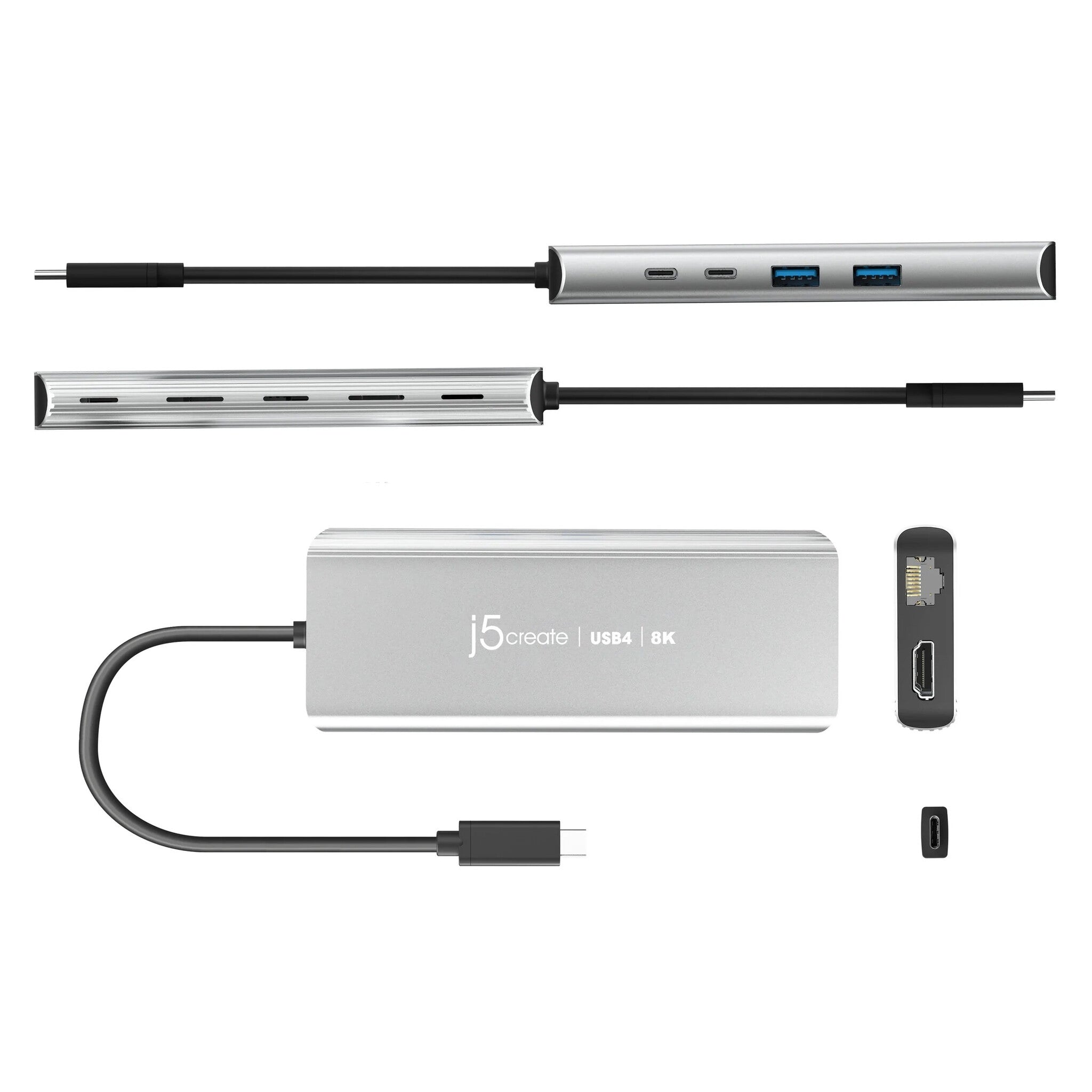

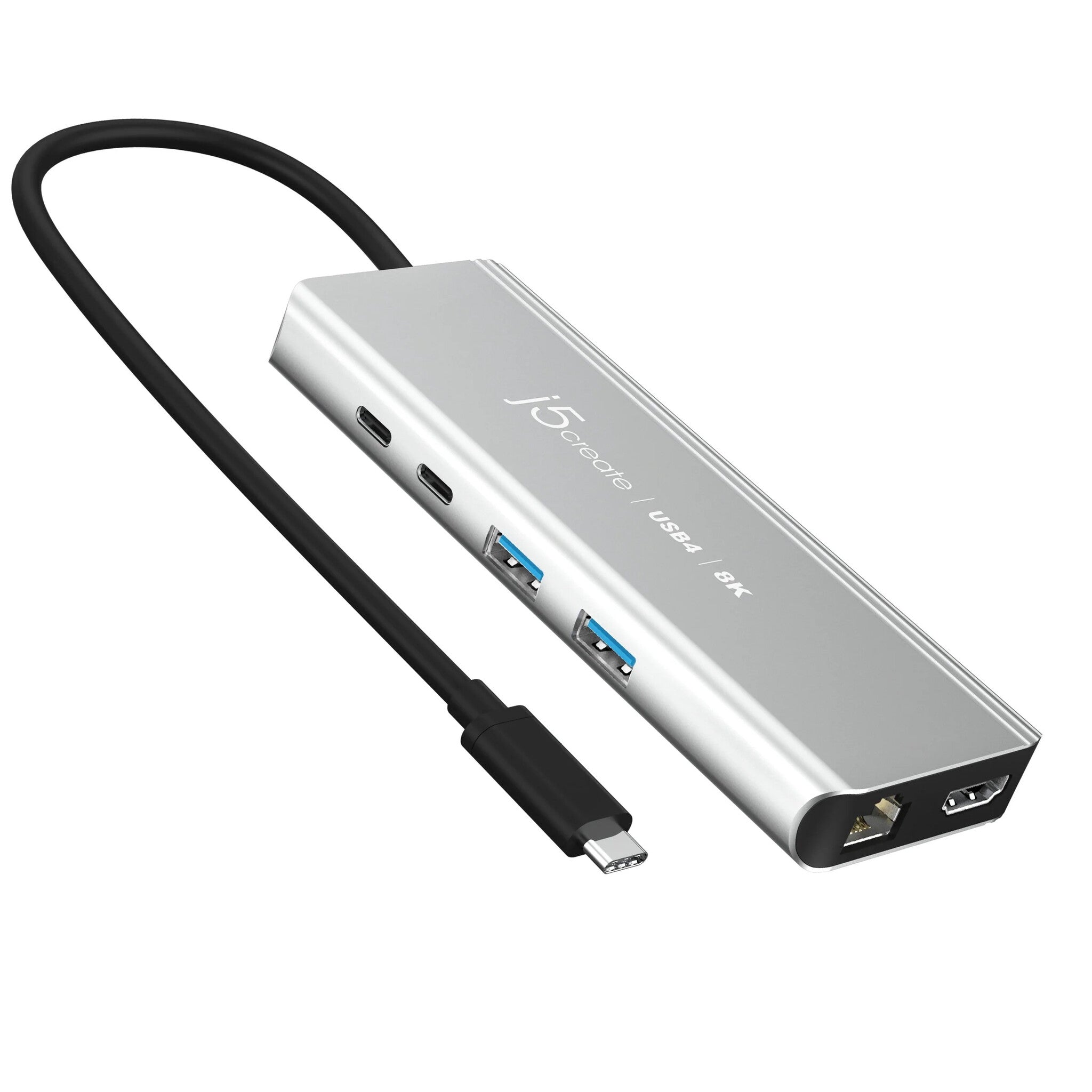

j5create JCD403 USB4® 8K Multi-Port Hub
iFrame
£85.99
Couldn't load pickup availability

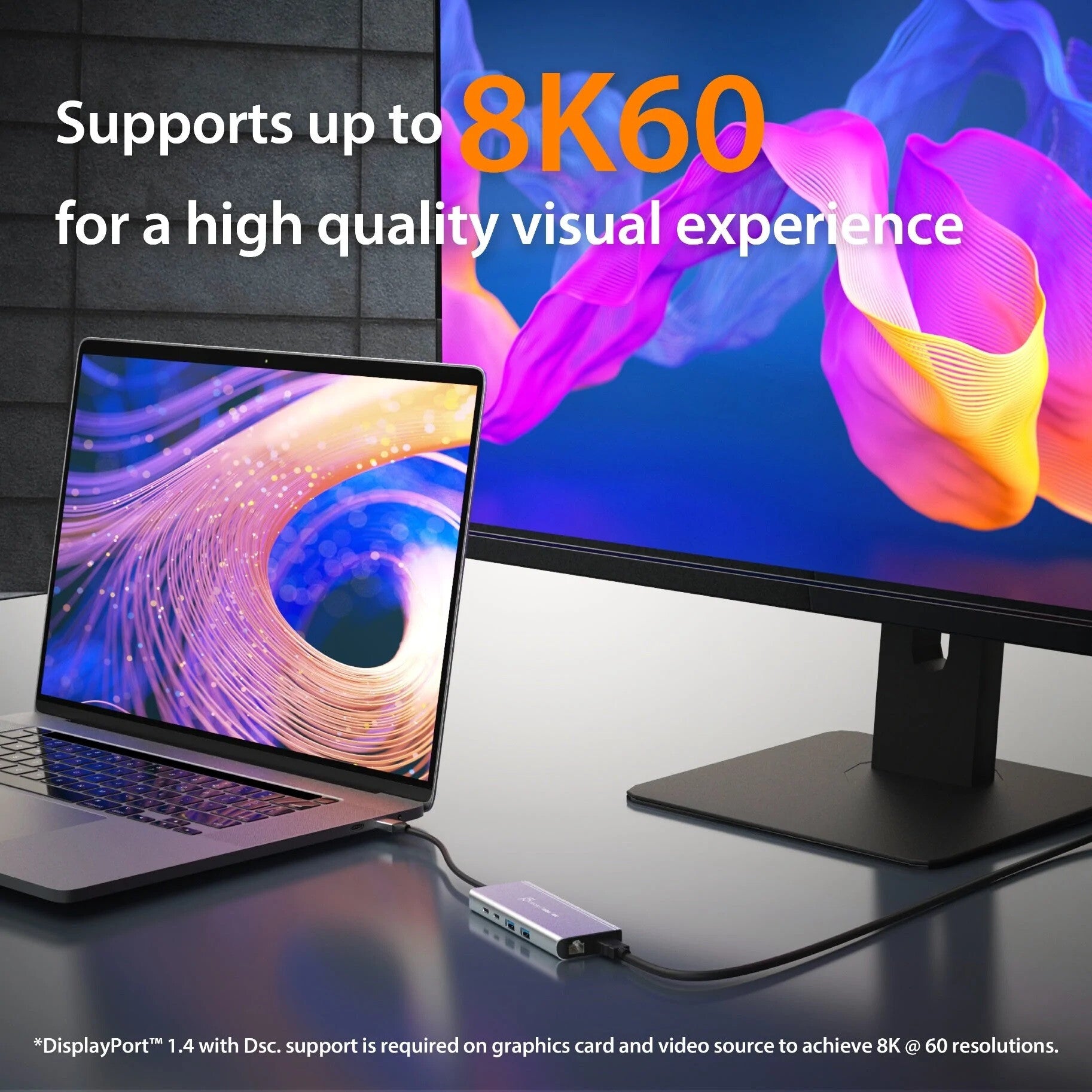

- Supports resolutions up to 8K
- Compatible with Thunderbolt™ 4, Thunderbolt™ 3 or other USB-C® host laptops
- Thunderbolt™ 4, USB4® is required to achieve 8K resolutions
- Also supports other USB™ 3.2 host laptops and lower resolution monitors/displays

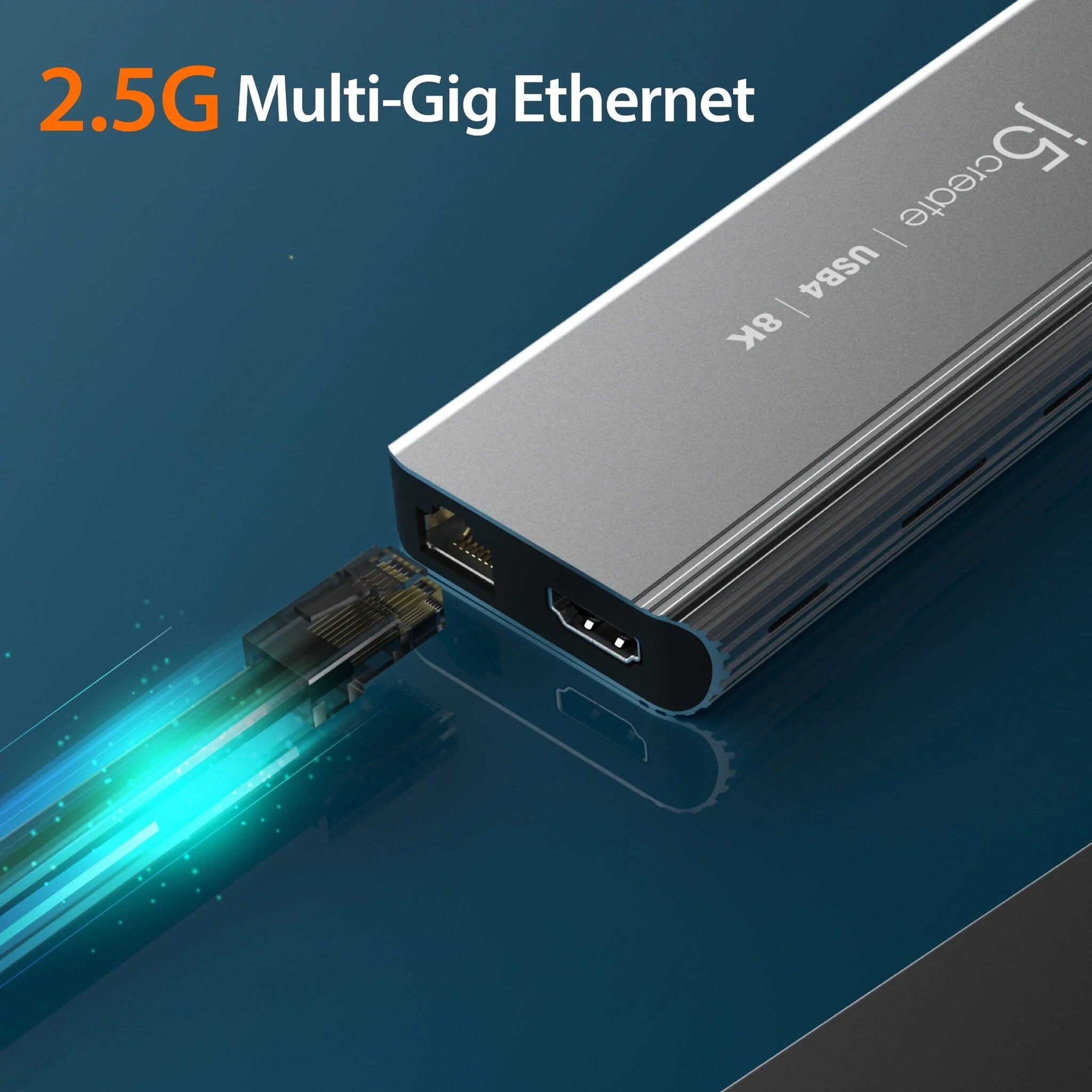

- One 2.5 Gigabit Ethernet port for a high-speed multi-gig network connection
- Two SuperSpeed+ USB™ Type-A 10Gbps port to accommodate your legacy peripheral
- One USB-C® downstream port supports up to 10Gbps data transmission

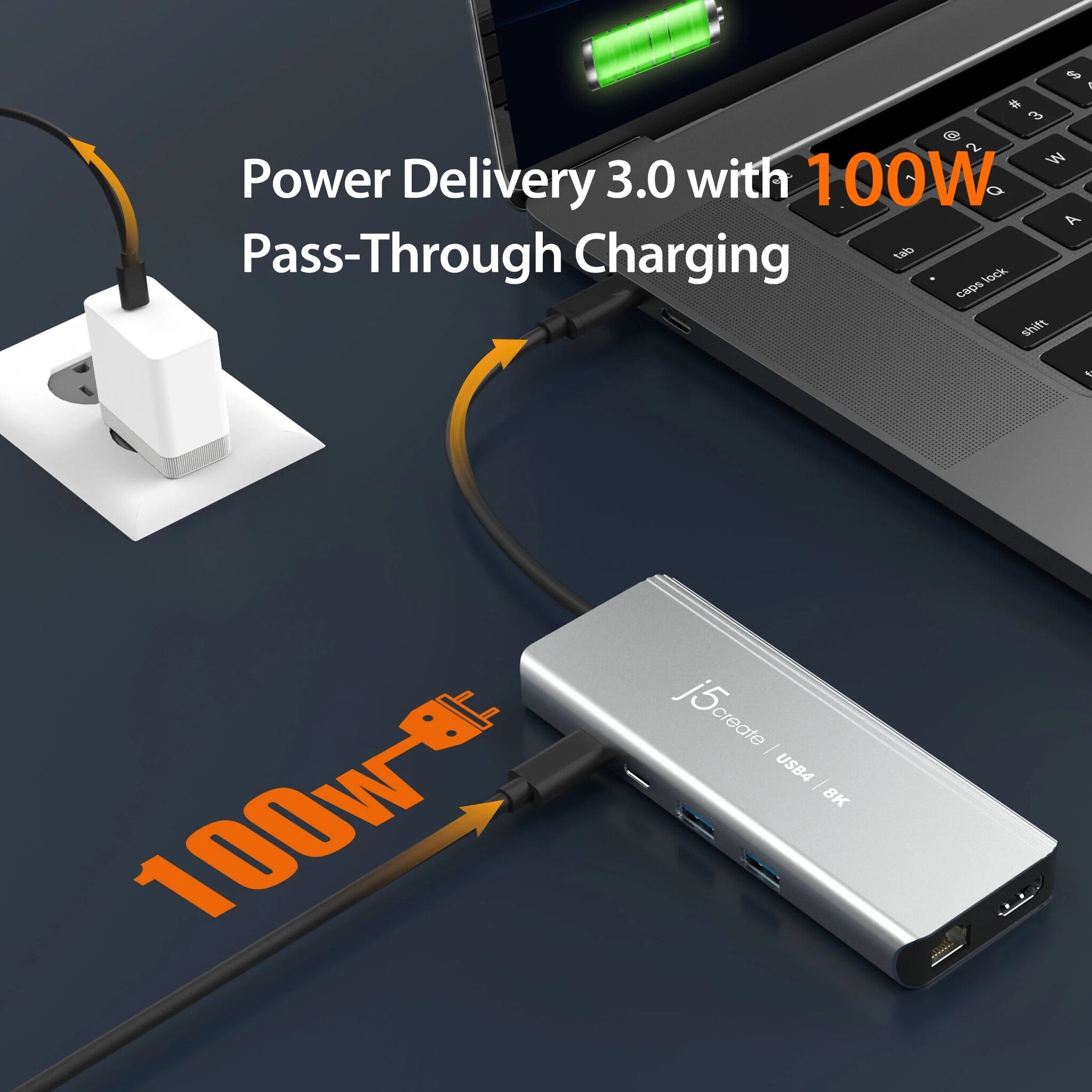

- Power Delivery 3.0 offers up to 100W of pass-through charging
- Multiple data and display protocols efficiently share bandwidth to offer optimal performance
- Wide compatibility with various operating systems and devices
- Plug-and-play, no driver installation required
This high-performance USB4® multi-port hub incorporates the latest USB4® controller offering compatibility with Thunderbolt™ 4 and older USB™ specifications.

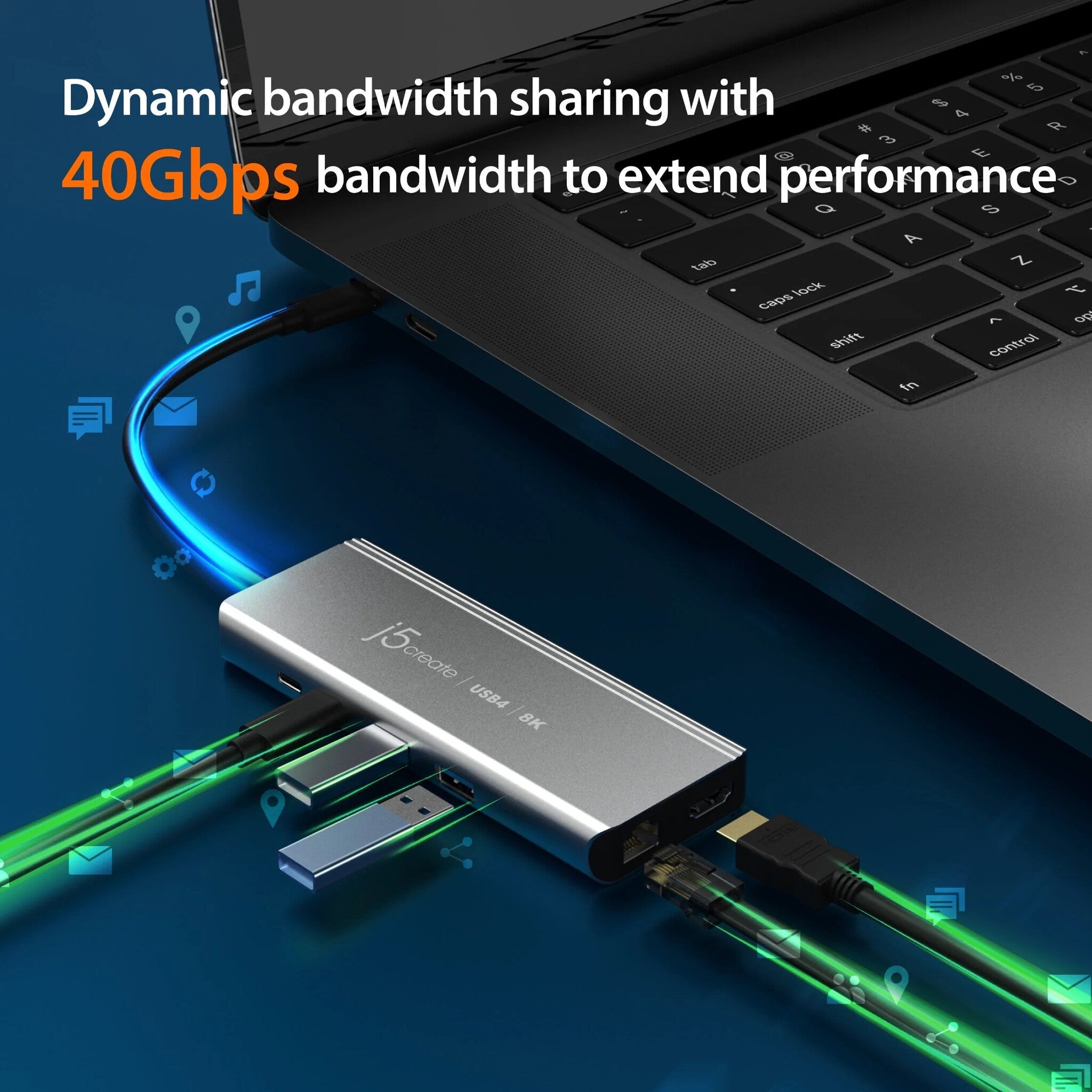

With up to 40Gbps of throughput, dynamic data, and display bandwidth allocation for efficient display data flow, you can easily create a high-definition monitor setup. Enjoy up to 8K resolution and access data faster without affecting system performance. Additionally, it has three USB™ SuperSpeed+ 10Gbps ports (1 USB-C® and 2 Type-A) for charging or connecting peripherals. It is also equipped a USB-C® Power Delivery port to charge your laptop and power your connected devices with up to 100W of pass-through power.
| Ports & interfaces | |
|---|---|

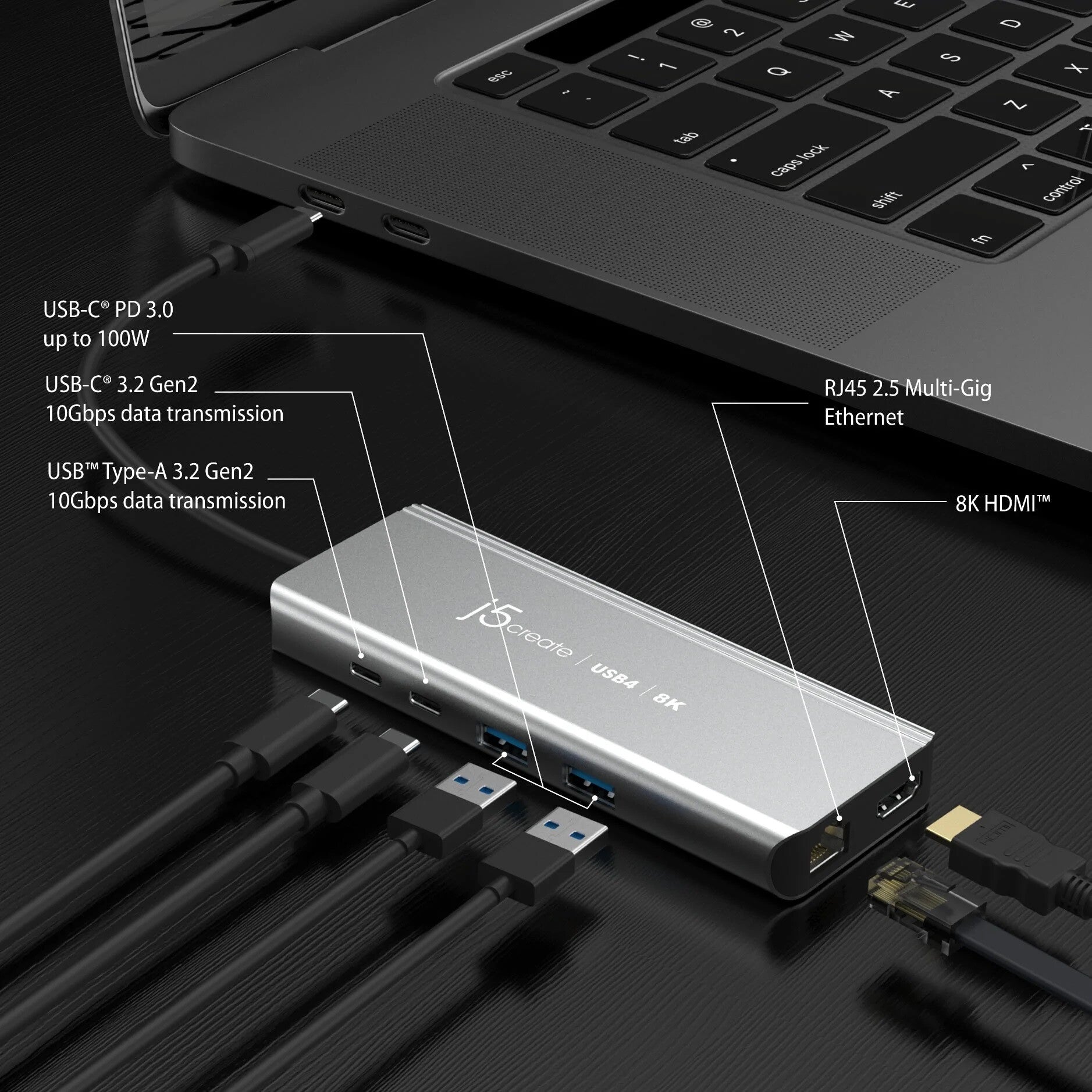

| I/O ports | 1- USB-C 3.2 Gen2 10Gbps data transmission1- USB-C power delivery 3.0 100W2- USB Type-A 3.2 Gen2 10Gbps data transmission1- 8K HDMI1- RJ45 2.5 Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Hub interfaces | HDMI, RJ-45, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Host interface | USB Type-C |
| Ports quantity | 6 |
| Features | |
|---|---|
| Compatible products | Available Thunderbolt 4, Thunderbolt 3, USB4, and USB-C host laptops.GPU and video source:DisplayPort 1.4 alt mode with DSC supports 8K 60 Hz or 4K 144Hz.DisplayPort 1.4 alt mode without DSC supports 8K 30 Hz or 4K 120 Hz.* DSC = VESA Display Stream Compression (DSC) Standard. Only available on NVIDIA GeForce RTX 20 Series and AMD Radeon RX 6000 Series GPUs or above. * Recommended Graphics Cards: Intel HD Graphics 620, Intel' HD Graphics 520 or above.* Notes: Macs supports up to 4K 60Hz on an 8K HDMI display. |
| Plug and Play | Yes |
| Country of origin | Taiwan |
| Cable type | Round cable |
| Number of displays supported | 1 |
| HD type | 8K Ultra HD |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| Product colour | Grey |
| Housing material | Aluminium |
| Maximum resolution (HDMI) | 7680 x 4320 pixels |
| Supported graphics resolutions | 3840 x 2160, 7680 x 4320 |
| Data transfer rate | 10000 Mbit/s |
| Network | |
|---|---|
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Power | |
|---|---|
| Power plug type | Type C |
| Output current | 4.75 A |
| Output voltage | 20 V |
| Input voltage | 20 V |
| Input current | 5 A |
| Power supply | 100 W |
| Power supply type | USB/AC |
| System requirements | |
|---|---|
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 109 g |
| Height | 135 mm |
| Depth | 15 mm |
| Width | 51 mm |
| Packaging content | |
|---|---|
| Packaging content | 1 - JCD403 USB4 8K Multi-Port Hub1 - Quick Installation Guide (QIG) |
| Quick start guide | Yes |
| AC adapter included | No |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 - 85% |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage temperature (T-T) | -17 - 68 °C |
| Operating temperature (T-T) | -1 - 41 °C |
| Technical details | |
|---|---|
| Warranty period | 2 year(s) |
