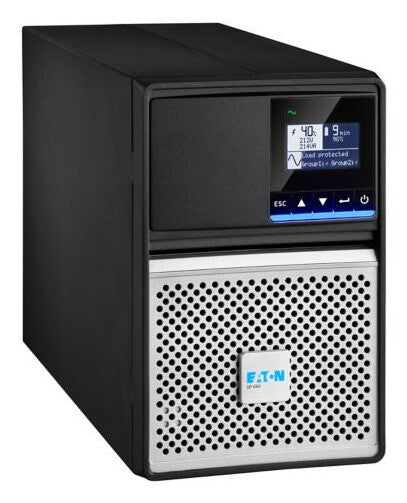

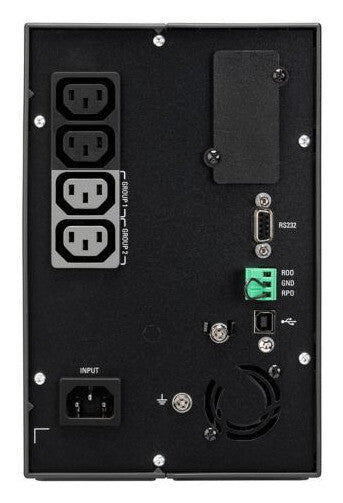

Eaton 160 -294V Input Rack Mount Uninterruptible Power Supply, 650VA (520W), 5P650I
£365.99
Couldn't load pickup availability
- Line-Interactive
- 0.65 kVA 520 W
- Lead-Acid 12 V 9 Ah
- Tower Black, Silver
The Eaton 5P UPS Gen 2, compact and efficient solution for IT and edge environments that delivers 22% more power than its predecessor, available in tower form factor.
Its intelligent design ensures a stable output and energy savings
Advanced load segment control prioritizes critical equipment and optimizes battery runtime
Italso enables fleet management, remote UPS setting and remote firmware upgrade
| Features | |
|---|---|
| UPS topology | Line-Interactive |
| Output power capacity | 0.65 kVA |
| Output power | 520 W |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 294 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Heat dissipation | 461 BTU/h |
| Noise level | 35 dB |
| Battery | |
|---|---|
| Battery technology | Lead-Acid |
| Battery capacity | 9 Ah |
| Battery voltage | 12 V |
| Design | |
|---|---|
| Form factor | Tower |
| Product colour | Black, Silver |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Packaging content | |
|---|---|
| Cables included | USB cable |
| Quick installation guide | Yes |
| Certificates | |
|---|---|
| Certification | IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS |
| Weight & dimensions | |
|---|---|
| Width | 150 mm |
| Depth | 345 mm |
| Height | 233 mm |
| Weight | 8.16 kg |
