CyberPower CP1600EPFCLCD-UK uninterruptible power supply (UPS) Line-Interactive 1.6 kVA 1000 W 6 AC outlet(s)
Couldn't load pickup availability
- Line-Interactive
- 1.6 kVA 1000 W
- Waveform: Pure sine
- 6 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Tower Black
CyberPower CP1600EPFCLCD with Pure Sine Wave output safeguards mid- to high-end computer systems, servers and networking hardware that use conventional and Active Power Factor Correction (PFC) power supplies. Designed with GreenPower UPS™ Technology to improve UPS operating efficiency and to minimize its energy consumption, this UPS delivers significant energy cost savings over conventional UPS systems.

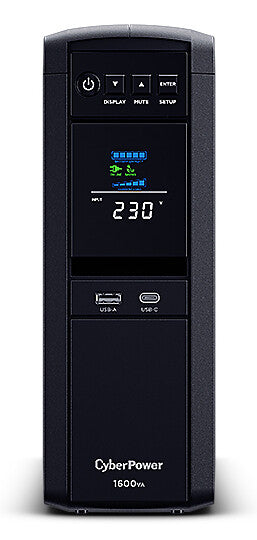

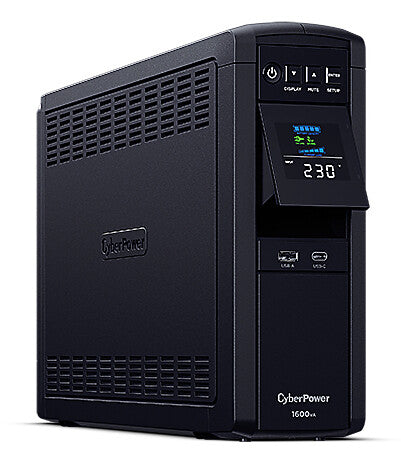

The UPS provides Automatic Voltage Regulation (AVR) to maintain stable voltage for connected equipment. The product features data line protection with high-speed transmission to safeguard communication equipment against surges/spikes as well as supply 1Gbps speed to transmit data. With tiltable color LCD panel , users can monitor key power and battery information at a glance. The PowerPanel Power Management Software allows user to perform real-time monitoring and configuration.
| Features | |
|---|---|
| UPS topology | Line-Interactive |
| Output power capacity | 1.6 kVA |
| Output power | 1000 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 169 V |
| Input operation voltage (max) | 271 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 230 V |
| Output operation voltage (max) | 230 V |
| Output frequency | 50/60 Hz |
| Maximum current | 10 A |
| Surge energy rating | 405 J |
| Surge protection | Yes |
| Power protection features | Overload |
| Audible alarm(s) | Yes |
| Audible alarm modes | Alarm when on battery, Fault, Low battery alarm, Overload alarm |
| Detachable power cord | Yes |
| Power source type | AC |
| Ports & interfaces | |
|---|---|

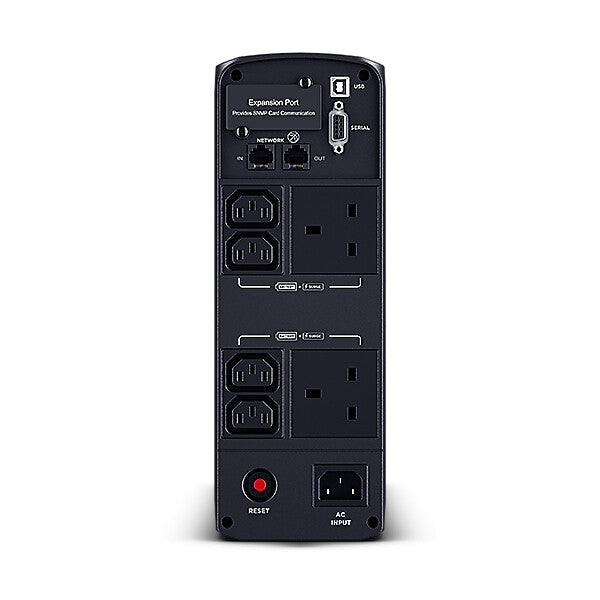

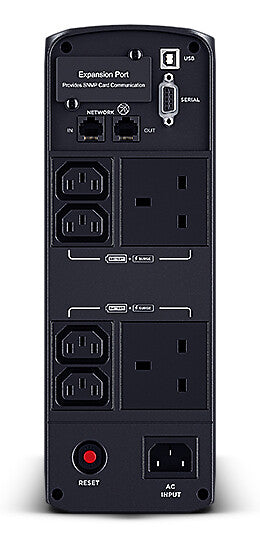

| AC outlet types | C13 coupler, Type F |
| Power plug | C14 coupler |
| AC outlets quantity | 6 AC outlet(s) |
| USB port | Yes |
| USB port type | USB Type A/USB Type-C |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Battery | |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Number of batteries supported | 1 |
| Typical backup time at full load | 2.6 min |
| Typical backup time at half load | 9.7 min |
| Battery recharge time | 8 h |
| Replacement battery cartridge | RBP0142 |
| Design | |
|---|---|
| Form factor | Tower |
| Product colour | Black |
| Cable length | 1.83 m |
| Display type | LCD |
| LED indicators | Operation |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Certificates | |
|---|---|
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
|---|---|
| Width | 100 mm |
| Depth | 355 mm |
| Height | 280 mm |
| Weight | 11 kg |
| Packaging data | |
|---|---|
| Package width | 195 mm |
| Package depth | 466 mm |
| Package height | 370 mm |
| Package weight | 13 kg |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 8504408590 |
| Country of origin | China |
