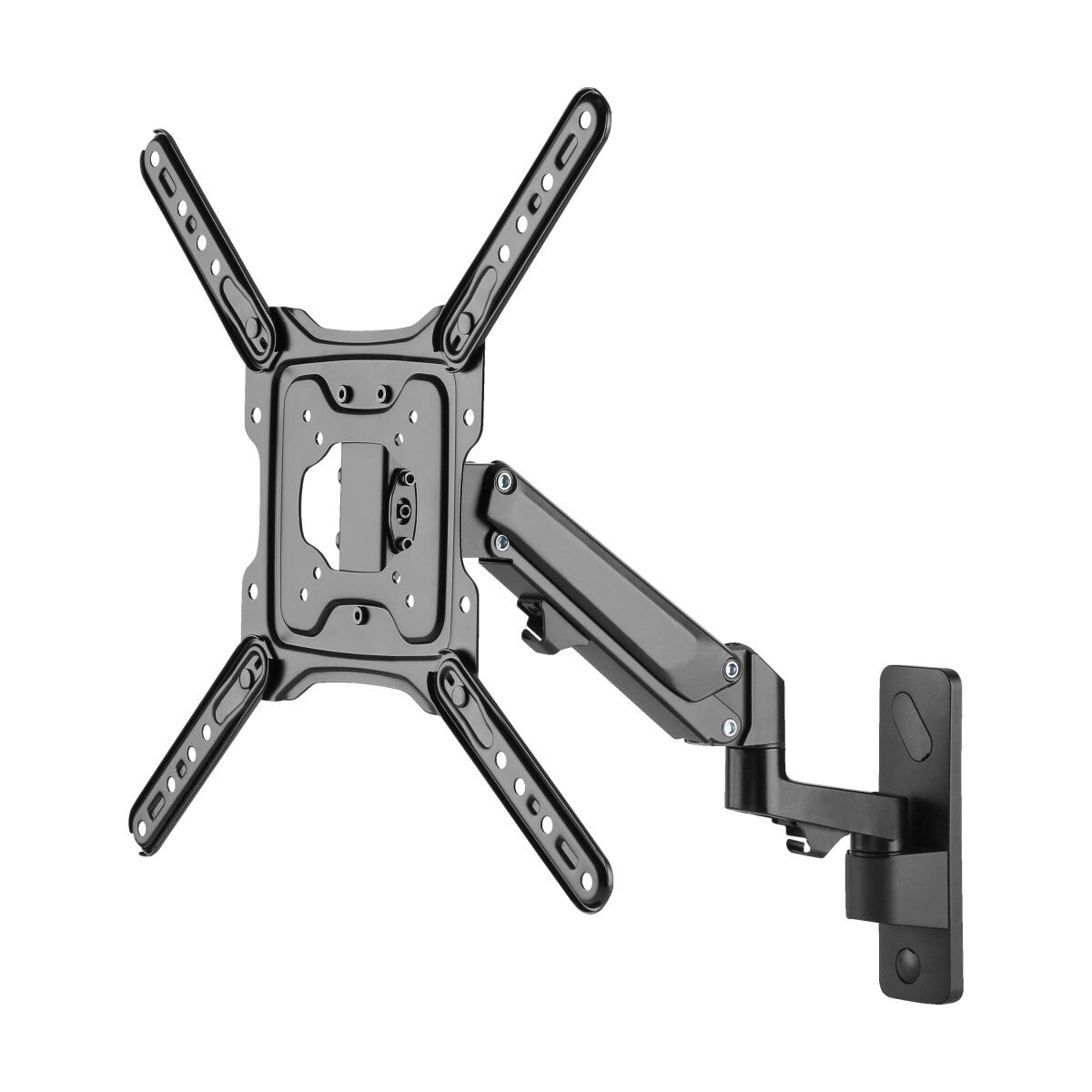

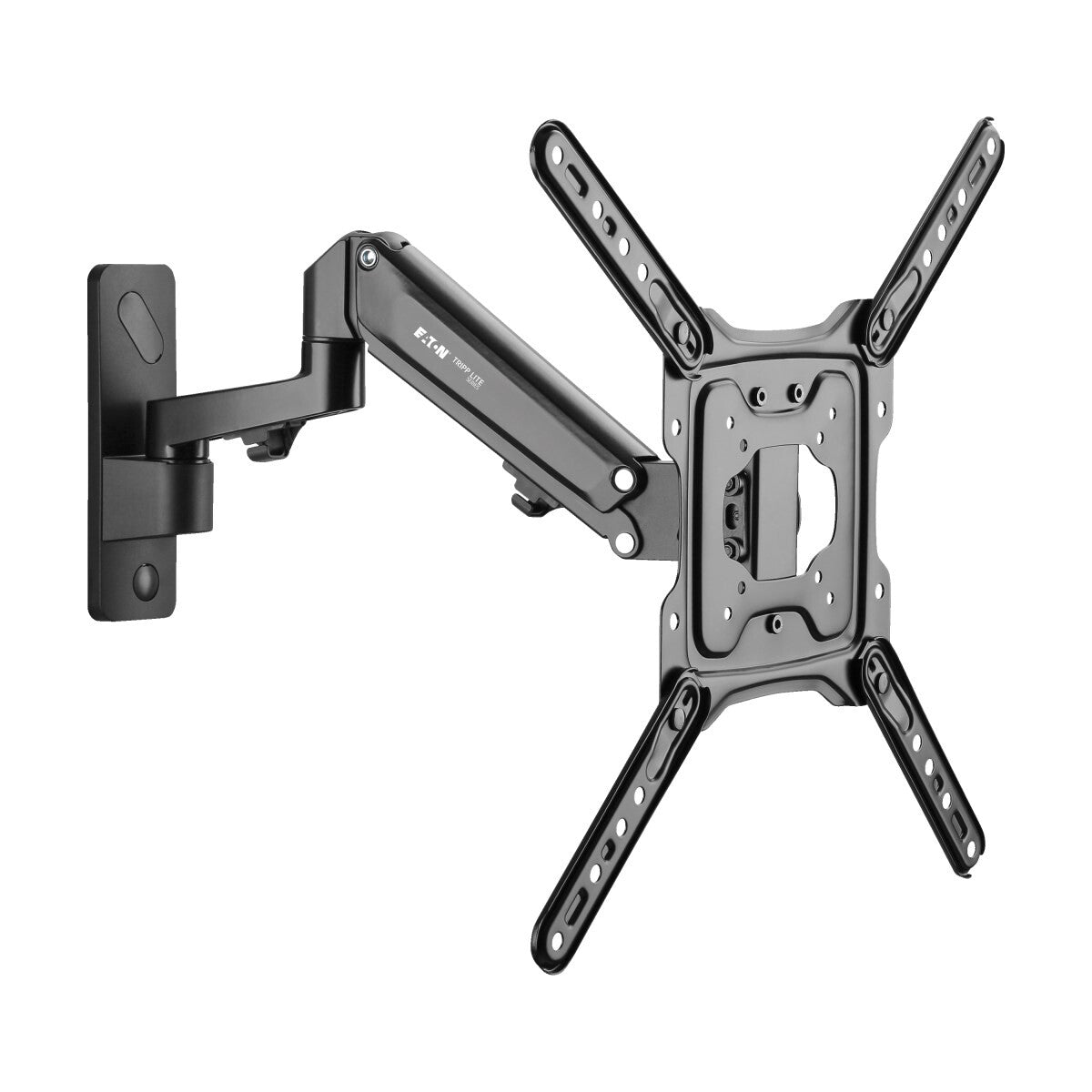

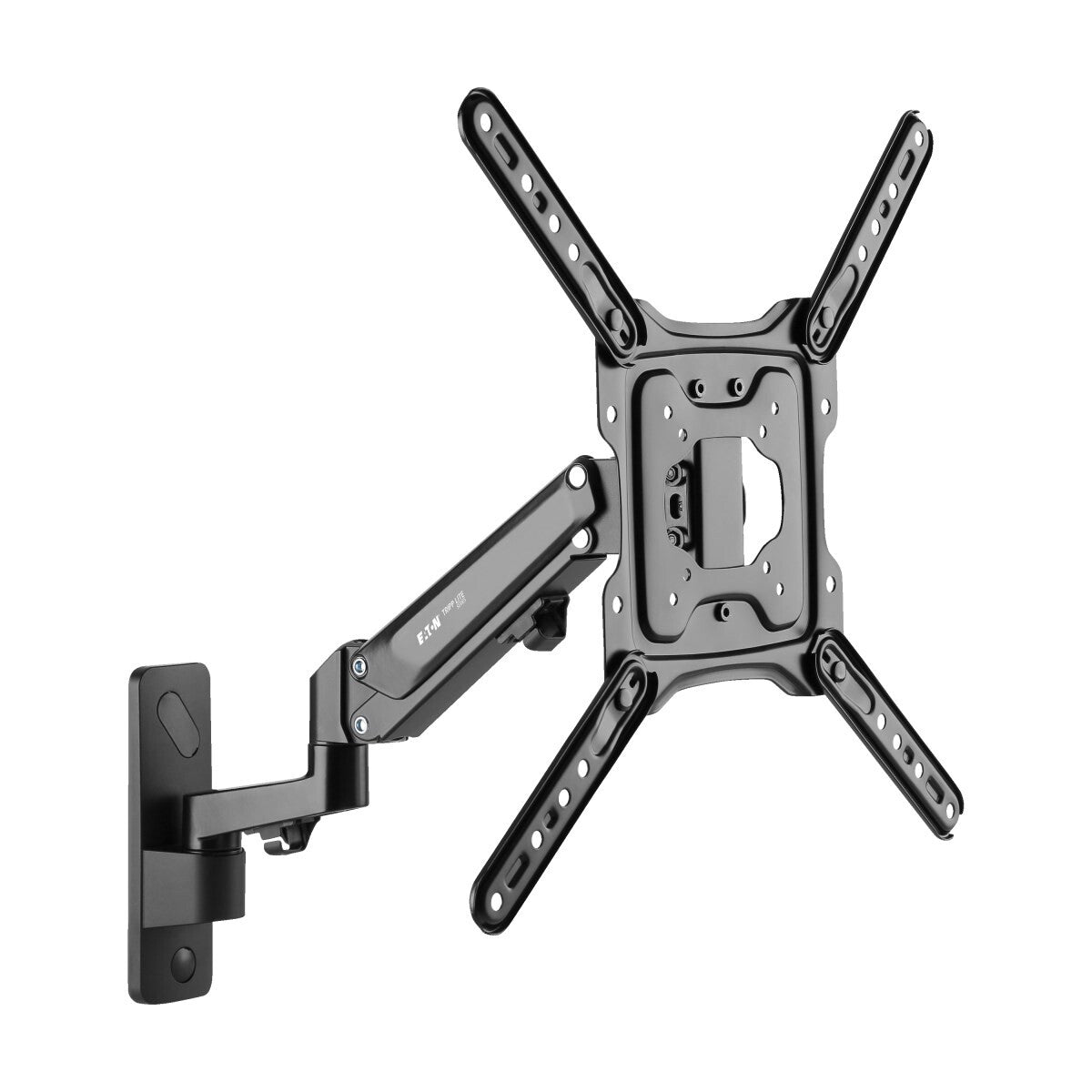

Tripp Lite DWM2355S Full-Motion TV Wall Mount with Fully Articulating Arm for 23” to 55” Flat-Screen Displays
Couldn't load pickup availability
- TV wall mount with articulating gas-spring arm adjusts easily with just a single touch
- -15° to +5° tilt and -90° to +90° swivel helps you find the perfect angle to avoid glare
- Durable steel construction blends into any décor and supports up to 51 lbs (23.1 kgs)
- Display cables attach to arm to reduce clutter and keep cords organized
- VESA compliance ensures compatibility with most popular mounting hole patterns

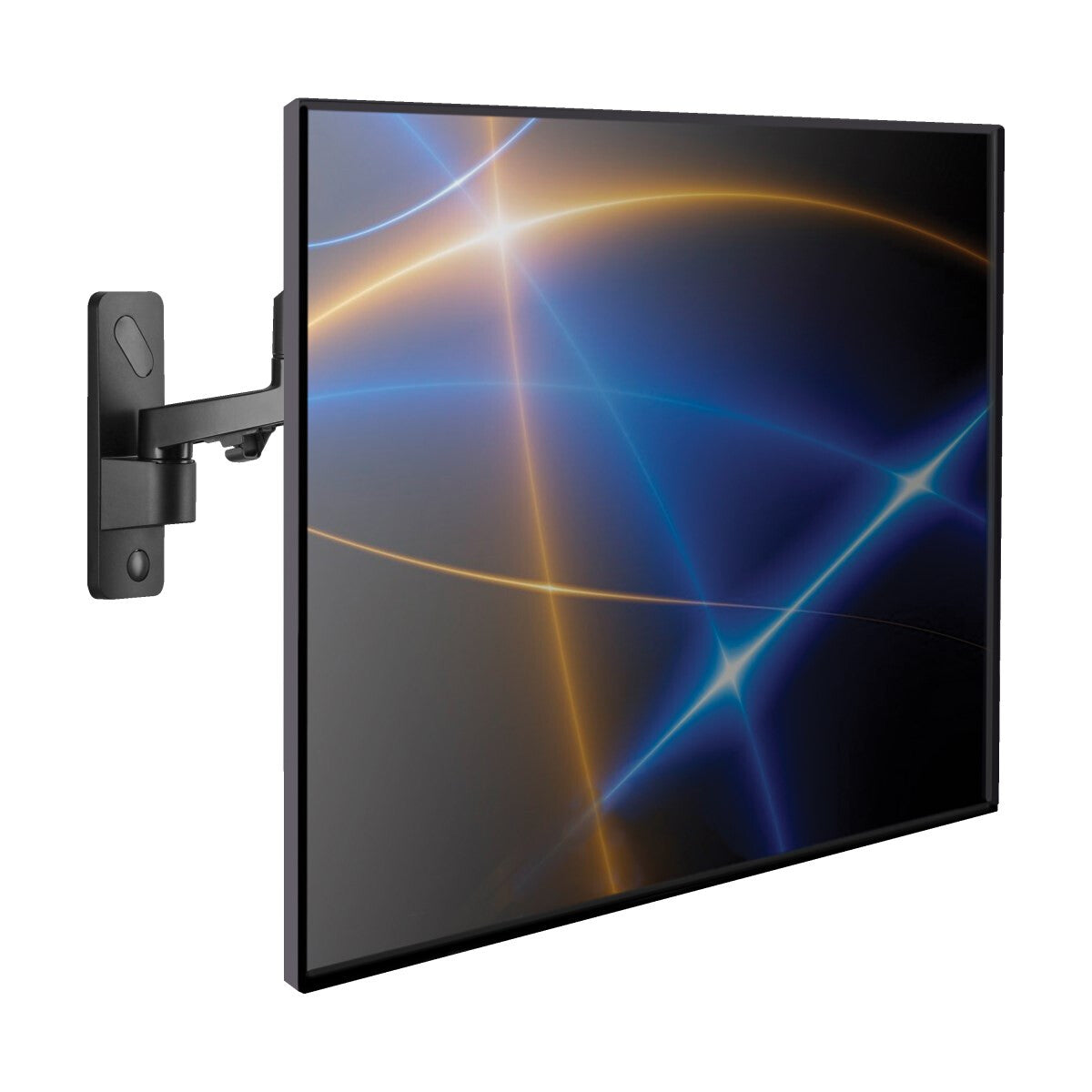

Mounts Your TV or Monitor to the Wall
Fits most flat-panel televisions, monitors and other displays from 23 to 55 in.
Ideal for home theaters, offices, classrooms, boardrooms, hotels, bars and restaurants

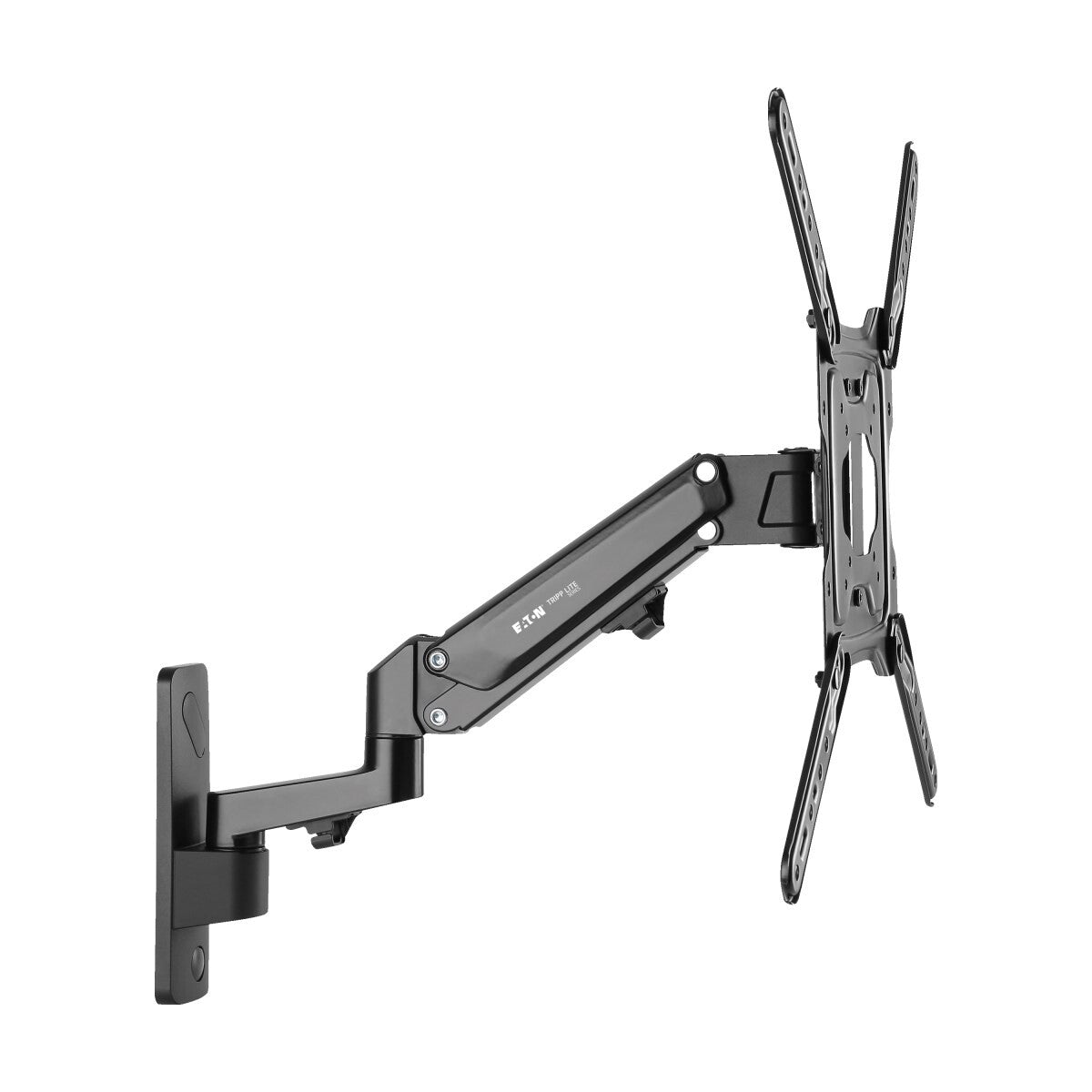

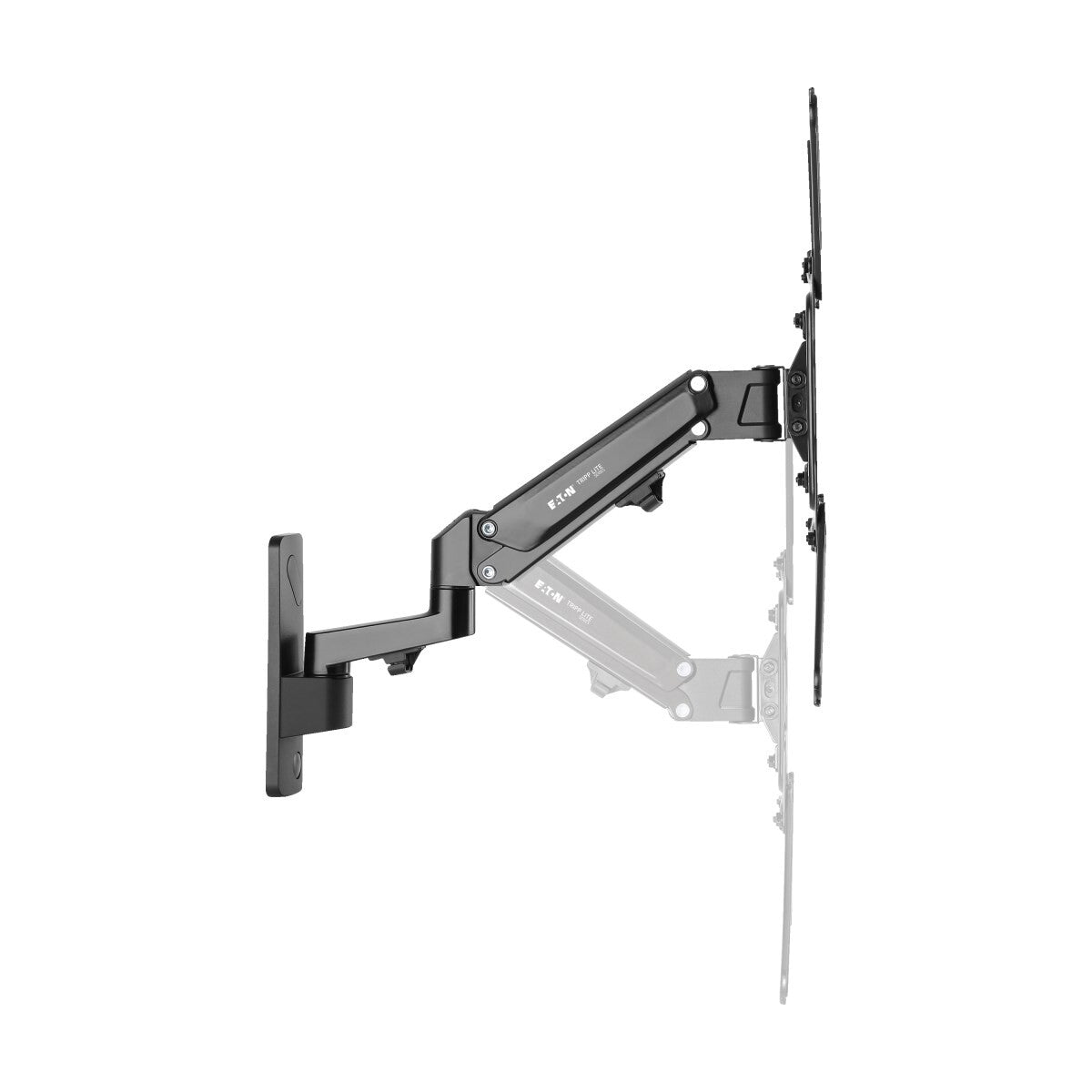

Full-motion articulating arm adjusts independently for angle and height
Mounting hardware included
Mounts on wood or concrete block
Convenient One-Touch Adjustment
180° swivel and -15° to 15° tilt capability provides comfortable viewing from multiple angles
Durable Metal Construction
Supports up to 51 lbs (23.1 kgs)
Soft rubber-feel finish tolerates frequent handling and blends with any décor

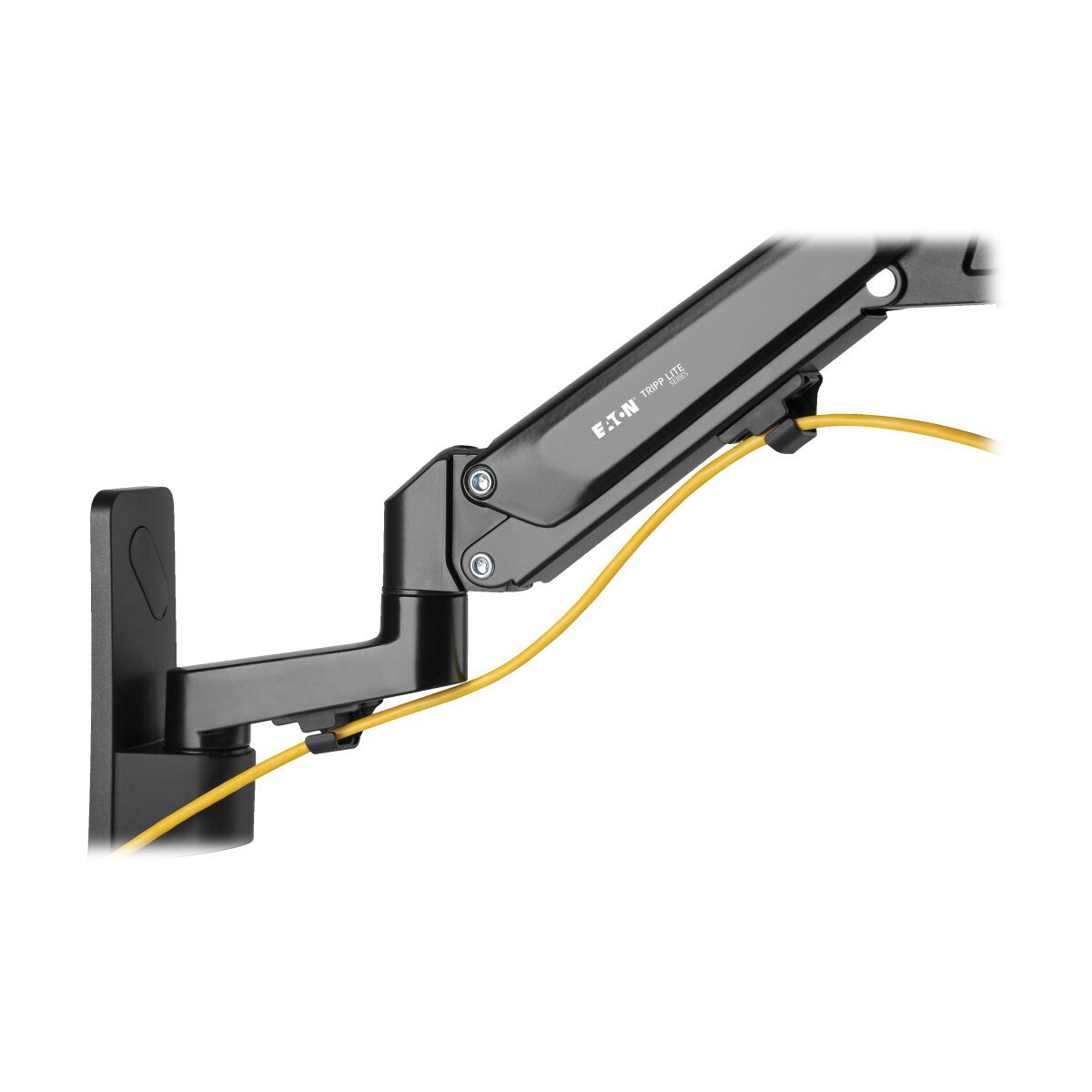

Display cables tuck inside articulating arm to prevent clutter
VESA Compliance
Conforms with VESA-compliant universal mounting hole patterns
| Mounting | |
|---|---|
| Number of displays supported | 1 |
| Panel mounting interface | 75 x 75,100 x 100,200 x 100,200 x 200,300 x 300,400 x 200,400 x 300 |
| Maximum VESA mount | 400 x 400 mm |
| Minimum VESA mount | 75 x 75 mm |
| Suitable for computer monitor | Yes |
| Mounting type | Wall |
| Maximum screen size | 139.7 cm (55") |
| Minimum screen size | 58.4 cm (23") |
| Maximum weight capacity | 23 kg |
| Ergonomics | |
|---|---|
| Distance to the wall (max) | 32.3 cm |
| Cable management | Yes |
| Swivel angle | 180° |
| Tilt angle range | -15 - 15° |
| Tilt adjustment | Yes |
| Design | |
|---|---|
| Certification | REACH, CE |
| Housing material | Steel |
| Product colour | Black |
| Packaging content | |
|---|---|
| Manual | Yes |
| Number of wrenches included | 1 |
| Screw nuts included | Yes |
| Number of screw nuts | 4 |
| Mounting plate included | Yes |
| Mounting kit | Yes |
| Hex key included | Yes |
| Number of hex keys included | 2 |
| Bolts included | Yes |
| Number of bolts | 4 |
| Technical details | |
|---|---|
| Country of origin | China |
| Compliance certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 3.22 kg |
| Height | 434.3 mm |
| Depth (max) | 63.2 cm |
| Depth | 454.7 mm |
| Width | 459.7 mm |
| Packaging data | |
|---|---|
| Package weight | 4.04 kg |
| Package height | 439.4 mm |
| Package depth | 83.8 mm |
| Package width | 348 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85299097 |
| Master (outer) case GTIN (EAN/UPC) | 10037332258776 |
| Products per master (outer) case | 5 pc(s) |
| Master (outer) case gross weight | 21.1 kg |
| Master (outer) case height | 459.7 mm |
| Master (outer) case length | 454.7 mm |
| Master (outer) case width | 370.8 mm |
