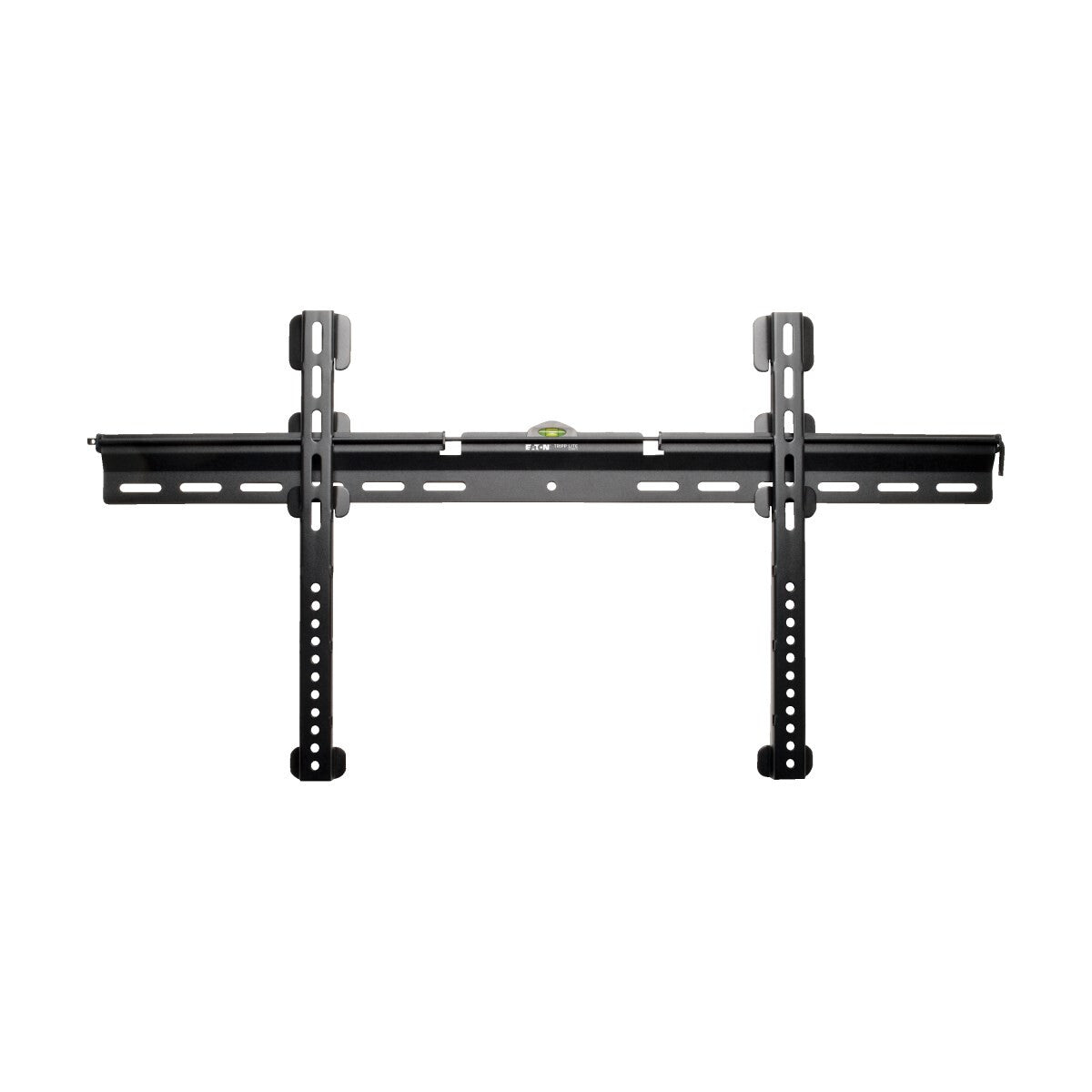

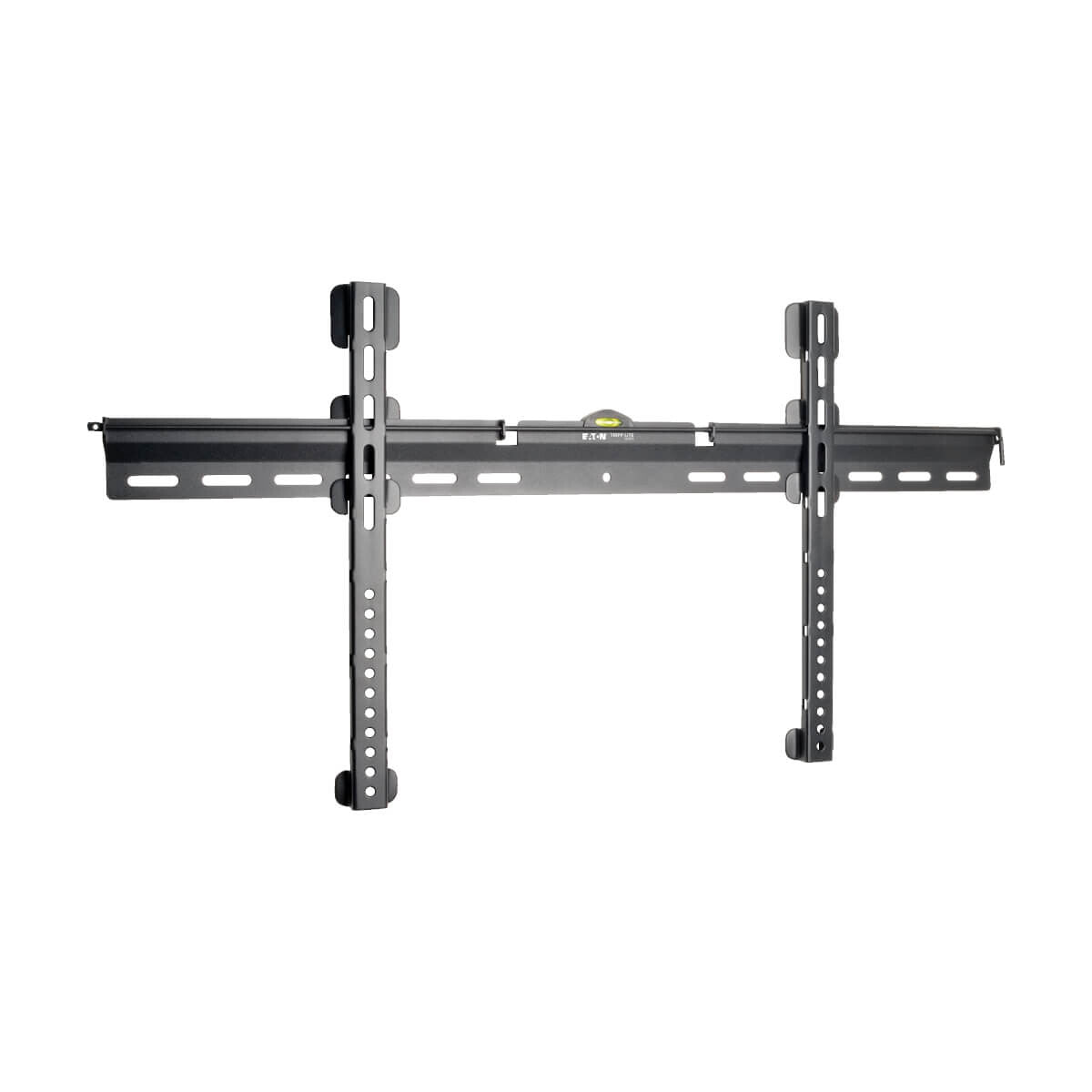

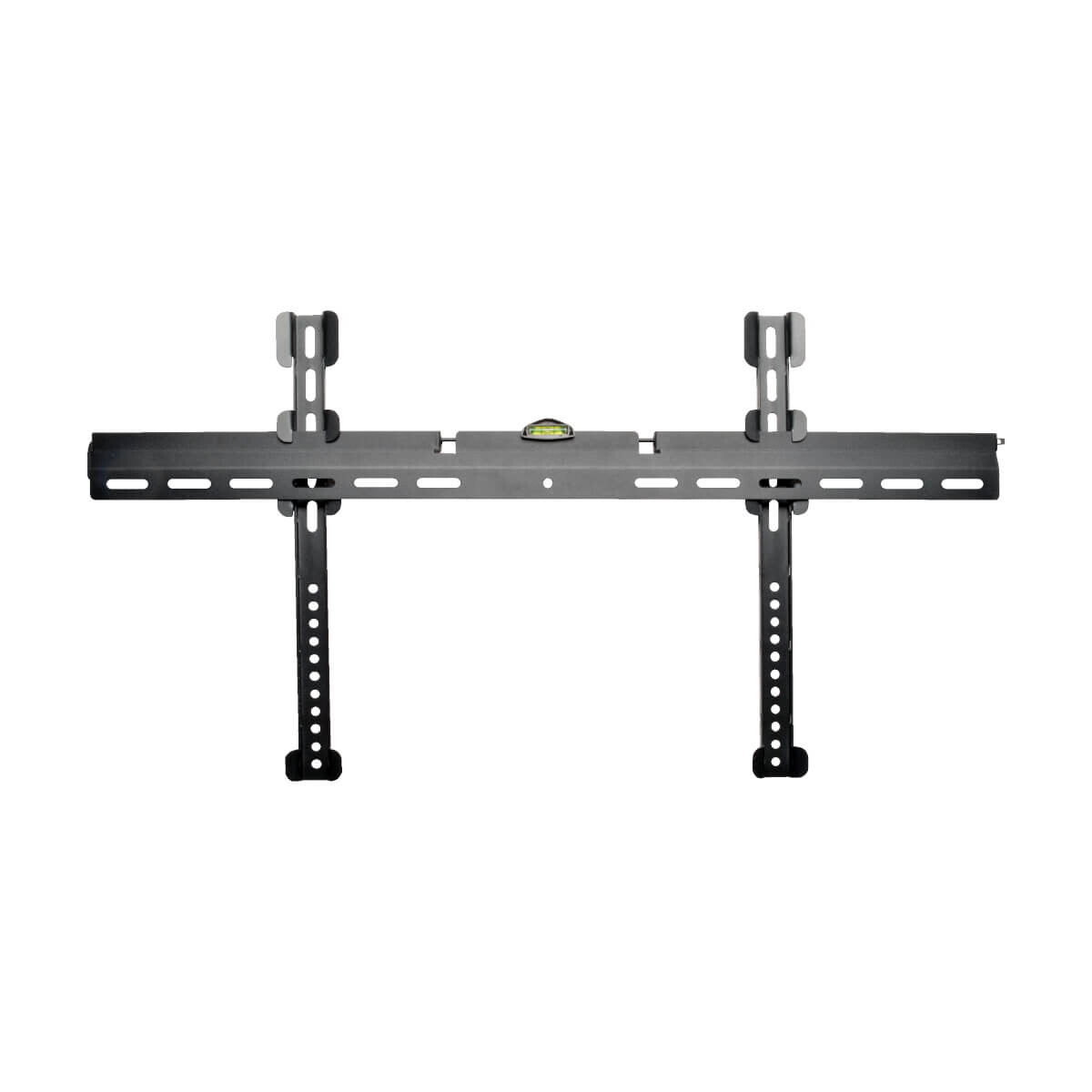

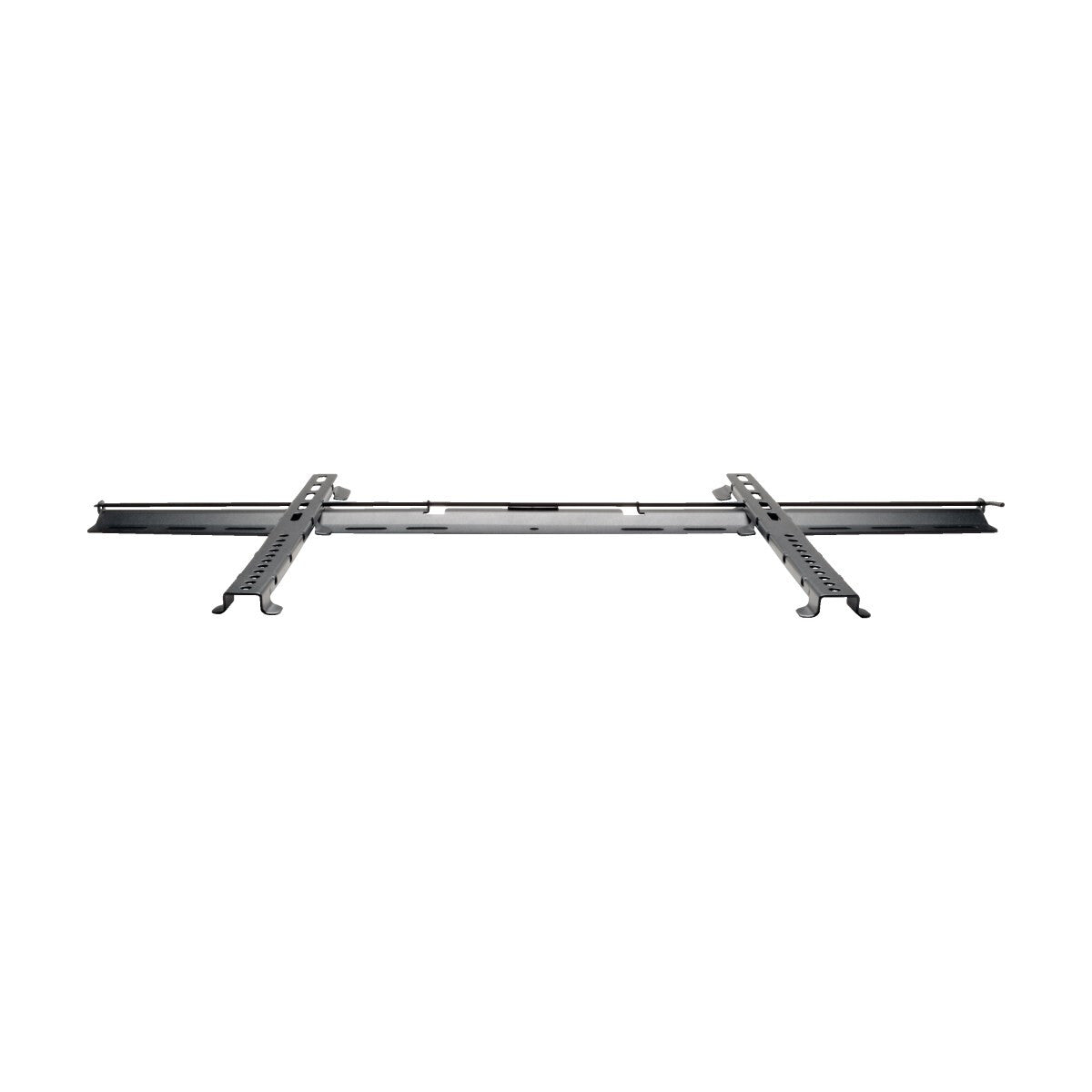

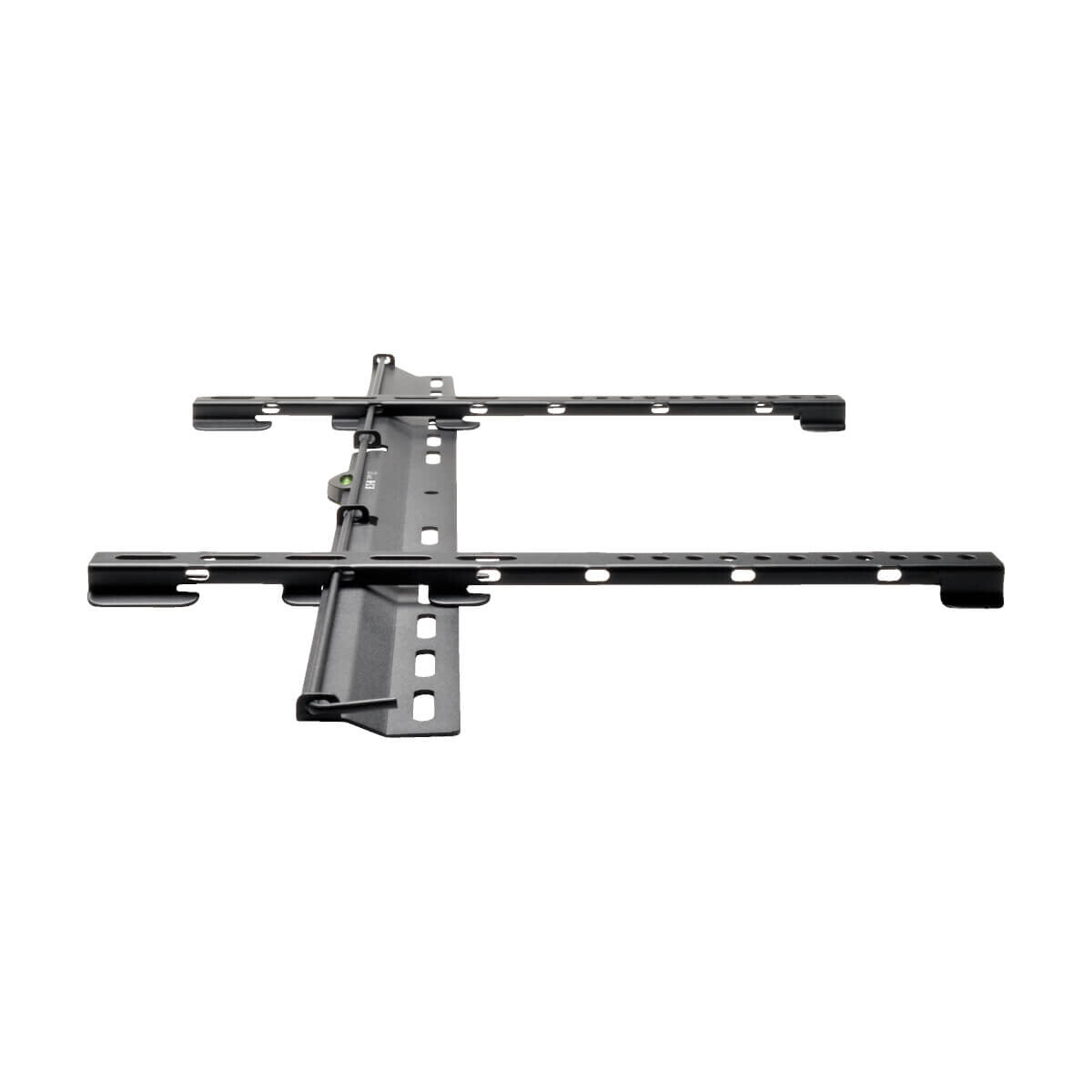

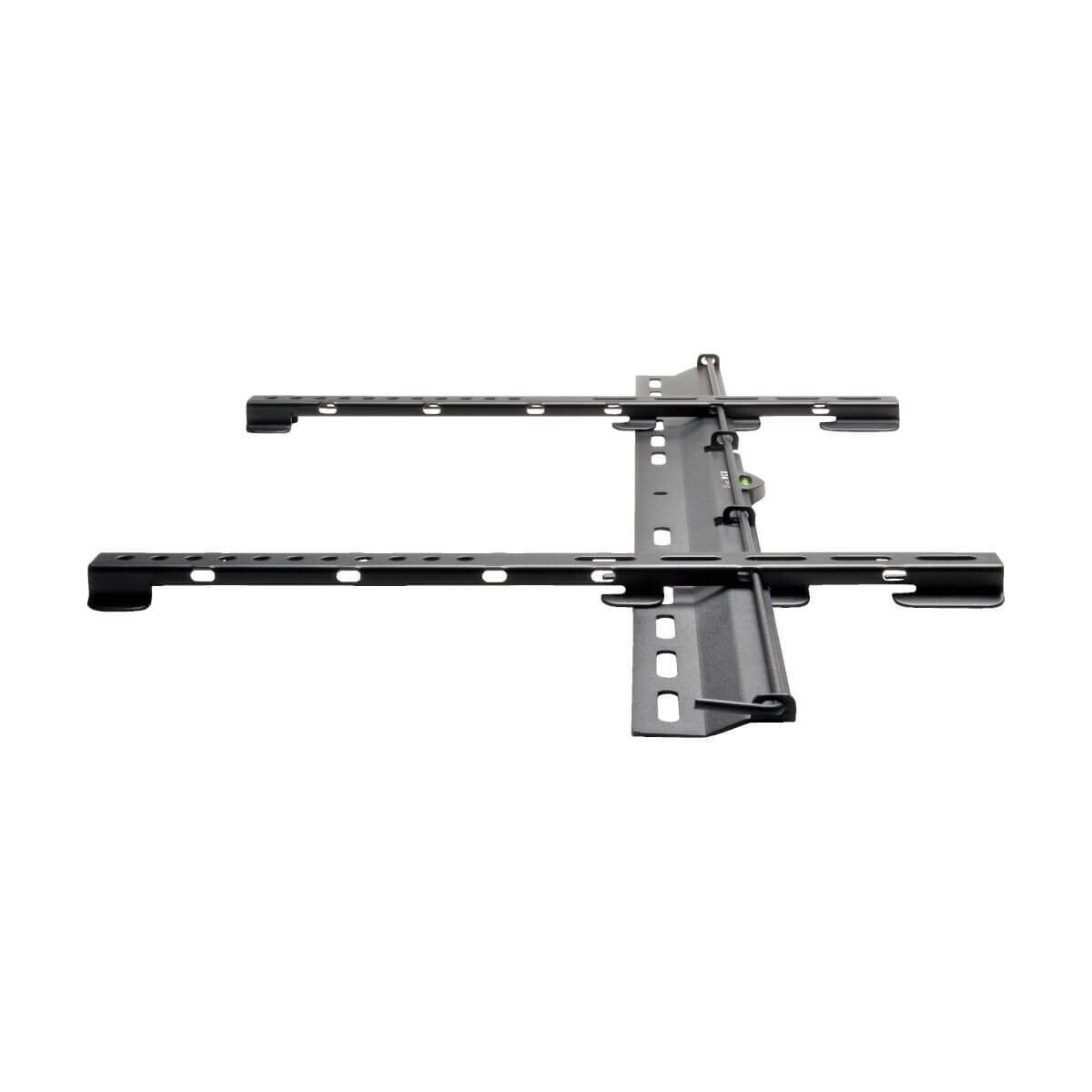

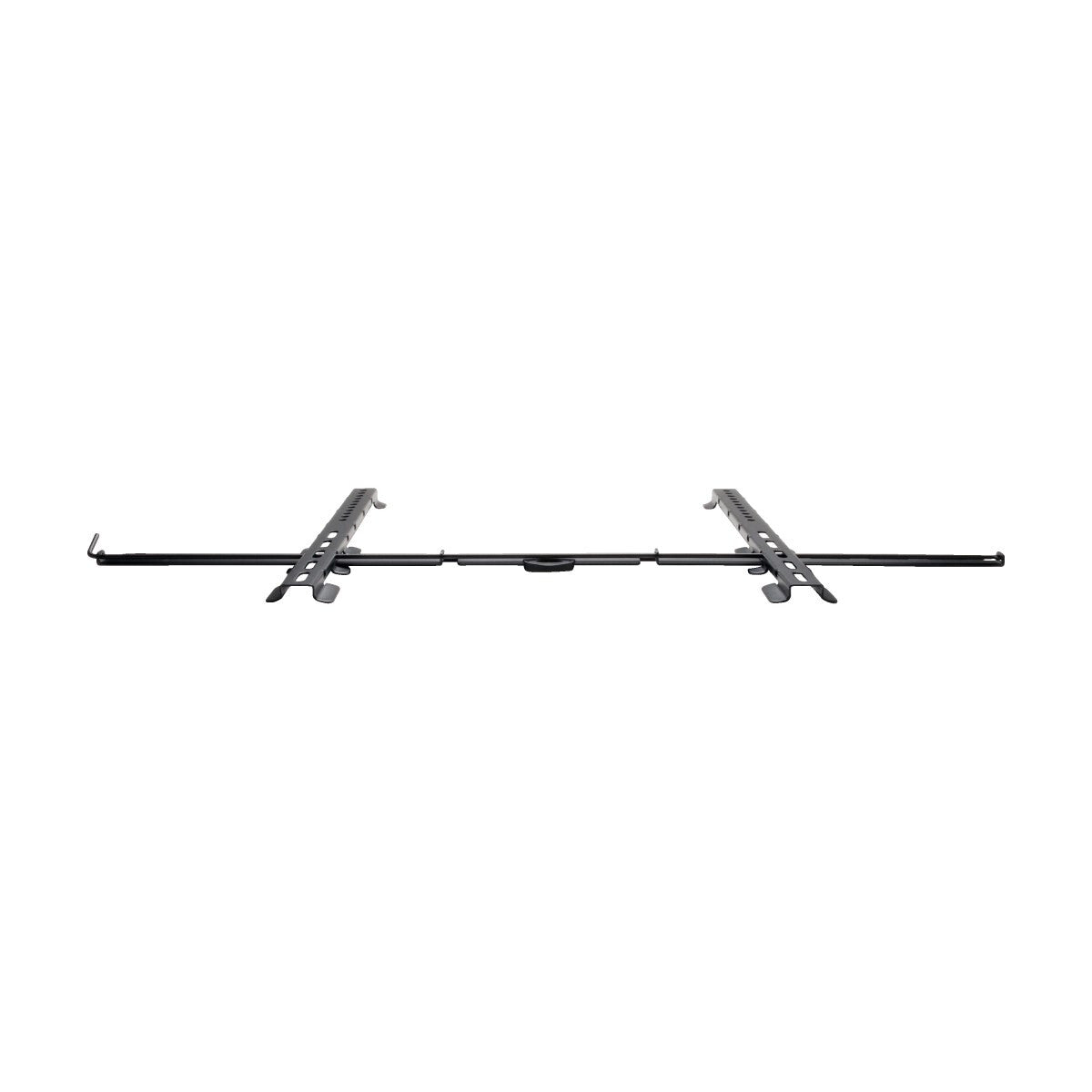

Tripp Lite DWF3770L Fixed Wall Mount for 37" to 70" TVs and Monitors

Tripp Lite
£17.99
Stock Available: 0
  • Fits most flat-panel displays from 37 to 70 in.
  • Hangs out of sight for a sleek, professional appearance
  • Adjustable mounting rails compensate for off-center wall studs
  • Supports up to 143 lbs (64.9 kgs)

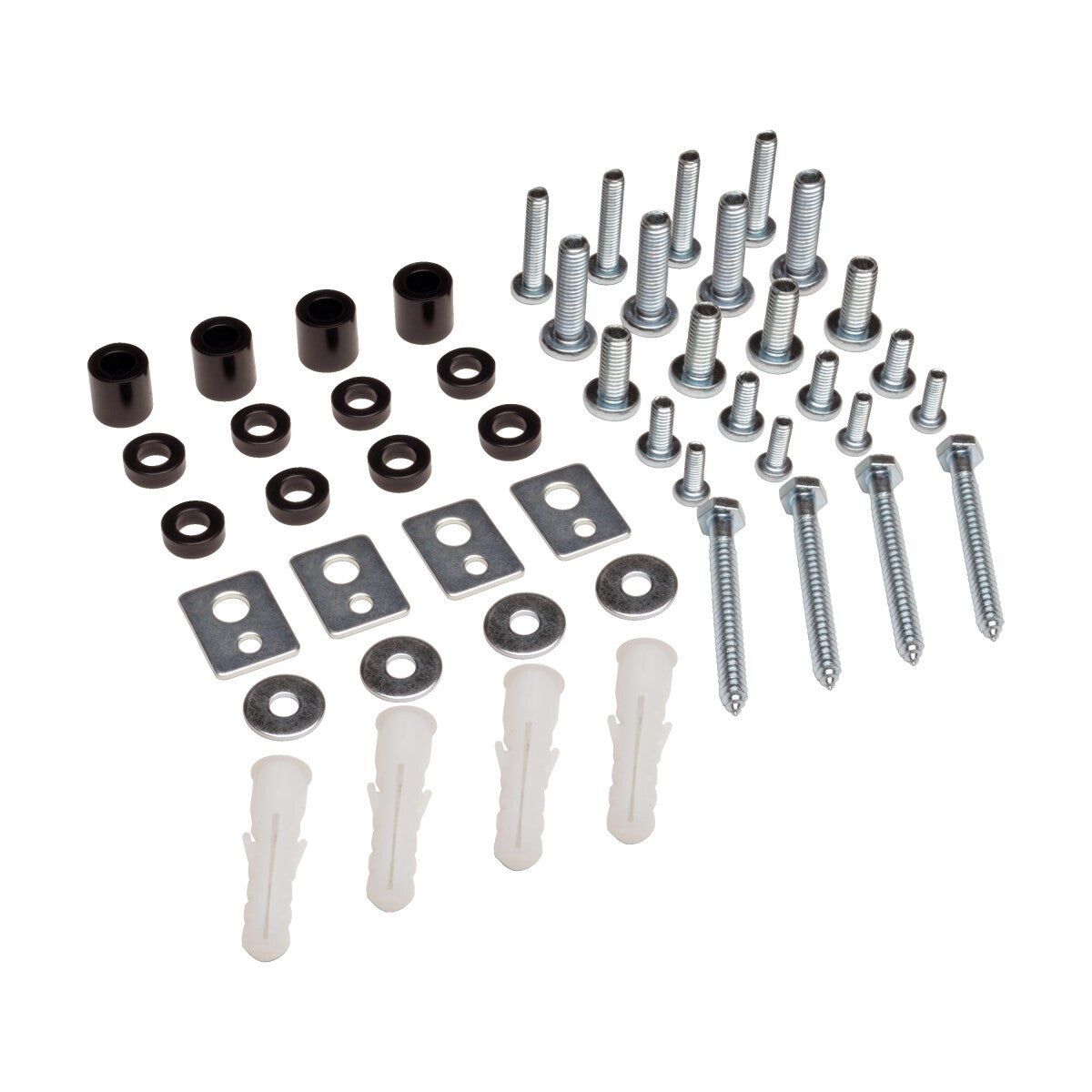

The VESA-compliant DWF3770L Fixed Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 37 to 70 inches. The low-profile mount is concealed behind the display to give a sleek, professional appearance. Frame is open for easy wall access. Mounting rails adjust horizontally to compensate for off-center wall studs. Built-in bubble level allows accurate display leveling. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 143 lbs (64.9 kgs). Mounting hardware included. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 300 x 200 mm, 300 x 300 mm, 300 x 400 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 200 mm, 500 x 300 mm, 500 x 400 mm, 600 x 300 mm, 600 x 400 mm, 700 x 300, 700 x 400 mm, 800 x 300 mm and 800 x 400 mm.

Mounting
Number of displays supported 1
Panel mounting interface 300 x 300,400 x 200,400 x 400,600 x 400,800 x 400
Maximum VESA mount 800 x 400 mm
Minimum VESA mount 300 x 300 mm
Mounting type Wall
Maximum screen size 177.8 cm (70")
Minimum screen size 94 cm (37")
Maximum weight capacity 65 kg
Ergonomics
Distance to the wall (min) 1.95 mm
Design
Housing material Metal
Product colour Black
Packaging content
Manual Yes
Mounting kit Yes
Technical details
Country of origin China
Compliance certificates RoHS
Weight & dimensions
Weight 1.54 kg
Height 439.9 mm
Depth 19.3 mm
Width 870 mm
Packaging data
Package weight 2.27 kg
Package height 160 mm
Package depth 901.7 mm
Package width 44.4 mm
Logistics data
Harmonized System (HS) code 85299097
Master (outer) case GTIN (EAN/UPC) 10037332181708
Products per master (outer) case 8 pc(s)
Master (outer) case gross weight 18.6 kg
Master (outer) case height 185.4 mm
Master (outer) case length 914.4 mm
Master (outer) case width 350.5 mm
