Multibrackets M VESA Flexarm Tilt & Turn II
Couldn't load pickup availability
- The flexarms nest for a super slim 47 mm mounting profile
- Flex, tilt and turn for an optimal viewing angle at any time
- Tilt easily to 0~15º to reduce glare

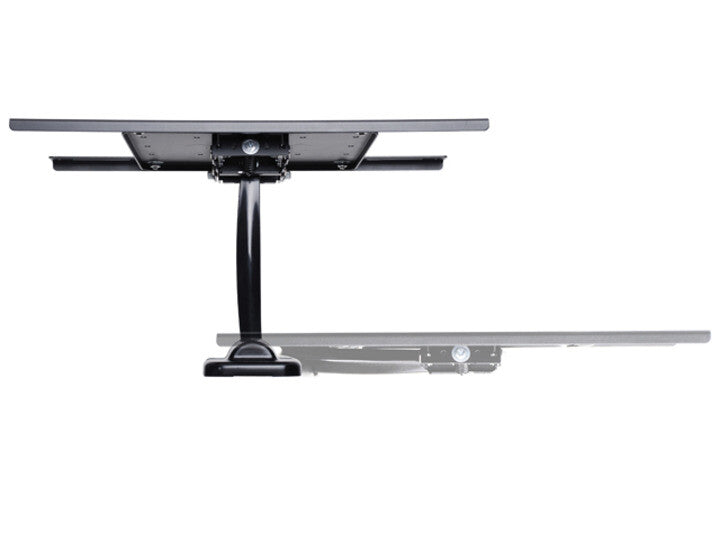

- Turn effortlessly to -45~+45 depending on screen size to view from the right angle
- Installation template and tool kit included for simple mounting
- Built in bubble level for accurate mounting
- One person tilt adjustment

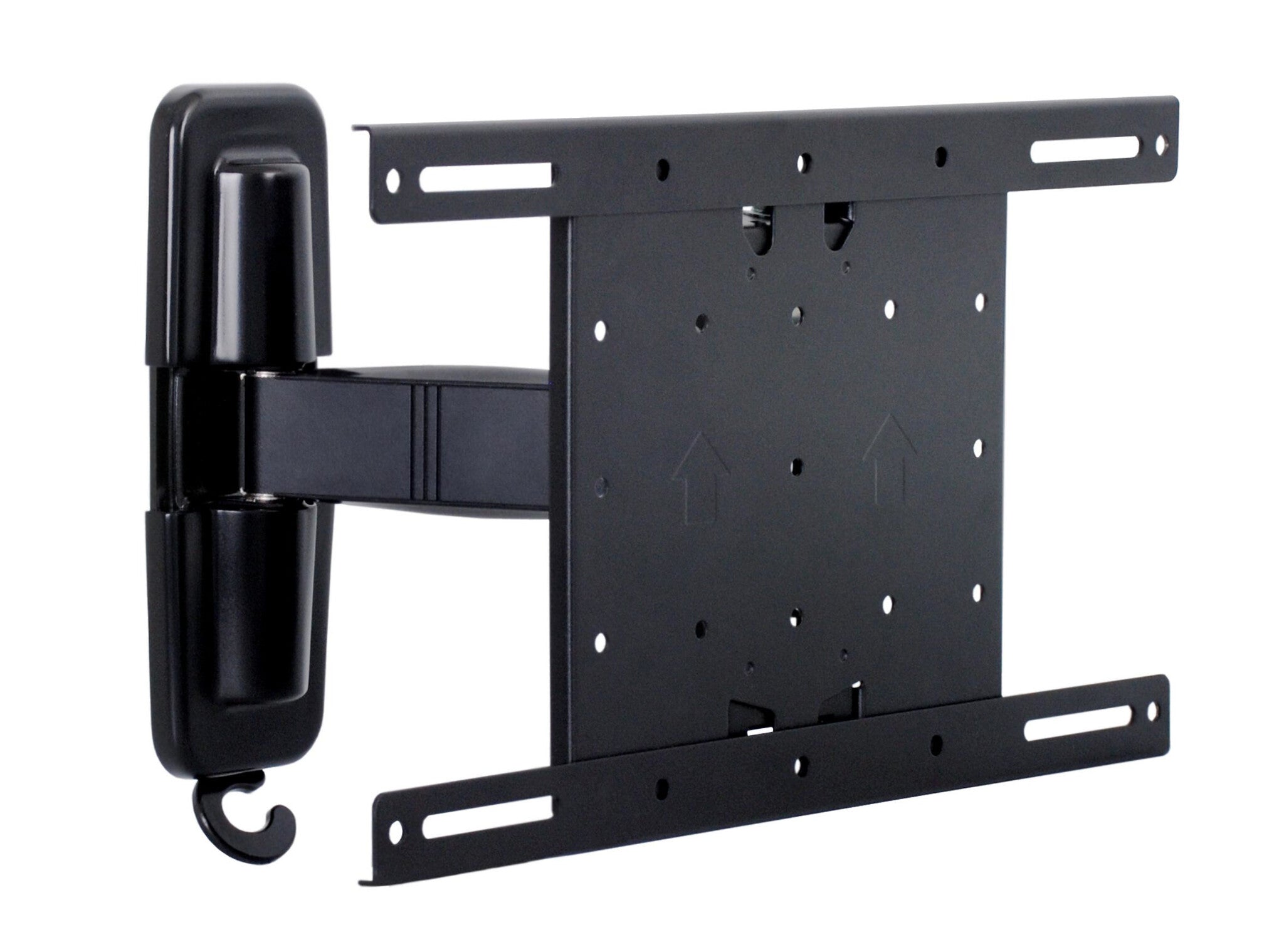

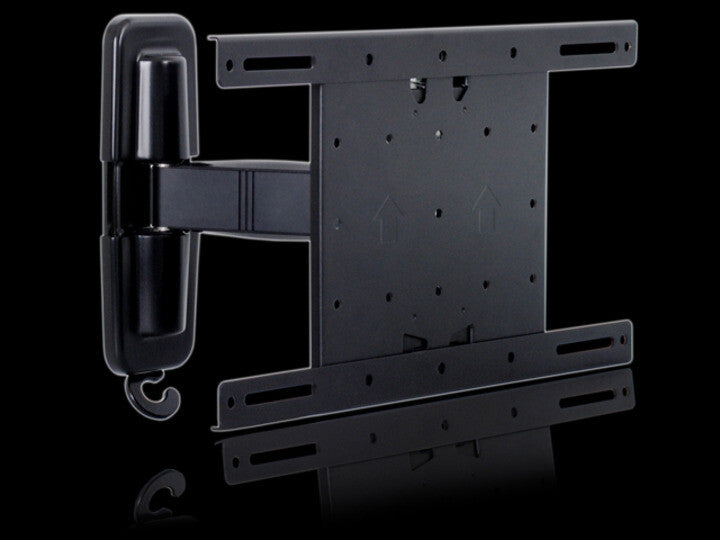

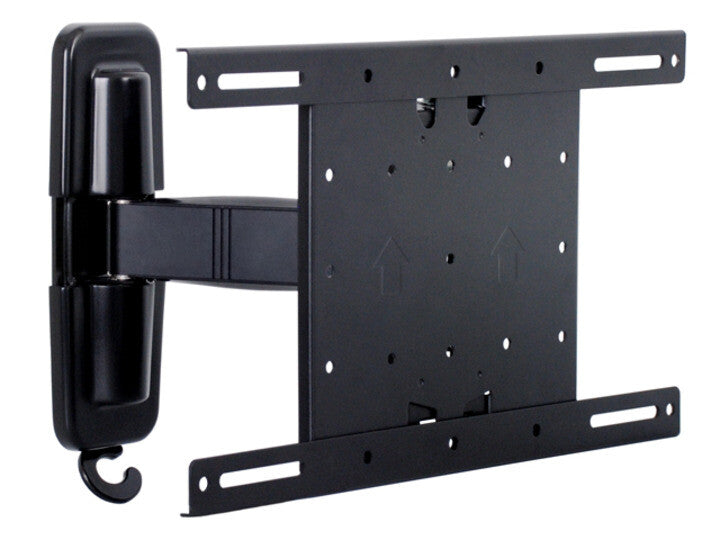

M VESA Flexarm Tilt & Turn II ends an era of bulky and heavy arms needed to flex, tilt and turn.
The uniquely designed low profile M VESA Flexarm Tilt & Turn III mount fits most 32" and up to 50" flat panels up to 25 kgs. It is very well-suited for those applications where seamless integration counts the most. The M VESA Flexarm Tilt & Turn III is part of the Tilt & Turn Series of fixed, tilt and cantilever mounts offering a unique design without compromising on functionality. Moreover, this wallmount has an extended profile of 225 mm from the wall.
The specifications this product reveals are simply incredible.

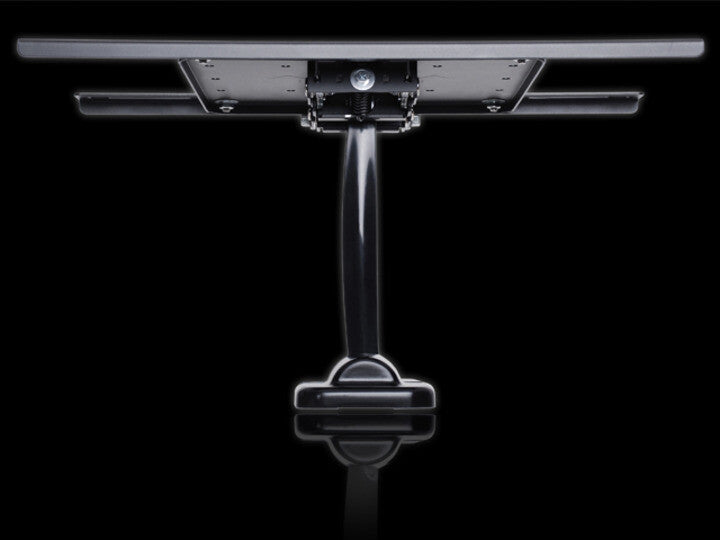

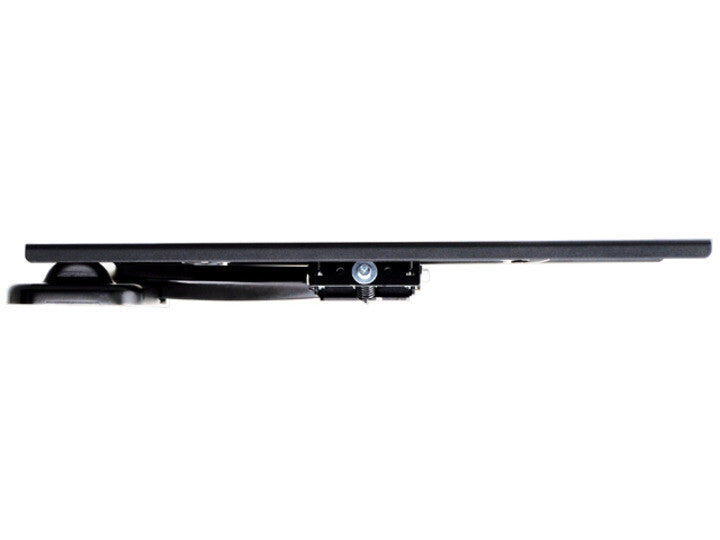

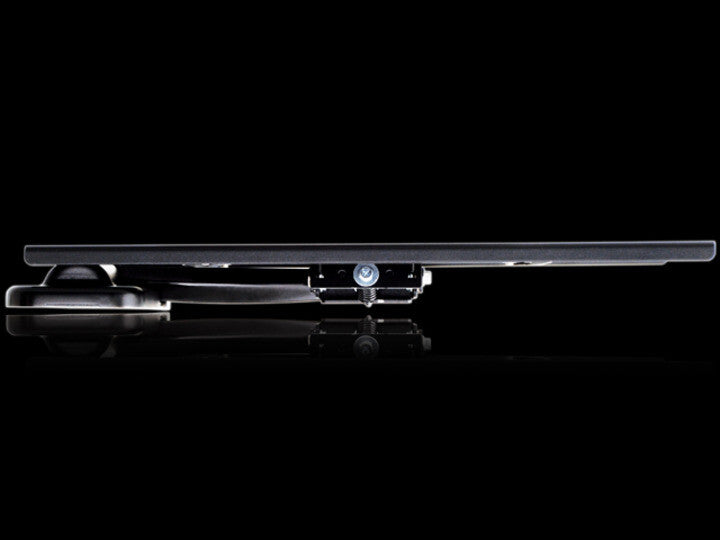

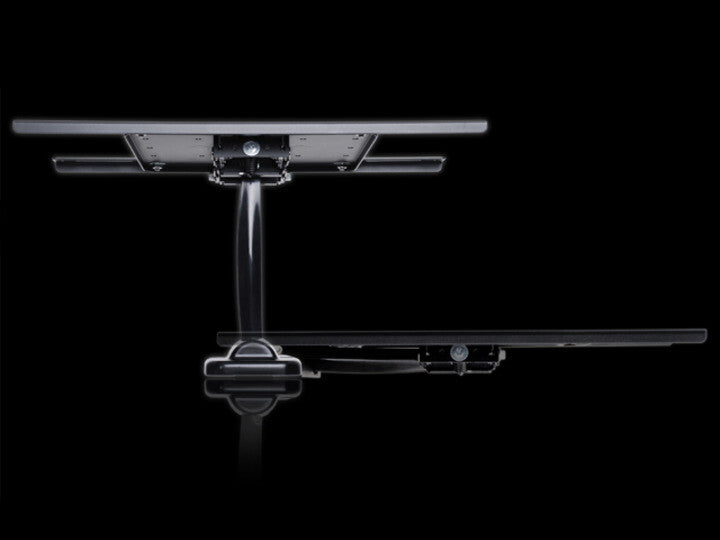

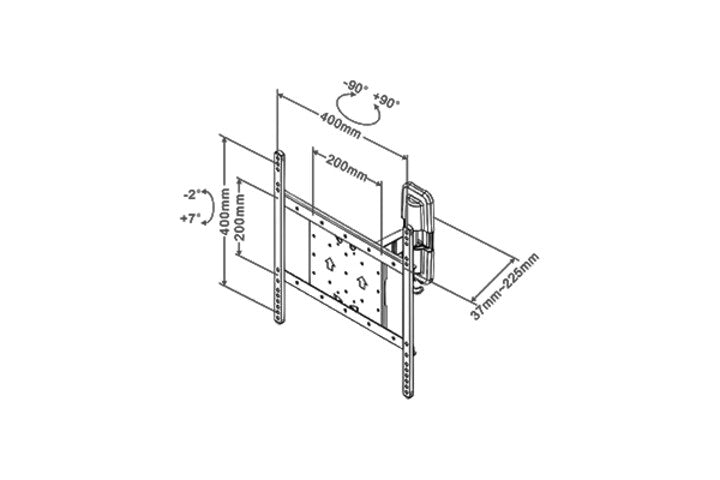

Super Slim defines the minimal 47 mm of the low profile to wall. It extends to a maximum of 225 mm proving that this construction is truly flexible being so lightweight. Yet still, produced with high quality materials creating a super strong solution carrying screen up to 25 kgs.

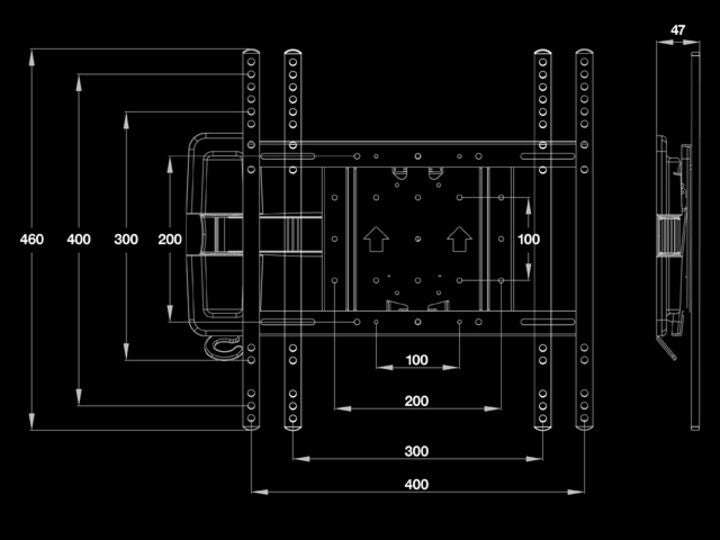

M VESA Flexarm Tilt & Turn III is suitable for a wide range of screens sized 32" and up to 50". The VESA standards that are supported by this mount is 100 / 200 / 300 and up to 400 mm.
| Mounting | |
|---|---|
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100,200 x 100,200 x 200,300 x 300,400 x 200,400 x 400 |
| Maximum VESA mount | 400 x 400 mm |
| Minimum VESA mount | 100 x 100 mm |
| Mounting type | Wall |
| Maximum screen size | 127 cm (50") |
| Minimum screen size | 81.3 cm (32") |
| Maximum weight capacity | 25 kg |
| Ergonomics | |
|---|---|
| Distance to the wall (max) | 22.5 cm |
| Distance to the wall (min) | 3.7 cm |
| Turn angle | 90° |
| Tilt angle range | 0 - 15° |
| Tilt adjustment | Yes |
| Design | |
|---|---|
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Weight | 3.6 kg |
| Height | 273 mm |
| Depth (max) | 22.5 cm |
| Depth (min) | 3.7 cm |
| Width | 488 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 3.6 kg |
| Package height | 330 mm |
| Package depth | 560 mm |
| Package width | 360 mm |
| Logistics data | |
|---|---|
| Products per shipping (inner) case | 4 pc(s) |
