Kindermann DisplayLift floor/wall
Couldn't load pickup availability
- The center of the dispaly can be adjusted between 112 cm and 162 cm in height
- Wall mounting by two height adjustable mounting brackets
- The integrated cable management ensures a clean and tidy installation and prevents the supply lines from getting trapped
- The control panel for the height adjustment can be installed either on the left or right of the display mount
- An anit-collision sensor and a Bluetooth expansion module to control the heigt adjustment via app are available optionally

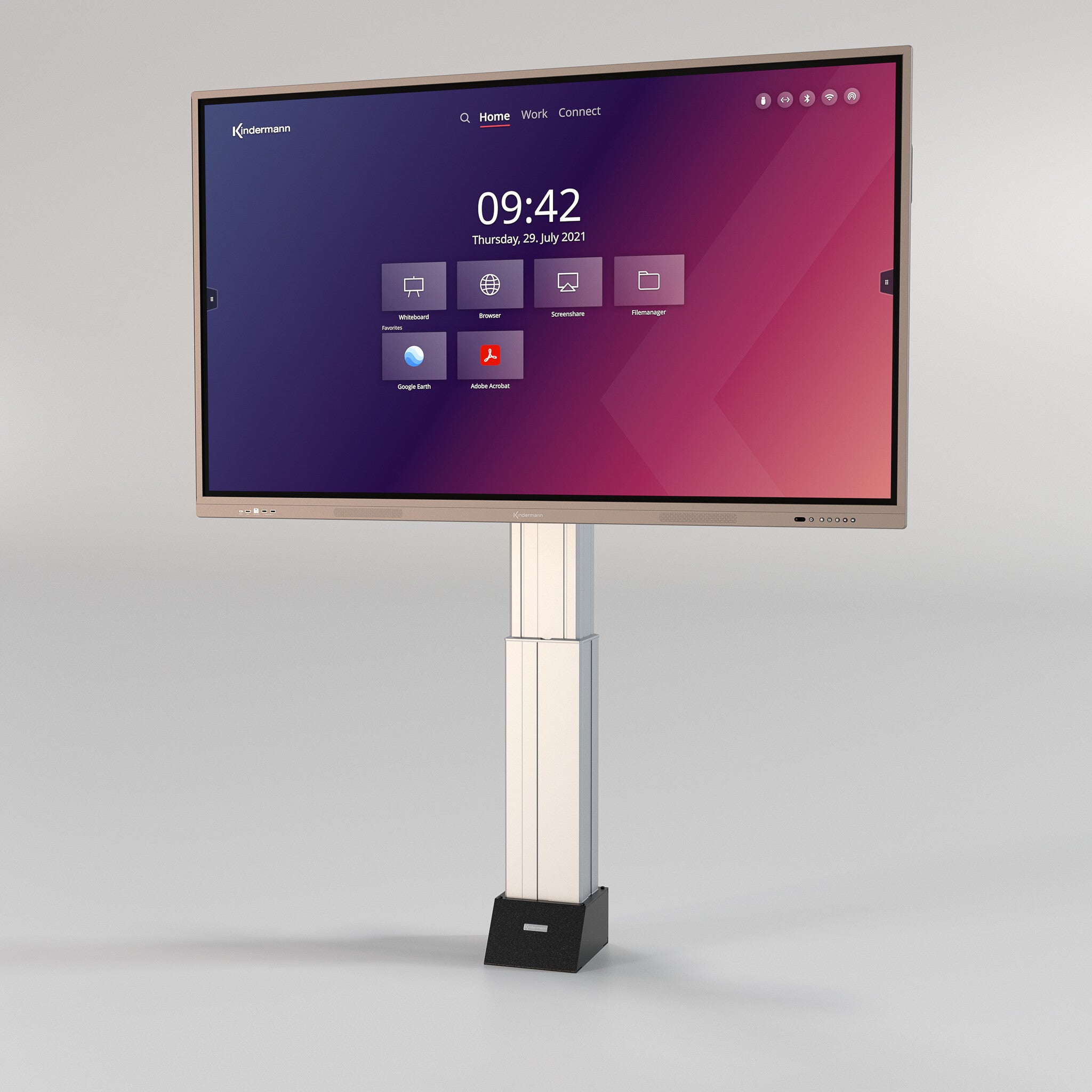

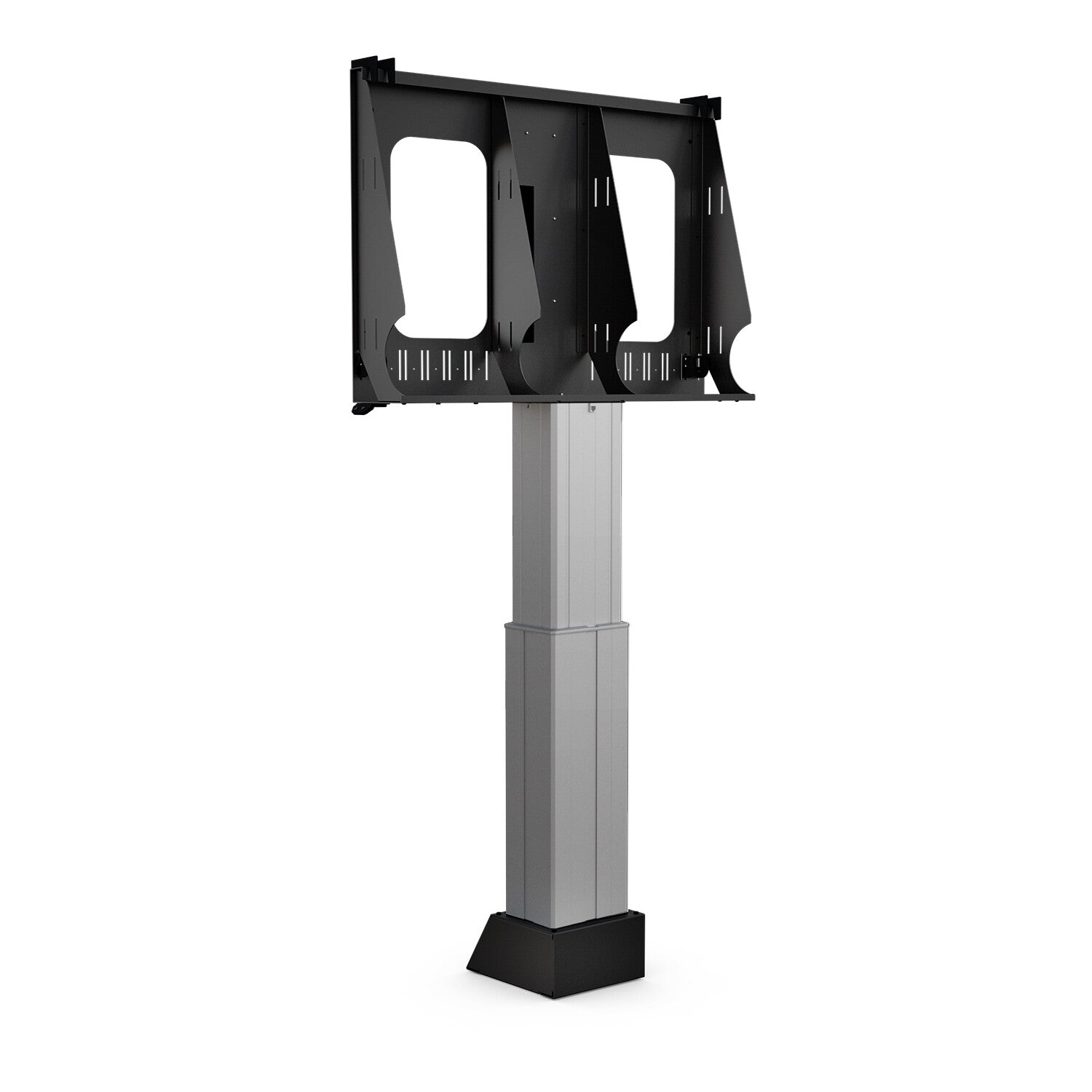

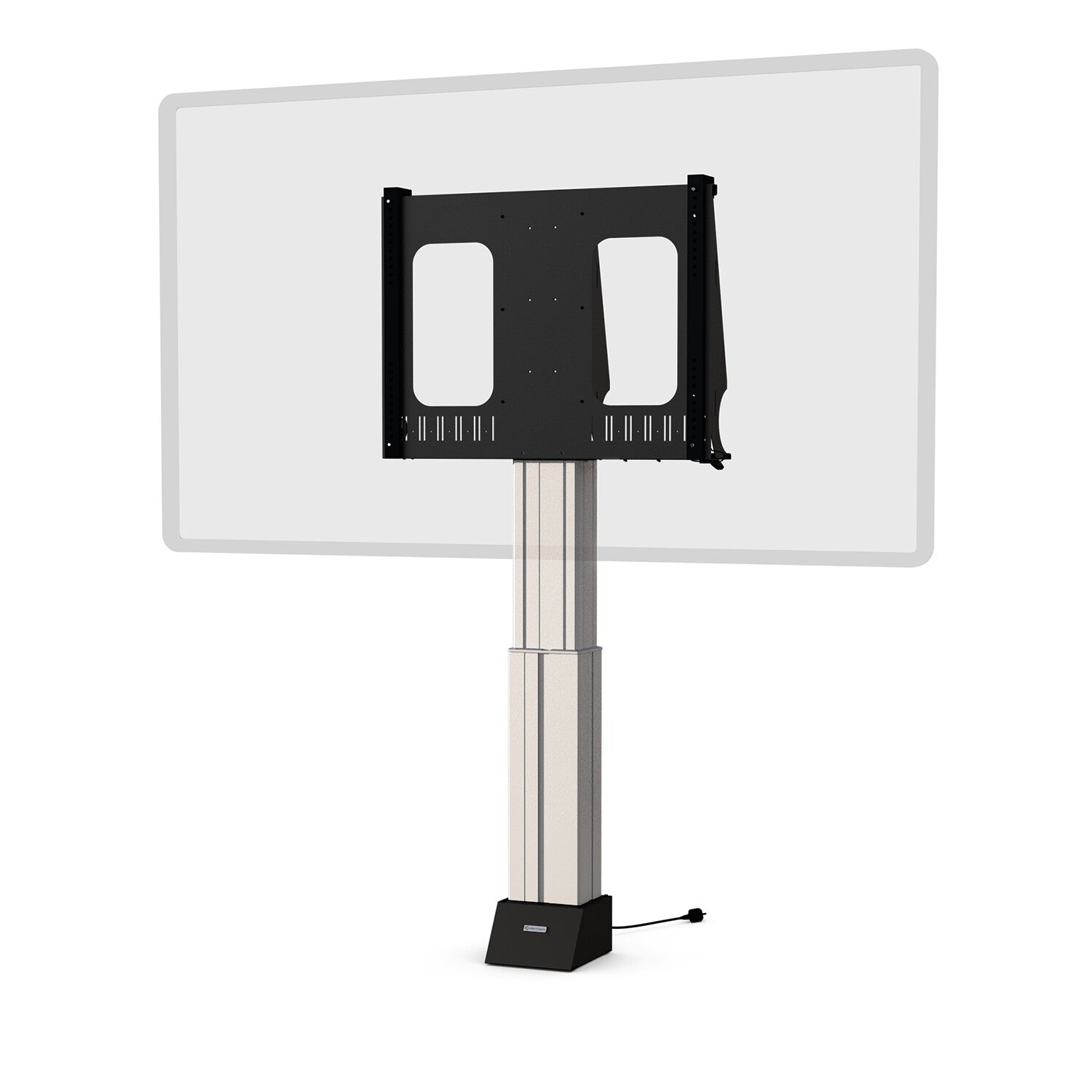

Electrical height adjustable displaymount for TVs and interactive touchdisplays up 86 inch or 90 kg for
for floor/wall installation.
High-quality and durable lifting column made of anodized aluminium. Display mount and foot are powder coated in black (RAL 9005).
| Mounting | |
|---|---|
| Number of displays supported | 1 |
| Panel mounting interface | 300 x 200,800 x 600 mm |
| Maximum VESA mount | 800 x 600 mm |
| Minimum VESA mount | 300 x 200 mm |
| Mounting type | Floor |
| Maximum screen size | 2.18 m (86") |
| Maximum weight capacity | 90 kg |
| Ergonomics | |
|---|---|
| Lifting speed | 20 mm/sec |
| Height adjustment range | 1120 - 1620 mm |
| Height adjustment type | Electric |
| Height adjustment | Yes |
| Design | |
|---|---|
| Housing material | Aluminium, Steel |
| Product colour | Black, Silver |
| Technical details | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Lifting weight (max) | 90 kg |
| Weight & dimensions | |
|---|---|
| Weight | 34 kg |
| Height | 1760 mm |
| Depth (min) | 32.1 cm |
| Width | 870 mm |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pair(s) |
