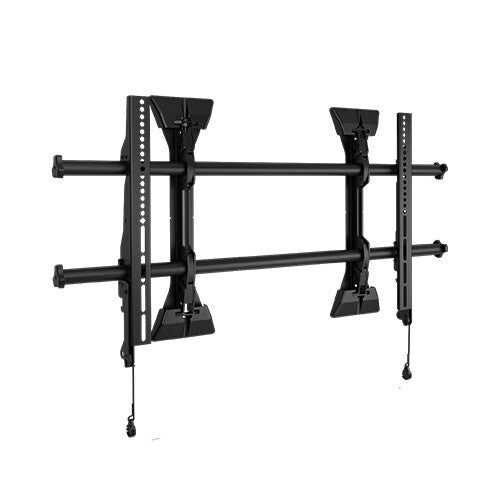

Chief Large Fusion Micro-Adjustable Fixed Wall Display Mount
£161.99
Couldn't load pickup availability
- Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
- ControlZone Leveling for post-installation fine tuning of height and leveling
- Centerless Shift provides up to 17.4" (441 mm) of post-installation lateral shift for limitless centering
- Set screws keep the mount rigid, stable and secure throughout the life of the installation
- ClickConnect offers an audible click when the screen safely engages with the mount
- Quick-Store Cords use magnets to easily store and access pull cords
Installer-inspired Fusion fixed mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution. Chief upgraded fixed wall mounts based on installer feedback and direct observations of installers in the field. Many new features join Fusion favorites like Centerless shift, ControlZone leveling adjustment and ClickConnect Latching. New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security.
| Mounting | |
|---|---|
| Number of displays supported | 1 |
| Maximum VESA mount | 871 x 500 mm |
| Minimum VESA mount | 100 x 100 mm |
| Mounting type | Wall |
| Maximum screen size | 160 cm (63") |
| Minimum screen size | 94 cm (37") |
| Maximum weight capacity | 90.7 kg |
| Maximum weight capacity (per display) | 90.7 kg |
| Ergonomics | |
|---|---|
| Distance to the wall (max) | 5.1 cm |
| Height adjustment | Yes |
| Design | |
|---|---|
| Certification | UL |
| Product colour | Black |
| Technical details | |
|---|---|
| Orientation | Landscape |
| Weight & dimensions | |
|---|---|
| Height | 464 mm |
| Depth (max) | 5.1 cm |
| Depth | 53 mm |
| Width | 883 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 9 kg |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85299097 |
