Lindy 32309 touch control panel 25.4 cm (10") 1280 x 800 pixels

Lindy
£757.99
Stock Available: 0
  • Programmable 10 inch desktop touchpad
  • Simple programming with Lindy Pro Control software, user-friendly platform to easily program any manageable device
  • Flexible control via LAN and RS-485
  • Supports PoE or external power supply

This touchpad allows control of any device with commands over TCP IP or RS-485 connections. The programming is done via Lindy Pro Control software, a platform to set up the unit and manage any device with commands in a simple and effective way. In addition is possible to manage the programmed projects from your smartphone or tablet via Lindy Pro Control app downloadable from Google Play Store and Apple Store.

The capacitive touchscreen supports 1280x800 (16:10) resolution, buttons design and background picture are fully customizable from the software to provide always the best solution for any kind of installation.

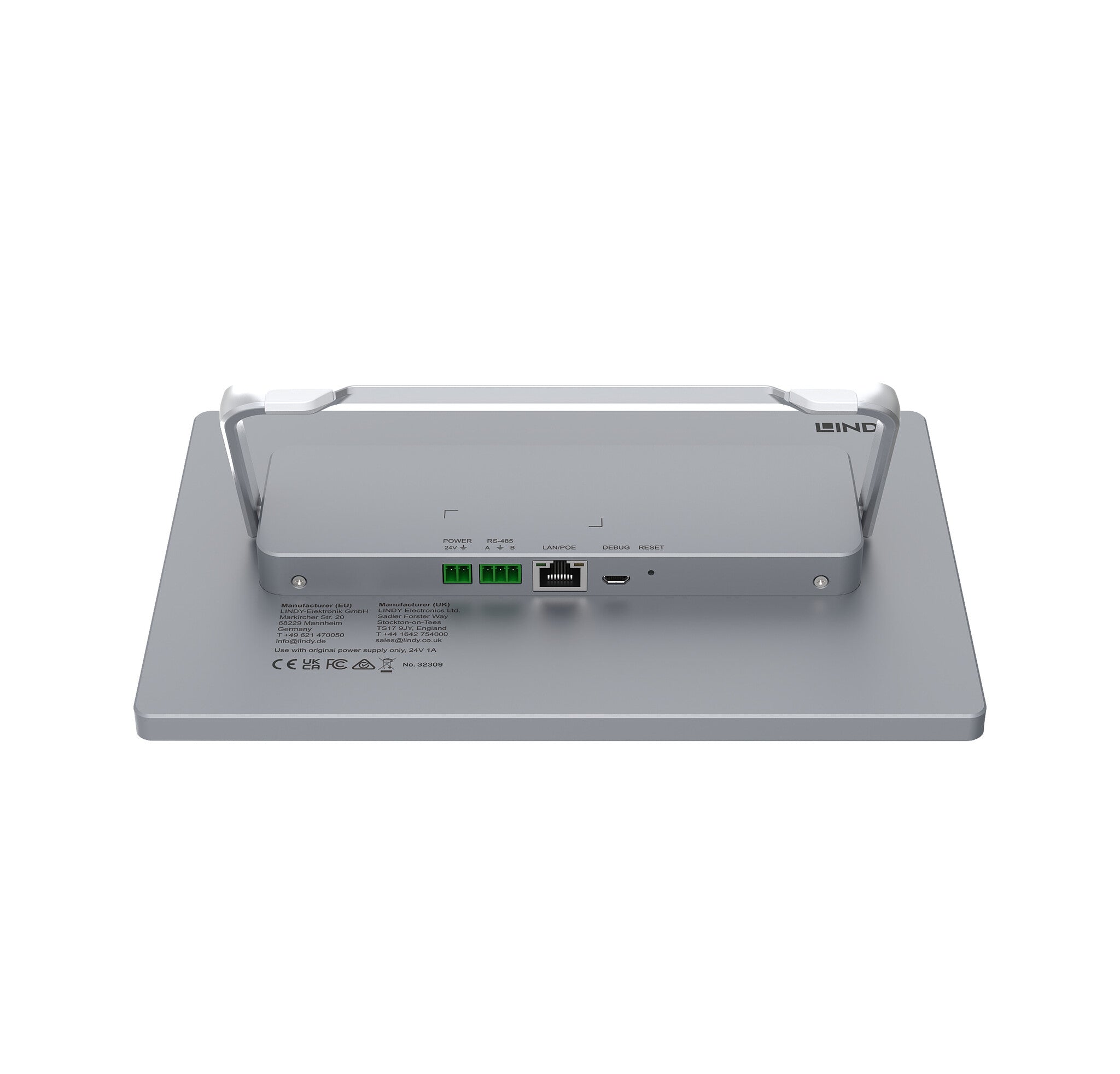

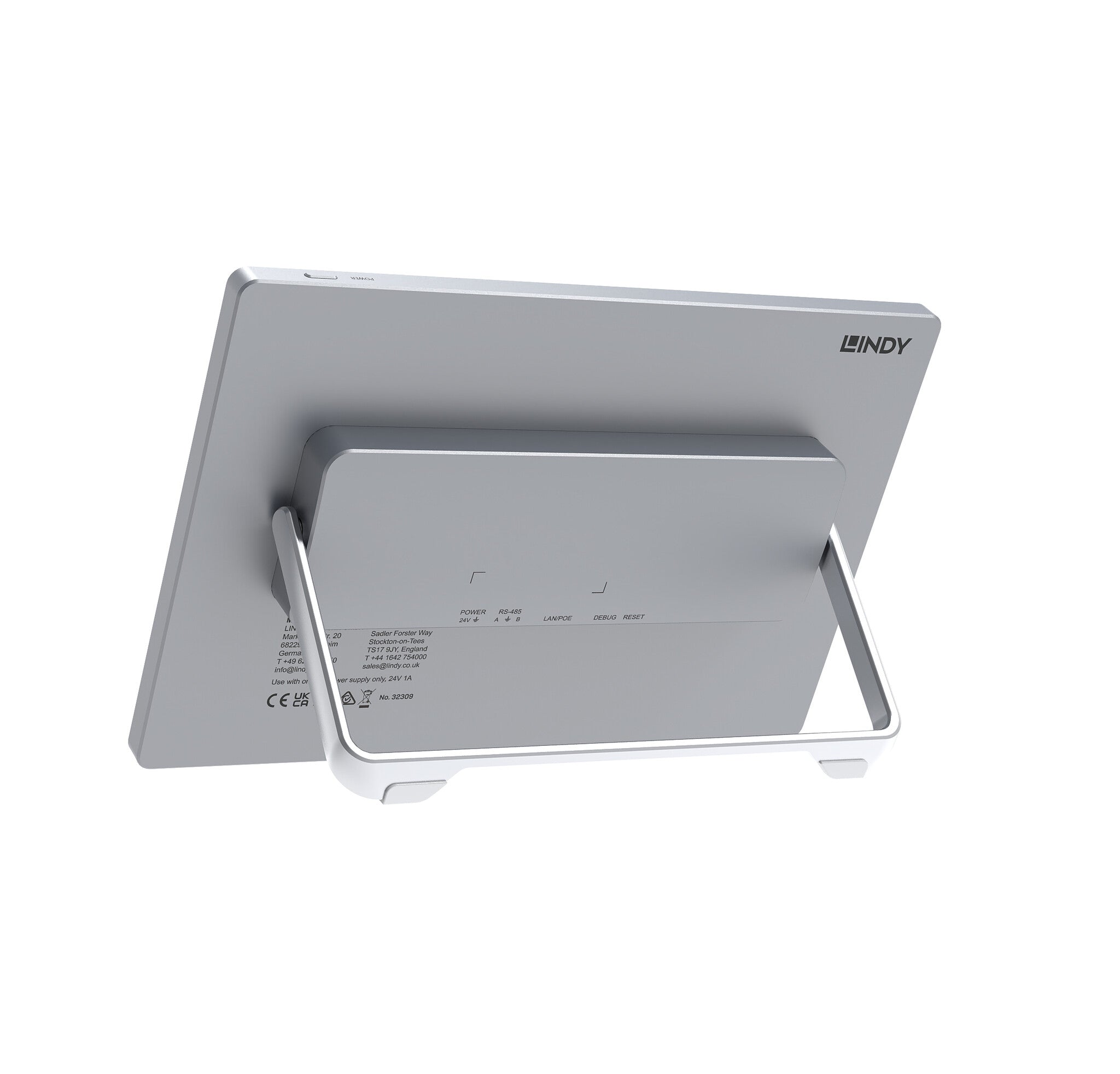

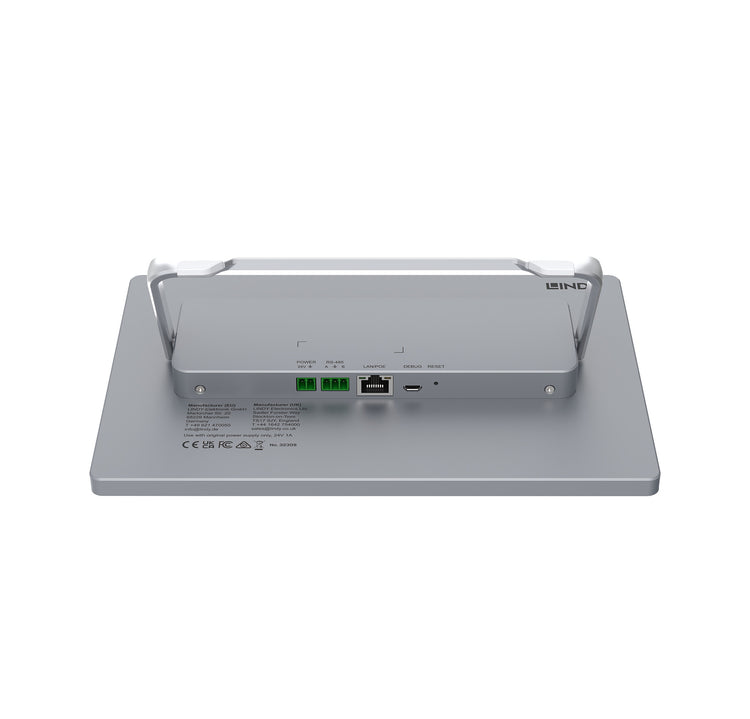

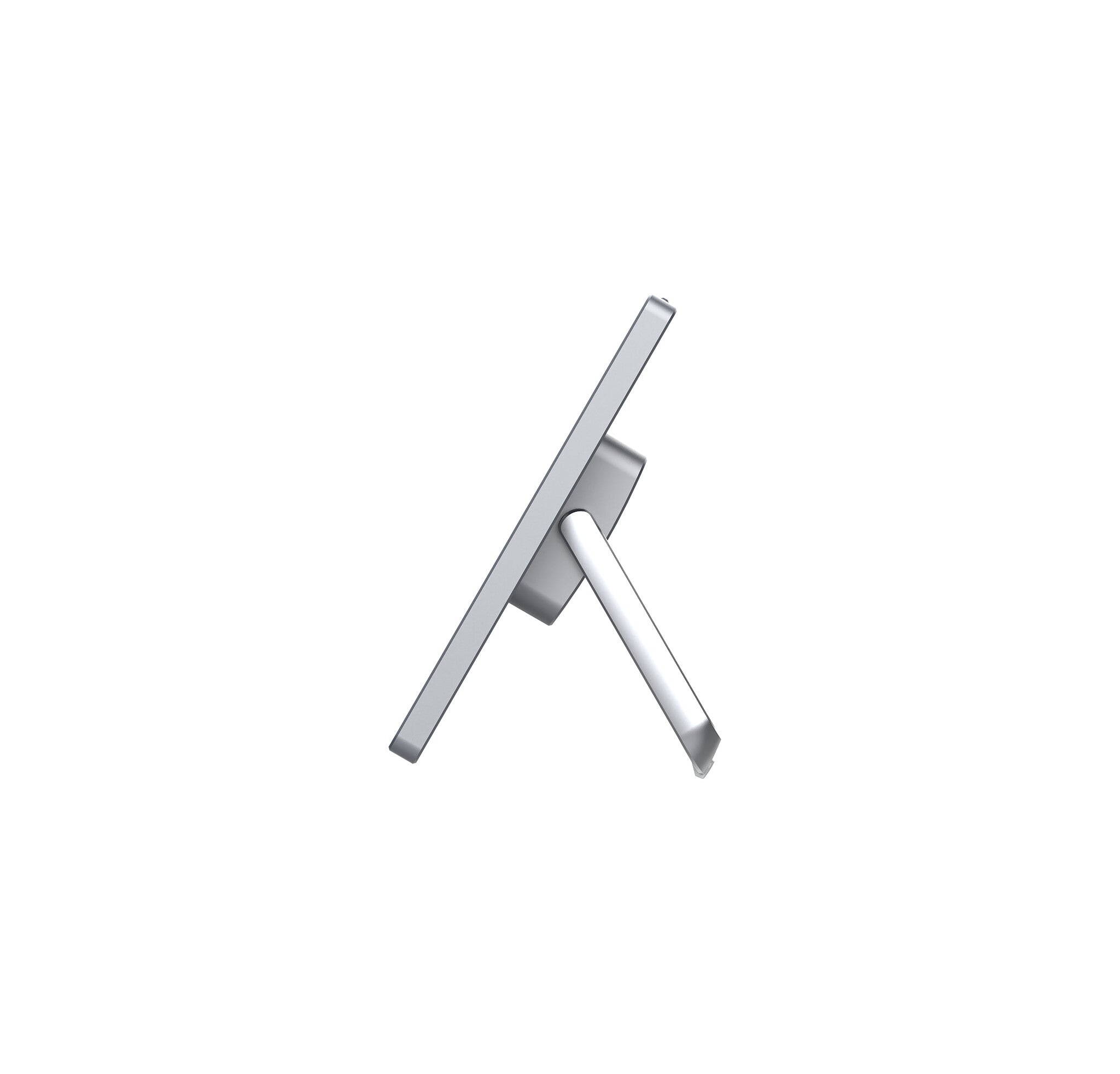

An adjustable metal bracket is integrated on the rear side to position the unit correctly at the right angle on a desk.

Make control in presentation and conference room systems, board rooms and auditoriums easy and flexible - Manage any room device via LAN or RS-485 connections creating your own design over touchscreen buttons.

Connect the touchpad to a computer's network port and create your projects over Lindy Pro Control software; effective UI Design and Logical Design options can be used to configure the Lindy Control pads and create the best solution for your installation.

Display
Display diagonal 25.4 cm (10")
Display resolution 1280 x 800 pixels
Touchscreen technology Capacitive
Native aspect ratio 16:10
Performance
Internal memory 32000 MB
RAM capacity 4000 MB
Product colour Grey
Housing material Aluminium
Mean time between failures (MTBF) 30000 h
Operating system installed Android
Operating system version 11
Ports & interfaces
RJ-45 ports quantity 1
Power
Power source type DC
Input voltage 24 V
Weight & dimensions
Width 245.4 mm
Depth 164 mm
Height 27 mm
Weight 887 g
Packaging data
Package height 65 mm
Package width 375 mm
Package depth 209 mm
Package weight 1 kg
Package type Box
Packaging content
Quick start guide Yes
Operational conditions
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Other features
Compliance certificates CE, Federal Communications Commission (FCC), UKCA, REACH, RoHS
