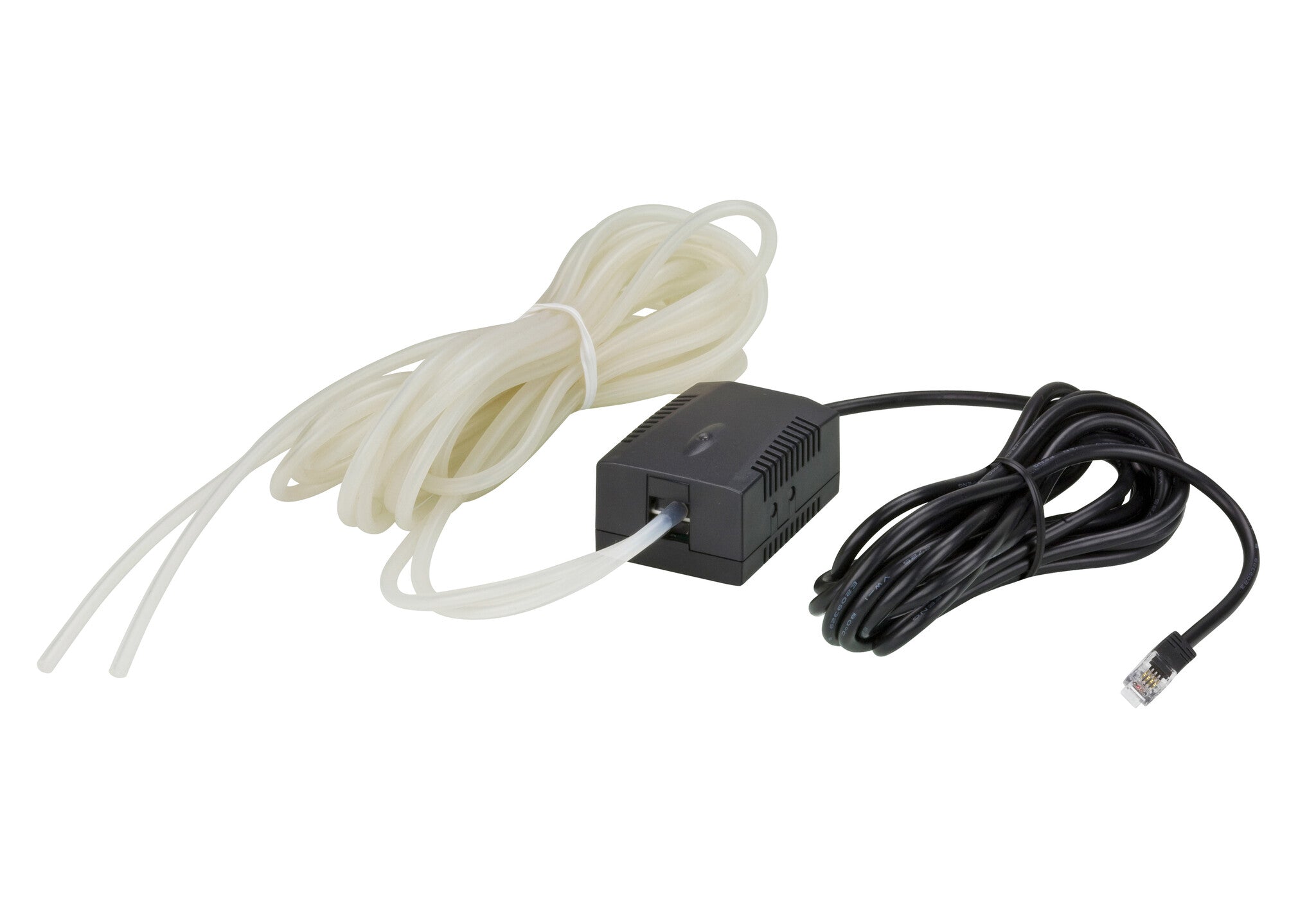

ATEN Pressure / Temperature Sensor for PE Series
£274.99
Couldn't load pickup availability
- Measurement range: -19-60°C (Temperature); +-500 Pa (Pressure )
- Compact design – built in 3 m cable
- High sensitivity
- Easy operation
For environmental monitoring and management, ATEN provides sensor probes that work in tandem with the Power Distribution Units, which enable you to get readings of Differential Pressure & Temperature. Environmental conditions can be monitored with alarms according to customizable minimum/maximum thresholds set for temperature and humidity.
| Features | |
|---|---|
| Material | Plastic |
| Cable length | 3 m |
| Temperature measuring range | -19 - 60 °C |
| Standard interfaces | RJ-11 |
| Connectivity technology | Wired |
| Sensor type | Temperature sensor |
| Purpose | Indoor |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | 0 - 40 °C |
| Operating temperature (T-T) | 0 - 60 °C |
| Weight & dimensions | |
|---|---|
| Weight | 130 g |
| Packaging data | |
|---|---|
| Package weight | 185 g |
| Package height | 54 mm |
| Package depth | 180 mm |
| Package width | 130 mm |
| Logistics data | |
|---|---|
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case gross weight | 4.33 kg |
| Master (outer) case height | 284 mm |
| Master (outer) case width | 297 mm |
| Master (outer) case length | 369 mm |
| Master (outer) case net weight | 2.6 kg |
| Harmonized System (HS) code | 90318080 |
