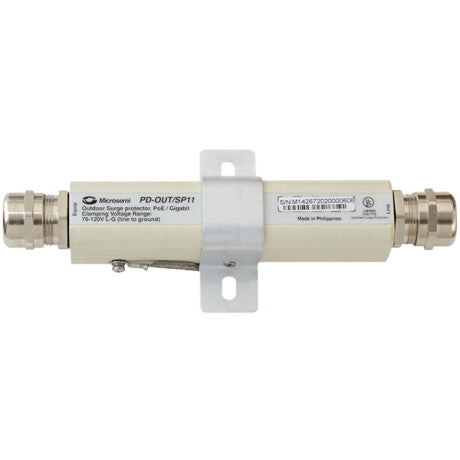

Microchip Technology PD-OUT/SP11 surge protector Beige, Silver
£77.99
Couldn't load pickup availability
- Supports data rates of up to 1Gbps
- Protects up to 10KV surge
- All eight lines protected including PoE
- Waterproof—IP66 rated
Summary
The PD-OUT-SP11 is a high quality surge protection device designed to protect indoor Ethernet networks from lighting that may come from outdoor environment through the Ethernet cable. The product is enclosed in a metal weatherproof enclosure, meeting IP66. It can be easily mounted on a wall or a pole. The SP device can be installed before the cable enters the building to protect the indoor network or immediately adjacent to the wall- or pole-mounted outdoor device (i.e. WLAN AP, IP Camera, etc.).
| Power | |
|---|---|
| Clamping voltage | 10000 V |
| Features | |
|---|---|
| International Protection (IP) code | IP66 |
| Product colour | Beige, Silver |
| Technical details | |
|---|---|
| Compliance certificates | REACH, RoHS, WEEE |
| Weight & dimensions | |
|---|---|
| Height | 30 mm |
| Depth | 30 mm |
| Width | 190 mm |
| Weight | 270 g |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 85 °C |
| Certificates | |
|---|---|
| Certification | UL, IEC60529, NEMA 250, level 4x, IEC61643-21, GR1089, ITU-T K.45, UL 497B |
