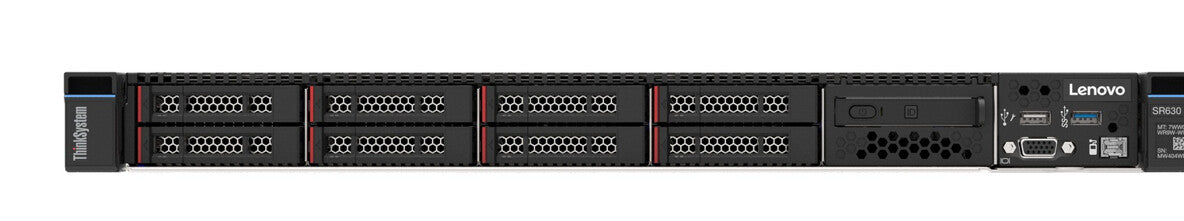

Lenovo ThinkSystem SR630 V3 server Rack (1U) Intel Xeon Silver 4510 2.4 GHz 32 GB DDR5-SDRAM 1100 W
Couldn't load pickup availability
- Intel Xeon Silver 4510 2.4 GHz
- 32 GB 5600 MHz DDR5-SDRAM 1 x 32
- Rack (1U) 1100 W
The Lenovo ThinkSystem SR630 V3 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 V3 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
This product guide provides essential pre-sales information to understand the ThinkSystem SR630 V3 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR630 V3 and consider its use in IT solutions.
| Processor | |
|---|---|
| Processor threads | 24 |
| Number of processors installed | 1 |
| Motherboard chipset | Intel C741 |
| Processor cache | 30 MB |
| Processor cores | 12 |
| Processor boost frequency | 4.1 GHz |
| Processor frequency | 2.4 GHz |
| Processor model | 4510 |
| Processor family | Intel Xeon Silver |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 8.19 TB |
| Memory slots | 32x DIMM |
| ECC | Yes |
| Memory clock speed | 5600 MHz |
| Memory layout (slots x size) | 1 x 32 GB |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Internal drive bays | 8 |
| Optical drive type | No |
| Hot-swap | Yes |
| Supported RAID controllers | 940-8i 4GB |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| RAID support | Yes |
| Supported HDD sizes | 2.5" |
| Number of HDDs supported | 8 |
| Graphics | |
|---|---|
| Maximum graphics card memory | 16 MB |
| On-board graphics card | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Design | |
|---|---|
| Rack mounting | Yes |
| Cooling type | Active |
| Product colour | Black, Steel |
| Chassis type | Rack (1U) |
| Performance | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Performance management | XClarity Controller Platinum |
| Software | |
|---|---|
| Compatible operating systems | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Ubuntu Server |
| Power | |
|---|---|
| Number of redundant power supplies supported | 1 |
| Power supply | 1100 W |
| Redundant power supply (RPS) support | Yes |
| General | |
|---|---|
| Product family | ThinkSystem |
| Weight & dimensions | |
|---|---|
| Weight | 20.8 kg |
| Depth | 773 mm |
| Height | 43 mm |
| Width | 440 mm |
