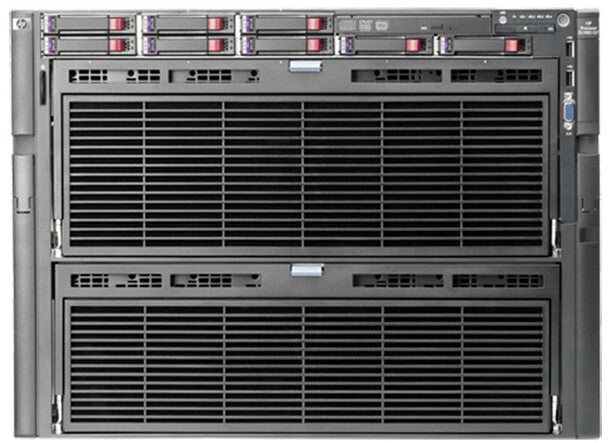

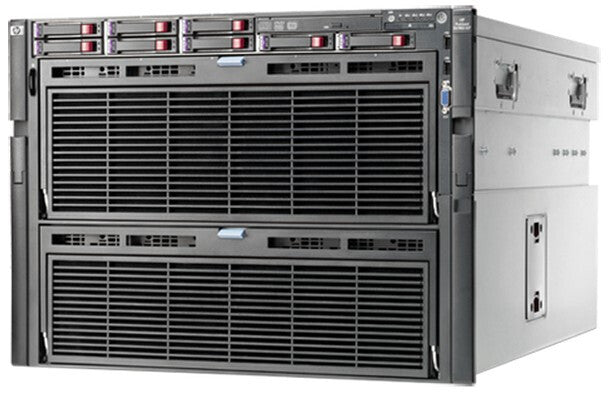

HPE ProLiant DL980 server 0 GB Rack (8U) Intel® Xeon® E7 Family E7-4870 2.4 GHz 256 GB DDR3-SDRAM 1200 W
Couldn't load pickup availability
- Intel® Xeon® E7 Family E7-4870 2.4 GHz
- 256 GB DDR3-SDRAM 32 x 8
- DVD-RW
- Rack (8U) 1200 W
HP ProLiant DL980 G7, featuring HP's PREMA Architecture delivers the balanced scaling, self-healing resiliency and breakthrough efficiency needed to overcome the challenges of today's most demanding x86 compute environments. Whether implementing a single and very large data intensive, or many consolidated or virtualized workloads, the DL980 G7 server is an ideal platform to deploy and scale up your Enterprise environments with confidence.
Features
Balanced scaling delivers world-leading performance
Streamline CPU utilization and performance with HP's smart CPU caching technology which enables, the processor(s) to remain focused on its task with less interruptions, resulting in faster job completion.
Efficiently use compute and memory resources with HP's scalable design supporting up to 8 processors / 80 processor cores, 128 DDR3 DIMM slots for a memory maximum of 2 TB, capable of 4TB with 32GB DIMMs in the future and up to 16 I/O slots.
Self healing resiliency delivers up to a 200% boost in reliability
Reduce communication errors on overloaded systems with HP’s PREMA Architecture, providing 50% more interconnect capacity and dynamic QPI routing.
Achieve a highly reliable scale up infrastructure combining mission critical and x86 technologies and expertise from an industry leader in both.
Hot plug redundant fans and power supplies.
Breakthrough efficiencies deliver payback in as little as 60 days
Consolidate multiple resource intensive servers on to a single system to achieve up to 96% reduction in power and cooling costs.
Reduce, reclaim and extend the life of your data center with HP Thermal Logic technologies and triple your datacenter capacity.
Aggressively respond with HP iLO3 (part of Insight Control) remote console management that operates 8x faster than the previous version.
Free up operational dollars, speed up project success and increase levels of application availability with HP Mission Critical Services.
In depth technical collaboration between HP and key industry partners speeds time to deployment of application on the DL980 G7.
| Processor | |
|---|---|
| Conflict-Free processor | No |
| Stepping | A2 |
| Thermal Monitoring Technologies | Yes |
| Processor code | SLC3T |
| Maximum internal memory supported by processor | 2.05 TB |
| Execute Disable Bit | Yes |
| Processor socket | LGA 1567 (Socket LS) |
| Processor lithography | 32 nm |
| Processor threads | 20 |
| Processor operating modes | 64-bit |
| Processor codename | Westmere EX |
| Tcase | 69 °C |
| Memory types supported by processor | DDR3 800/978/1066/1333 (Max Speed 1066 MHz) |
| Processor package size | 49.17 x 56.47 mm |
| Supported instruction sets | SSE4.1/4.2 |
| Scalability | S4S |
| Embedded options available | No |
| Maximum number of SMP processors | 8 |
| ECC supported by processor | Yes |
| Processor series | Intel Xeon E7-4800 |
| Bus type | QPI |
| Processor front side bus | 1333 MHz |
| FSB Parity | No |
| CPU multiplier (bus/core ratio) | 18 |
| System bus rate | 6.4 GT/s |
| Processor cache type | Smart Cache |
| Thermal Design Power (TDP) | 130 W |
| Number of processors installed | 4 |
| Memory channels supported by processor | Quad |
| Processor cache | 30 MB |
| Processor cores | 10 |
| Processor boost frequency | 2.8 GHz |
| Processor frequency | 2.4 GHz |
| Processor model | E7-4870 |
| Processor family | Intel® Xeon® E7 Family |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Memory slots | 128 |
| Memory layout (slots x size) | 32 x 8 GB |
| Internal memory type | DDR3-SDRAM |
| Internal memory | 256 GB |
| Storage | |
|---|---|
| Supported storage drive interfaces | SAS |
| Optical drive type | DVD-RW |
| Number of SSDs supported | 8 |
| SSD interface | Serial Attached SCSI (SAS) |
| Number of HDDs supported | 8 |
| HDD interface | Serial ATA, Serial Attached SCSI (SAS) |
| Total storage capacity | 0 GB |
| Maximum storage capacity | 4 TB |
| Network | |
|---|---|
| LAN controller | HP NC375i |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
| Ports & interfaces | |
|---|---|
| Expansion slots | 16x PCIe/PCIx |
| Number of slots | 16 |
| Ethernet LAN (RJ-45) ports | 4 |
| Design | |
|---|---|
| Redundant fans support | Yes |
| Chassis type | Rack (8U) |
| Processor special features | |
|---|---|
| Intel Clear Video Technology | No |
| Intel Enhanced Halt State | No |
| Intel Rapid Storage Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Insider™ | No |
| Intel Dual Display Capable Technology | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 1.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Processor ARK ID | 53579 |
| Intel® Quick Sync Video Technology | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel Flex Memory Access | No |
| Intel Demand Based Switching | No |
| CPU configuration (max) | 4 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Power | |
|---|---|
| Number of redundant power supplies installed | 8 |
| Power supply | 1200 W |
| Redundant power supply (RPS) support | Yes |
| General | |
|---|---|
| Product family | ProLiant |
| Product series | DL |
| Weight & dimensions | |
|---|---|
| Weight | 93 kg |
| Depth | 439.9 mm |
| Height | 695.9 mm |
| Width | 350.2 mm |
| Other features | |
|---|---|
| Plug and Play | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Dimensions (WxDxH) | 350.2 x 439.9 x 695.9 mm |
