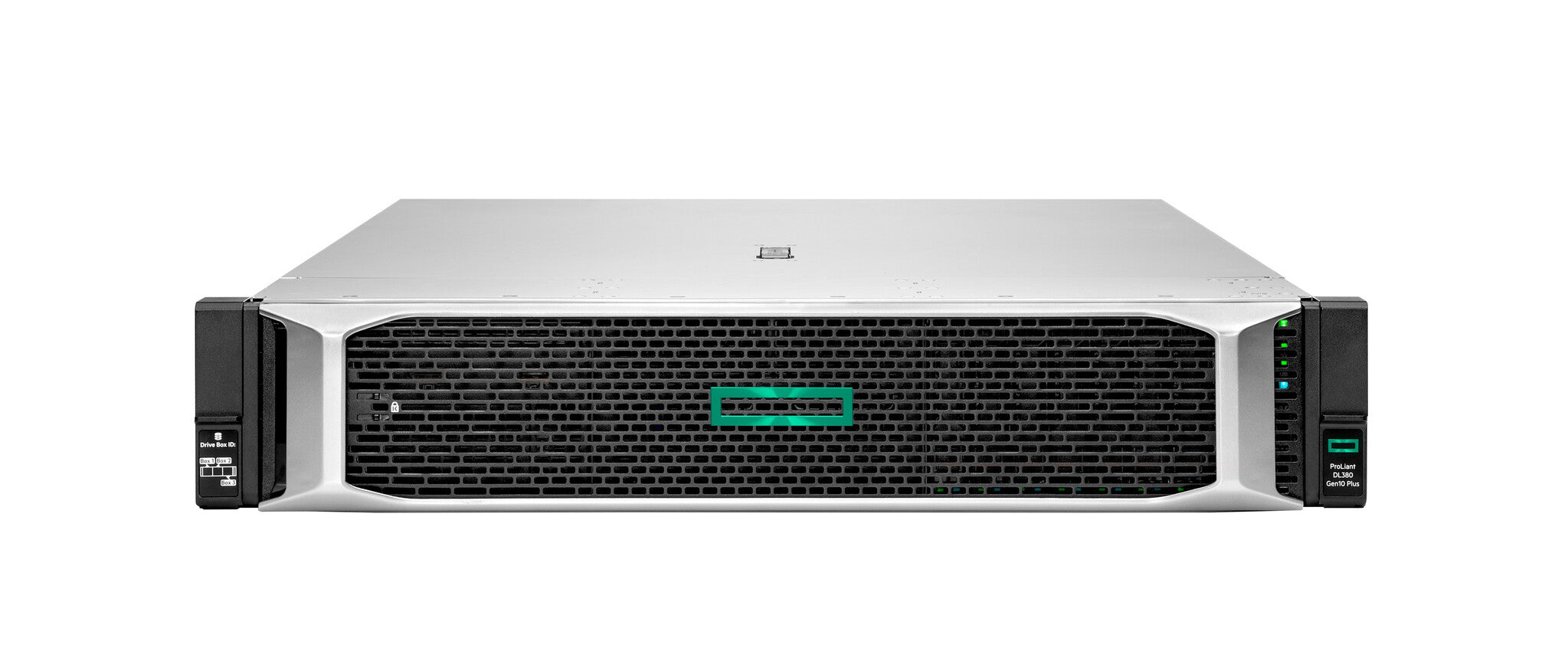

HPE ProLiant DL380 Gen10 Plus 4310 12c 1P 2x32GB-R SR416i-a 2x480GB SATA SSD 2x800W PS EU Server
Couldn't load pickup availability
- Intel Xeon Silver 4310 2.1 GHz
- 64 GB 3200 MHz DDR4-SDRAM 2 x 32
- 960 GB
- Rack (2U) 800 W
Do your servers need increased performance in storage, compute, or expansion? The HPE ProLiant DL380 Gen10 Plus server is adaptable for diverse workloads and environments, providing you with the right balance of expandability and scalability. Designed for supreme versatility and resiliency, this 2U/2P platform is capable for deployment in multiple environments, built on 3rd Generation Intel Xeon Scalable Processors, and backed by a comprehensive warranty. Equipped with PCIe Gen4 capabilities, the HPE ProLiant DL380 Gen10 Plus server offers improved data transfer rates and higher networking speeds.
What is new supporting point:
Support for Trimodal (NVMe/SAS/SATA) HPE Smart Array controllers.
Supports 3rd Generation Intel Xeon Scalable Processors.
Support for PCIe Gen4, resulting in improved bandwidth and throughput.
Support for industry-standard OCP 3.0 Network Adapters.
| Processor | |
|---|---|
| Number of processors installed | 1 |
| Processor cache | 18 MB |
| Processor cores | 12 |
| Processor boost frequency | 3.3 GHz |
| Processor frequency | 2.1 GHz |
| Processor model | 4310 |
| Processor generation | 3rd Generation Intel® Xeon® Scalable |
| Processor family | Intel Xeon Silver |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 8 TB |
| Memory slots | 32x DIMM |
| Memory clock speed | 3200 MHz |
| Memory layout (slots x size) | 2 x 32 GB |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 64 GB |
| Storage | |
|---|---|
| Optical drive type | No |
| Supported RAID controllers | None |
| RAID support | Yes |
| Number of SSDs supported | 8 |
| Supported SSD sizes | 2.5" |
| SSD interface | PCI Express 4.0 |
| SSD capacity | 480 GB |
| Number of SSDs installed | 2 |
| Total storage capacity | 960 GB |
| Network | |
|---|---|
| LAN controller | Broadcom BCM5719 |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 4 |
| Design | |
|---|---|
| Cooling type | Active |
| Product colour | Black, Silver |
| Chassis type | Rack (2U) |
| Performance | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
|---|---|
| Operating system installed | No |
| Power | |
|---|---|
| Number of main power supplies | 2 |
| Number of redundant power supplies installed | 1 |
| Power supply | 800 W |
| Redundant power supply (RPS) support | Yes |
| General | |
|---|---|
| Product family | ProLiant |
| Product series | DL |
| Weight & dimensions | |
|---|---|
| Depth | 445.4 mm |
| Height | 87.5 mm |
| Width | 710 mm |
