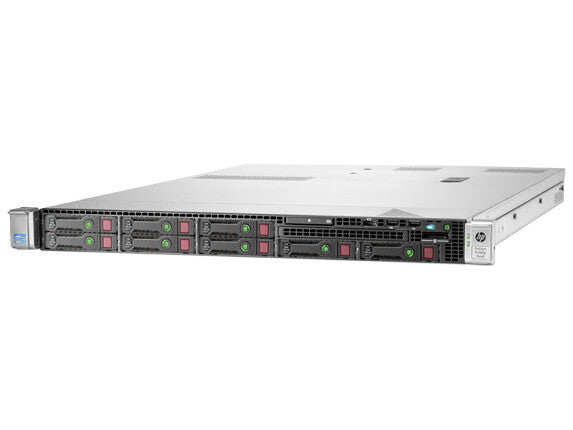

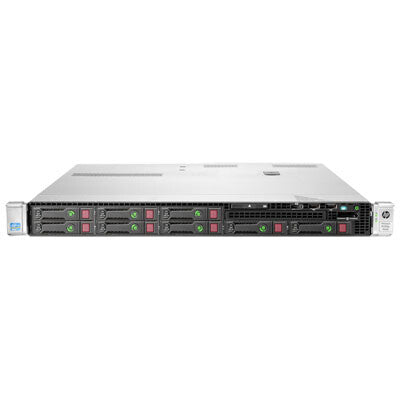

HPE ProLiant DL360p Gen8 server Rack (1U) Intel® Xeon® E5 Family E5-2603V2 1.8 GHz 4 GB DDR3-SDRAM 460 W
Couldn't load pickup availability
- Intel® Xeon® E5 Family E5-2603V2 1.8 GHz
- 4 GB 1600 MHz DDR3-SDRAM 1 x 4
- Rack (1U) 460 W
Is your data center space constrained yet performance driven?
The HP ProLiant DL360p Gen8 Server provides enterprise class 2-socket performance and efficiency in a space saving 1U size. With Gen8 enhanced serviceability and configuration flexibility, it is ideal for general purpose applications such as file/print, web, dynamic computing workloads, virtualization and cloud solutions.
Improved Capacity and Performance on Compute and Storage
• Intel® Xeon® processor E5-2600 v2 product family offers maximum performance, memory, I/O connectivity and bandwidth for demanding workloads.
Unlock your Infrastructure’s Potential with HP’s Easy-to-Use Integrated Management and Support
• HP iLO Management Engine is a complete set of embedded features, standard on all ProLiant Gen8 servers. Includes HP iLO, HP Agentless Management, HP Active Health System, HP Intelligent Provisioning, and HP Embedded Remote Support.
Energy Efficiency by Design
• HP Common Slot Power Supplies provide a new level of server power efficiency with 80 PLUS Titanium certification (96%), and new infrastructure power efficiencies with 277VAC and 380VDC input voltages.
Redefining the Customer Experience with HP ProActive Insight architecture
• User-inspired design features that prevent data loss, reduce downtime, and improve serviceability include HP SmartDrives, HP Smart Socket guides, "Easy Install" rail kit options, and tool-less access to components.
| Processor | |
|---|---|
| Conflict-Free processor | No |
| Thermal Monitoring Technologies | Yes |
| Maximum internal memory supported by processor | 768 GB |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Processor socket | LGA 2011 (Socket R) |
| Processor lithography | 22 nm |
| Processor threads | 4 |
| Processor operating modes | 64-bit |
| Processor codename | Ivy Bridge EP |
| Tcase | 71 °C |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066,1333 MHz |
| Maximum number of PCI Express lanes | 40 |
| Processor package size | 52.5 x 45 mm |
| Supported instruction sets | AVX |
| Scalability | 2S |
| Embedded options available | No |
| Maximum number of SMP processors | 2 |
| PCI Express configurations | x4, x8, x16 |
| Number of QPI links | 2 |
| Memory bandwidth supported by processor (max) | 42.6 GB/s |
| ECC supported by processor | Yes |
| Processor series | Intel Xeon E5-2600 v2 |
| Bus type | QPI |
| System bus rate | 6.4 GT/s |
| Processor cache type | Smart Cache |
| Thermal Design Power (TDP) | 80 W |
| Number of processors installed | 1 |
| Memory channels supported by processor | Quad |
| Motherboard chipset | Intel C600 |
| Processor cache | 10 MB |
| Processor cores | 4 |
| Processor boost frequency | 1.8 GHz |
| Processor frequency | 1.8 GHz |
| Processor model | E5-2603V2 |
| Processor family | Intel® Xeon® E5 Family |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 384 GB |
| Memory slots | 24x DIMM |
| ECC | Yes |
| Memory clock speed | 1600 MHz |
| Memory layout (slots x size) | 1 x 4 GB |
| Internal memory type | DDR3-SDRAM |
| Internal memory | 4 GB |
| Storage | |
|---|---|
| Optical drive type | No |
| RAID levels | 0, 1, 1+0 |
| RAID support | Yes |
| Number of HDDs supported | 8 |
| HDD size | 2.5" |
| HDD interface | Serial ATA, Serial Attached SCSI (SAS) |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| Serial ports quantity | 1 |
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 4 |
| Expansion slots | |
|---|---|
| PCI Express slots version | 3.0 |
| Design | |
|---|---|
| Chassis type | Rack (1U) |
| Software | |
|---|---|
| Compatible operating systems | Microsoft Windows ServerCanonical UbuntuRed Hat Enterprise Linux (RHEL)SUSE Linux Enterprise Server (SLES)Oracle SolarisVMwareCitrix XenServer |
| Operating system installed | No |
| Processor special features | |
|---|---|
| Intel TSX-NI | No |
| Intel Enhanced Halt State | Yes |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Processor ARK ID | 76157 |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel Flex Memory Access | No |
| Intel Demand Based Switching | Yes |
| Intel Identity Protection Technology version | 0.00 |
| CPU configuration (max) | 2 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Power | |
|---|---|
| Number of main power supplies | 1 |
| Power supply | 460 W |
| Redundant power supply (RPS) support | Yes |
| General | |
|---|---|
| Product family | ProLiant |
| Weight & dimensions | |
|---|---|
| Weight | 19.2 kg |
| Depth | 698.5 mm |
| Height | 43.2 mm |
| Width | 434.7 mm |
| Other features | |
|---|---|
| Graphics card | G200 |
| Graphics card family | Matrox |
