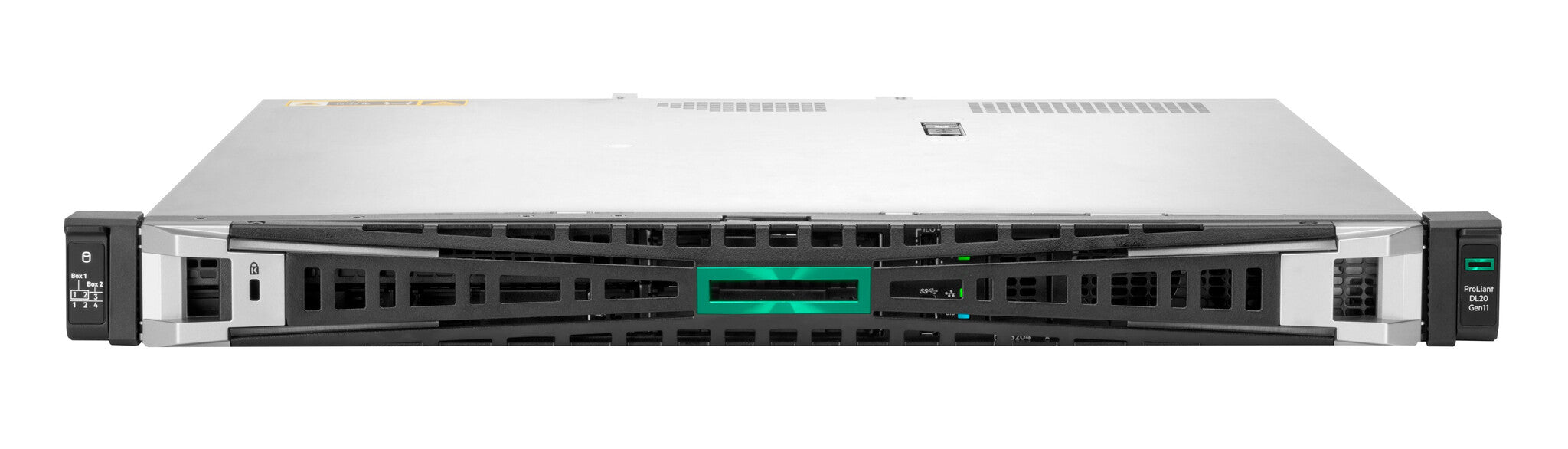

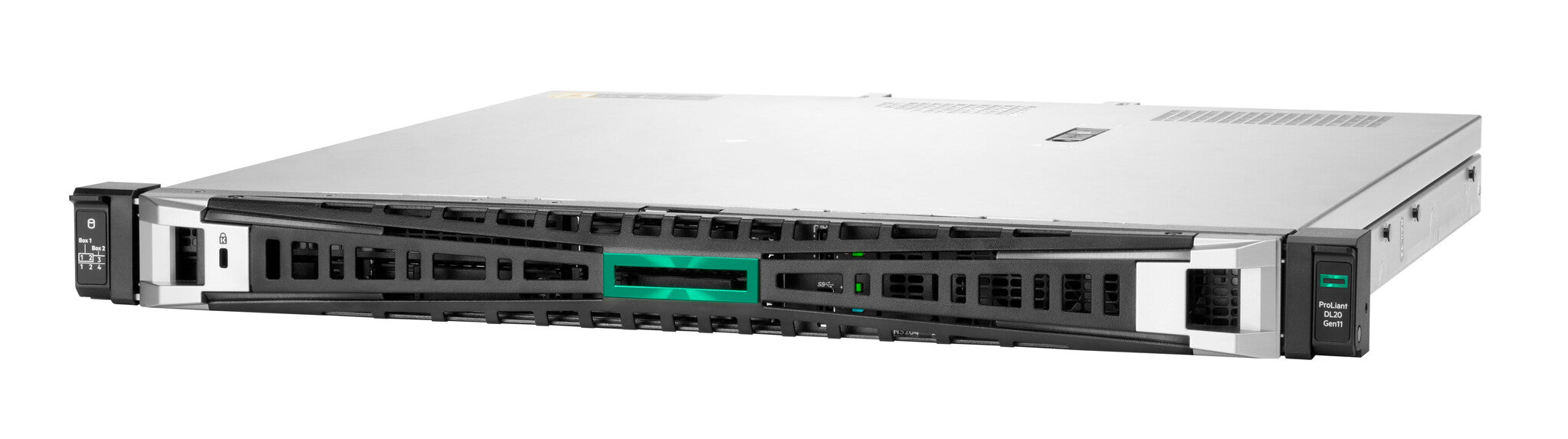

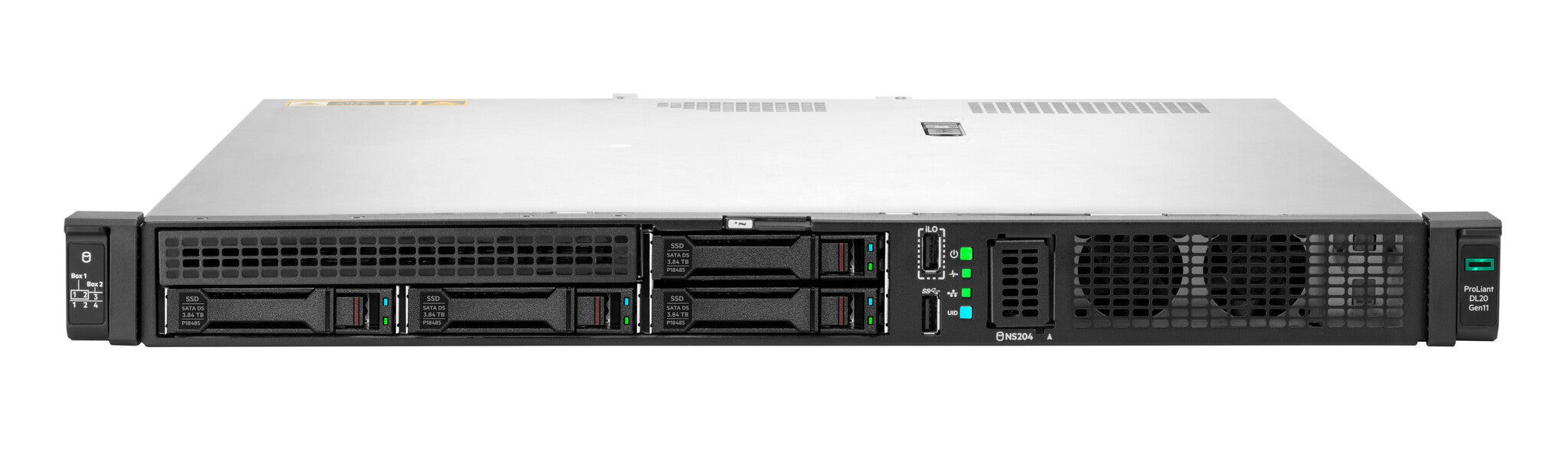

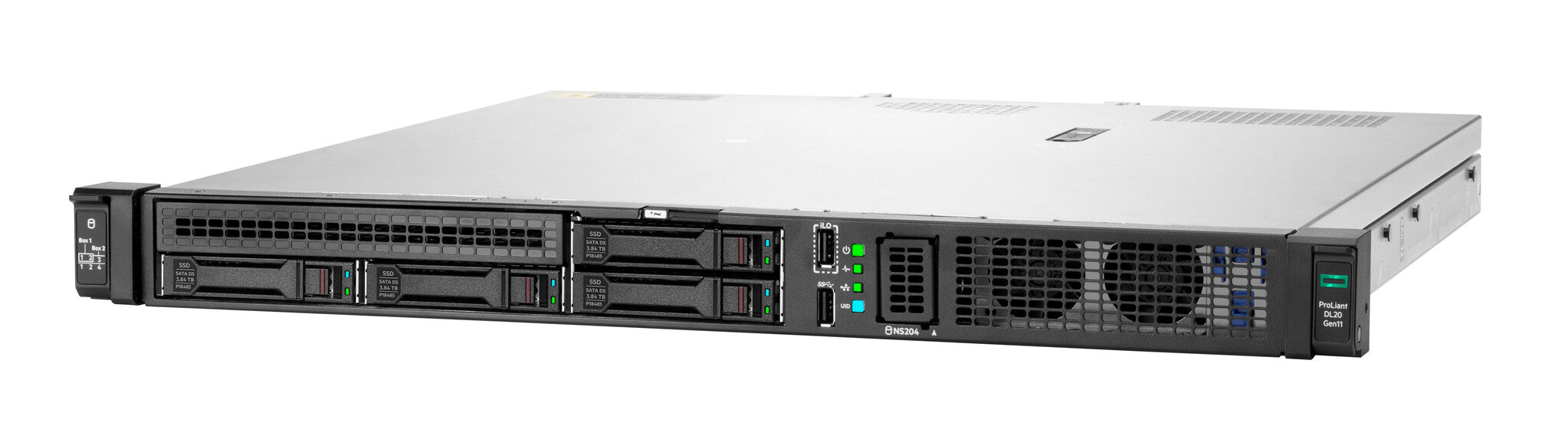

HPE ProLiant DL20 Gen11 E-2414 2.6GHz 4-core 1P 16GB-U 2LFF-NHP 290W PS Server
Couldn't load pickup availability
- Supports Intel Xeon E-2400 series processors, up to 8 cores
- HPE InfoSight provides a cloud-based analytics tool that predicts and prevents problems before your business is impacted
- Optional HPE iLO management port as an option kit for faster data transmission with enhanced security
- One PCIe Gen5 slot for greater I/O bandwidth
- One OCP slot for greater I/O bandwidth
Are you looking for a compact and versatile 1U server that supports edge workloads like security monitoring in a variety of environments? The reliable HPE ProLiant DL20 Gen11 server delivers a compact and versatile server with enhanced security at an affordable price. Deploy the short-depth rack form factor in small, remote, or branch offices, as a powerful point of sale platform in transport, retail, and hospitality environments or as a flexible configuration for customization in space constrained environments of military and government customers. Blending performance, reliability, and manageability, this one-socket, 1U server featuring Intel Xeon E processors provide unique enterprise-class capabilities at a great value—making it an ideal rack server platform for growing businesses, enterprises, and service providers. Outstanding configuration flexibility caters to a variety of business requirements and a wide range of qualified options fits a variety of needs.
What is new supporting point:
Supports Intel Xeon E-2400 Series processors, up to 8 cores.
HPE InfoSight provides a cloud-based analytics tool that predicts and prevents problems before your business is impacted.
Optional HPE iLO management port as an option kit for faster data transmission with enhanced security.
One PCIe Gen5 slot for greater I/O bandwidth.
One OCP slot for greater I/O bandwidth.
| Processor | |
|---|---|
| Number of processors installed | 1 |
| Processor cache | 12 MB |
| Processor cores | 4 |
| Processor frequency | 2.6 GHz |
| Processor model | E-2414 |
| Processor family | Intel® Xeon® |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 128 GB |
| Memory slots | 4x DIMM |
| ECC | Yes |
| Memory clock speed | 4800 MHz |
| Memory layout (slots x size) | 1 x 16 GB |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 16 GB |
| Storage | |
|---|---|
| Optical drive type | No |
| Hot-Plug support | Yes |
| Supported RAID controllers | Embedded Intel VROC SATA (formerly known as Intel RSTe) |
| RAID support | Yes |
| Number of SSDs supported | 2 |
| SSD interface | PCI Express 4.0 |
| Supported HDD sizes | 3.5" |
| Number of HDDs supported | 2 |
| HDD interface | SATA |
| Total storage capacity | 0 GB |
| Maximum storage capacity | 8 TB |
| Graphics | |
|---|---|
| On-board graphics card | Yes |
| Ports & interfaces | |
|---|---|
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 4 |
| Design | |
|---|---|
| Rack mounting | Yes |
| Chassis type | Rack (1U) |
| Performance | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Remote administration | iLO 6 ASIC |
| Software | |
|---|---|
| Compatible operating systems | Microsoft Windows ServerVMware ESXiRed Hat Enterprise Linux (RHEL)SUSE Linux Enterprise Server (SLES)Canonical Ubuntu |
| Operating system installed | No |
| Power | |
|---|---|
| Power supply input frequency | 50 - 60 Hz |
| Power supply input voltage | 100 - 240 V |
| Number of main power supplies | 1 |
| Power supply | 290 W |
| Redundant power supply (RPS) support | No |
| General | |
|---|---|
| Product family | ProLiant |
| Product series | DL |
| Weight & dimensions | |
|---|---|
| Depth | 382.2 mm |
| Height | 43.2 mm |
| Width | 434.6 mm |
