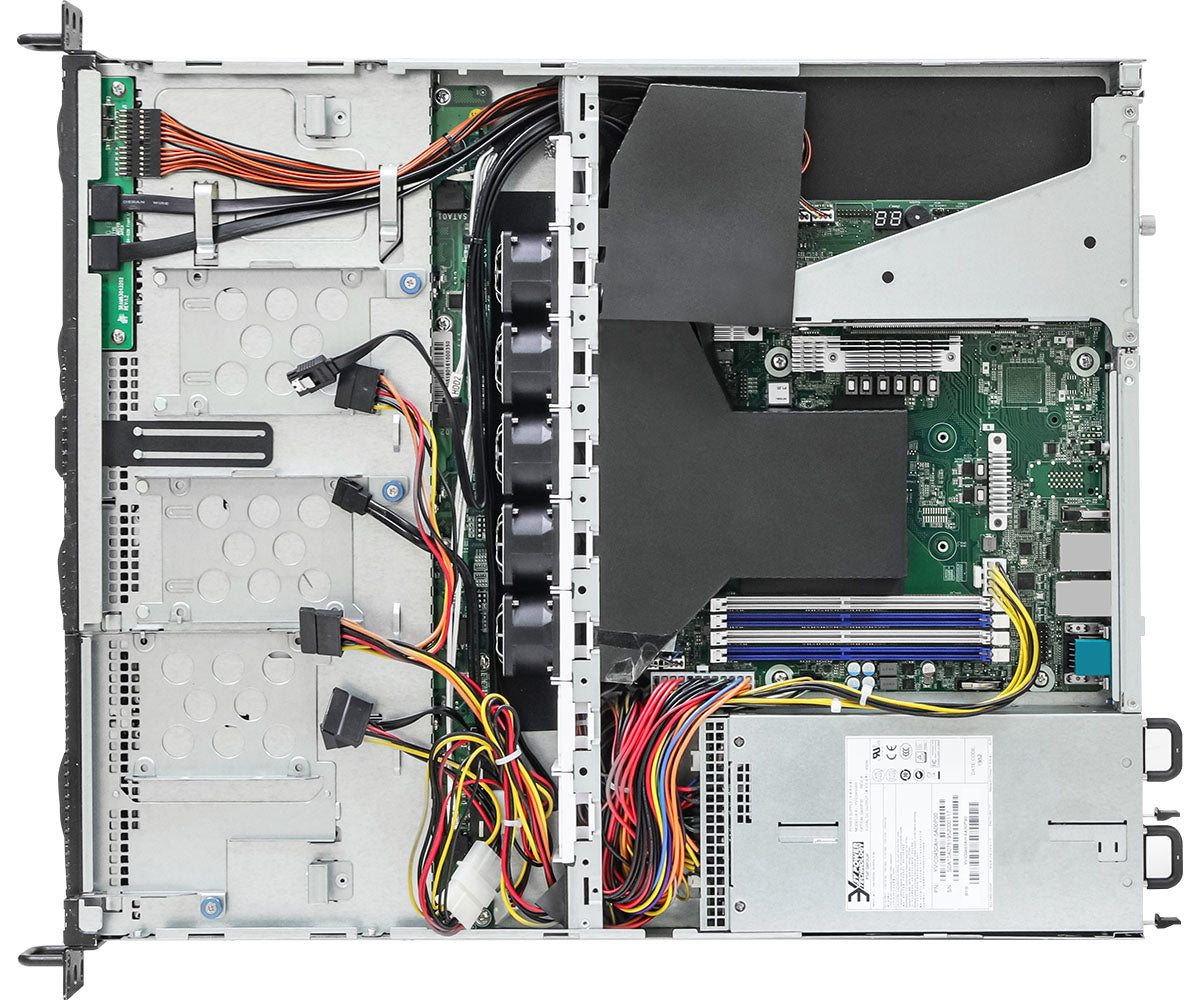

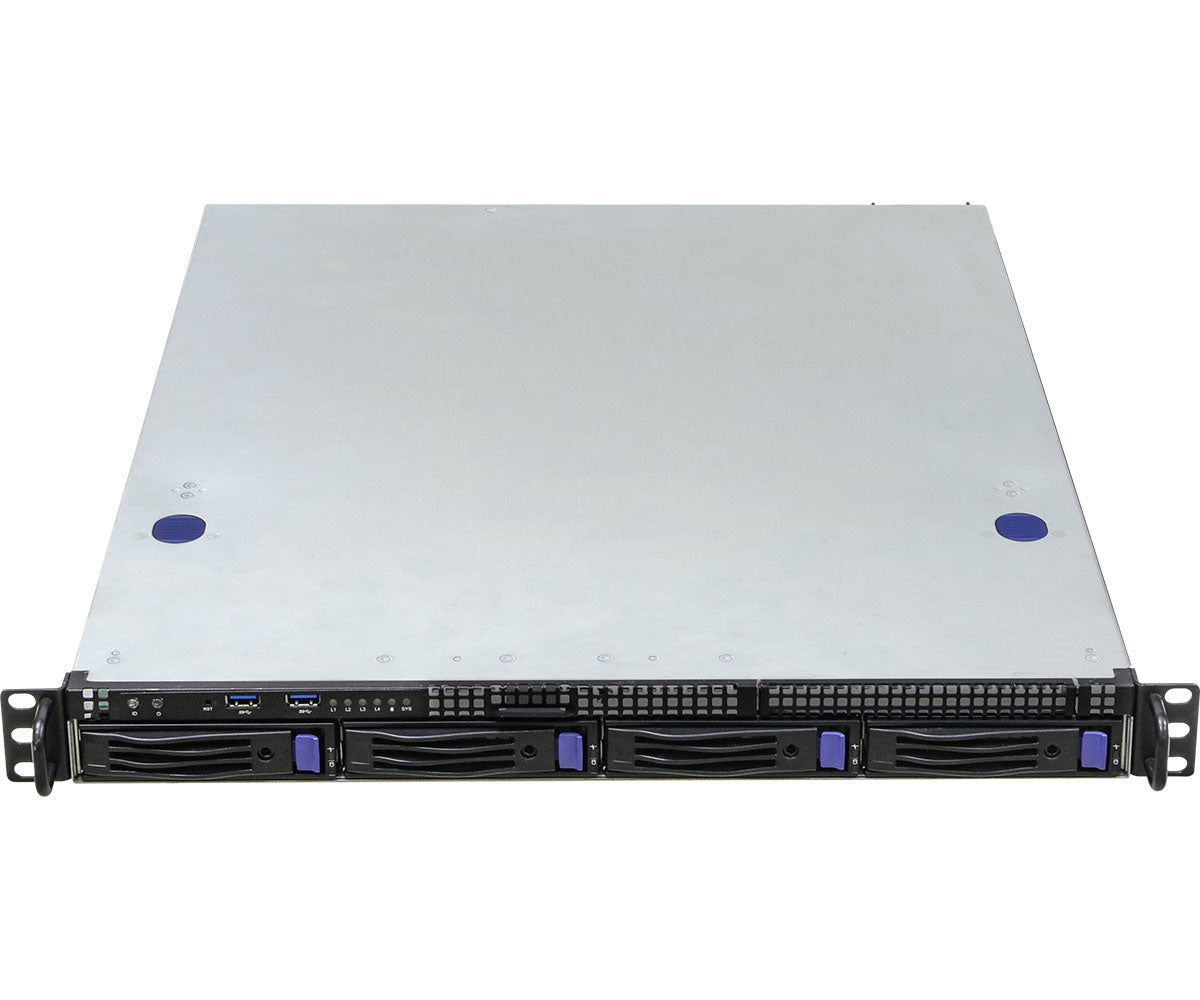

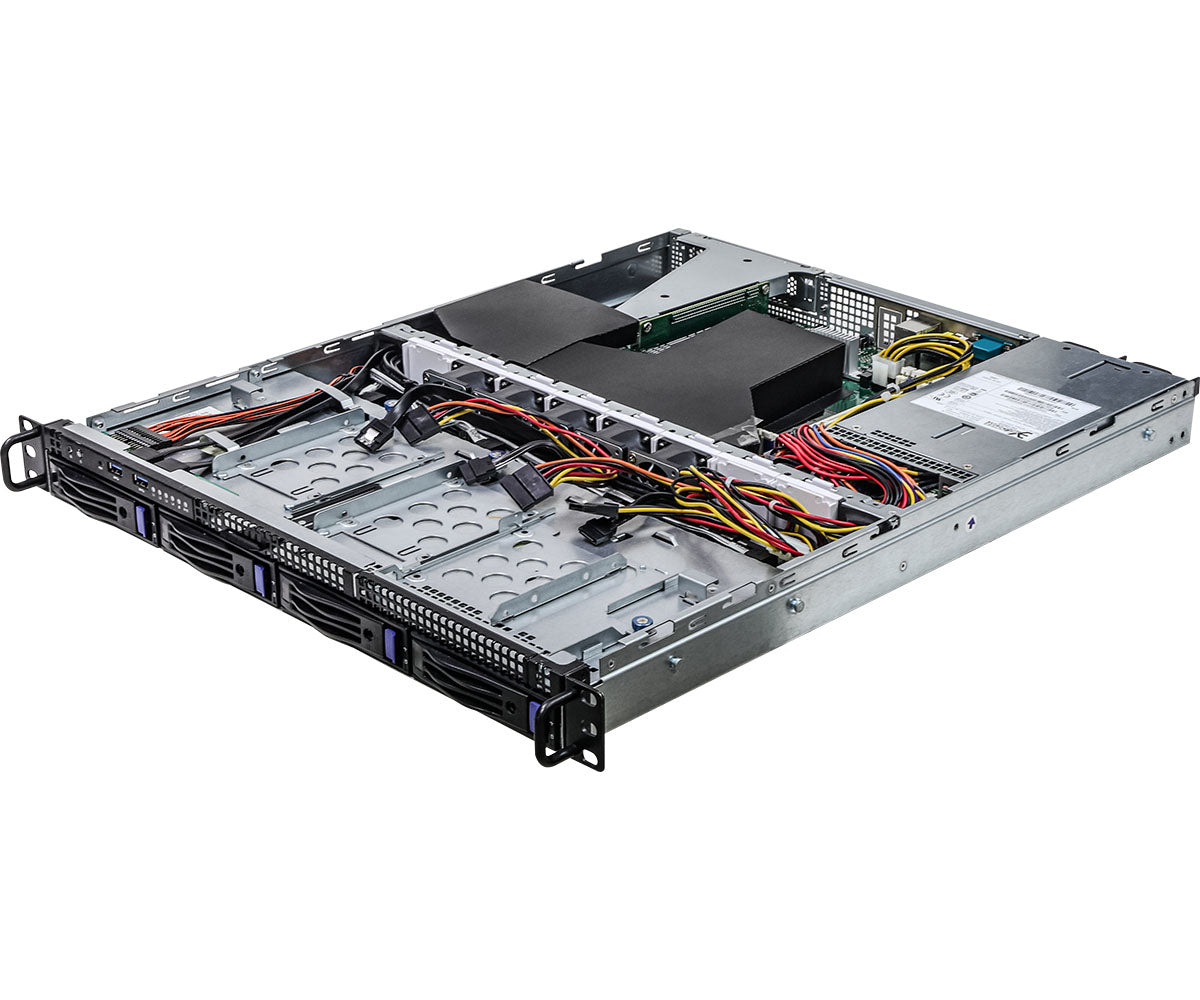

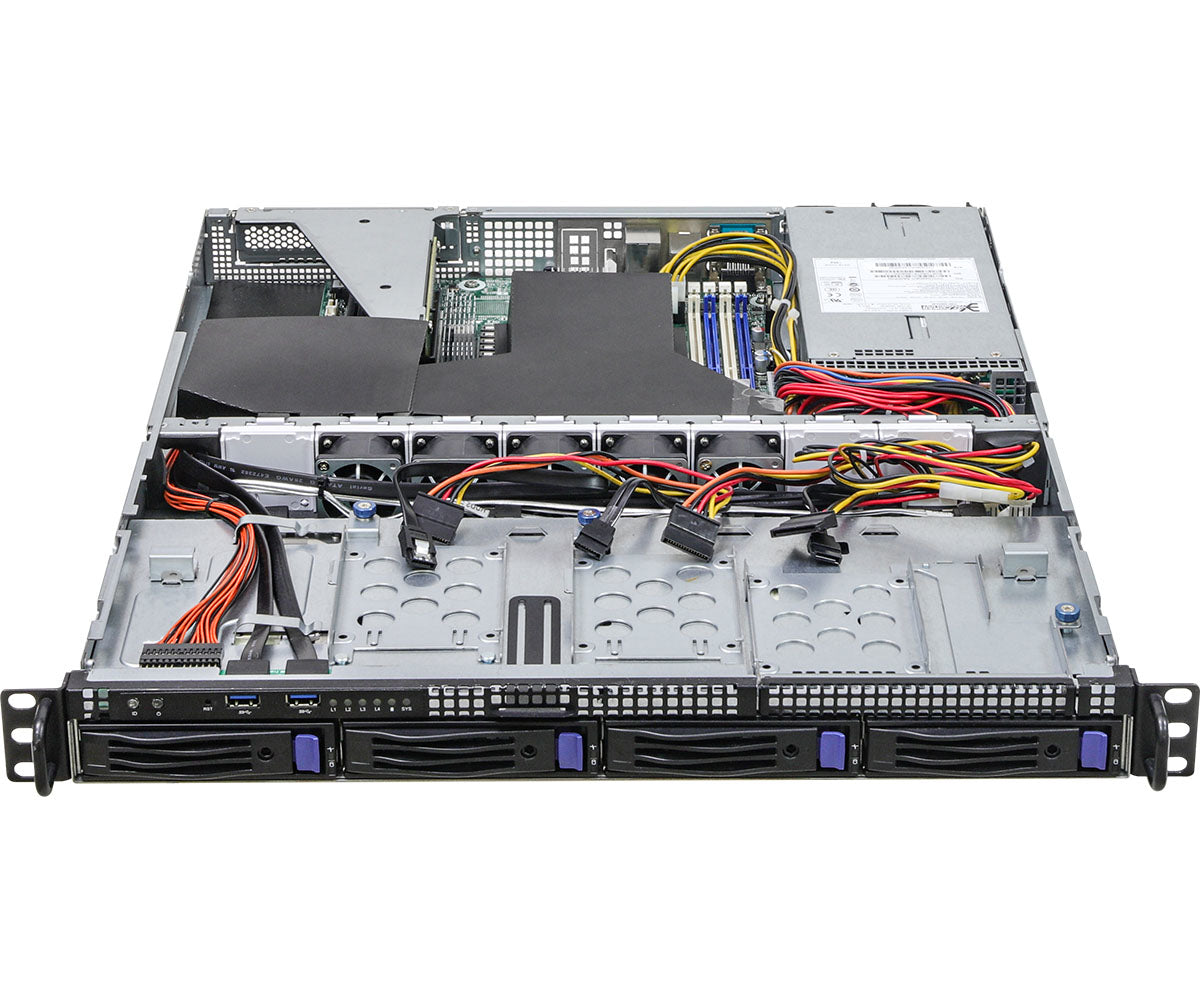

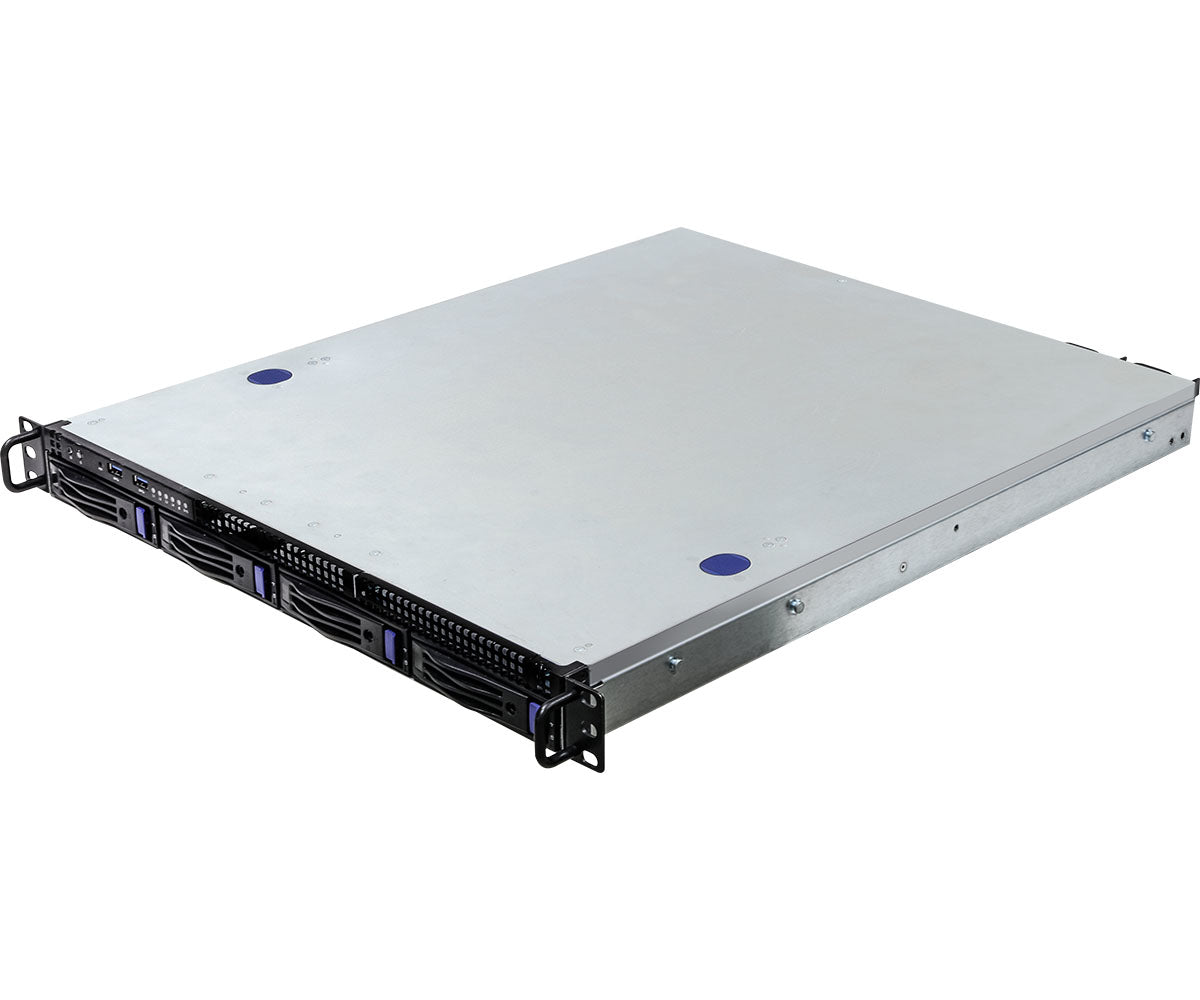

Asrock 1U4LW-X570 RPSU server barebone Socket AM4 Rack (1U)
£1,344.99
Couldn't load pickup availability
- 1U Rackmount with 450W Redundant PSU (1+1)
- supports AMD Ryzen 5000 Series Desktop Processors
- 4 DDR4 ECC/ non-ECC UDIMM, up to 32GB each
- 4 Hot-swap 3.5" HDD/SSD bays, 3 fixed 2.5" HDD/SSD bays
- 1 FHHL PCIe4.0 x16
- 2 RJ45 (1GbE) by Intel® i210
- Remote management (IPMI)
| Processor | |
|---|---|
| Number of processors supported | 1 |
| Processor socket | Socket AM4 |
| Built-in processor | No |
| Memory | |
|---|---|
| Non-ECC | Yes |
| ECC | Yes |
| Memory voltage | 1.2 V |
| Memory form factor | 288-pin DIMM |
| Maximum internal memory | 32 GB |
| Supported memory types | DDR4-SDRAM |
| Number of DIMM slots | 4 |
| Storage | |
|---|---|
| Supported storage drive interfaces | M.2, Serial ATA III |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5,3.5" |
| Number of 3.5" bays | 4 |
| Hot-swap HDD bays | Yes |
| Number of storage drives supported | 9 |
| Graphics | |
|---|---|
| On-board graphics card memory | 16 MB |
| On-board graphics card model | Aspeed AST2500 |
| Network | |
|---|---|
| LAN controller | Realtek RTL8211E |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| BIOS | |
|---|---|
| System Management BIOS (SMBIOS) version | 2.8 |
| ACPI version | 2.0 |
| BIOS memory size | 32 Mbit |
| BIOS type | UEFI AMI |
| Design | |
|---|---|
| Number of fans | 5 fan(s) |
| Cooling type | Active |
| On/off switch | Yes |
| LED indicators | HDD, LAN, System |
| Chassis type | Rack (1U) |
| Power | |
|---|---|
| 80 PLUS certification | 80 PLUS Gold |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Redundant power supply (RPS) support | Yes |
| Number of main power supplies | 2 |
| Power supply | 450 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 533.4 mm |
| Depth | 482.6 mm |
| Height | 44.4 mm |
