Ubiquiti Access Door Hub security door controller 1 door(s) Ethernet
£181.99
Couldn't load pickup availability

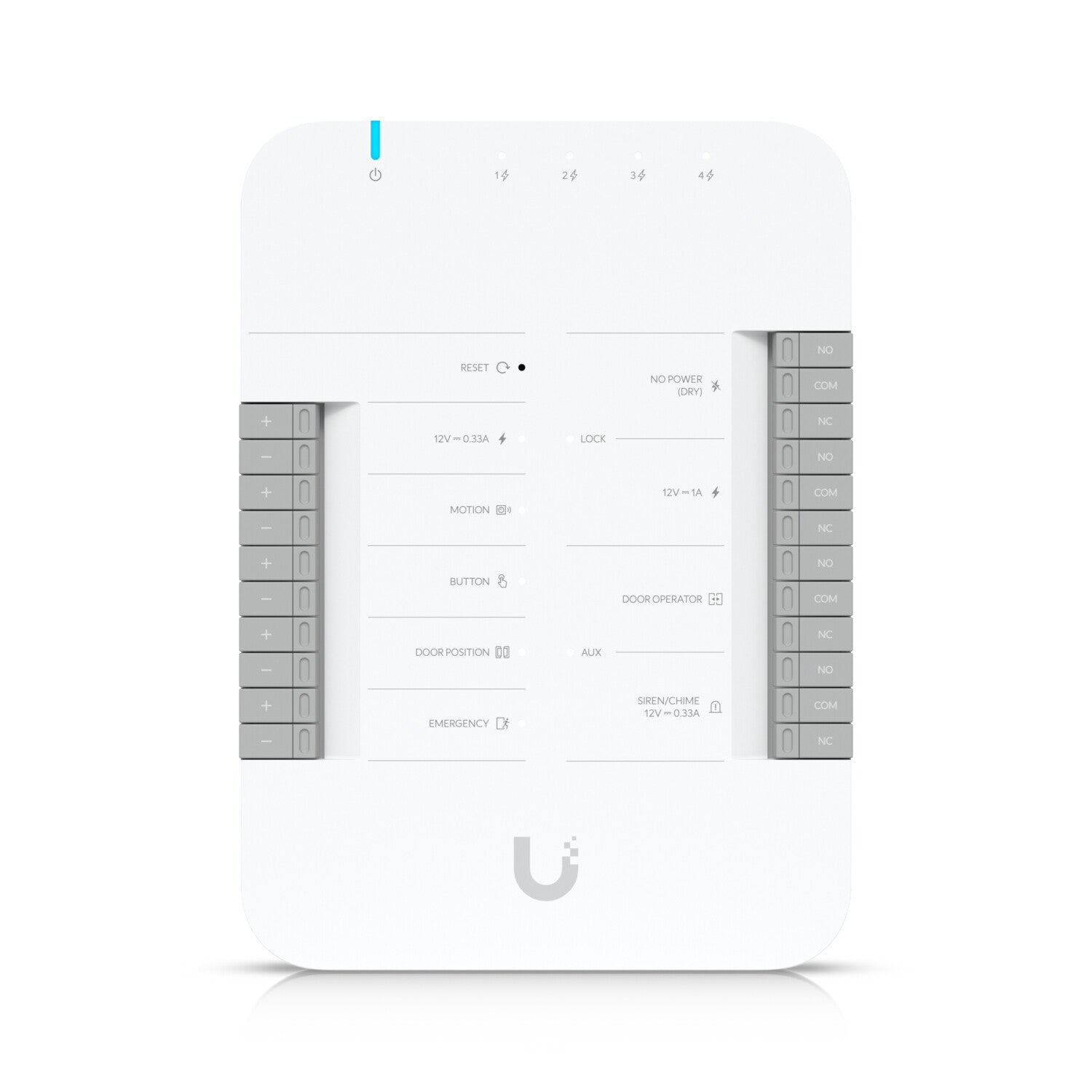

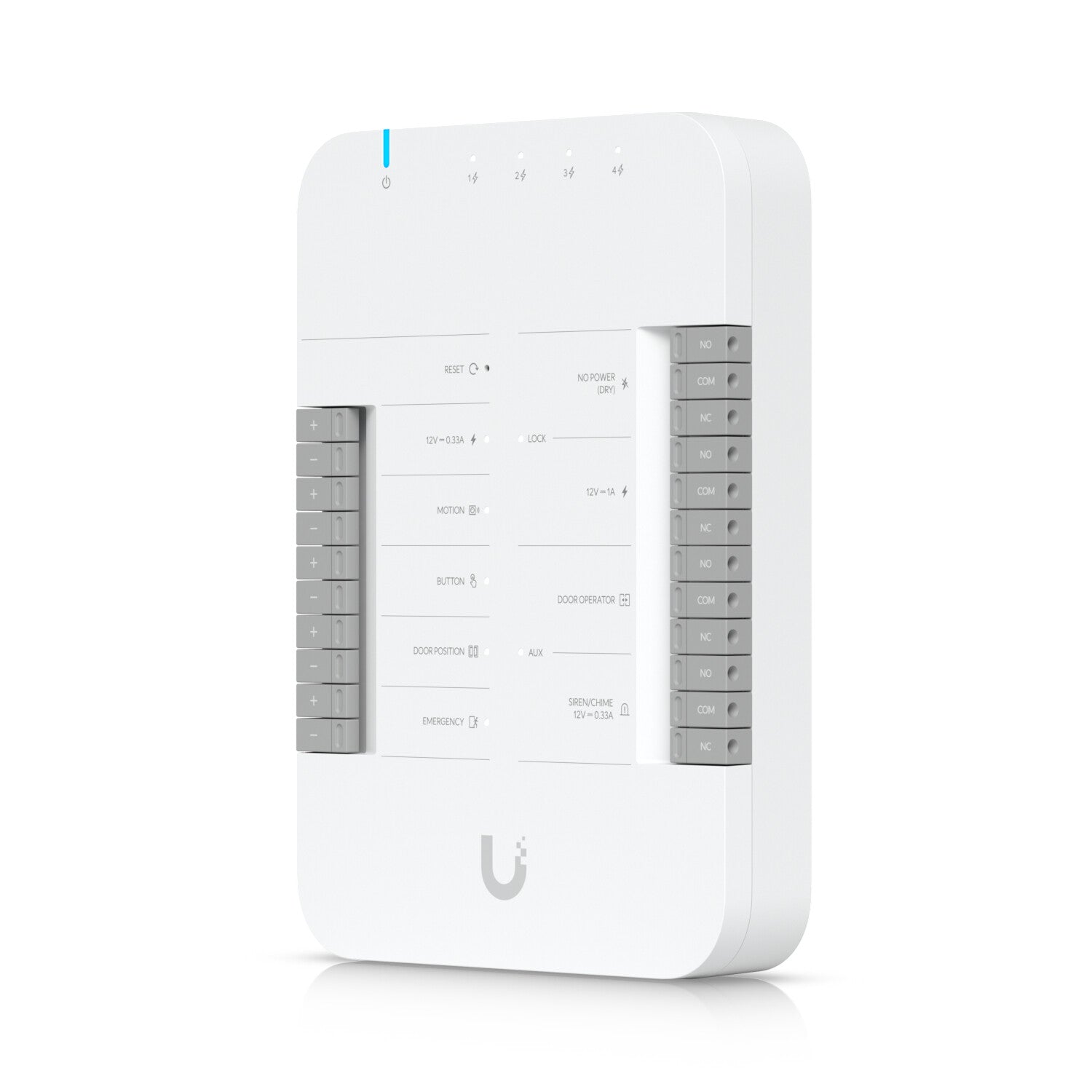

- (2) Lock terminals (12V and Dry)
- (2) AUX terminals for an external siren and automatic door opener
- (4) Additional inputs (sensors and buttons)

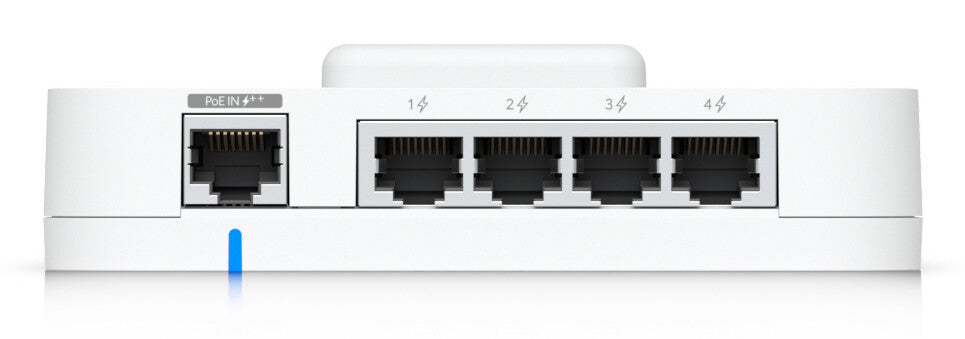

- Connect and power using PoE++
- Connect to two UniFi Access readers and two UniFi Protect camera or UniFi Protect Chime
A single-door mechanism that provides complete entry and exit control via connected Access Readers.
| Technical details | |
|---|---|
| Maximum number of doors | 1 door(s) |
| Interface | Ethernet |
| LED indicators | Yes |
| Exit request | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), UL |
| Performance | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power | |
|---|---|
| Power consumption (typical) | 30 W |
| DC voltage range | 12 - 50 V |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
|---|---|
| Weight | 363 g |
| Height | 32.9 mm |
| Depth | 126 mm |
| Width | 174.9 mm |
