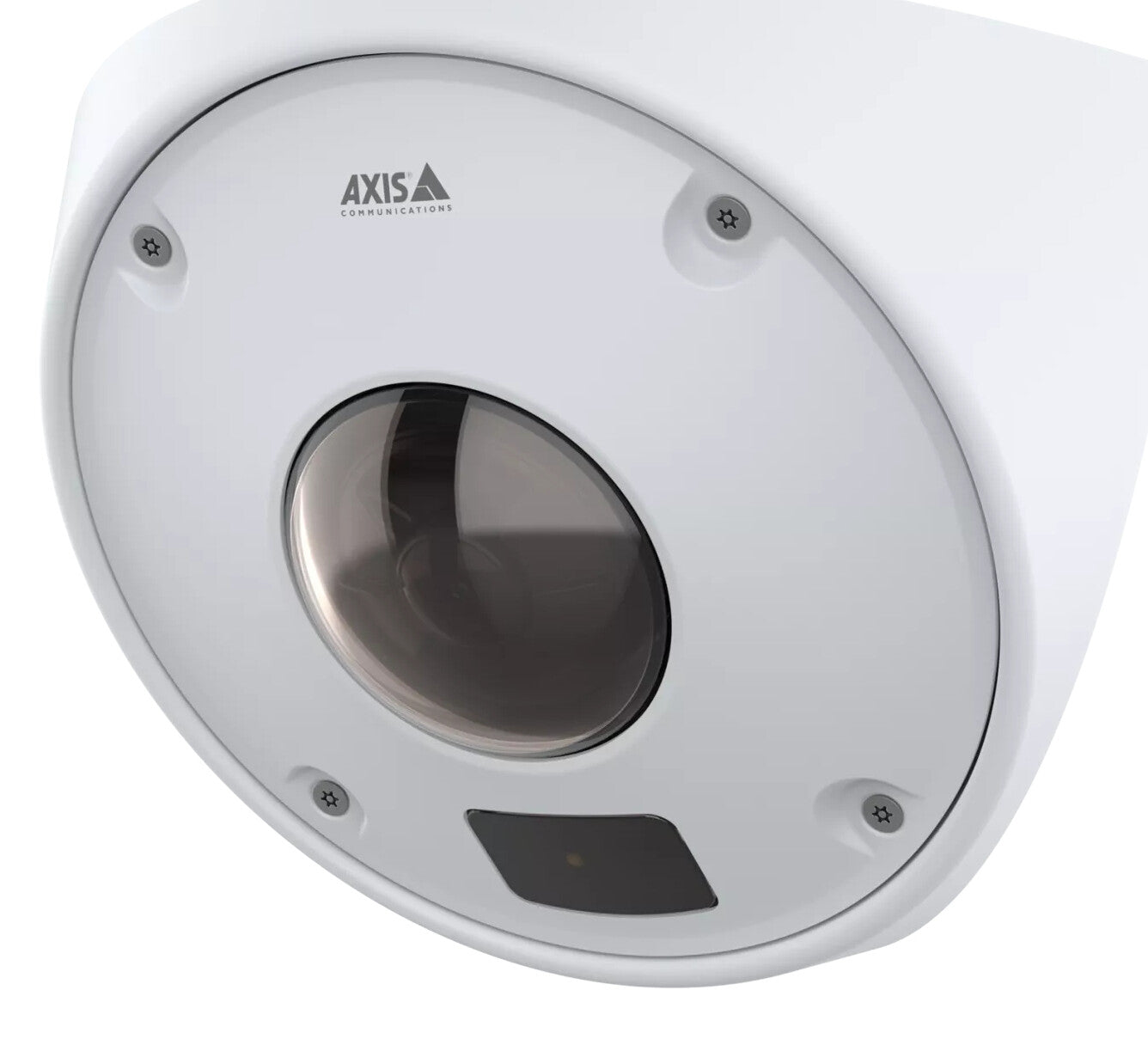

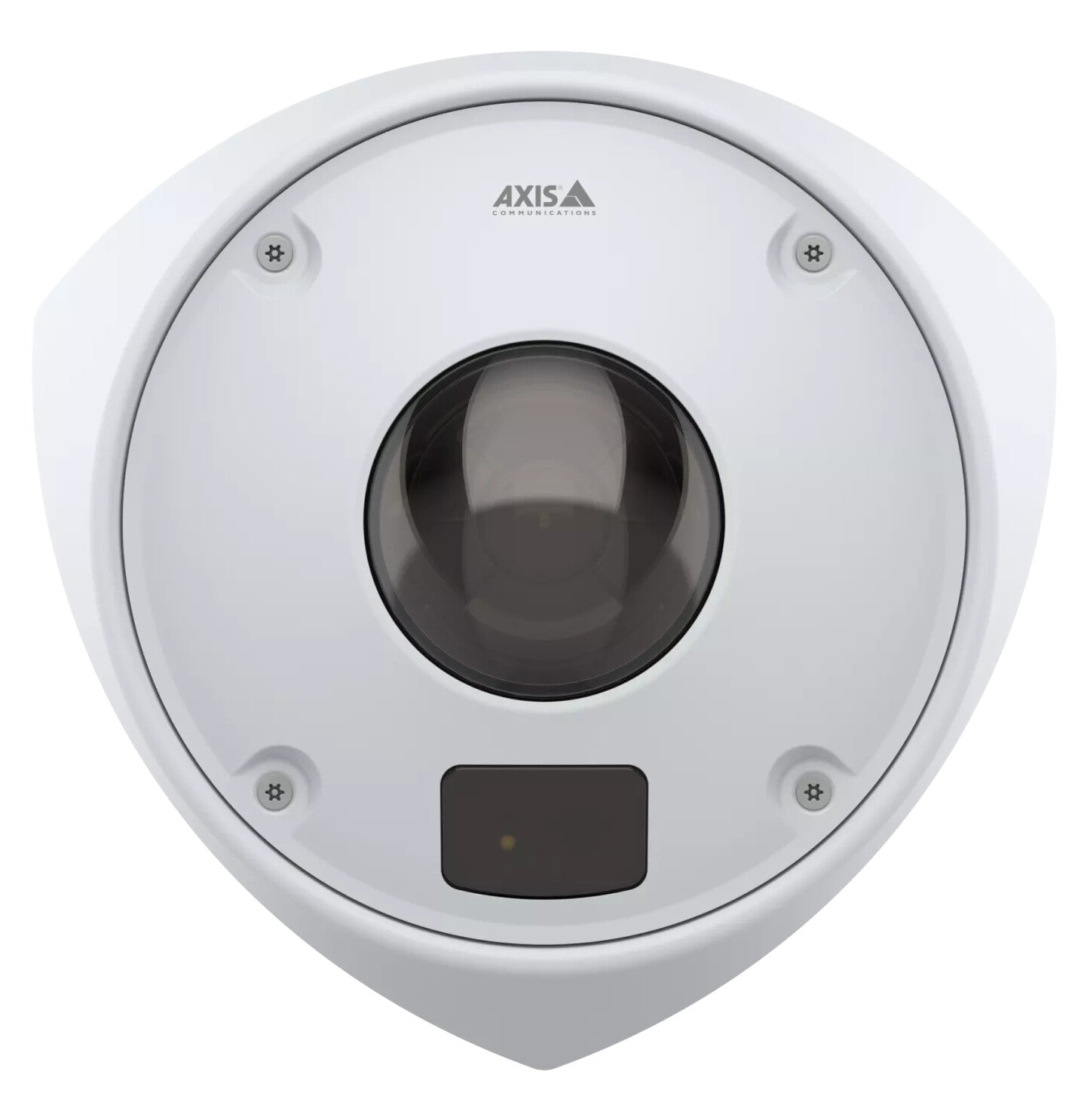

Axis Q9227-SLV Corner IP security camera Indoor 2880 x 2160 pixels Ceiling
Couldn't load pickup availability
- Compact, IK11-rated, anti-ligature design
- Built-in speaker and microphone
- AI-powered audio and video analytics
- Easy to install and clean
- Built-in cybersecurity with Axis Edge Vault
This compact and robust ligature-resistant (anti-ligature) camera delivers outstanding 5 MP image quality. It comes with AI-powered video and audio analytics, and a hidden speaker and microphone that allows for two-way audio communication.
Two-way communication and full coverage
AXIS Q9227-SLV features a hidden speaker and microphone, complete with an on/off switch and voice enhancer, delivering clear two-way audio communication. It offers 5 MP and 115° horizontal and 89° vertical coverage with no blind spots. Ideal in prison cells and psychiatric wards, it includes 940 nm invisible IR illumination for surveillance in total darkness. Plus, a white LED ensures details in color. Thanks to Lightfinder 2.0 and Forensic WDR, this camera delivers true colors and great detail in challenging light or near darkness. What’s more, Axis Zipstream with H.264 and H.265 significantly reduces bandwidth and storage requirements.
AI-powered analytics and strong cybersecurity
Featuring a deep learning processing unit (DLPU), this corner camera can run advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans. With AXIS Audio Analytics you’ll be notified whenever something relevant happens, even when there's no visual indication. For instance, it can detect screams, shouts and coughing fits as well as changes in sound level. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified, secure cryptographic key storage and operations.
Occupant safety and privacy
With a ligature-resistant (anti-ligature) design, this robust camera can help prevent self-harm. It comes with built-in invisible IR LEDs (940 nm) for surveillance in complete darkness that doesn’t irritate or provoke the occupant*. It also includes AXIS Live Privacy Shield for AI-based dynamic masking of objects. Available in stainless steel or white colored stainless steel, this robust IK11, IP66-, IP6K9K-, and IP69-rated camera can withstand tough conditions. It’s easy to clean with detergent or graffiti remover. Plus, an indication LED makes it easy to see if the camera is active or not.
| Performance | |
|---|---|
| Certification | UL, CE, KC, VCCI, RCM, FCC, ICES, WEEE |
| Languages support | Multi |
| Dynamic range | 120 dB |
| Built-in light | Yes |
| Infrared (IR) cut-off filter | Yes |
| Day/night mode | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Connectivity technology | Wired |
| Placement supported | Indoor |
| Type | IP security camera |
| Design | |
|---|---|
| Fog proof | Yes |
| International Protection (IP) code | IP66, IP69, IP6K9K |
| Housing material | Polycarbonate (PC), Stainless steel |
| LED indicators | Yes |
| Product colour | White |
| Mounting type | Ceiling |
| Form factor | Corner |
| Camera | |
|---|---|
| Camera shutter speed | 1/66500 - 2 s |
| Tilt angle range | -10 - 10° |
| Lens viewing angle, vertical | 89.2° |
| Lens viewing angle, horizontal | 115° |
| Minimum illumination | 0 lx |
| Image sensor | |
|---|---|
| Optical sensor size | 25.4 / 1.7 mm (1 / 1.7") |
| Number of sensors | 1 |
| Sensor type | CMOS |
| Lens system | |
|---|---|
| Closest focusing distance | 1 m |
| Fixed focal length | 3.7 mm |
| Identify distance | 5.1 m |
| Maximum aperture number | 2 |
| Auto focus | Yes |
| Recognize distance | 10 m |
| Observe distance | 19.4 m |
| Detect distance | 46.1 m |
| Number of lenses | 1 |
| Night vision | |
|---|---|
| Infra-red wavelength | 940 nm |
| LED type | IR/White |
| B/W night vision distance | 10 m |
| Night vision distance | 10 m |
| Night vision | Yes |
| Video | |
|---|---|
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness, White balance |
| Privacy masking | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Noise reduction | Yes |
| Video streaming | Yes |
| Frame rate | 30 fps |
| Video compression formats | H.264, H.265 |
| Maximum resolution | 2880 x 2160 pixels |
| Audio | |
|---|---|
| Sample rates | 8 - 48 kHz |
| Built-in microphone | Yes |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Frequency range | 820 - 5075 Hz |
| Audio formats supported | AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM |
| Audio system full duplex | Yes |
| Audio system | 2-way |
| Built-in speaker(s) | Yes |
| Network | |
|---|---|
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS3, HTTP/ 2, TLS3, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB- II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| Internal memory | 2000 MB |
| Flash memory | 8000 MB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Ports & interfaces | |
|---|---|
| Terminal block port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Human and vehicle targets classification | Yes |
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| Intelligent Video Surveillance (IVS) system features | Crossing line, Line crossing detection |
| Security algorithms | EAP-TLS, MSCHAPv2 |
| Privacy protection | Yes |
| Network access storage (NAS) | Yes |
| Pixel counter | Yes |
| Power | |
|---|---|
| Power consumption (Power over Ethernet (PoE)) | 12.95 W |
| Power consumption (max) | 3.98 W |
| Power source type | PoE |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating temperature (T-T) | -20 - 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 1.74 kg |
| Packaging data | |
|---|---|
| Package type | Box |
| Packaging content | |
|---|---|
| User guide | Yes |
| Terminal block included | Yes |
| Number of cameras | 1 |
| Technical details | |
|---|---|
| Iris | Yes |
