£1,515.99

Stock Available: 0
  • Compact, IK11-rated, anti-ligature design
  • Built-in speaker and microphone
  • AI-powered audio and video analytics
  • Easy to install and clean
  • Built-in cybersecurity with Axis Edge Vault

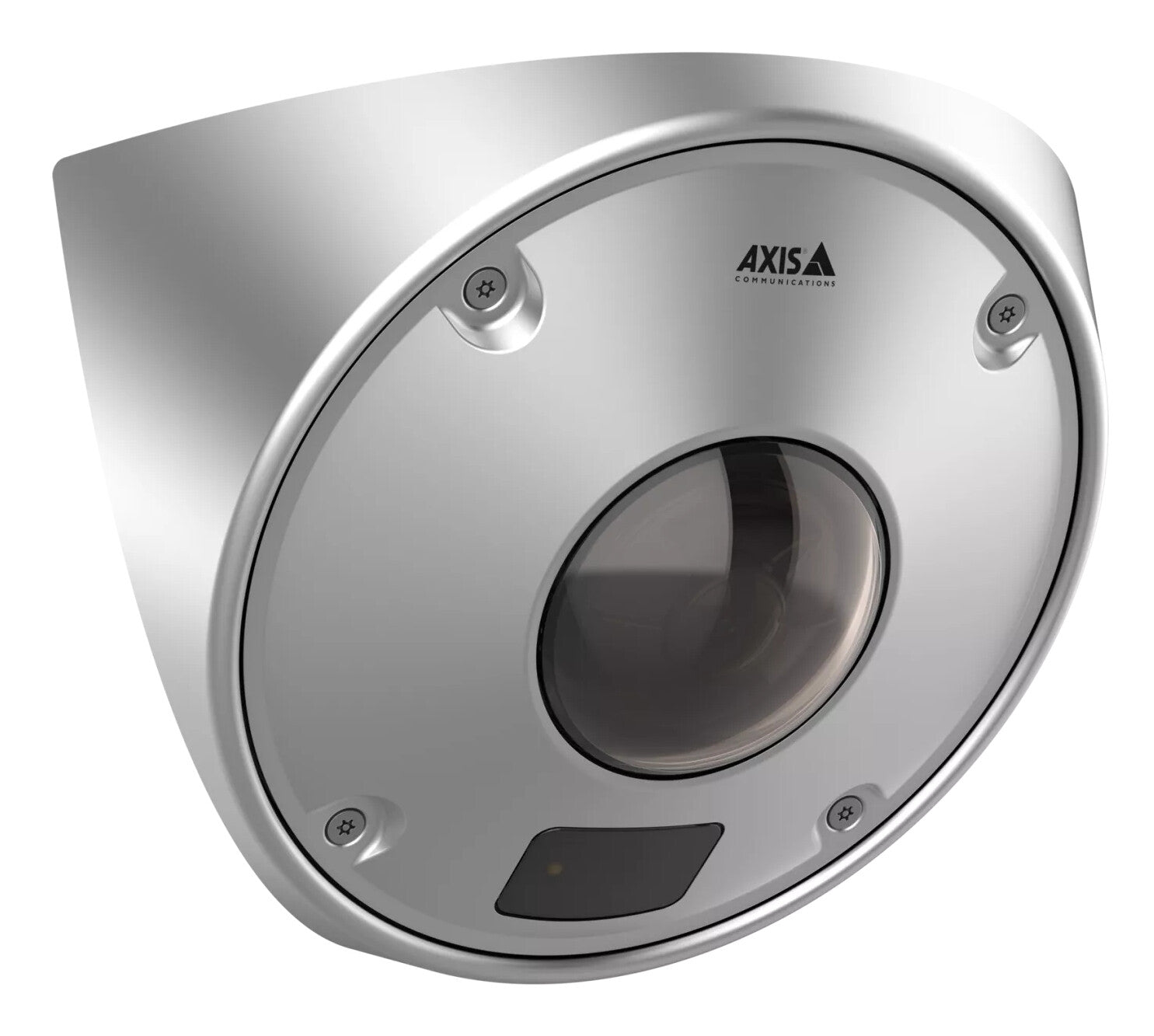

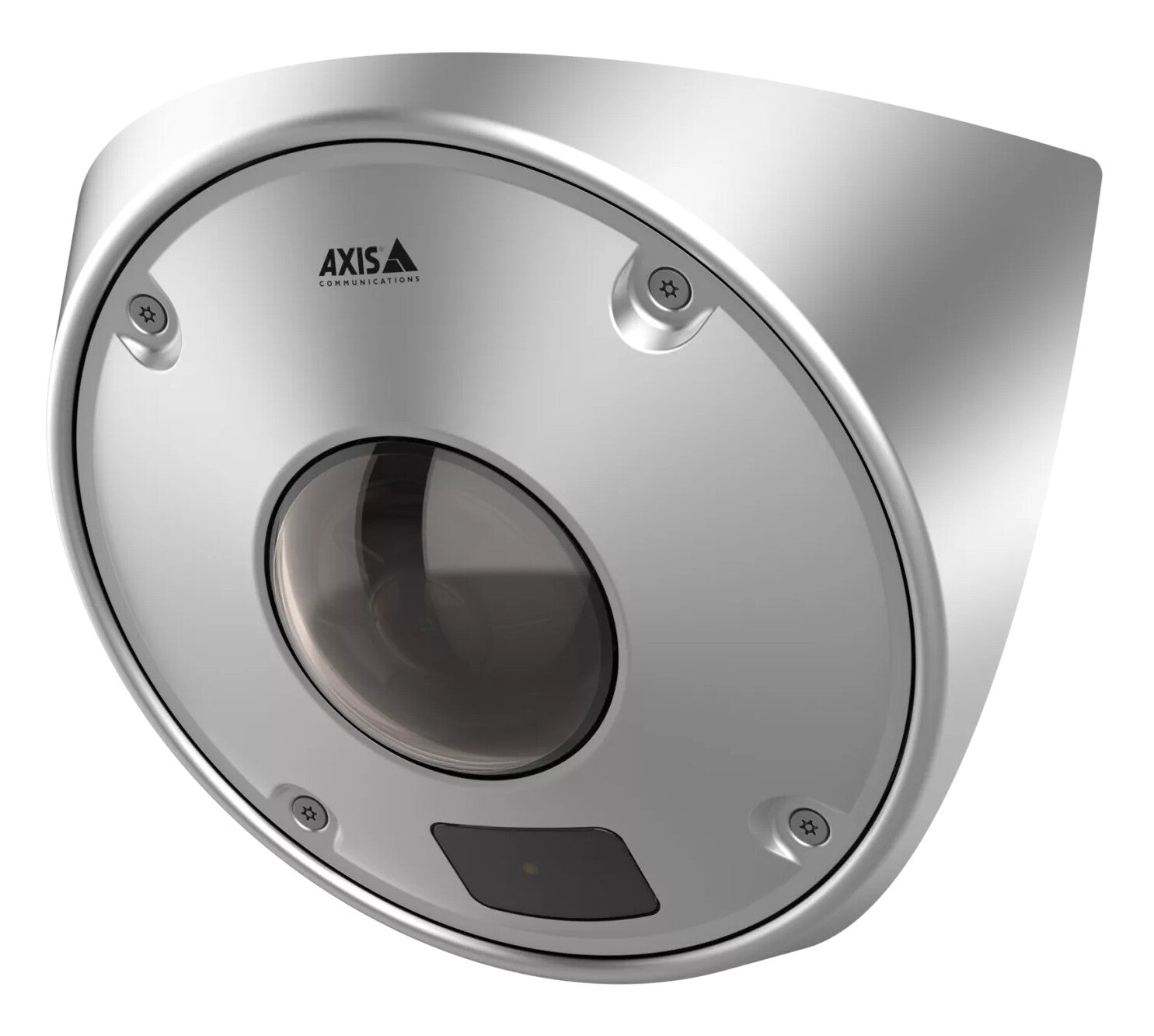

This compact and robust ligature-resistant (anti-ligature) camera delivers outstanding 5 MP image quality. It comes with AI-powered video and audio analytics, and a hidden speaker and microphone that allows for two-way audio communication.

Two-way communication and full coverage

AXIS Q9227-SLV features a hidden speaker and microphone, complete with an on/off switch and voice enhancer, delivering clear two-way audio communication. It offers 5 MP and 115° horizontal and 89° vertical coverage with no blind spots. Ideal in prison cells and psychiatric wards, it includes 940 nm invisible IR illumination for surveillance in total darkness. Plus, a white LED ensures details in color. Thanks to Lightfinder 2.0 and Forensic WDR, this camera delivers true colors and great detail in challenging light or near darkness. What’s more, Axis Zipstream with H.264 and H.265 significantly reduces bandwidth and storage requirements.

AI-powered analytics and strong cybersecurity

Featuring a deep learning processing unit (DLPU), this corner camera can run advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans. With AXIS Audio Analytics you’ll be notified whenever something relevant happens, even when there's no visual indication. For instance, it can detect screams, shouts and coughing fits as well as changes in sound level. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified, secure cryptographic key storage and operations.

Occupant safety and privacy

With a ligature-resistant (anti-ligature) design, this robust camera can help prevent self-harm. It comes with built-in invisible IR LEDs (940 nm) for surveillance in complete darkness that doesn’t irritate or provoke the occupant*. It also includes AXIS Live Privacy Shield for AI-based dynamic masking of objects. Available in stainless steel or white colored stainless steel, this robust IK11, IP66-, IP6K9K-, and IP69-rated camera can withstand tough conditions. It’s easy to clean with detergent or graffiti remover. Plus, an indication LED makes it easy to see if the camera is active or not.

Performance
Certification UL, CE, KC, VCCI, RCM, FCC, ICES, WEEE
Languages support Multi
Dynamic range 120 dB
Built-in light Yes
Infrared (IR) cut-off filter Yes
Day/night mode Yes
Wide Dynamic Range (WDR) Yes
Connectivity technology Wired
Placement supported Indoor
Type IP security camera
Design
Fog proof Yes
International Protection (IP) code IP66, IP69, IP6K9K
Housing material Polycarbonate (PC), Stainless steel
LED indicators Yes
Product colour Steel
Mounting type Ceiling
Form factor Corner
Camera
Camera shutter speed 1/66500 - 2 s
Tilt angle range -10 - 10°
Lens viewing angle, vertical 89.2°
Lens viewing angle, horizontal 115°
Minimum illumination 0 lx
Image sensor
Optical sensor size 25.4 / 1.7 mm (1 / 1.7")
Number of sensors 1
Sensor type CMOS
Lens system
Closest focusing distance 1 m
Fixed focal length 3.7 mm
Identify distance 5.1 m
Maximum aperture number 2
Auto focus Yes
Recognize distance 10 m
Observe distance 19.4 m
Detect distance 46.1 m
Number of lenses 1
Night vision
Infra-red wavelength 940 nm
LED type IR/White
B/W night vision distance 10 m
Night vision distance 10 m
Night vision Yes
Video
Image quality adjustment Brightness, Contrast, Mirror, Saturation, Sharpness, White balance
Privacy masking Yes
Noise reduction technology 2D noise reduction, 3D noise reduction
Noise reduction Yes
Video streaming Yes
Frame rate 30 fps
Video compression formats H.264, H.265
Maximum resolution 2880 x 2160 pixels
Audio
Sample rates 8 - 48 kHz
Built-in microphone Yes
Signal-to-Noise Ratio (SNR) 55 dB
Frequency range 820 - 5075 Hz
Audio formats supported AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Audio system full duplex Yes
Audio system 2-way
Built-in speaker(s) Yes
Network
Supported network protocols IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS3, HTTP/ 2, TLS3, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB- II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)
Networking standards IEEE 802.3af, IEEE 802.3at
Bluetooth No
Wi-Fi No
Ethernet LAN Yes
Storage
Internal memory 2000 MB
Flash memory 8000 MB
Compatible memory cards MicroSD (TransFlash), MicroSDHC, MicroSDXC
Card reader integrated Yes
Built-in HDD No
Ports & interfaces
Terminal block port Yes
Ethernet LAN (RJ-45) ports 1
Security
Human and vehicle targets classification Yes
Video motion detection Yes
Active tampering alarm Yes
Intelligent Video Surveillance (IVS) system features Crossing line, Line crossing detection
Security algorithms EAP-TLS, MSCHAPv2
Privacy protection Yes
Network access storage (NAS) Yes
Pixel counter Yes
Power
Power consumption (Power over Ethernet (PoE)) 12.95 W
Power consumption (max) 3.98 W
Power source type PoE
Operational conditions
Storage relative humidity (H-H) 5 - 95%
Operating relative humidity (H-H) 10 - 85%
Storage temperature (T-T) -40 - 65 °C
Operating temperature (T-T) -20 - 50 °C
Weight & dimensions
Weight 1.74 kg
Packaging data
Package type Box
Packaging content
User guide Yes
Terminal block included Yes
Number of cameras 1
Technical details
Iris Yes
