Axis Q2111-E Box IP security camera Outdoor 384 x 288 pixels Wall
Couldn't load pickup availability
- Reliable long-range thermal detection
- Flexible mounting options (not included)
- Support for powerful analytics
- Four I/O ports and edge-to-edge
- Built-in cybersecurity with Axis Edge Vault

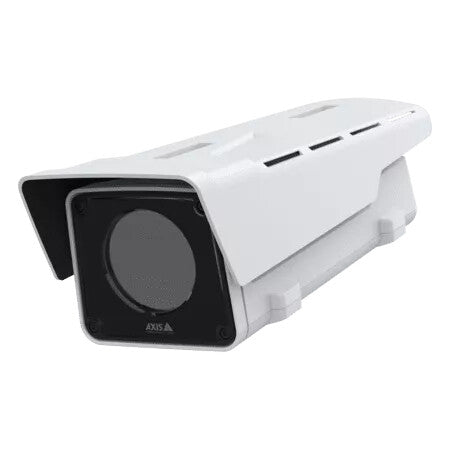

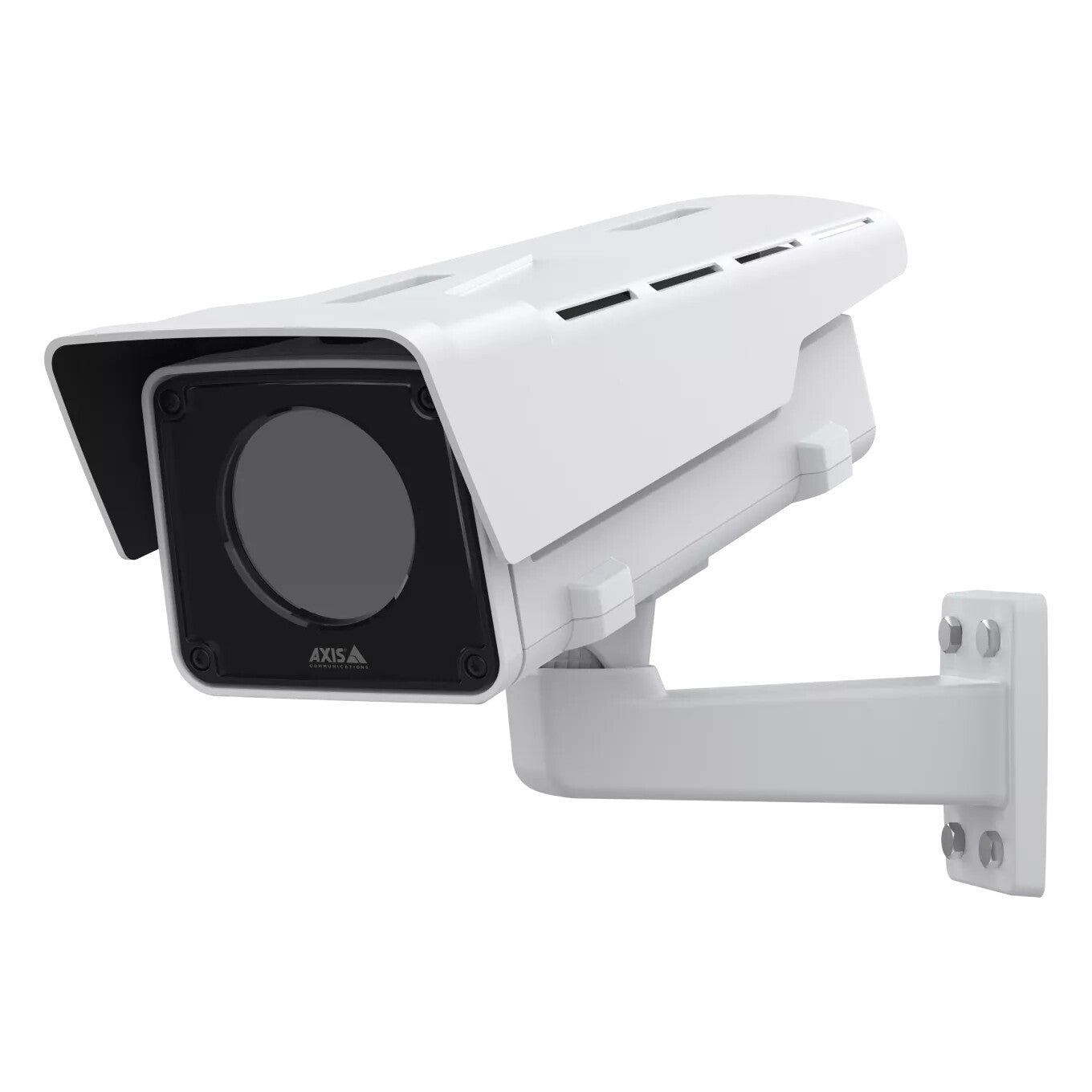

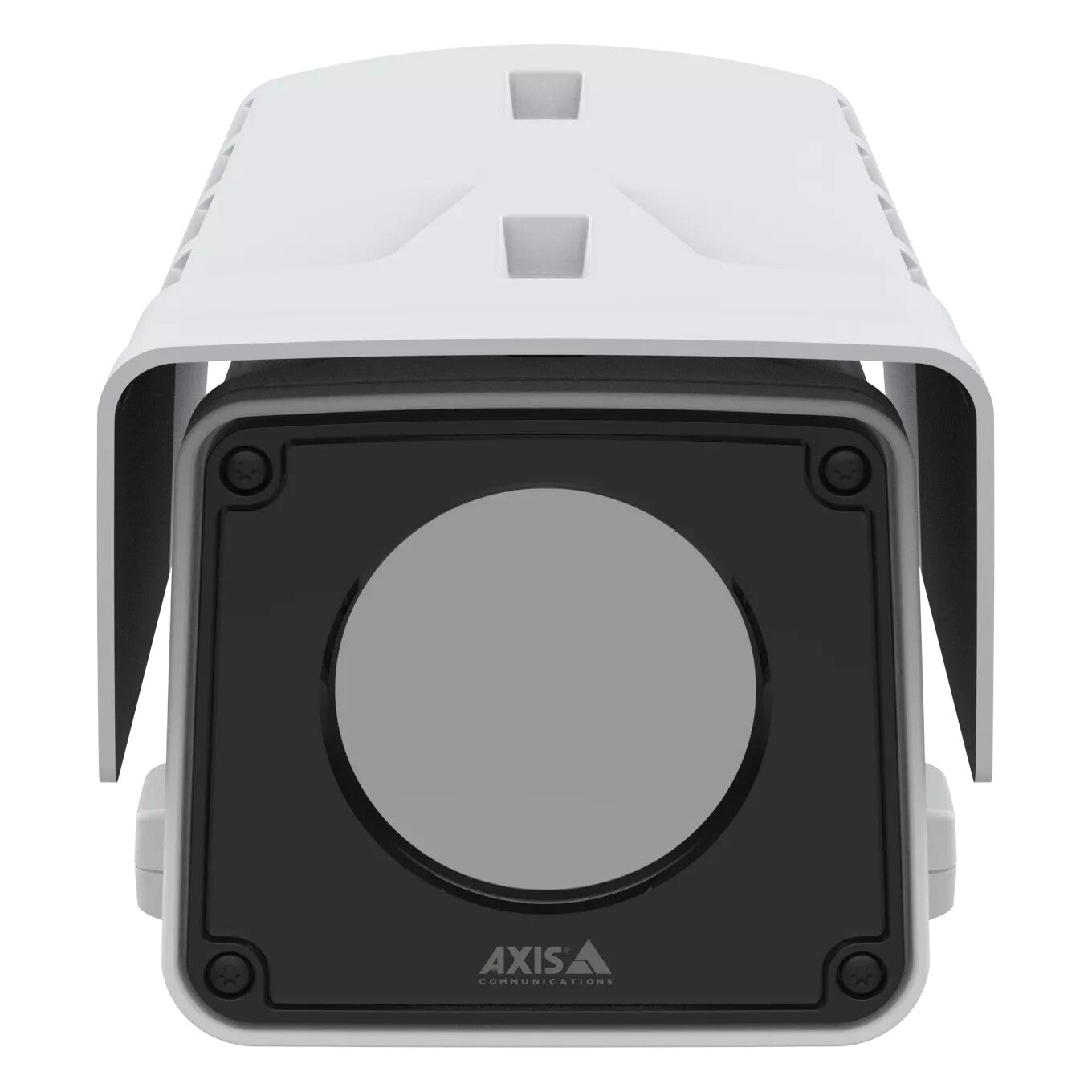

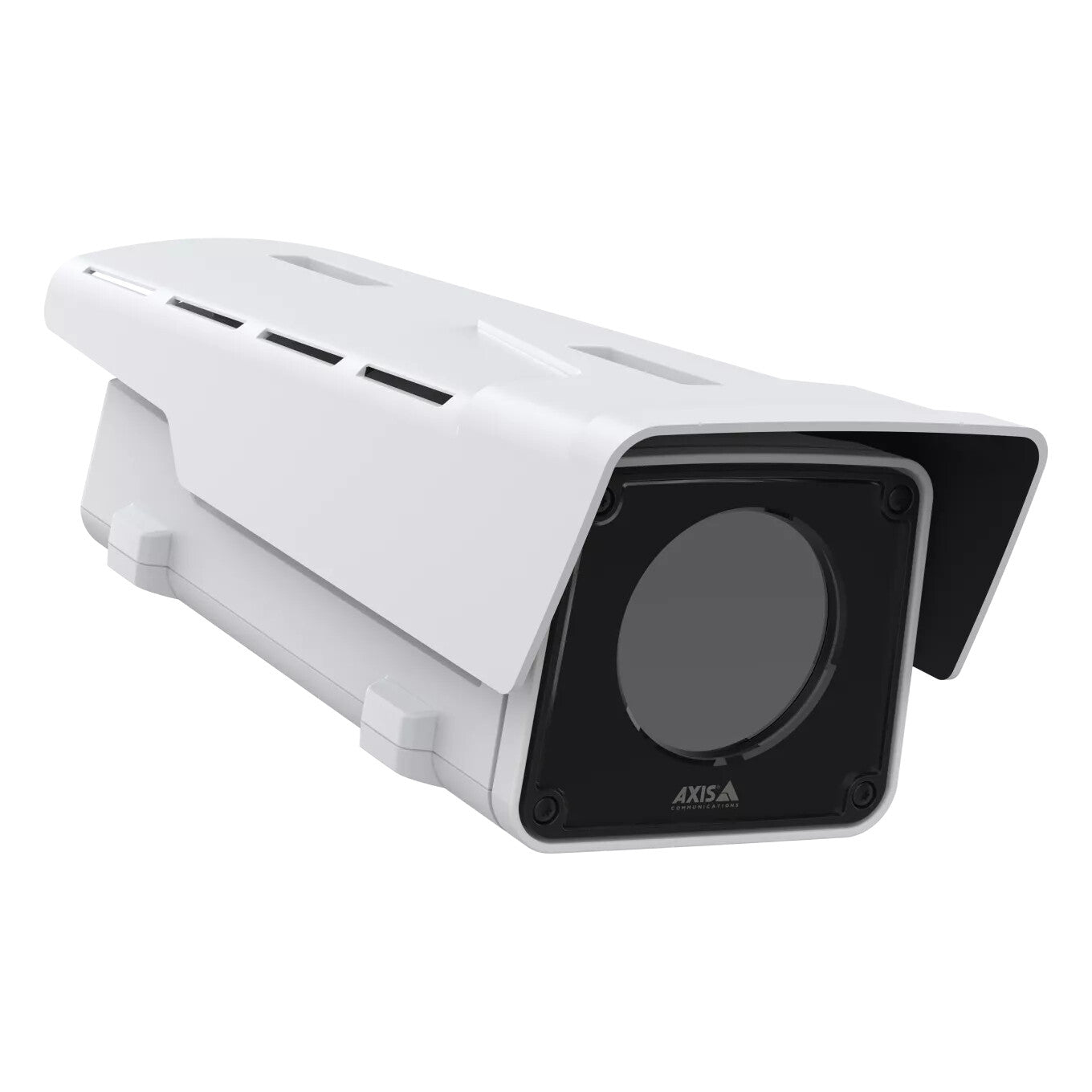

AXIS Q2111-E Thermal Camera
Ideal for perimeter security and long-range detection, this robust camera offers reliable detection and verification 24/7, while protecting privacy. With flexible mounting options, it can be mounted on a positioning unit for better scene understanding.
Reliable detection and verification—always

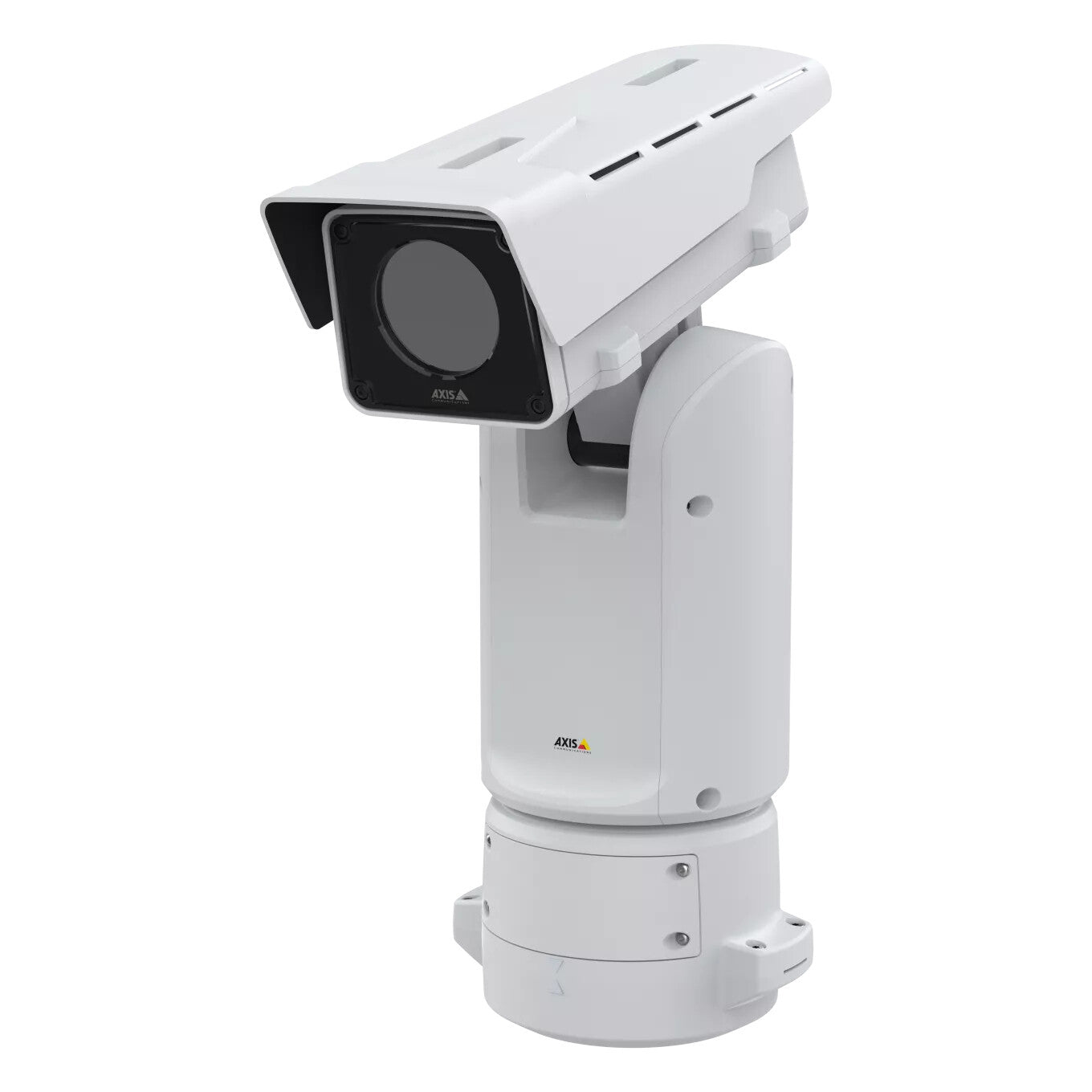

Using thermal technology, AXIS Q2111-E offers reliable detection and verification 24/7 in all light conditions and even in smoke and light fog—all while protecting privacy. A powerful sensor with extremely high thermal sensitivity and a 60 mm lens make it ideal for perimeter security to capture events taking place at great distances. When mounted on a positioning unit (sold separately), this robust camera provides a 360° unobstructed field of view allowing operators to pinpoint any spot in an instant or run guard tour with smooth panoramic viewing. What’s more, electronic image stabilization (EIS) ensures stable, reliable video in all environments.
Robust and secure
With IK10-, IP66/67-, NEMA 4X, and NEMA TS2 ratings, this robust thermal camera is impact- and weather-resistant. It includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. Plus, it offers secure key storage with FIPS 140-2 Level 2 certified secure cryptographic key storage and operations. Furthermore, this sustainable camera is made from halogen-free materials and offers a low carbon footprint.
| Performance | |
|---|---|
| Certification | CSA, UL/cUL, CE, KC, VCCI, RCM |
| Thermal sensitivity (NETD) | 20 mK |
| Thermal module | Yes |
| Preset points | Yes |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Type | IP security camera |
| Design | |
|---|---|
| IK code | IK10 |
| International Protection (IP) code | IP66, IP67 |
| Housing material | Aluminium |
| LED indicators | Yes |
| Product colour | Black, White |
| Mounting type | Wall |
| Form factor | Box |
| Camera | |
|---|---|
| Camera pixel size | 17 µm |
| Vertical field of view (thermal module) | 4.7° |
| Horizontal field of view (thermal module) | 6° |
| Image sensor | |
|---|---|
| Effective sensor resolution (thermal module) | 384 x 288 pixels |
| Sensor type | Microbolometer |
| Lens system | |
|---|---|
| Closest focusing distance | 84 m |
| Infrared spectral band | 8 - 14 µm |
| Maximum aperture number | 1.2 |
| Lens diameter | 6 cm |
| Number of lenses | 1 |
| Video | |
|---|---|
| Flip & mirror | Yes |
| Text caption overlay | Yes |
| Image quality adjustment | Brightness, Contrast, Sharpness |
| Image stabilizer | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Gain control type | Auto |
| Video streaming | Yes |
| Frame rate | 8.3 fps |
| Video formats supported | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Maximum resolution | 384 x 288 pixels |
| Audio | |
|---|---|
| Audio detection | Yes |
| Sample rates | 8 - 48 kHz |
| Audio formats supported | ADPCM, G.711, G.726, LC-AAC, LPCM, OPUS, PCM |
| Audio system full duplex | Yes |
| Audio system | 2-way |
| Network | |
|---|---|
| Streaming method | Multicast |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Networking standards | IEEE 802.1AE, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| Internal memory | 2048 MB |
| Flash memory | 8192 MB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Ports & interfaces | |
|---|---|
| Terminal block port | Yes |
| RS-485 ports | 1 |
| RS-422 ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| Security algorithms | 256-bit AES-XTS, EAP-TLS, HTTPS, MSCHAPv2, PEAP, TLS |
| Privacy protection | Yes |
| Alert notification type | |
| Power | |
|---|---|
| Power consumption (max) | 25.5 W |
| Power consumption (typical) | 5.6 W |
| Power source type | DC, PoE |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating temperature (T-T) | -40 - 60 °C |
| Weight & dimensions | |
|---|---|
| Weight | 3.5 kg |
| Sustainability | |
|---|---|
| Compliance certificates | Trade Agreements Act (TAA) |
| Packaging content | |
|---|---|
| Manual | Yes |
| Number of cameras | 1 |
