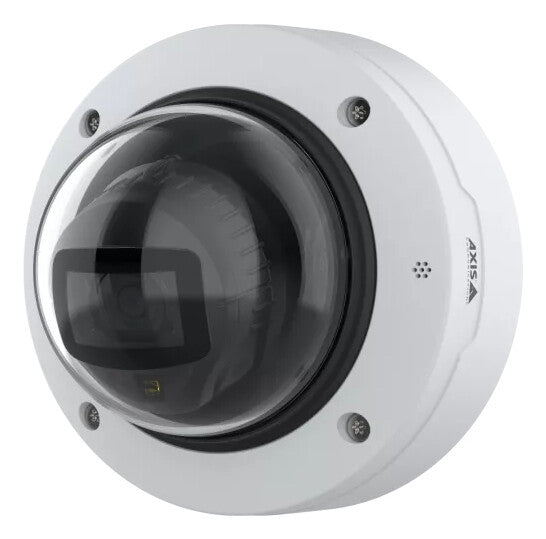

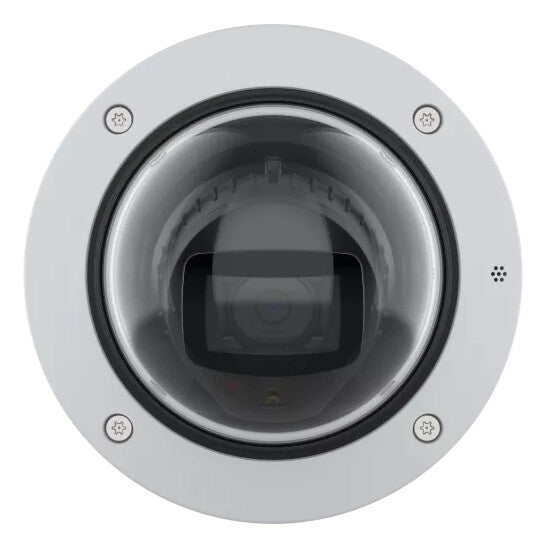

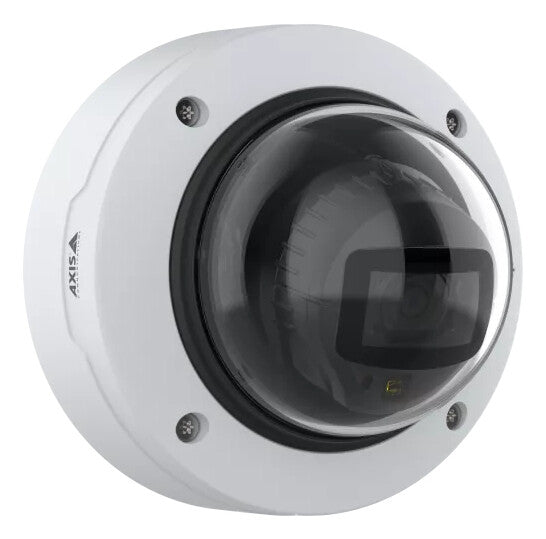

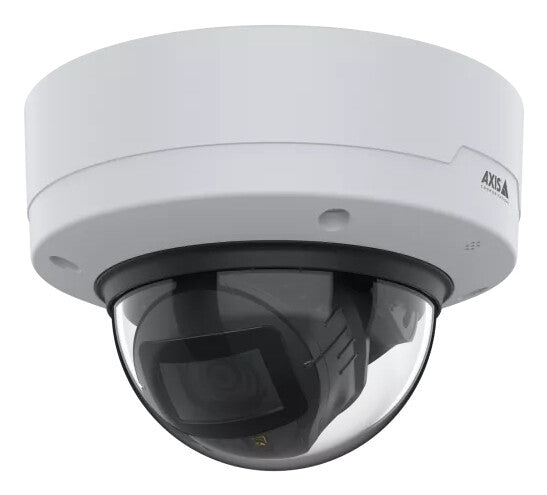

Axis P3288-LV Dome IP security camera Indoor & outdoor 3840 x 2160 pixels Ceiling
Couldn't load pickup availability
- Excellent image quality in 8 MP
- Next-generation AI-powered analytics
- Lightfinder 2.0 and Forensic WDR
- AXIS Audio Analytics preinstalled
- Built-in cybersecurity with Axis Edge Vault
Built on ARTPEC-9, this indoor AI-powered dome camera with support for AV1 codec delivers excellent 8 MP image quality in any light conditions. It offers accelerated performance to run impressive analytics applications on the edge.
Excellent image quality
AXIS P3288-LV offers excellent image quality and forensic details in 8 MP under any light conditions. Thanks to Lightfinder 2.0 and Forensic WDR, it ensures true colors and great detail in near darkness or challenging light. And OptimizedIR enables surveillance in pitch darkness without the need for extra lighting. Furthermore, Axis Zipstream with support for AV1, H.264, and H.265 significantly reduces bandwidth and storage requirements without compromising image quality.
Powerful analytics
Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans. Now combined with ARTPEC 9, this application offers enhanced performance with greater accuracy. With an acoustic sensor and support for AXIS Audio Analytics, you'll be notified whenever something relevant happens, even when there's no visual indication. For instance, it can detect screams, shouts, as well as changes in sound level. Additionally, AXIS Live Privacy Shield makes it easy to remotely monitor activities while protecting privacy.
Robust with strong security
This robust, IK10- and NEMA 4X-rated indoor camera is both vandal- and impact-resistant. It has a built-in intrusion switch that can detect tampering. Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations. What’s more, this dome camera is easy to install, maintain, and operate.
| Performance | |
|---|---|
| Dynamic range | 120 dB |
| Alarm input/output | Yes |
| Day/night mode | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
| Design | |
|---|---|
| Fog proof | Yes |
| IK code | IK10 |
| International Protection (IP) code | IP54 |
| Product colour | White |
| Mounting type | Ceiling |
| Form factor | Dome |
| Camera | |
|---|---|
| Camera shutter speed | 1/66500 - 2 s |
| Pan range | -190 - 190° |
| Tilt angle range | -40 - 80° |
| Lens viewing angle, vertical | 56 - 17° |
| Lens viewing angle, horizontal | 103 - 29° |
| Angle of rotation | 95° |
| Minimum illumination | 0 lx |
| Image sensor | |
|---|---|
| Optical sensor size | 25.4 / 1.8 mm (1 / 1.8") |
| Sensor type | CMOS |
| Lens system | |
|---|---|
| Closest focusing distance | 1 m |
| Identify distance (tele) | 29 m |
| Detect distance (wide) | 88 m |
| Detect distance (tele) | 292 m |
| Observe distance (wide) | 35 m |
| Observe distance (tele) | 116 m |
| Recognize distance (wide) | 18 m |
| Recognize distance (tele) | 58 m |
| Identify distance (wide) | 9 m |
| Auto focus | Yes |
| Focal length range | 4.4 - 14.6 mm |
| Night vision | |
|---|---|
| Infra-red wavelength | 850 nm |
| LED type | IR |
| Night vision distance | 40 m |
| Night vision | Yes |
| Video | |
|---|---|
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Noise reduction | Yes |
| Video streaming | Yes |
| Frame rate | 30 fps |
| Supported graphics resolutions | 3840 x 2160, 2560 x 1600 (WQXGA), 2592 x 1944 |
| Video compression formats | H.264, H.265, M-JPEG |
| Total megapixels | 8 MP |
| Maximum resolution | 3840 x 2160 pixels |
| Audio | |
|---|---|
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Network | |
|---|---|
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2 , HTTP/ 2, TLS2 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Ethernet interface type | Fast Ethernet |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| RAM capacity | 2048 MB |
| Flash memory | 8000 MB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Management features | |
|---|---|
| Cloud-managed | Yes |
| Power | |
|---|---|
| DC output voltage | 12 |
| Power consumption (max) | 12.9 W |
| Power source type | PoE, DC |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 820 g |
| Diameter | 14.9 cm |
| Height | 107 mm |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
