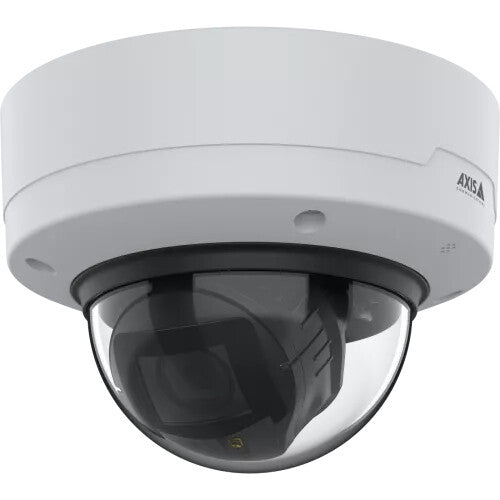

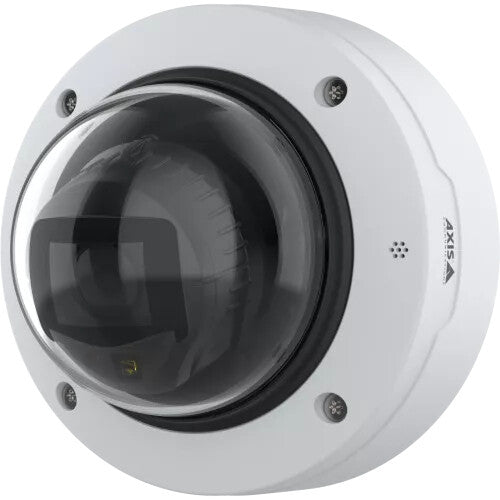

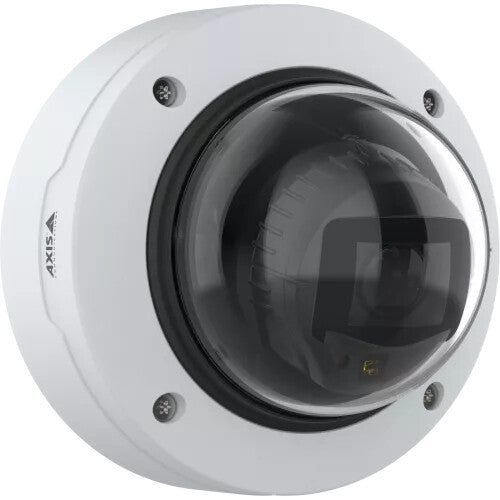

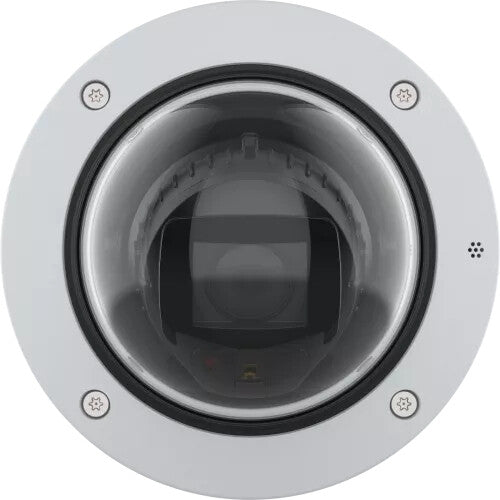

Axis P3287-LV Dome IP security camera Indoor & outdoor 2592 x 1944 pixels Ceiling/wall
£953.99
Couldn't load pickup availability
- Excellent image quality in 5 MP
- Next-generation AI-powered analytics
- Lightfinder 2.0 and Forensic WDR
- AXIS Audio Analytics preinstalled
- Built-in cybersecurity with Axis Edge Vault
Built on ARTPEC-9, this indoor AI-powered dome camera with support for AV1 codec delivers excellent 5 MP image quality in any light conditions. It offers accelerated performance to run impressive analytics applications on the edge.
| Performance | |
|---|---|
| Certification | UL/cUL, CE, KC, EAC, VCCI, RCM, ICES, UKCA, FCC |
| Day/night mode | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Tour recording | Yes |
| Auto-tracking | Yes |
| PTZ modes | Digital PTZ |
| PTZ control | Yes |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
| Design | |
|---|---|
| Weatherproof | Yes |
| IK code | IK10 |
| International Protection (IP) code | IP66 |
| Protection features | Impact resistant, Vandal proof |
| Housing material | Plastic, Polycarbonate (PC) |
| LED indicators | Yes |
| Product colour | Black, White |
| Mounting type | Ceiling/wall |
| Form factor | Dome |
| Camera | |
|---|---|
| Camera shutter speed | 1/30500 - 2 s |
| Camera pixel size | 2 µm |
| Pan range | -190 - 190° |
| Tilt angle range | -45 - 80° |
| Lens viewing angle, vertical | 26° |
| Lens viewing angle, horizontal | 34° |
| Angle of rotation | 190° |
| Minimum illumination | 0.02 lx |
| Camera tilt control | Yes |
| Camera pan control | Yes |
| Image sensor | |
|---|---|
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Number of sensors | 1 |
| Sensor type | CMOS |
| Lens system | |
|---|---|
| Identify distance (tele) | 17 m |
| Detect distance (wide) | 60 m |
| Detect distance (tele) | 170 m |
| Observe distance (wide) | 24 m |
| Observe distance (tele) | 67 m |
| Recognize distance (wide) | 12 m |
| Recognize distance (tele) | 34 m |
| Identify distance (wide) | 6 m |
| Maximum aperture number | 1.76 |
| Minimum aperture number | 1.7 |
| Auto focus | Yes |
| Focal length range | 3 - 8.5 mm |
| Lens diameter | 2.9 cm |
| Zoom capability | Yes |
| Number of lenses | 1 |
| Night vision | |
|---|---|
| Infra-red wavelength | 850 nm |
| LED type | IR |
| Night vision distance | 45 m |
| Night vision | Yes |
| Video | |
|---|---|
| Flip & mirror | Yes |
| Text caption overlay | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Bit rate control | Variable Bit Rate (VBR) |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Video streaming | Yes |
| Frame rate | 30 fps |
| Supported graphics resolutions | 1280 x 800 (WXGA), 1440 x 1080, 1920 x 1080 (HD 1080), 2592 x 1944 |
| Video formats supported | AV1, AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Total megapixels | 5 MP |
| Maximum resolution | 2592 x 1944 pixels |
| Audio | |
|---|---|
| Audio detection | Yes |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Network | |
|---|---|
| Streaming method | Multicast |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Networking standards | IEEE 802.1AE, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| RAM capacity | 2000 MB |
| Flash memory | 8000 MB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Ports & interfaces | |
|---|---|
| Terminal block port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Human and vehicle targets classification | Yes |
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| Security algorithms | 256-bit AES-XTS, EAP-TLS, HTTPS, MSCHAPv2, PEAP |
| Privacy protection | Yes |
| Alert notification type | |
| Pixel counter | Yes |
| Management features | |
|---|---|
| Behavior analysis | Line crossing detection |
| Power | |
|---|---|
| Power consumption (max) | 12.6 W |
| Power consumption (typical) | 4.7 W |
| Power source type | PoE |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 820 g |
| Sustainability | |
|---|---|
| Compliance certificates | REACH, RoHS, Trade Agreements Act (TAA) |
| Packaging content | |
|---|---|
| Manual | Yes |
| Sun shield included | Yes |
| Number of cameras | 1 |
| Other features | |
|---|---|
| Doesn't contain | CFR, PVC, PVC/BFR |
