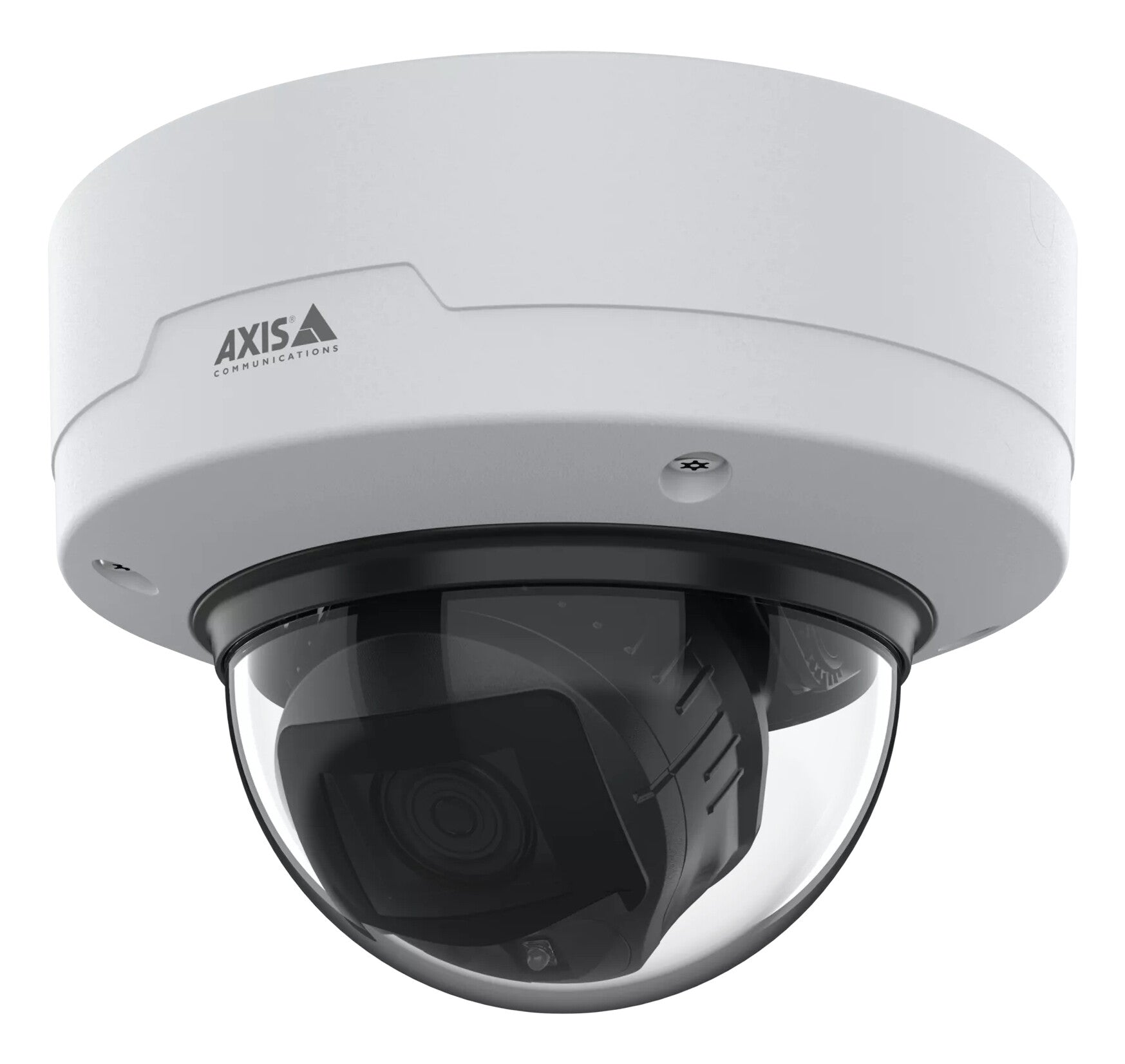

Axis P3277-LVE Mic Dome IP security camera Outdoor 2592 x 1944 pixels Ceiling/wall
Couldn't load pickup availability
- Excellent image quality in 5 MP
- Next-generation AI-powered analytics
- Lightfinder 2.0 and Forensic WDR
- Variant with built-in microphone
- Built-in cybersecurity with Axis Edge Vault
Built on ARTPEC-9, this robust AI-powered dome camera with support for AV1 codec delivers excellent 5 MP image quality in any light conditions. Plus, it's available with a built-in microphone, so it's out-of-the-box-ready for AXIS Audio Analytics.
Excellent image quality
AXIS P3277-LVE offers excellent image quality and forensic details in 5 MP under any light conditions. Thanks to Lightfinder 2.0 and Forensic WDR, it ensures true colors and great detail in near darkness or challenging light. And OptimizedIR enables surveillance in pitch darkness without the need for extra lighting. Axis Zipstream with support for AV1, H.264, and H.265 significantly reduces bandwidth and storage requirements without compromising image quality. Furthermore, this dome camera includes a built-in audio jack so it’s possible to connect a microphone for audio support.
Powerful analytics
Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics to detect, classify, track, and count humans, vehicles, and types of vehicles. Now combined with ARTPEC 9, this application offers enhanced performance with greater accuracy. And, AXIS P3277-LVE Mic is available with a built-in microphone, so it’s out-of-the-box-ready for AXIS Audio Analytics. Furthermore, with AXIS Live Privacy Shield, it’s easy to remotely monitor activities while protecting privacy.
Robust with strong security

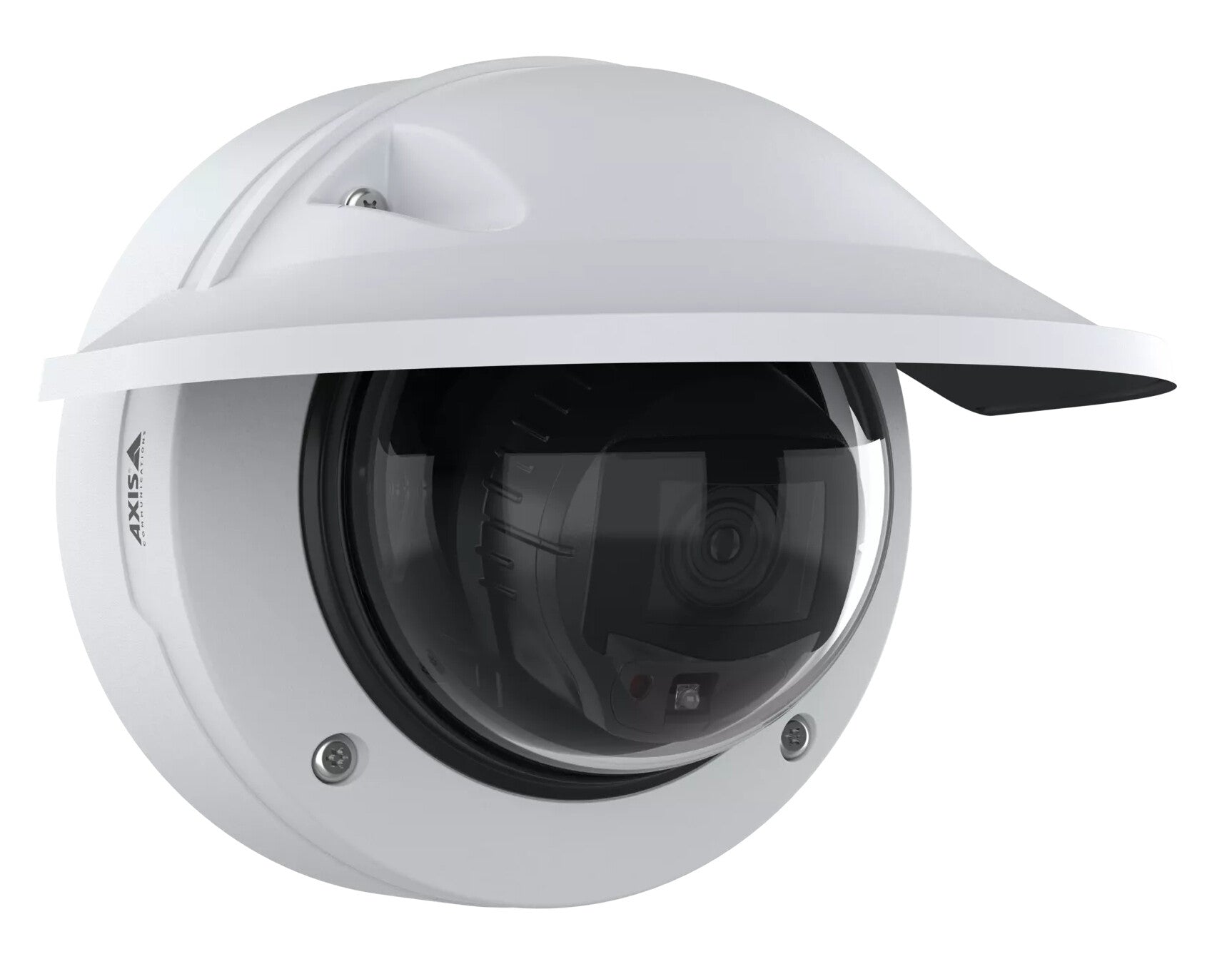

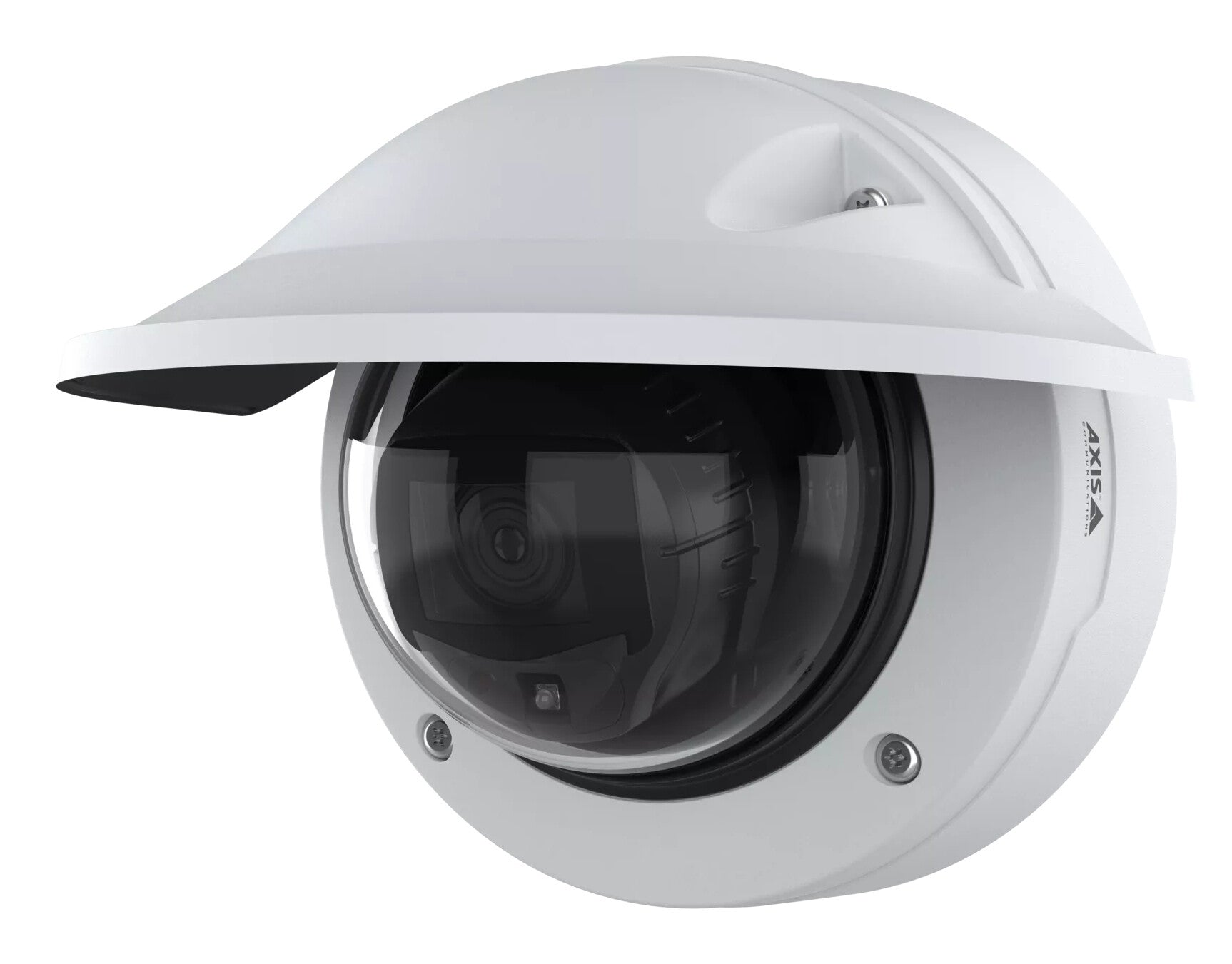

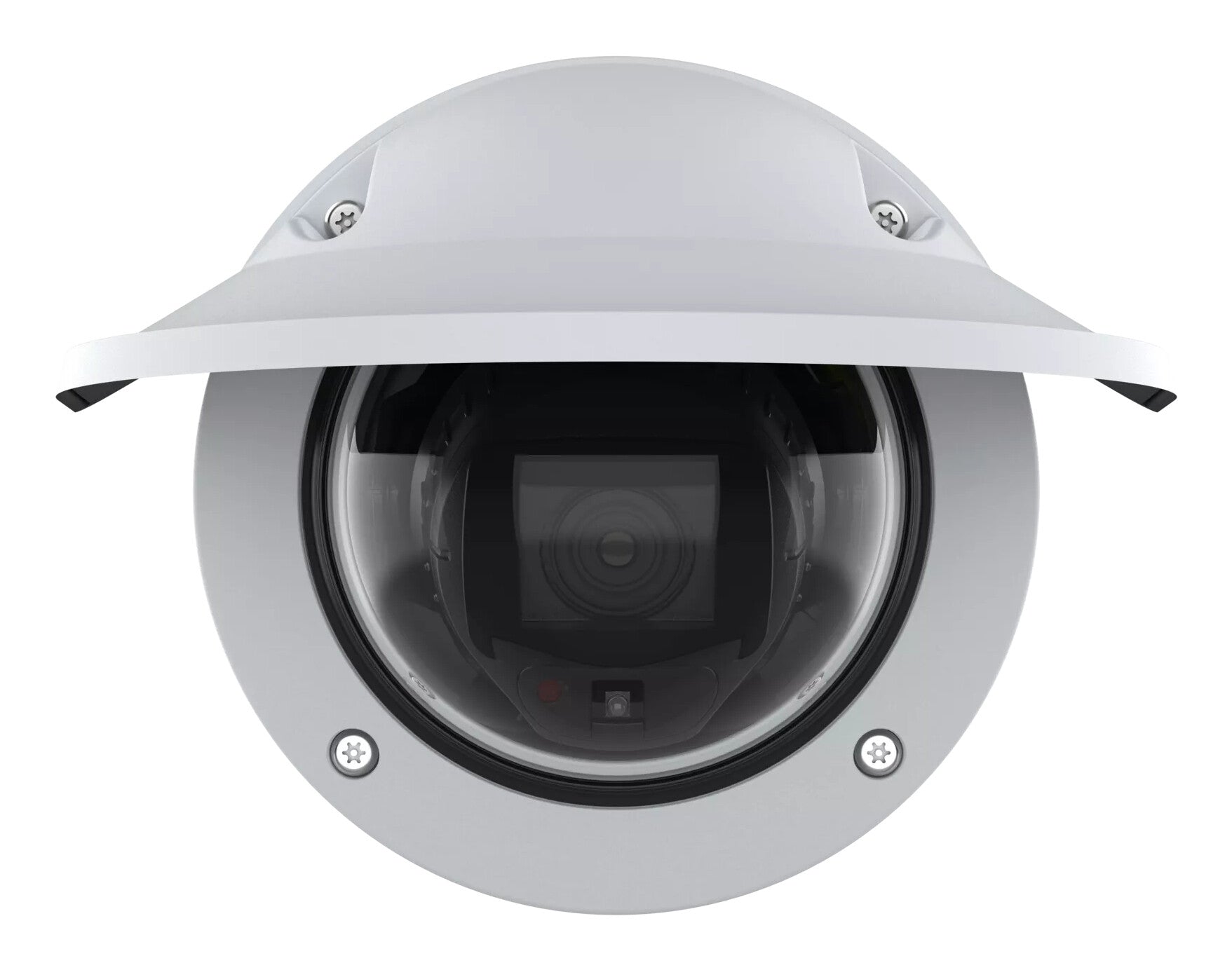

This robust, IK10-, IP66-, and NEMA 4X-rated outdoor-ready camera is both vandal- and impact-resistant. It features a built-in weathershield and has an operating temperature range from -40°C to 50 °C (-40°F to 122°F). And a built-in intrusion switch can detect tampering. Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations. What’s more, this dome camera is easy to install, maintain, and operate.
| Performance | |
|---|---|
| Dynamic range | 120 dB |
| Processor model | ARTPEC-9 |
| Built-in processor | Yes |
| Alarm input/output | Yes |
| Infrared (IR) cut-off filter | Yes |
| Day/night mode | Yes |
| Wide Dynamic Range (WDR) | Yes |
| PTZ control | Yes |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Type | IP security camera |
| Design | |
|---|---|
| IK code | IK10 |
| International Protection (IP) code | IP66 |
| Housing material | Plastic, Polycarbonate (PC) |
| LED indicators | Yes |
| Product colour | White |
| Mounting type | Ceiling/wall |
| Form factor | Dome |
| Camera | |
|---|---|
| Camera shutter speed | 1/30500 - 2 s |
| Camera pixel size | 2 µm |
| Pan range | -190 - 190° |
| Tilt angle range | -45 - 80° |
| Lens viewing angle, vertical | 76 - 26° |
| Lens viewing angle, horizontal | 104 - 34° |
| Angle of rotation | 95° |
| Minimum illumination | 0.03 lx |
| Camera tilt control | Yes |
| Camera pan control | Yes |
| Image sensor | |
|---|---|
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Number of sensors | 1 |
| Sensor type | CMOS |
| Lens system | |
|---|---|
| Identify distance (tele) | 17 m |
| Detect distance (wide) | 60 m |
| Detect distance (tele) | 170 m |
| Observe distance (wide) | 24 m |
| Observe distance (tele) | 67 m |
| Recognize distance (wide) | 12 m |
| Recognize distance (tele) | 34 m |
| Identify distance (wide) | 6 m |
| Maximum aperture number | 2.58 |
| Minimum aperture number | 1.38 |
| Auto focus | Yes |
| Focal length range | 3 - 8.5 mm |
| Zoom capability | Yes |
| Night vision | |
|---|---|
| Infra-red wavelength | 850 nm |
| LED type | IR |
| Night vision distance | 40 m |
| Night vision | Yes |
| Video | |
|---|---|
| Text caption overlay | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness, White balance |
| Gain control type | Auto |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Noise reduction | Yes |
| Video streaming | Yes |
| Frame rate | 30 fps |
| Video recording | Yes |
| Video compression formats | H.264, H.265, M-JPEG |
| Total megapixels | 5 MP |
| Maximum resolution | 2592 x 1944 pixels |
| Audio | |
|---|---|
| Built-in microphone | Yes |
| Audio system full duplex | Yes |
| Audio system | 2-way |
| Network | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.1AE, IEEE 802.1ar, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Ethernet interface type | Fast Ethernet |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| RAM capacity | 2048 MB |
| Flash memory | 8192 MB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Terminal block port | Yes |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Video motion detection | Yes |
| Network access storage (NAS) | Yes |
| Management features | |
|---|---|
| Cloud-managed | Yes |
| Power | |
|---|---|
| DC output current | 0.025 A |
| DC output voltage | 12 |
| Power consumption (max) | 12.6 W |
| Power consumption (typical) | 4.7 W |
| Power source type | DC, PoE |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating temperature (T-T) | -40 - 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 850 g |
| Packaging content | |
|---|---|
| Manual | Yes |
| Mounting kit | Yes |
| Number of cameras | 1 |
