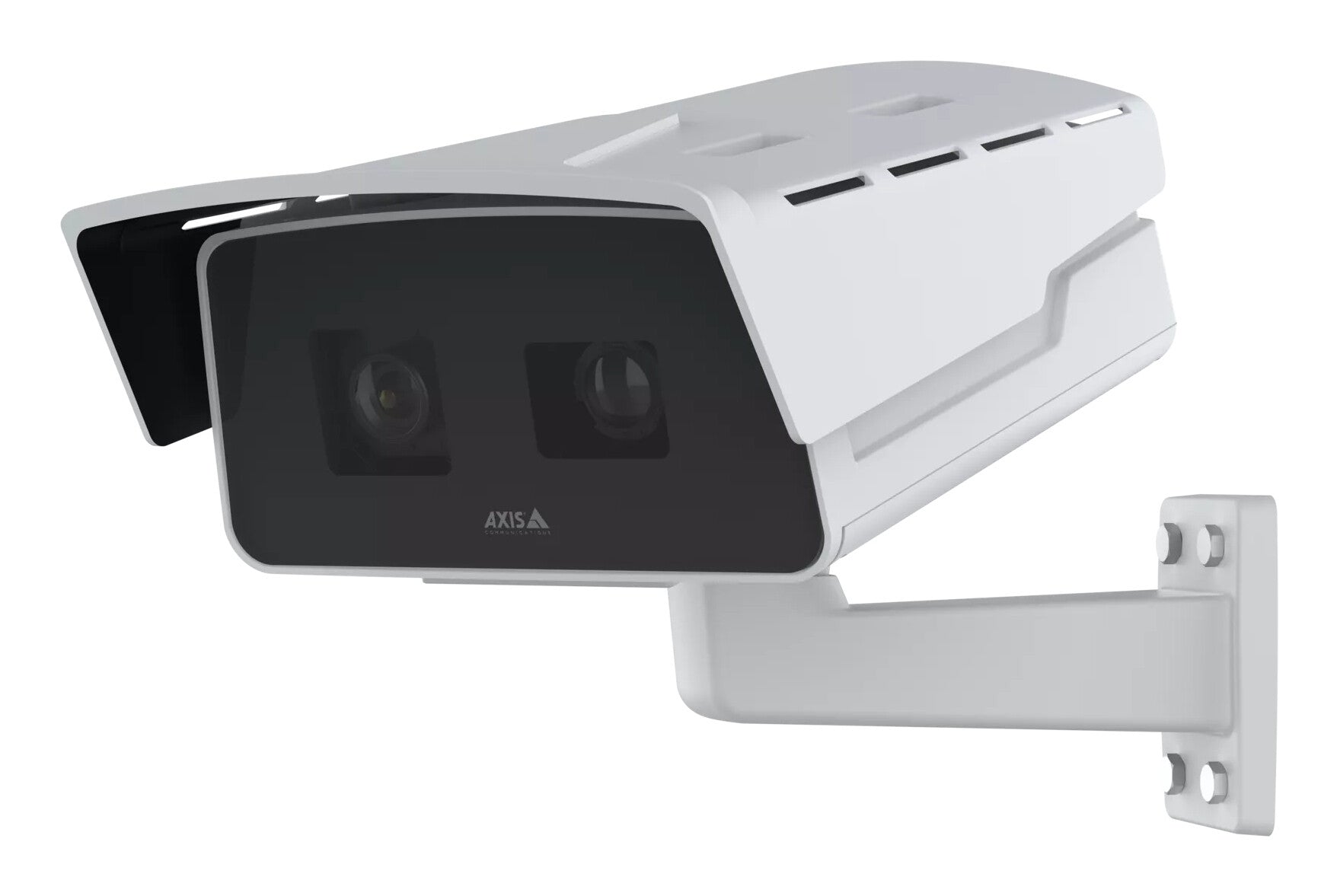

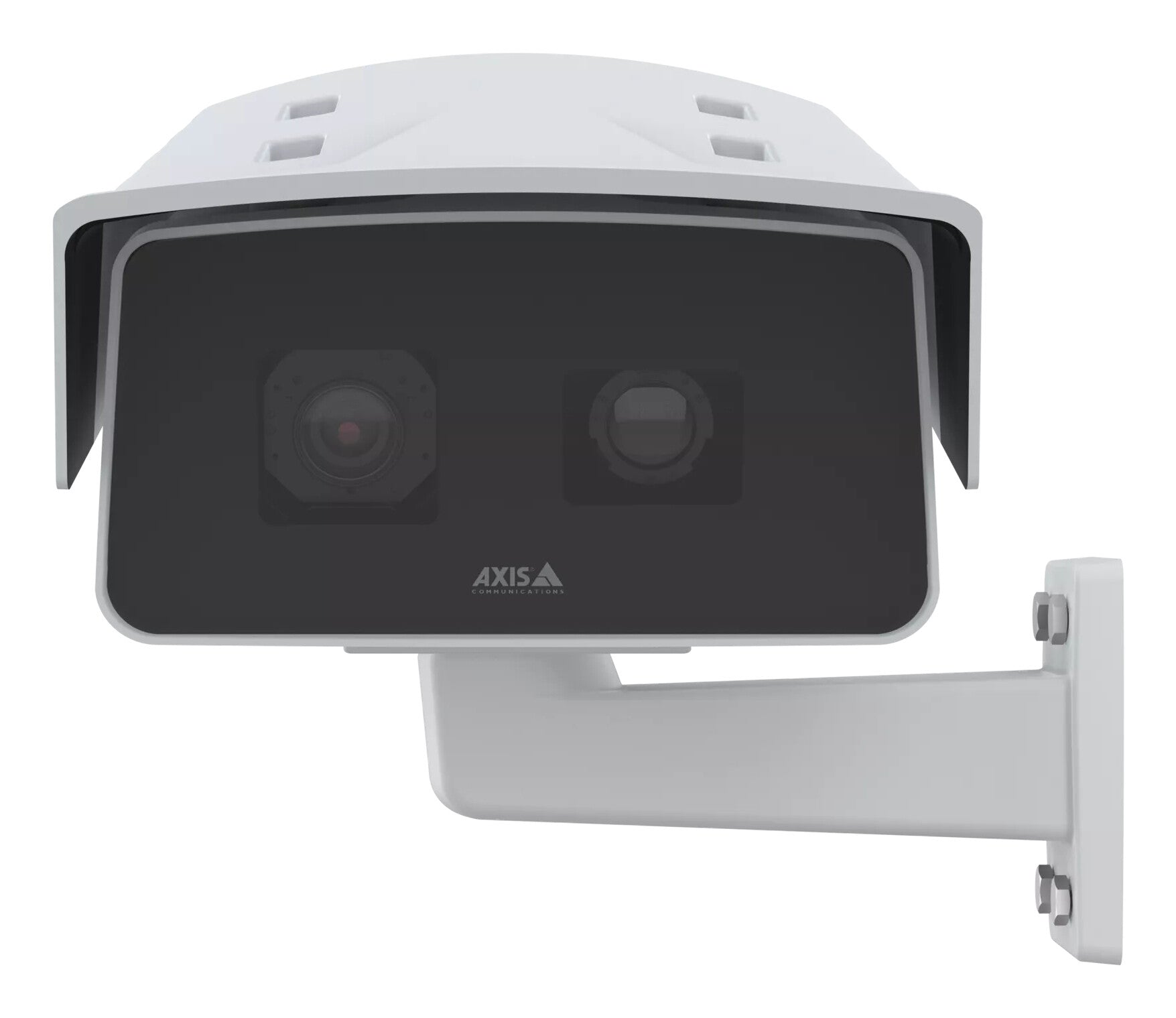

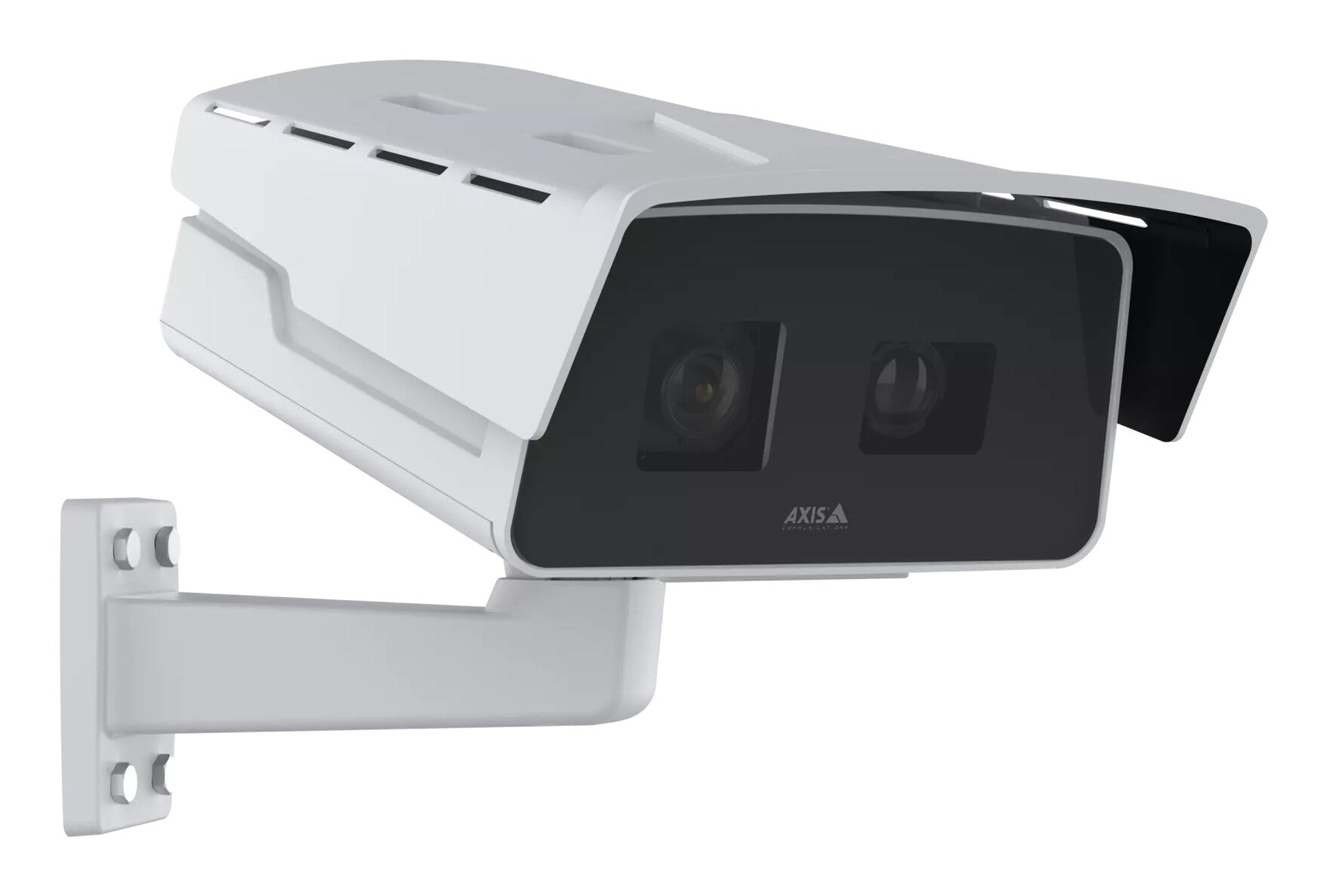

Axis P1518-E Box IP security camera Outdoor 3840 x 2160 pixels Wall
Couldn't load pickup availability
- Two sensors for wide-angle and close-up views
- Excellent image quality in challenging light
- AI-powered analytics
- Low Total Cost of Ownership (TCO)
- Built-in cybersecurity with Axis Edge Vault
Ideal for building and perimeter protection, this dual-sensor, AI-powered box camera offers both wide-angle and close-up views of the same scene. It delivers excellent image quality under challenging light conditions.
Excellent wide-angle and close-up images 24/7
AXIS P1518-E lets you see it all. With two sensors, you get both wide-angle and close-up views of the same scene. One 1/1.2” image sensor offers exceptional low-light sensitivity and 8 MP at 30 fps for excellent wide-angle images . The other 1/2.8” sensor delivers 2 MP at 60 fps for close-up images without motion blur. It’s perfect at entrances and property fences, where you can monitor the wide-angle overview and get a close-up view of anyone approaching. In addition, Lightfinder 2.0 and Forensic WDR ensure true colors and great forensic detail in challenging light or near darkness.
Smart investment: cost-efficient and robust
AXIS P1518-E offers easy installation with lower total cost of ownership. With two sensors in one camera, there’s only one camera to install, one cable to draw, one IP address, one VMS license, and one license for any analytics you choose to install. Plus, you only need to maintain one camera. Thanks to remote zoom and focus capabilities, it ensures fast and accurate installation. Robust and outdoor-ready, it can be installed, for instance, at intersections to monitor traffic flow and capture vehicle details. Furthermore, this IP66-, IP67-, IK10- and NEMA 4X-rated camera can withstand hurricane winds up to 60 m/s (134 mph).
AI-powered analytics with strong security
This high-performance camera includes a deep learning processing unit (DLPU). This enables improved processing and storage capabilities allowing you to collect and analyze even more data than before - on the edge. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. With AXIS Object Analytics preinstalled, it can detect and classify humans, vehicles, and types of vehicles - all tailored to your specific needs. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and operations.
| Performance | |
|---|---|
| Processor model | ARTPEC-8 |
| Built-in processor | Yes |
| Infrared (IR) cut-off filter | Yes |
| Day/night mode | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Type | IP security camera |
| Design | |
|---|---|
| IK code | IK10 |
| International Protection (IP) code | IP66, IP67 |
| Housing material | Aluminium, Plastic |
| Product colour | White |
| Mounting type | Wall |
| Form factor | Box |
| Camera | |
|---|---|
| Pan range | -15 - 15° |
| Tilt angle range | -15 - 15° |
| Lens viewing angle, vertical | 61.9 - 25.8° |
| Lens viewing angle, horizontal | 113.8 - 45.5° |
| Minimum illumination | 0.01 lx |
| Camera tilt control | Yes |
| Camera pan control | Yes |
| Image sensor | |
|---|---|
| Optical sensor size | 25.4 / 1.2 mm (1 / 1.2") |
| Number of sensors | 2 |
| Sensor type | CMOS |
| Lens system | |
|---|---|
| Zoom capability | Yes |
| Night vision | |
|---|---|
| LED type | IR |
| Night vision | Yes |
| Video | |
|---|---|
| Text caption overlay | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness, White balance |
| Gain control type | Auto |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Noise reduction | Yes |
| Video streaming | Yes |
| Frame rate | 30 fps |
| Video recording | Yes |
| Video compression formats | H.264, H.265, M-JPEG |
| Total megapixels | 8 MP |
| Maximum resolution | 3840 x 2160 pixels |
| Audio | |
|---|---|
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Audio system full duplex | Yes |
| Audio system | 2-way |
| Network | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.1ar, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| RAM capacity | 2048 MB |
| Flash memory | 8192 MB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Terminal block port | Yes |
| RS-485 ports | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Management features | |
|---|---|
| Cloud-managed | Yes |
| Power | |
|---|---|
| DC output voltage | 10, 12, 15, 16, 24, 28 |
| Power consumption (max) | 25.5 W |
| Power consumption (typical) | 13.2 W |
| Power source type | DC, PoE |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating temperature (T-T) | -40 - 60 °C |
| Weight & dimensions | |
|---|---|
| Weight | 3.65 kg |
| Packaging content | |
|---|---|
| Manual | Yes |
| Mounting kit | Yes |
| Number of cameras | 1 |
