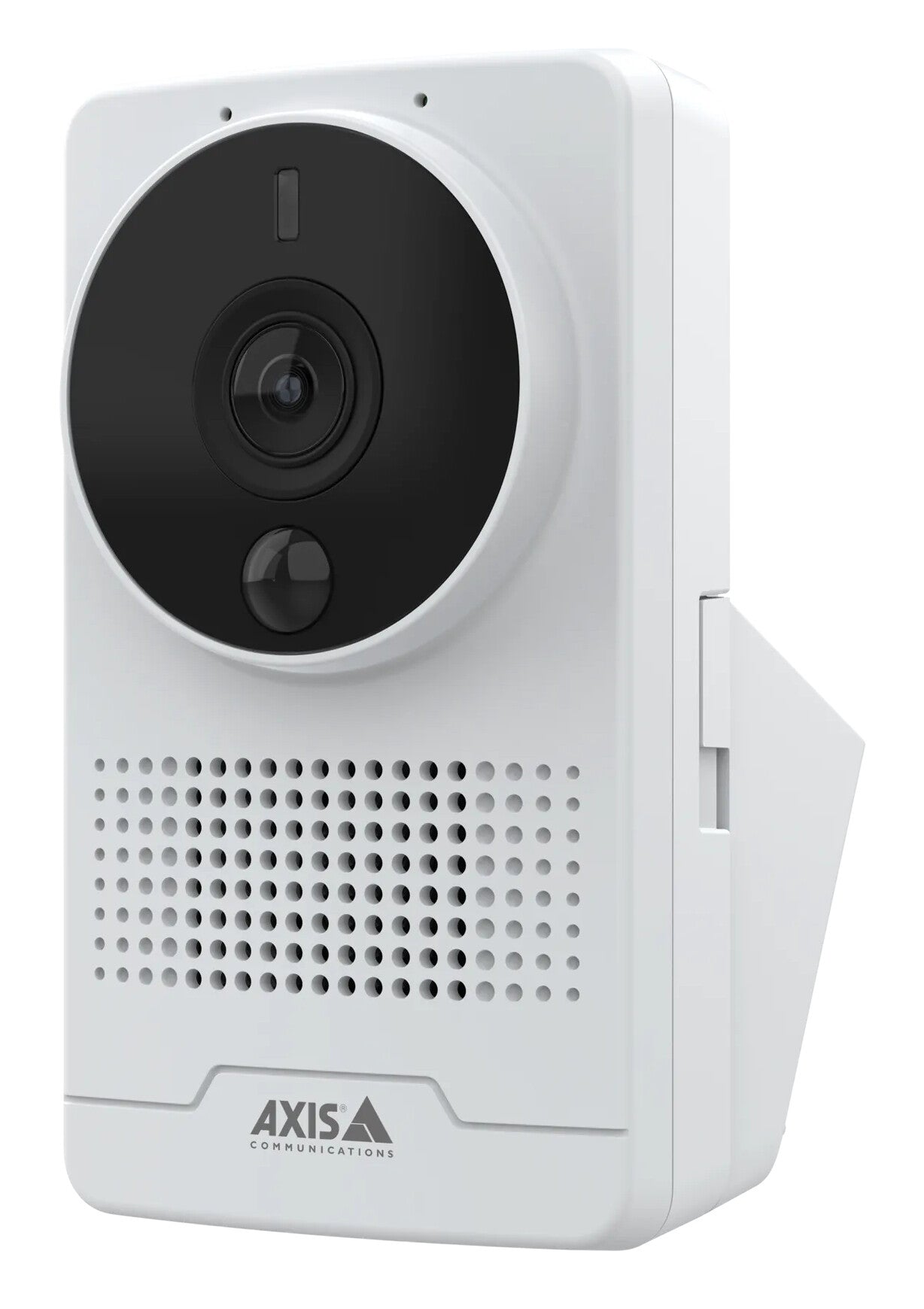

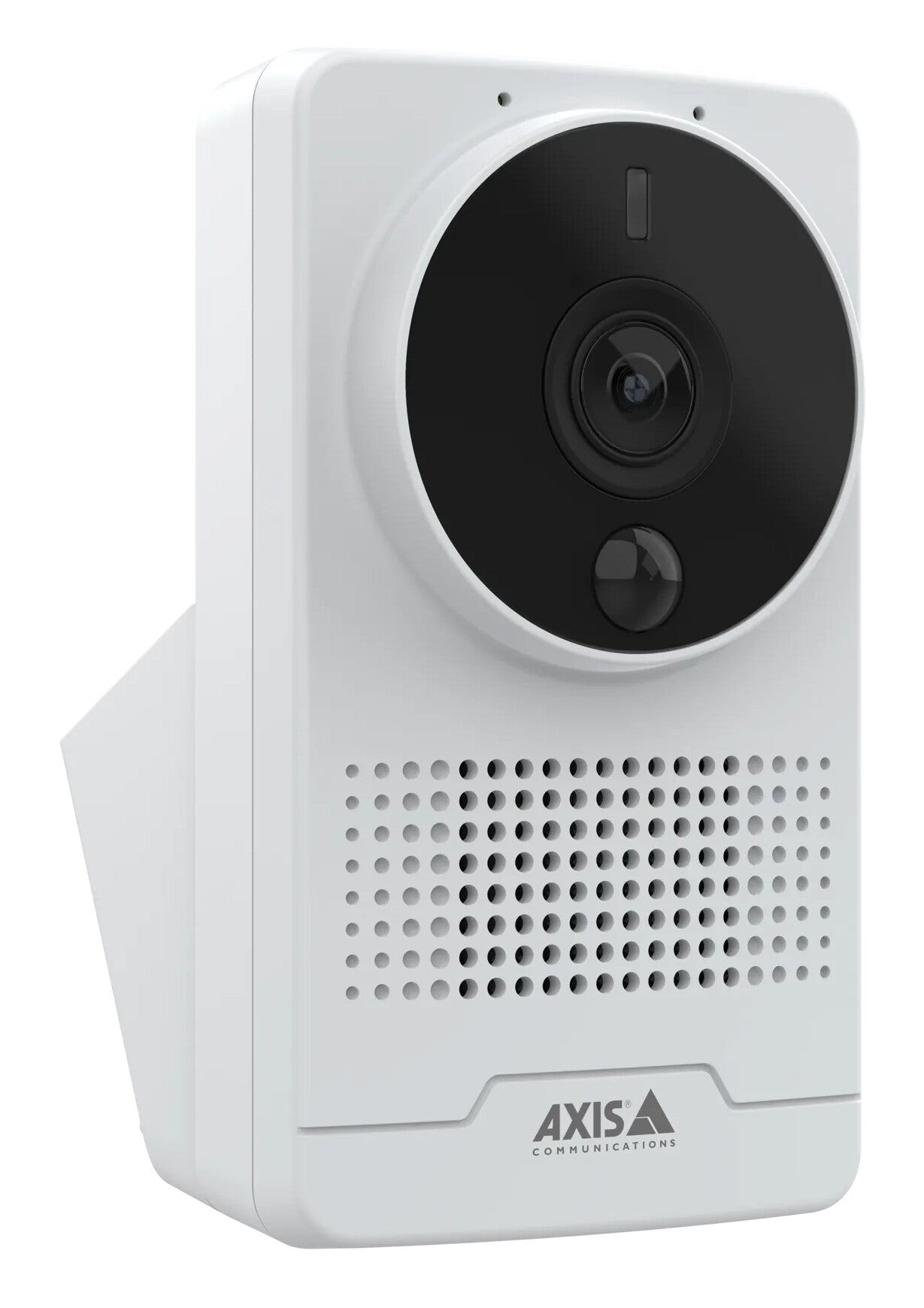

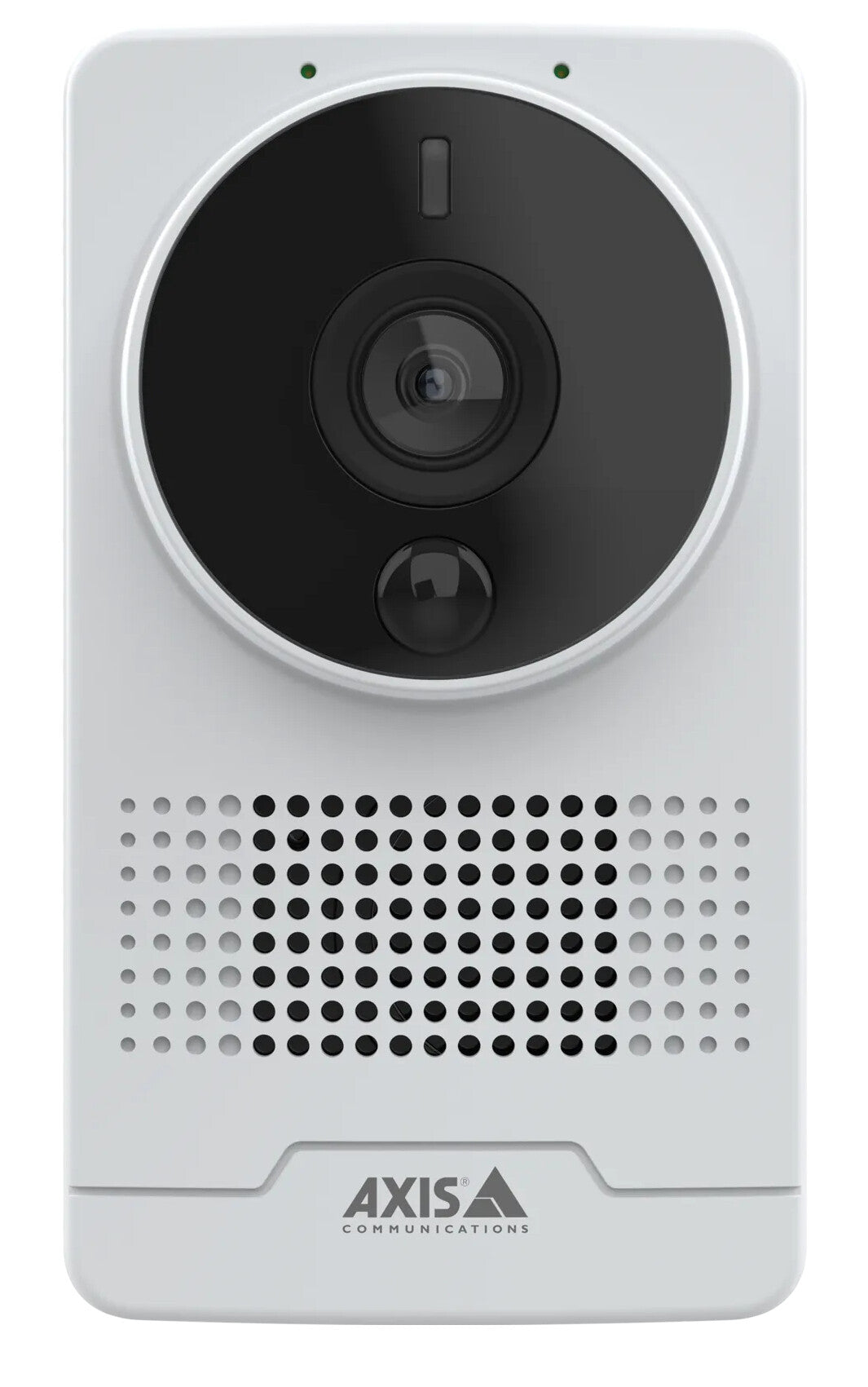

Axis M1075-L Mk II Box IP security camera Indoor 1920 x 1080 pixels Ceiling/wall
Couldn't load pickup availability
- Day-and-night with IR illumination
- Built-in privacy features
- PIR Sensor for motion detection
- AXIS Audio Analytics on the edge
- Two-way audio communication
Ideal for residential care and small stores, this compact, easy-to-install camera offers two-way audio and great image quality - around the clock. AI-powered, it supports advanced features and powerful video and audio analytics on the edge.
Ensure privacy and security
This fully featured camera is designed with privacy and security in mind. Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified, secure cryptographic key storage and operations. A tally LED indicates video streaming or recording. And, with AXIS Live Privacy Shield, it’s easy to remotely monitor activities while protecting privacy. Furthermore, AXIS TM1903 Privacy Cover is available as an accessory to temporarily protect privacy when needed. Plus, a built-in pencil privacy filter ensures discreet images that safeguard privacy.
AI-powered analytics
AXIS M1075-L Mk II includes a deep learning processing unit (DLPU) to run advanced features and powerful analytics on the edge. With AXIS Object Analytics preinstalled, it can detect, track, and count humans. It also includes AXIS Audio Analytics, which detects sounds such as breaking glass, screams, shouts, speech, and coughing fits, and provides instant alerts when these events occur. In addition, generated metadata can be gathered and visualized in a dashboard for valuable insights.
Extended possibilities
This compact camera supports PoE and includes a USB and I/O port for optional Wi-Fi-dongle connectivity. The I/O port also allows you to connect external devices, such as a panic button - ideal in elderly care facilities and small stores. It can be mounted in corners for complete coverage with a 103° field of view and features a built-in speaker and dual microphones. Plus, voice enhancer ensures great two-way audio communication. With an IR-corrected lens, it offers professional-quality video both day and night. What’s more, a passive infrared (PIR) sensor can detect movement in total darkness. And an HDMI port lets you display live video on a public viewing monitor.
| Performance | |
|---|---|
| Dynamic range | 120 dB |
| Processor model | Ambarella CV25 |
| Built-in processor | Yes |
| Alarm input/output | Yes |
| Infrared (IR) cut-off filter | Yes |
| Day/night mode | Yes |
| Wide Dynamic Range (WDR) | Yes |
| People counting function | Yes |
| Connectivity technology | Wired |
| Placement supported | Indoor |
| Type | IP security camera |
| Design | |
|---|---|
| International Protection (IP) code | IP40 |
| Housing material | Aluminium, Plastic |
| LED indicators | Yes |
| Product colour | White |
| Mounting type | Ceiling/wall |
| Form factor | Box |
| Camera | |
|---|---|
| Camera shutter speed | 1/19000 - 1/5 s |
| Camera pixel size | 2.8 µm |
| Lens viewing angle, vertical | 55° |
| Lens viewing angle, horizontal | 103° |
| Minimum illumination | 0.18 lx |
| Image sensor | |
|---|---|
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
| Sensor type | CMOS |
| Lens system | |
|---|---|
| Fixed focal length | 3.16 mm |
| Identify distance | 4 m |
| Maximum aperture number | 2 |
| Recognize distance | 8 m |
| Observe distance | 16 m |
| Detect distance | 42 m |
| Zoom capability | Yes |
| Night vision | |
|---|---|
| Infra-red wavelength | 850 nm |
| LED type | IR |
| Night vision distance | 18 m |
| Night vision | Yes |
| Video | |
|---|---|
| Image quality adjustment | Saturation, Contrast, Brightness, Sharpness, White balance |
| Video streaming | Yes |
| Frame rate | 30 fps |
| Video recording | Yes |
| Video compression formats | H.264H, H.264M, H.265 |
| Total megapixels | 2 MP |
| Maximum resolution | 1920 x 1080 pixels |
| Audio | |
|---|---|
| Built-in microphone | Yes |
| Audio formats supported | AAC-LC, LPCM, G.711, PCM, ADPCM, OPUS |
| Audio system | 2-way |
| Built-in speaker(s) | Yes |
| Network | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.1x, IEEE 802.1AE, IEEE 802.1ar, IEEE 802.3af, IEEE 802.3at |
| Ethernet interface type | Fast Ethernet |
| Bluetooth | Yes |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| RAM capacity | 2048 MB |
| Flash memory | 1024 MB |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Ports & interfaces | |
|---|---|
| Terminal block port | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| HTTPS encryption | Yes |
| Network access storage (NAS) | Yes |
| Alarm output channels | 1 |
| Alarm input channels | 1 |
| Management features | |
|---|---|
| Cloud-managed | Yes |
| Power | |
|---|---|
| Power consumption (max) | 12.95 W |
| Power consumption (typical) | 5.4 W |
| Power source type | PoE |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating temperature (T-T) | 0 - 35 °C |
| Weight & dimensions | |
|---|---|
| Weight | 153 g |
| Height | 105 mm |
| Depth | 93 mm |
| Width | 60 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
| Mounting kit | Yes |
| Number of cameras | 1 |
