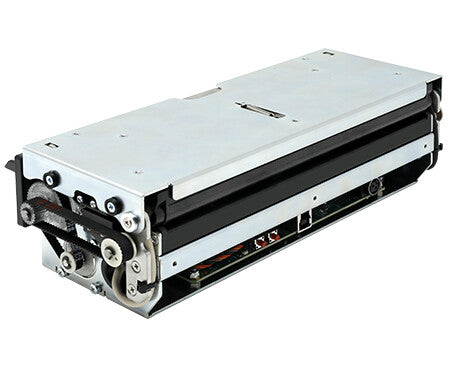

CUSTOM SCANNER A4 600 x 600 DPI Black, Metallic
Couldn't load pickup availability
- Front and rear scanning
- Sturdy: full metal body
- 200-300-600dpi resolution double side
- Scanner max speed: 400 mm/sec (B/W at 300dpi)
- Front paper mouth with RGB led
- Sensor for detection of jam/blocked sheet (internal encoder)
- Document alignment system in entrance(deskew)
- Fully inspectionable for easy cleaning and maintenance
- Retract or eject
- Paper width: min 70 mm - max 218 mm
A4 front/rear color Scanner
Custom A4 Scanners guarantee high performance (400 mm/s) of front/back color scanning and better than average data transfer (USB 3.0 at 5 Mbit/s) to support all applications with a resolution up to 600 dpi (at 73 mm/s), along with the option of integrating with third party applications. The main reference markets are: banking, industrial, aviation, railways, public transports, gaming, logistics and retail.
| Scanning | |
|---|---|
| Duplex scanning | Yes |
| Optical scanning resolution | 600 x 600 DPI |
| Maximum scan size | 217.4 x 1000 mm |
| Design | |
|---|---|
| Product colour | Black, Metallic |
| Built-in display | No |
| Performance | |
|---|---|
| Processor frequency | 375 MHz |
| Built-in processor | Yes |
| Internal memory | 512 MB |
| Light source | RGB LED |
| Sensor type | CIS |
| Paper handling | |
|---|---|
| Maximum scan length | 100 cm |
| Maximum scan width | 21.7 cm |
| Maximum ISO A-series paper size | A4 |
| Ports & interfaces | |
|---|---|
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB port | Yes |
| Power | |
|---|---|
| Current | 1 A |
| Input voltage | 24 V |
| Power supply type | DC |
| Weight & dimensions | |
|---|---|
| Weight | 1.98 kg |
| Height | 77 mm |
| Depth | 274 mm |
| Width | 127.4 mm |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
