Axis
£236.99
Stock Available: 0
  • Designed to perfectly match Axis door controllers and credentials; EAL6+ Certified Secure Element for added protection; IP65, IK07 ratings for use in harsh environments; Mullion-mount design for easy installation; Support for most RFID cards with 13.56MHz

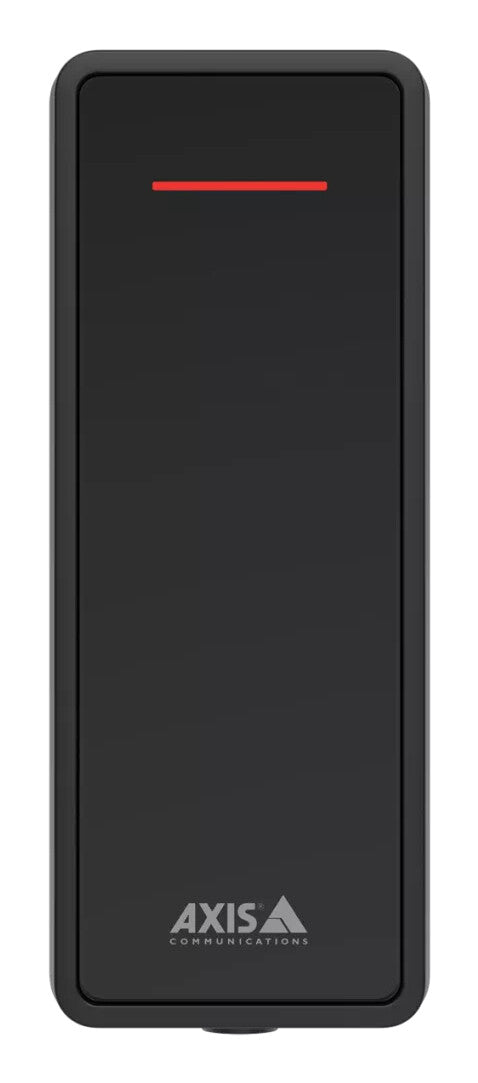

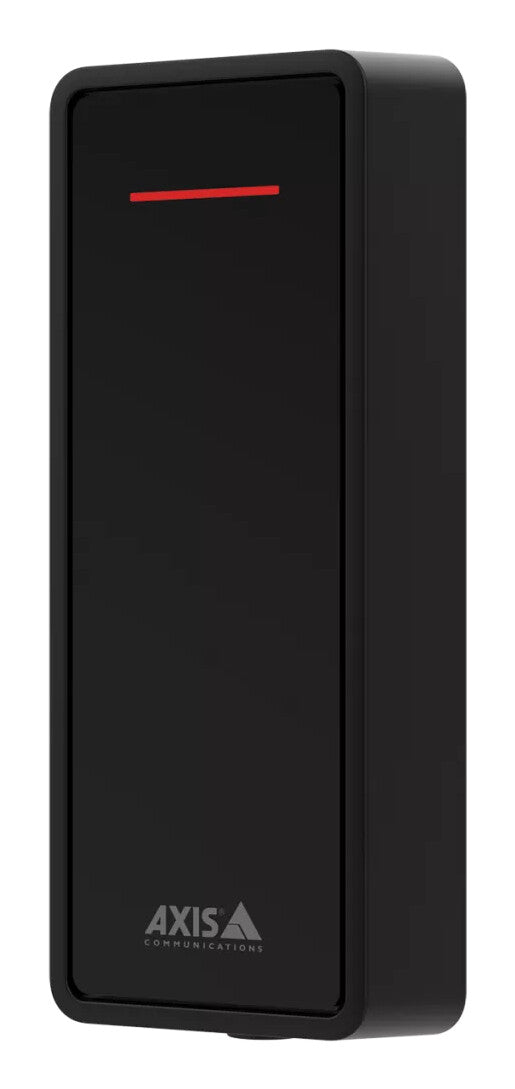

Designed to perfectly match Axis network door controllers and Axis credentials, AXIS A4020-E Reader offers secure and seamless touch-free entry. Ideal for use in harsh environments both indoors and outdoors, it features a mullion-mount design to fit perfectly in narrow spaces and door frame installations. It supports most types of smart RFID card standards with 13.56MHz credential technologies and includes out-of-the-box support for Open Supervised Device Protocol (OSDP) for secure bidirectional communication. Packed with built-in cybersecurity features, it helps prevent unauthorized access and safeguards your system. Furthermore, this smart reader supports Secure Channel Protocol (SCP) enabling secure communications and connections.

Technical details
Certification EN 61000–6–1, EN 61000–6–3, FCC Part 15 Subpart B Class B, EN 300330, EN 301489-1, EN 301489-3, EN 62311, CAN/CSA-C22.2 No. 60950-22, CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP65, IEC/EN 62262 IK07, NEMA 250 Type 4X
Housing material Plastic
LED indicators Yes
International Protection (IP) code IP65
Product colour Black
Frequency 13.56 kHz
Interface RS-485
Logistics data
Harmonized System (HS) code 84719000
Weight & dimensions
Weight 118 g
Height 121 mm
Depth 27 mm
Width 48 mm
Operational conditions
Storage relative humidity (H-H) 5 - 95%
Storage temperature (T-T) -40 - 65 °C
Operating relative humidity (H-H) 10 - 100%
Operating temperature (T-T) -30 - 65 °C
