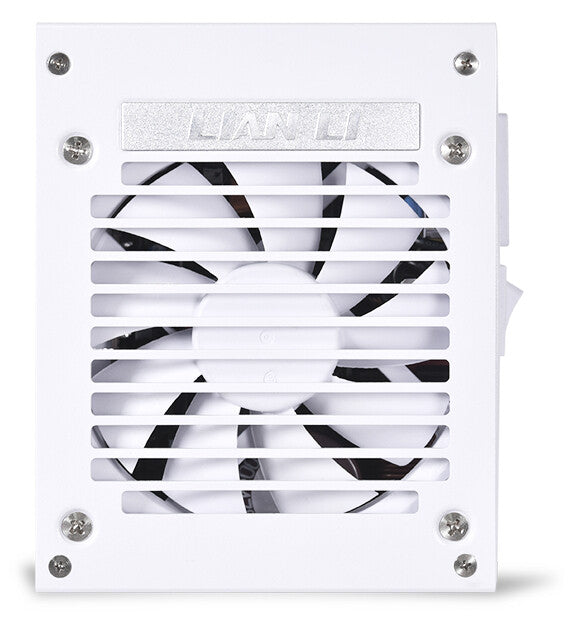

Lian Li SP750 power supply unit 750 W 20+4 pin ATX SFX White
Couldn't load pickup availability
- 80 PLUS GOLD Efficiency
- Fully modular braided cables for a clean look
- Japanese electrolytic capacitors for high durability
- ZERO RPM mode under 40% load for silent operation
- Sleek and classic exterior with brushed aluminum housing
The SP750 is a stylish high-performance PSU that perfectly fits small-form-factor PCs while supporting power-hungry components.
Available in two color
Sleek Black Look with Aluminum Housing Completely White Designing.
80 PLUS Gold Certificate
SP750 guarantees up to 92% efficiency, ensuring less power wastage.
Cooling in Silence
The SP750 features a 92mm hydraulic bearing fan that operates at zero RPM mode until 40% load in order to achieve minimal acoustic levels.
Japanese Electrolytic Capacitors
Premium Japanese electrolytic capacitors provide great durability and long-term reliability, as well as offering the highest stability.
Sleek Look with Aluminum Housing
Carrying along the same visual identity and quality as LIAN LI cases, the SP750 integrates a brushed aluminum top housing for a sleek, elegant, and modern look.
Fully Modular Connection and Included Braided Cables
The fully modular power supply provides all necessary braided cables right out of the box, ensuring less cable clutter and more aesthetics.
| Power | |
|---|---|
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 744 W |
| Combined power (+5V) | 100 W |
| Efficiency | 91.89% |
| Power protection features | Over current, Over power, Over total voltage, Over voltage, Short circuit, Under voltage |
| Ports & interfaces | |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 30 cm |
| Number of SATA power connectors | 2 |
| SATA power cable length | 120 mm |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Peripheral (Molex) power cable length | 120 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power connectors (8-pin) | 1 |
| PCI Express power cable length | 40 cm |
| CPU P4 connector (4-pin) | 1 |
| CPU power cable length | 45 cm |
| Cabling type | Fully-Modular |
| Performance | |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | SFX |
| 80 PLUS certification | 80 PLUS Gold |
| Silent mode | Yes |
| Bearing technology | FDB |
| Design | |
|---|---|
| Product colour | White |
| Fan speed | 1000 - 2800 RPM |
| Packaging content | |
|---|---|
| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
| Weight & dimensions | |
|---|---|
| Width | 63.5 mm |
| Depth | 100 mm |
| Height | 125 mm |
