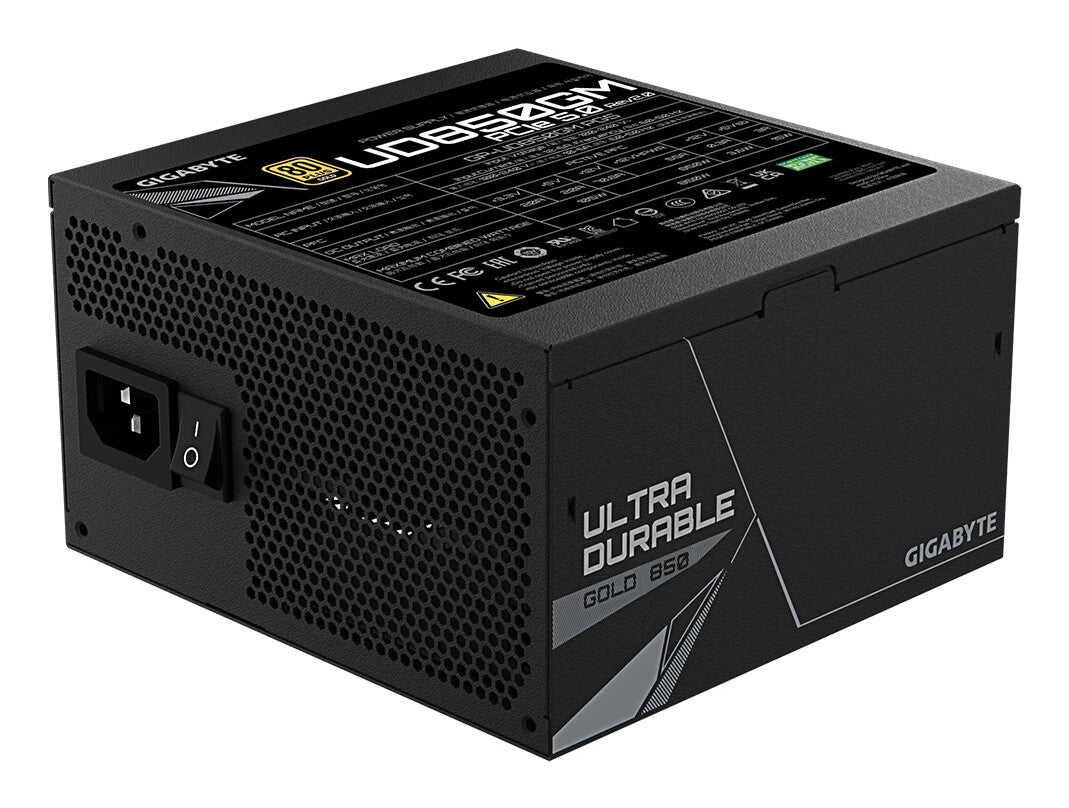

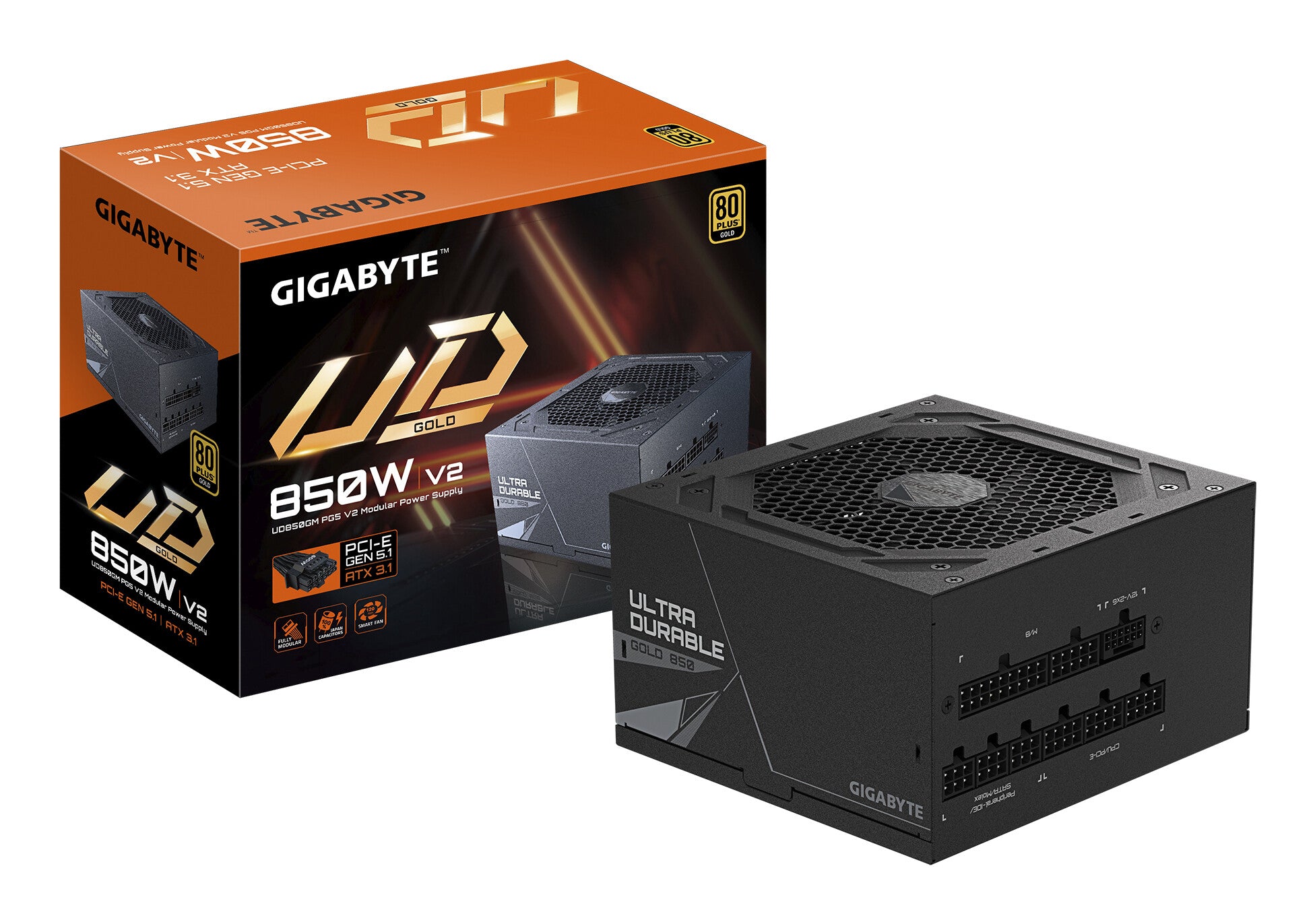

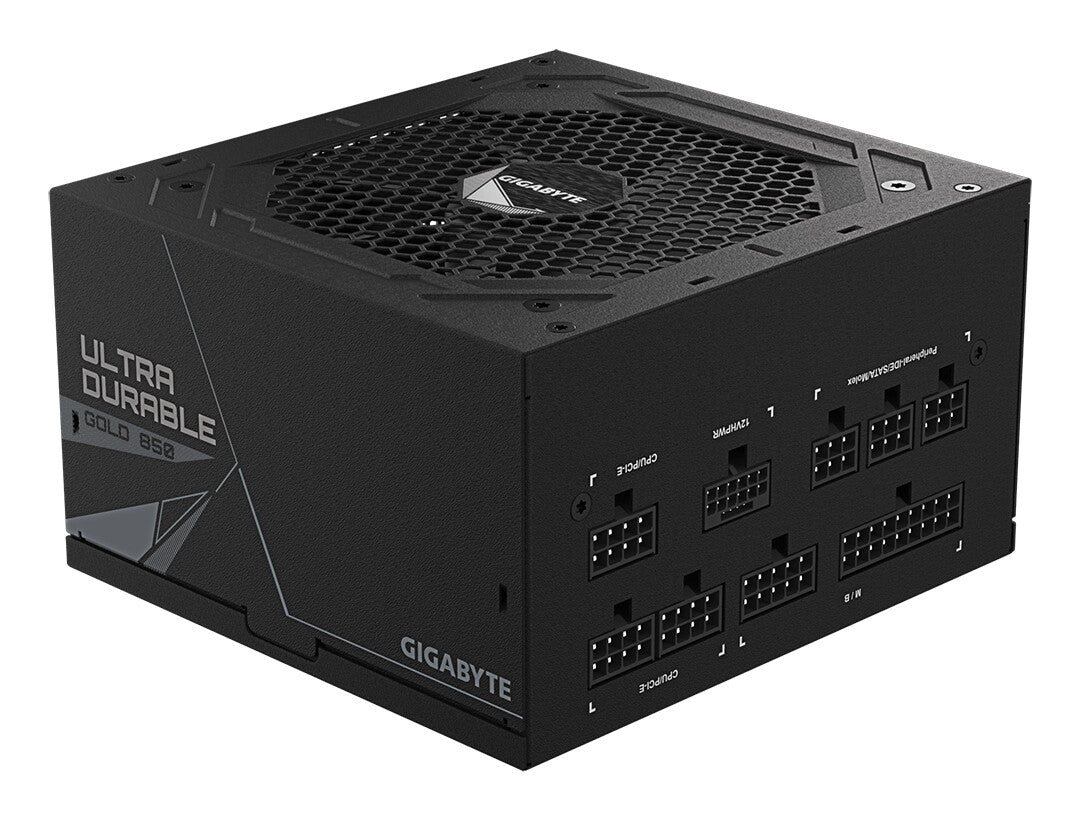

GIGABYTE UD850GM PG5 V2 Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug
iFrame
£99.99
Couldn't load pickup availability
- Intel ATX 3.1 and PCIe Gen 5.1 ready
- 80 PLUS Gold certified

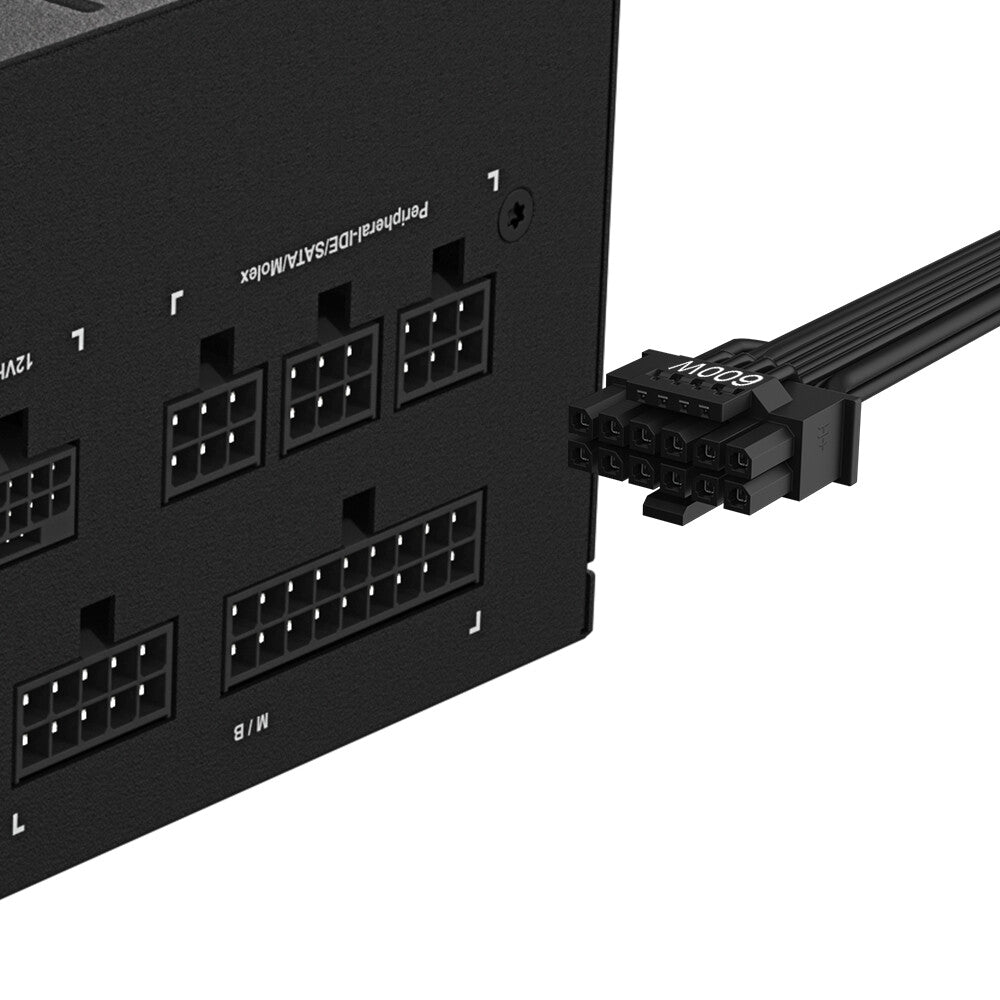

- Fully modular design
- Powerful single +12V rail
- Compact size
- 100% Japanese capacitors

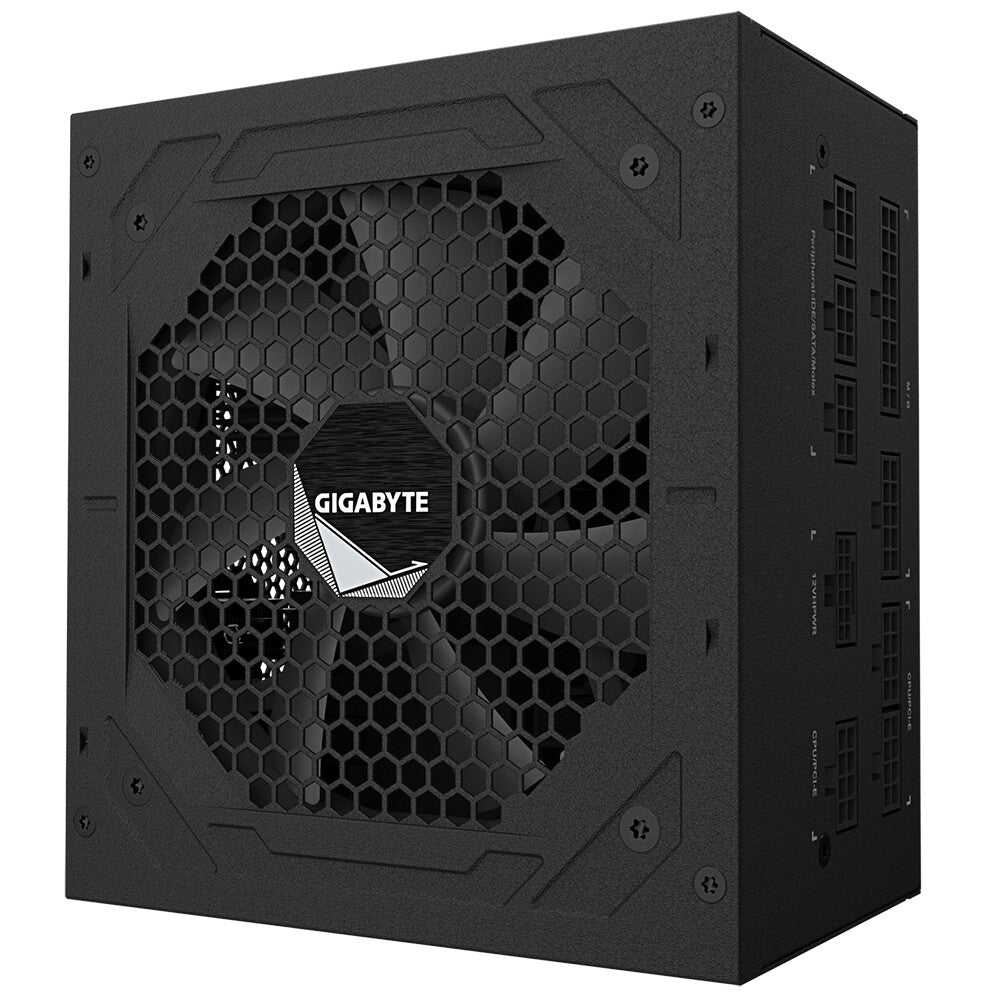

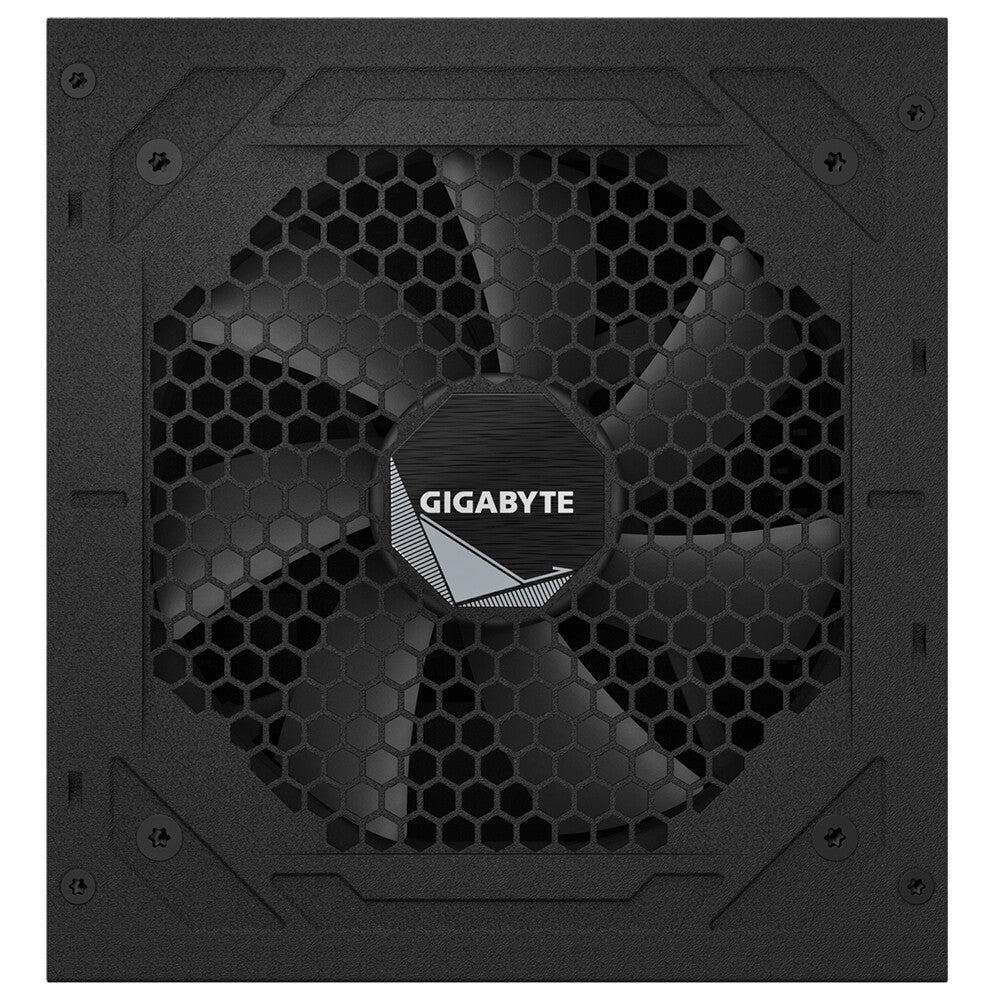

- 120mm smart hydraulic bearing (HYB) fan
- Optimized thermal solution
- OVP/OPP/SCP/UVP/OCP/OTP protection
Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.

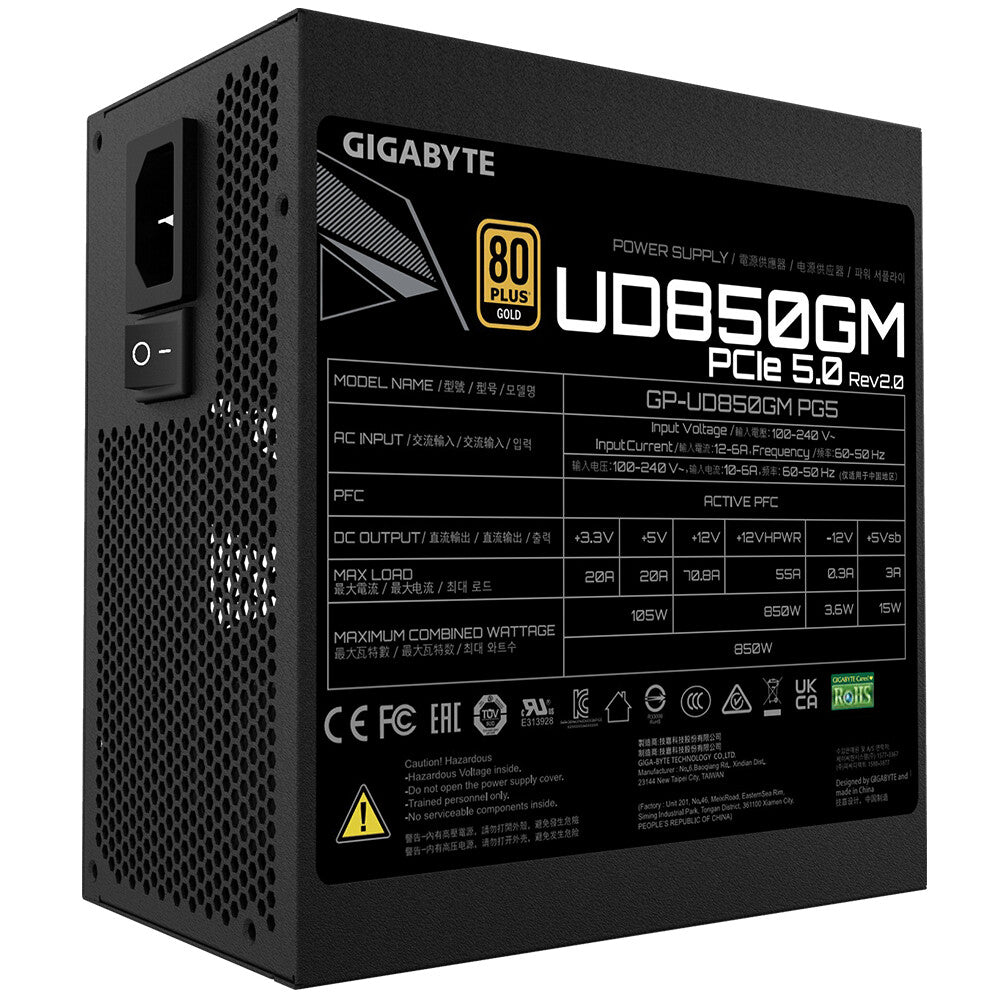

| Power | |
|---|---|
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Hold time | 16 ms |
| Efficiency | 90% |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5V) | 20 A |
| Max output current (+12V) | 70.8 A |
| Max output current (+3.3V) | 20 A |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5V) | 105 W |
| Combined power (+12V) | 850 W |
| Combined power (+3.3V) | 105 W |
| Power Factor Correction (PFC) type | Active |
| Power factor | 0.9 |
| Input current | 12 - 6 A |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Total power | 850 W |

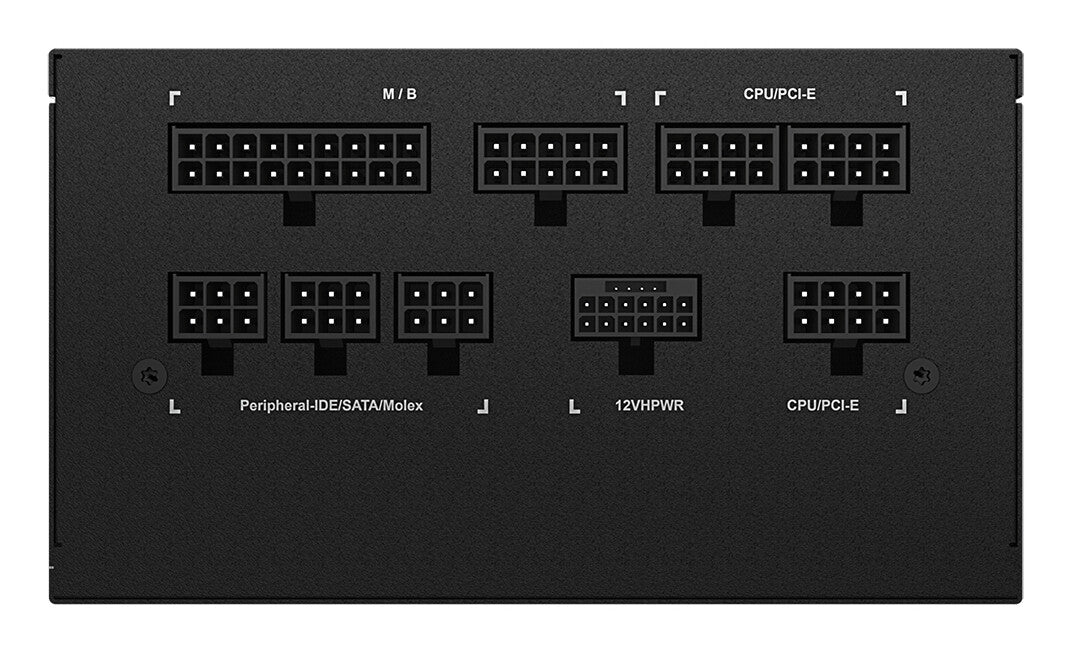

| Ports & interfaces | |
|---|---|
| Cabling type | Fully-Modular |
| PCI Express connector | Yes |
| Number of EPS connectors | 2 |
| Floppy drive power connector | 1 |
| CPU power cable length | 60 cm |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power cable length | 70 cm |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 4 |
| Peripheral (Molex) power cable length | 150,500 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| SATA power cable length | 150,600 mm |
| Number of SATA power connectors | 8 |
| Motherboard power cable length | 61 cm |
| Motherboard power connector | 20+4 pin ATX |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
| Bearing technology | HYB |
| ATX version | 3.1 |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Design | |
|---|---|
| On/off switch | Yes |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Cooling type | Active |
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Weight | 2.4 kg |
| Height | 86 mm |
| Depth | 140 mm |
| Width | 150 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 2.56 kg |
| Package height | 211 mm |
| Package depth | 269 mm |
| Package width | 618 mm |
| Logistics data | |
|---|---|
| Warranty period | 10 year(s) |
