DeepCool PN750D power supply unit 750 W 20+4 pin ATX ATX Black
Couldn't load pickup availability
- 750 W 100 - 240 V 50/60 Hz
- Motherboard power connector: 20+4 pin ATX
- PC ATX 80 PLUS Gold
- Active 12 cm
- Black
The DeepCool PN750D is a new non-modular power supply that meets the latest Intel ATX 3.1 and PCIe 5.1 standards. With a dedicated 12V-2x6, 2 EPS, and 3 PCIe connectors, the PN750D provides stable power for a wide range of modern high-power components.
GRACEFUL GOLD
80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics.
POWER YOU CAN TRUST

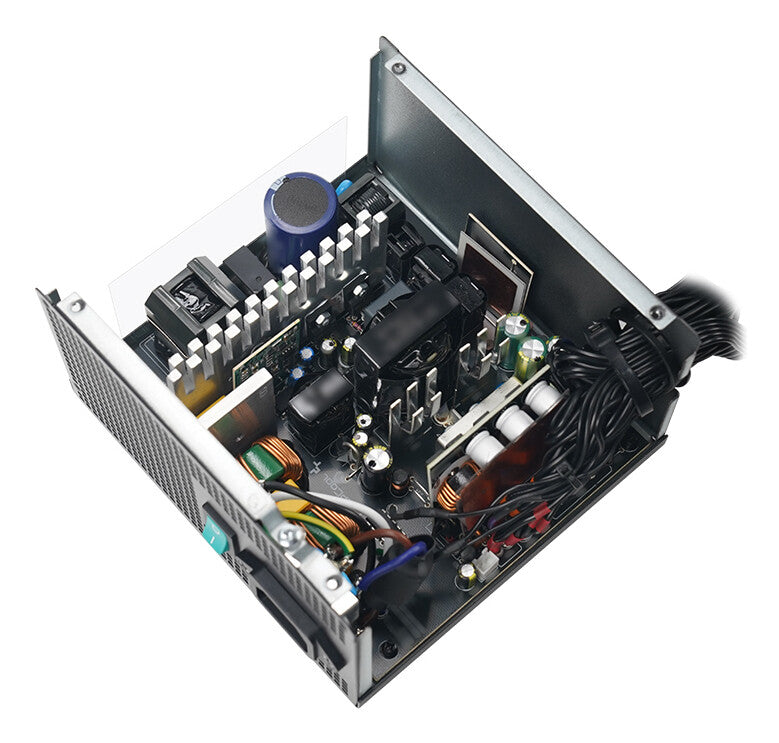

Through the use of a premium main electrolytic capacitor, active PFC, full-bridge SRC LLC, and a DC-to-DC topology, the PN750D can keep the hold-up time to ≥ 16 ms under a high load of 80%.
PCI-E 5.1 POWER
Equipped with a high-grade 105C-resistant 16AWG copper-core sleeved 12V-2x6 cable, the PN750D provides up to 450W for modern GPUs.
DYNAMIC HYDRO BEARING FAN

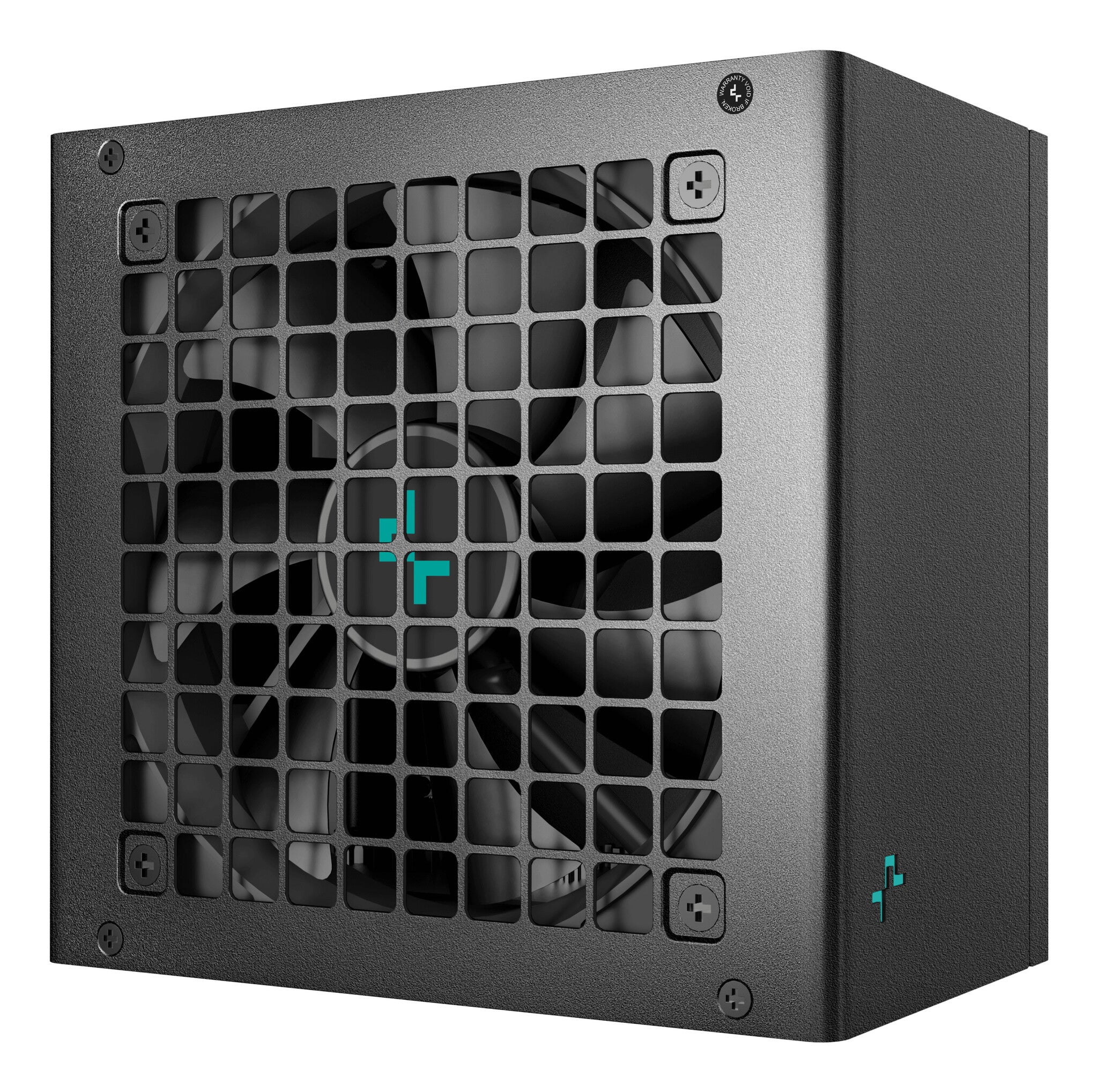

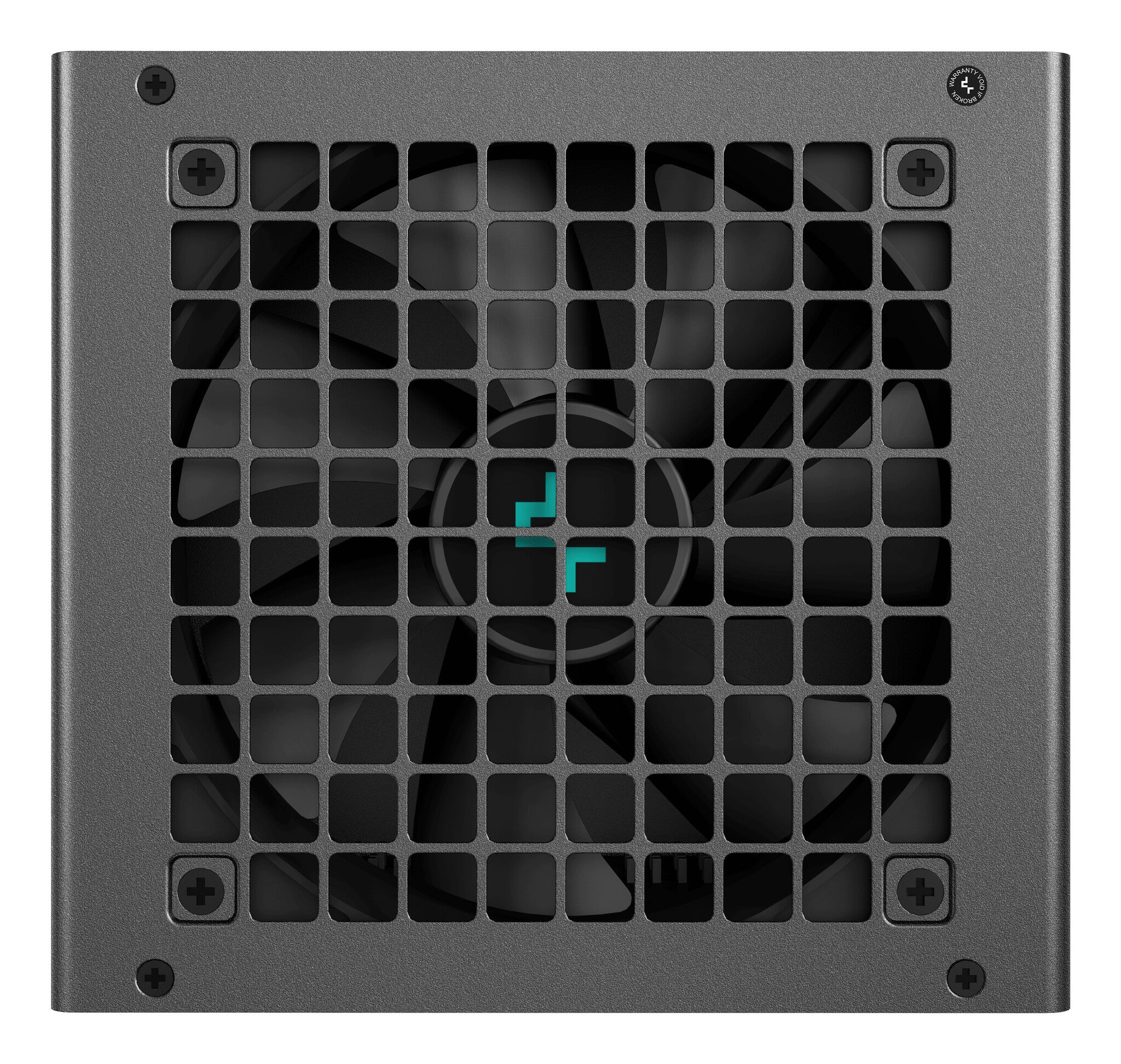

The PN750D comes equipped with a dynamic 120mm hydro bearing fan that will adjust its speed based on the cooling needs of the PSU.
HIGH QUALITY BUILD
Due to the high quality of the parts utilized, the PN750D will operate at altitudes up to 5000 meters above sea level.
PEACE OF MIND
The PN750D comes standard with a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.
EXCELLENT COVERAGE
The PN750D is engineered and manufactured at such a high level that DeepCool is offering a lengthy 10 years of trouble-free limited warranty coverage.
| Power | |
|---|---|
| Power protection features | No load operation, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Surge protection, Under voltage |
| Efficiency | 90% |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5V) | 20 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+3.3V) | 20 A |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5V) | 110 W |
| Combined power (+12V) | 750 W |
| Combined power (+3.3V) | 110 W |
| Power Factor Correction (PFC) type | Active |
| Input current | 10 - 5 A |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Total power | 750 W |
| Ports & interfaces | |
|---|---|

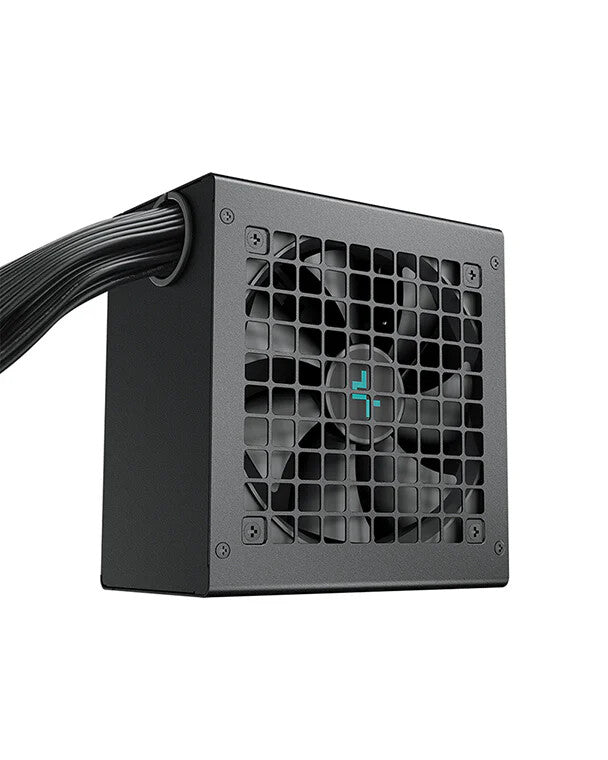

| Cabling type | Non-Modular |
| ATX power connector (20+4 pin) | Yes |
| CPU power cable length | 70 cm |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 3 |
| Peripheral (Molex) power cable length | 450 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| SATA power cable length | 550,750,450,650 mm |
| Number of SATA power connectors | 8 |
| Motherboard power cable length | 55 cm |
| Motherboard power connector | 20+4 pin ATX |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
| Bearing technology | FDB |
| ATX version | 3.1 |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Design | |
|---|---|

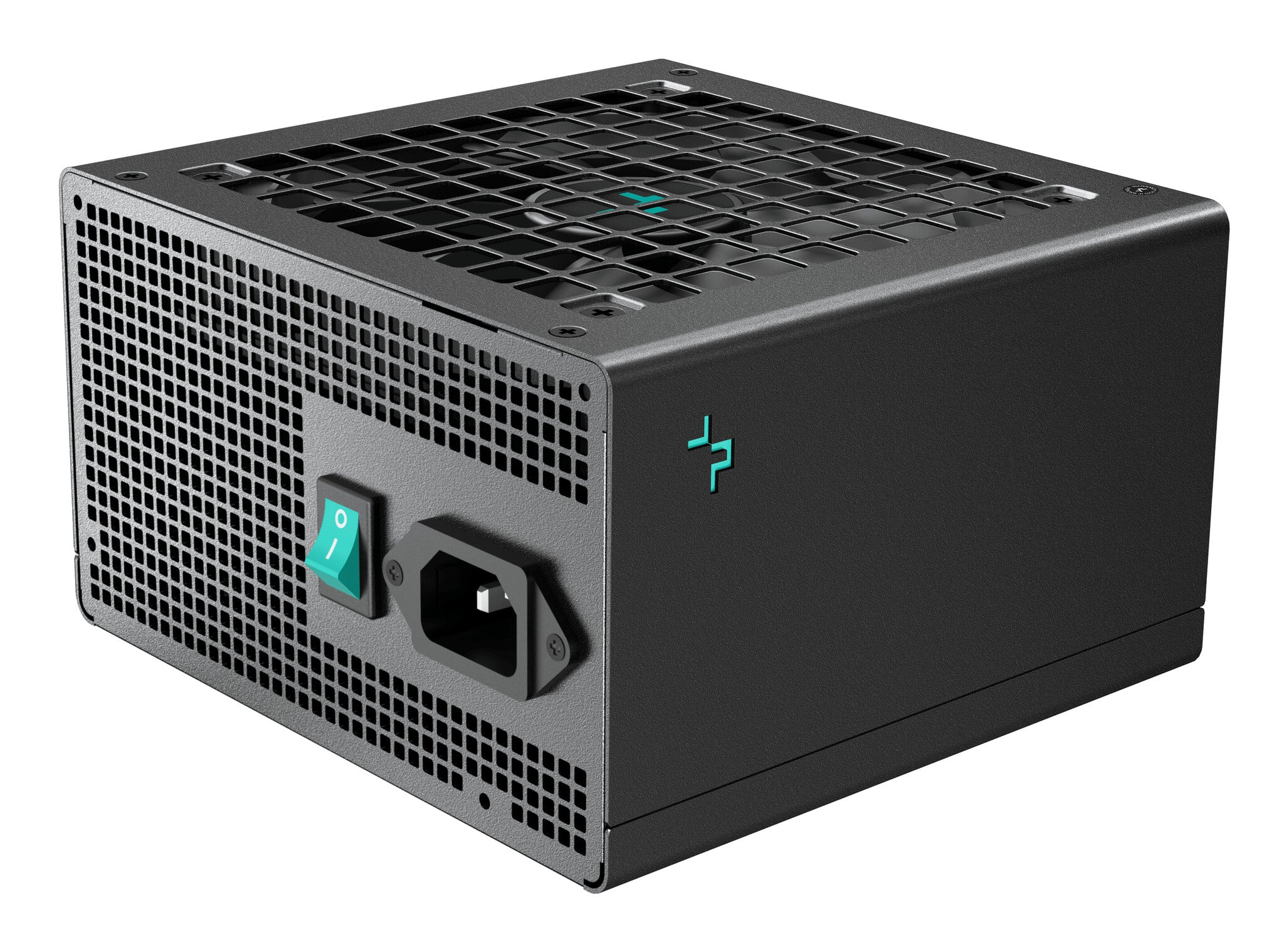

| On/off switch | Yes |
| Fan location | Top |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Cooling type | Active |
| Product colour | Black |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |

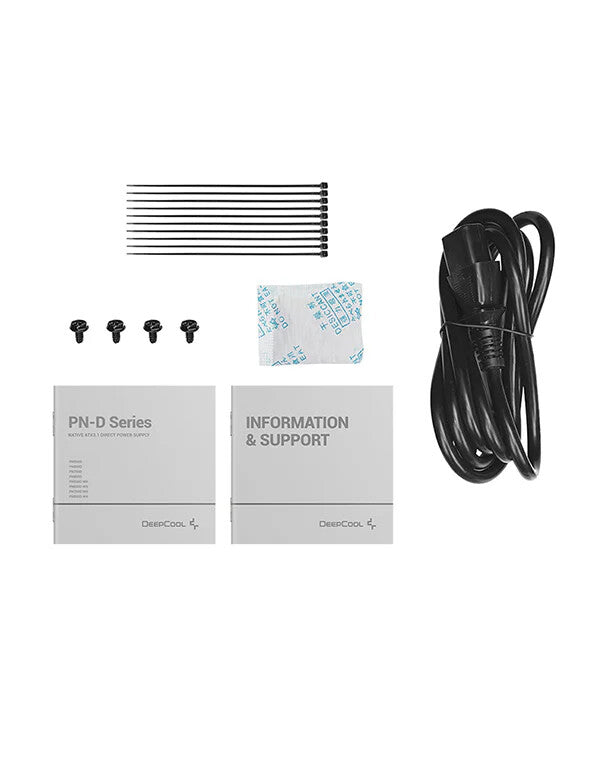

| Packaging content | |
|---|---|
| Cable tie(s) included | Yes |
| Cables included | AC |
| Certificates | |
|---|---|
| Compliance certificates | CCC, CE, EAC, Federal Communications Commission (FCC), RCM, RoHS, WEEE |
| Weight & dimensions | |
|---|---|
| Height | 86 mm |
| Depth | 140 mm |
| Width | 150 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Technical details | |
|---|---|
| Sustainability certificates | ErP, Triman |
| Logistics data | |
|---|---|
| Warranty period | 10 year(s) |
