Vertiv Geist Rack Transfer Switch PDU with Next-Generation IMD| 10A/15A| 100V-240V| 1U| 1.4kW/2.4kW/2.3kW| 10 U-Lock C13 Outlet| 2 C14 inlet
Couldn't load pickup availability
- Vertiv Geist Rack Transfer Switch gives backup power to single corded devices in case of power loss
- VA4U11A0 is a 10A/15A and 120V/208V/230V, rPDU that provides 1.4kW/2.4kW/2.3kW in power capacity
- Vertiv Geist Next-Generation IMD has a 128x128 high-contrast LCD for monitoring data
- Helps ensure that data and operations are protected with the enhanced security features
- Vertiv Geist rPDUs are individually tested, Dual Listed (UL/CE), TAA-Compliant, and RoHS certified

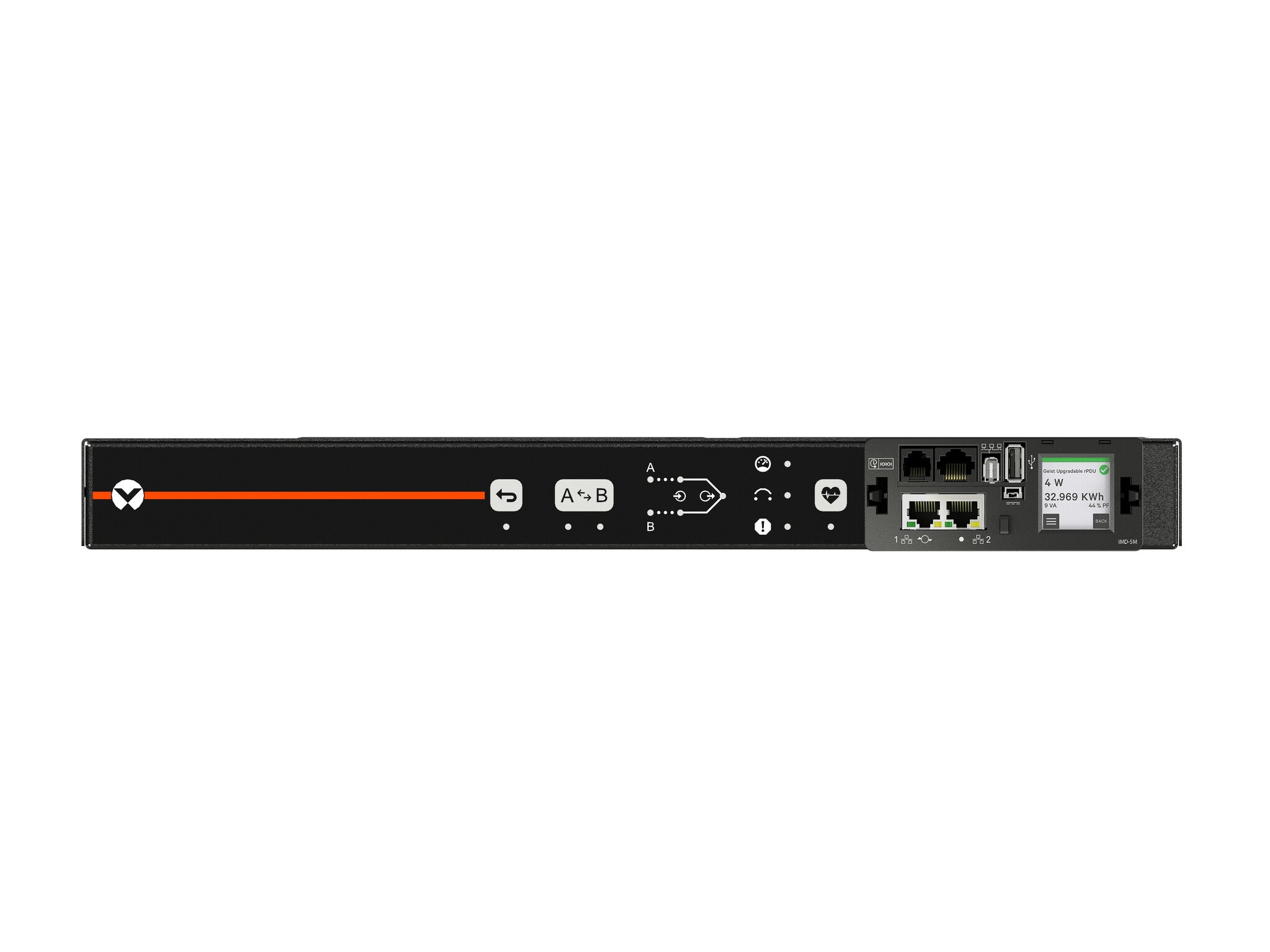

The Vertiv Geist Rack Transfer Switch VA4U11A0 is a 10A/15A, 100V-240V, single phase unit level monitored rPDU with (10) U-Lock C13 outlets and (2) input C14 inlets that provide 1.4kW/2.4kW/2.3kW power capacity. This unit provides backup power to single-corded devices and helps ensure continuity in the event of power loss. It quickly detects power loss on the main source and automatically switches to the secondary source within less than 4 to 8 milliseconds. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are Dual Listed (UL/CE), TAA-compliant, RoHS certified, and individually tested for functionality and reliability.
| Design | |
|---|---|
| Display | LCD |
| Product colour | Black |
| Mounting | Horizontal |
| Rack capacity | 1U |
| Type | Single-phase |
| PDU types | Monitored, Switched |
| Ports & interfaces | |
|---|---|
| USB ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Serial ports quantity | 1 |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 10 AC outlet(s) |
| Features | |
|---|---|
| Cable length | 3 m |
| LED indicators | Yes |
| Management features | |
|---|---|
| Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP |
| Monitoring | Current, Power, Voltage |
| Power | |
|---|---|
| Load capacity | 230 VA |
| Maximum current | 15 A |
| AC input frequency | 50/60 Hz |
| Nominal input voltage | 100-240 V |
| Certificates | |
|---|---|
| Compliance certificates | China RoHS, RoHS, Trade Agreements Act (TAA) |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Weight & dimensions | |
|---|---|
| Height | 44 mm |
| Depth | 457 mm |
| Width | 432 mm |
| Packaging data | |
|---|---|
| Package weight | 6.8 kg |
| General | |
|---|---|
| Product family | Geist |
| Logistics data | |
|---|---|
| Country of origin | United States |
