£2,392.99

Stock Available: 0
  • Remotely reboot outlets to power cycle unresponsive IT equipment or increase runtime of critical equipment upon power failure with outlet-level control
  • Reliable power distribution with local and remote outlet-level power monitoring options offer quick access to critical power usage information down to the device level to evaluate energy usage trends and maximize uptime
  • Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime
  • Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs
  • Daisy-chain up to 50 devices on a single IP address and reduce deployment time with self-configuration of downstream devices

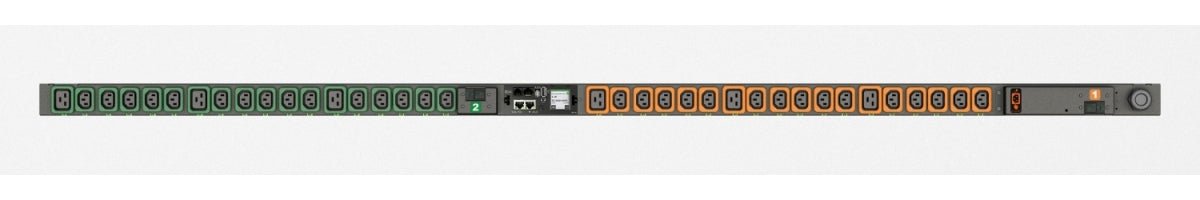

Upgradeable Switched Outlet Level Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering individual outlet level control and a comprehensive view of outlet level power usage via remote network access. Includes environmental monitoring capabilities to obtain real-time environmental metrics. With the Geist Upgradeable hot-swap technology, users may easily update the rPDU technology with the addition of the appropriate Interchangeable Monitoring Device (IMD) as business needs change.

Design
On/off switch No
Display LCD
Product colour Black
Mounting Vertical
Rack capacity 0U
Type Single-phase
PDU types Switched
Ports & interfaces
USB ports quantity 1
Ethernet LAN (RJ-45) ports 1
Serial ports quantity 1
AC outlet types C13 coupler, C19 coupler
Power plug IEC 60309
AC outlets quantity 36 AC outlet(s)
Features
Cable length 3.05 m
Reset button Yes
Management features
Supported network protocols DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP
Monitoring Current, Power, Voltage
Power
Power protection features Over current
Load capacity 230 VA
Nominal output voltage 32 V
Maximum current 32 A
AC input frequency 50/60 Hz
Nominal input voltage 200-240 V
Certificates
Certification CE Marked UKCA Marked Complies with IEC 62368-1 (DOC Available) Complies with EN 55032 and EN 55035 RoHS Compliant Cم Mark
Operational conditions
Operating temperature (T-T) 10 - 45 °C
Weight & dimensions
Height 1778 mm
Depth 66 mm
Width 51 mm
Packaging data
Package weight 9.07 kg
General
Product family Geist
