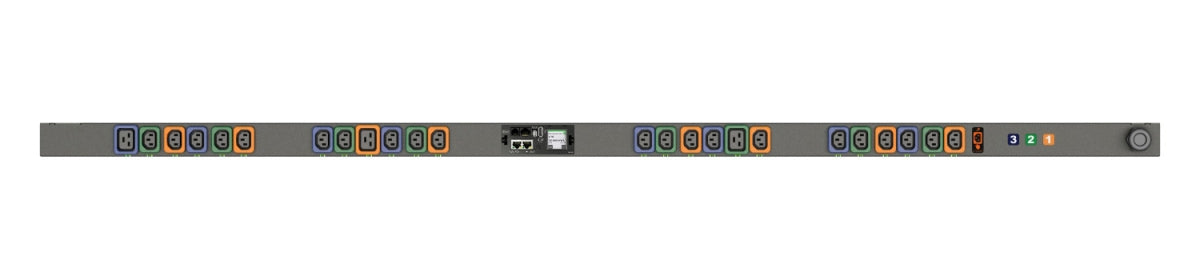

Vertiv Geist MGU5MGB0-24PK33-2PS56B2A10-S-A power distribution unit (PDU) 24 AC outlet(s) 0U Black
Couldn't load pickup availability
- Remotely reboot outlets to power cycle unresponsive IT equipment or increase runtime of critical equipment upon power failure with outlet-level control
- Reliable power distribution with local and remote outlet-level power monitoring options offer quick access to critical power usage information down to the device level to evaluate energy usage trends and maximize uptime
- Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime
- Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs
- Daisy-chain up to 50 devices on a single IP address and reduce deployment time with self-configuration of downstream devices
Upgradeable Switched Outlet Level Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering individual outlet level control and a comprehensive view of outlet level power usage via remote network access. Includes environmental monitoring capabilities to obtain real-time environmental metrics. With the Geist Upgradeable hot-swap technology, users may easily update the rPDU technology with the addition of the appropriate Interchangeable Monitoring Device (IMD) as business needs change.
| Design | |
|---|---|
| On/off switch | No |
| Display | LCD |
| Product colour | Black |
| Mounting | Vertical |
| Rack capacity | 0U |
| Type | Three-phase |
| PDU types | Switched |
| Ports & interfaces | |
|---|---|
| USB ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Serial ports quantity | 1 |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | IEC 60309 |
| AC outlets quantity | 24 AC outlet(s) |
| Features | |
|---|---|
| Cable length | 3.05 m |
| Reset button | Yes |
| Management features | |
|---|---|
| Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP |
| Power | |
|---|---|
| Load capacity | 230 VA |
| Nominal output voltage | 16 V |
| Maximum current | 16 A |
| AC input frequency | 50/60 Hz |
| Nominal input voltage | 200-240/346-415 V |
| Certificates | |
|---|---|
| Certification | CE MarkedUKCA MarkedComplies with IEC 62368-1 (DOC Available)Complies with EN 55032 and EN 55035RoHS CompliantCم MarkRCM Mark (EMC Only)China RoHS |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 10 - 45 °C |
| Weight & dimensions | |
|---|---|
| Height | 1683 mm |
| Depth | 66 mm |
| Width | 51 mm |
| Packaging data | |
|---|---|
| Package weight | 8.16 kg |
| General | |
|---|---|
| Product family | Geist |
