Vertiv Geist AU05M1R0-11PS63-3PS6PS6B411-D power distribution unit (PDU) 1 AC outlet(s) 0U Black
Couldn't load pickup availability
- Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime
- Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime
- Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs
- Daisy-chain up to 50 devices on a single IP address and reduce deployment time with self-configuration of downstream devices
- Every unit is 100% tested for reliability and functionality

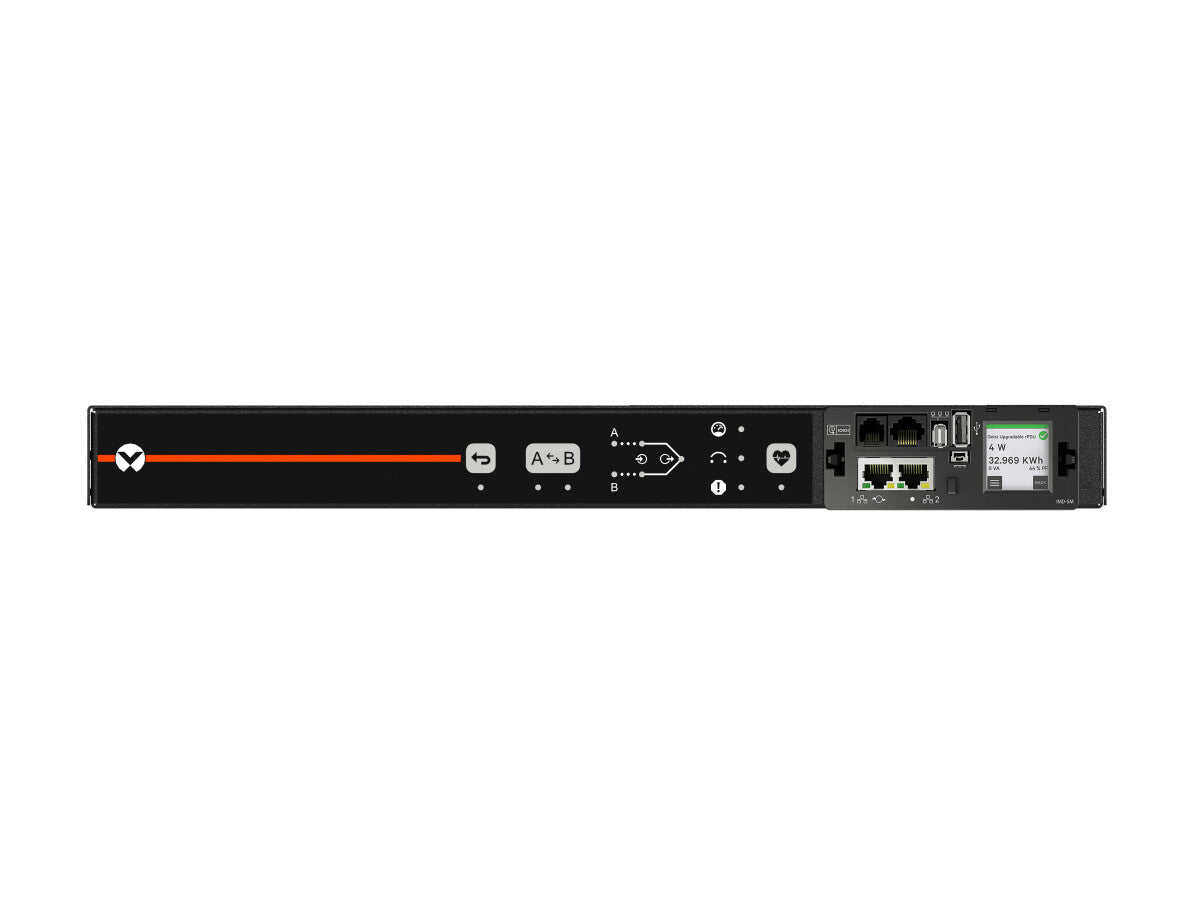

Rack Transfer Switch (RTS) delivers redundant power to single corded devices. The RTS automatically detects the loss of power and switches the power load (no phase-syncronization required) to the alternative power source in less than 4-8 milliseconds without the need for human intervention.
| Design | |
|---|---|
| Display | LCD |
| Product colour | Black |
| Mounting | Horizontal |
| Rack capacity | 0U |
| Type | Single-phase |
| PDU types | Monitored |
| Ports & interfaces | |
|---|---|
| USB ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Serial ports quantity | 1 |
| Power plug | IEC 60309 |
| AC outlets quantity | 1 AC outlet(s) |
| Features | |
|---|---|
| Cable length | 3 m |
| LED indicators | Yes |
| Management features | |
|---|---|
| Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP |
| Monitoring | Current, Power, Voltage |
| Power | |
|---|---|
| Load capacity | 230 VA |
| Maximum current | 32 A |
| AC input frequency | 50/60 Hz |
| Nominal input voltage | 200-240 V |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Weight & dimensions | |
|---|---|
| Height | 44 mm |
| Depth | 457 mm |
| Width | 432 mm |
| Packaging data | |
|---|---|
| Package weight | 5.44 kg |
| General | |
|---|---|
| Product family | Geist |
