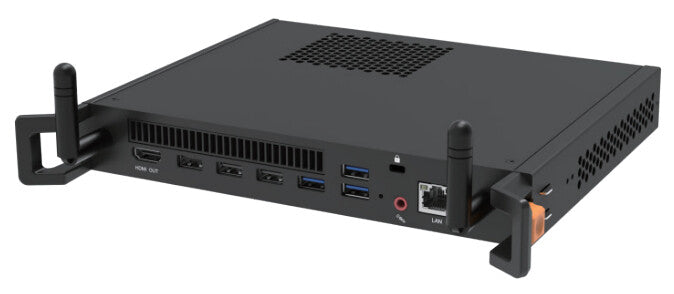

MAXHUB MT71E 12th Gen Intel-i5 Windows 11 Pro PC module
£703.99
Couldn't load pickup availability
- Mini PC Black
- Intel® Core™ i5 i5-12450H Processor cores: 8
- 12 GB DDR4-SDRAM
- 256 GB
- Intel® UHD Graphics
- Ethernet LAN 1000 Mbit/s
- Windows 11 Pro
MT71E is modular PC which could be easily inserted into MAXHUB Interactive Flat panel , with 12th Generation Intel® Core™ i5 Processor and pre-installed the MAXHUB OS based on windows system.
| Processor | |
|---|---|
| Processor base power | 45 W |
| Maximum turbo power | 95 W |
| Processor cache type | Smart Cache |
| Processor cache | 12 MB |
| Efficient-core Max Turbo Frequency | 3.3 GHz |
| Performance-core Max Turbo Frequency | 4.4 GHz |
| Efficient cores | 4 |
| Performance cores | 4 |
| Processor boost frequency | 4.4 GHz |
| Processor threads | 12 |
| Processor cores | 8 |
| Processor model | i5-12450H |
| Processor family | Intel® Core™ i5 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 64 GB |
| Internal memory | 12 GB |
| Storage | |
|---|---|
| Optical drive type | No |
| Total storage capacity | 256 GB |
| Graphics | |
|---|---|
| On-board graphics card model | Intel® UHD Graphics |
| On-board graphics card | Yes |
| Network | |
|---|---|
| Antenna design | External |
| Antenna type | 1x1 |
| Wi-Fi | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 2.0 ports quantity | 3 |
| Design | |
|---|---|
| Product colour | Black |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Chassis type | Rack-mounted chassis |
| Performance | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Product type | Mini PC |
| Software | |
|---|---|
| Operating system installed | Windows 11 Pro |
| Power | |
|---|---|
| Power consumption (standby) | 2.3 W |
| Power consumption (max) | 110 W |
| Power supply input voltage | 18 V |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | -10 - 55 °C |
| Weight & dimensions | |
|---|---|
| Package weight | 1.79 kg |
| Package height | 256 mm |
| Package depth | 70 mm |
| Package width | 314 mm |
| Weight | 1.2 kg |
| Height | 207.2 mm |
| Depth | 32 mm |
| Width | 244.5 mm |
| Packaging content | |
|---|---|
| Display included | No |
