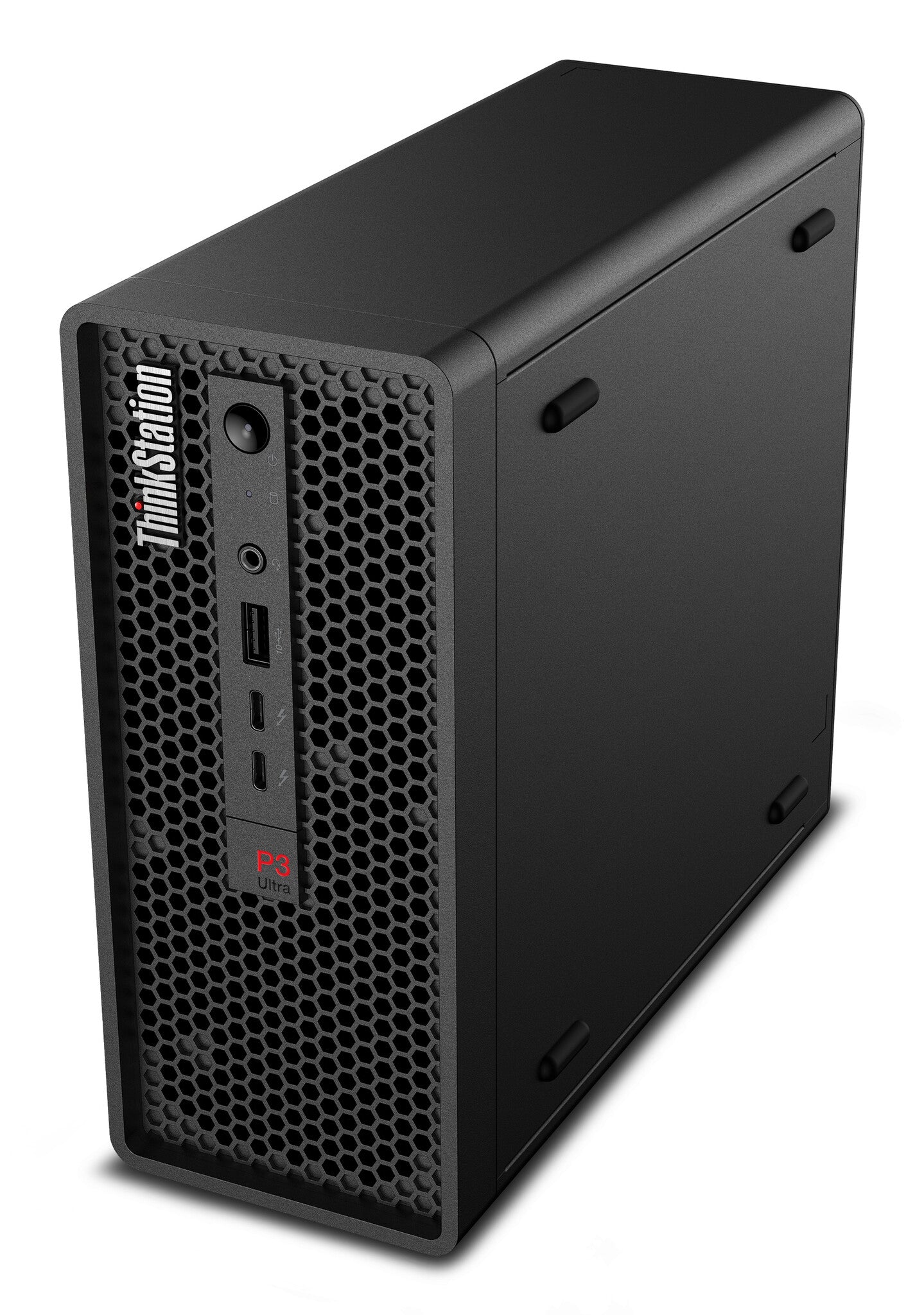

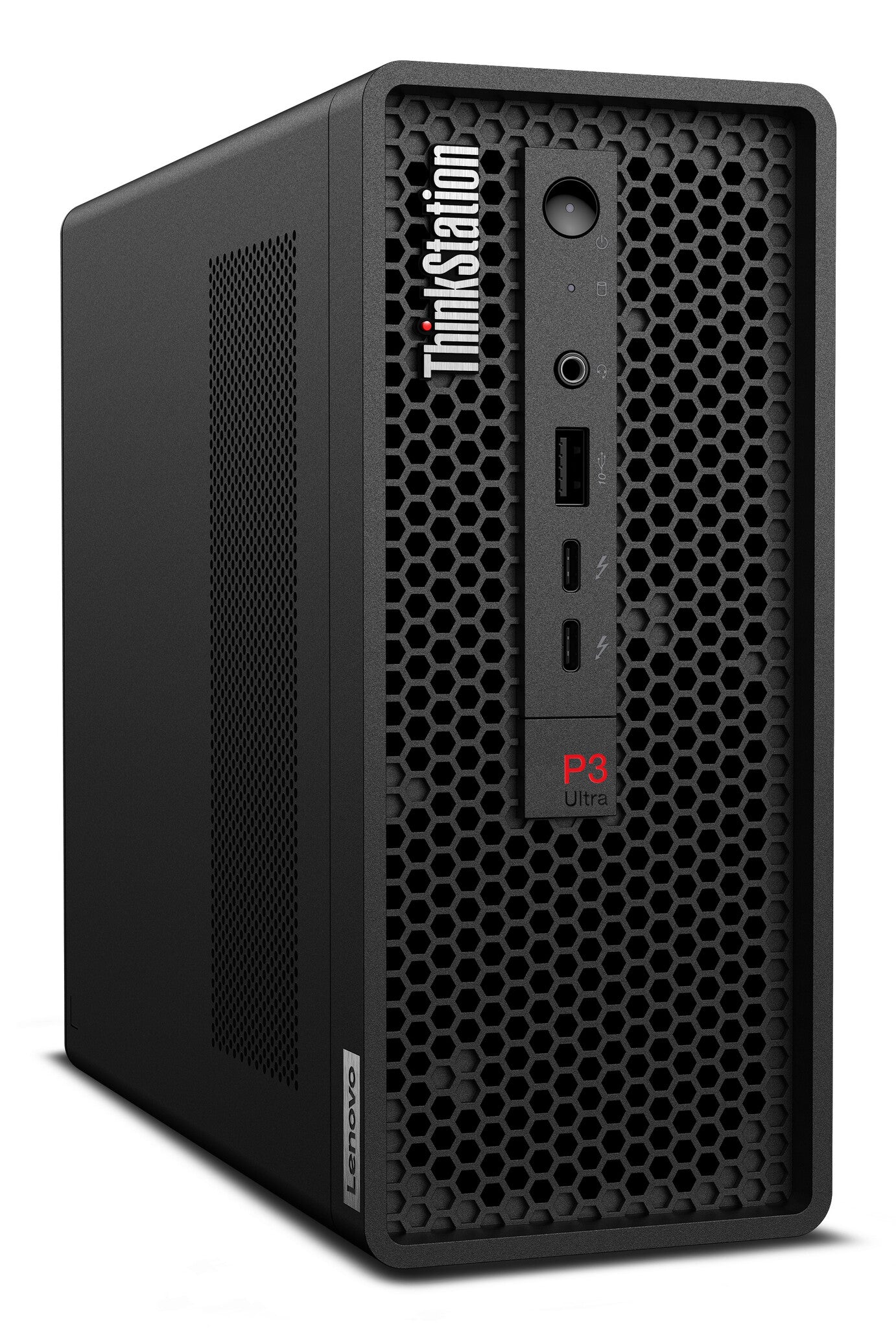

Lenovo ThinkStation P3 Ultra SFF Intel® Core™ i7 i7-14700 32 GB DDR5-SDRAM 1 TB SSD NVIDIA RTX A1000 Windows 11 Pro Mini Tower Workstation Black
Couldn't load pickup availability
- Windows 11 Pro 64-bit
- Intel Core i7-14700 (33MB Cache)
- NVIDIA RTX A1000 (8GB GDDR6)
- 32GB DDR5-SDRAM (1 x 32) & 1000GB SSD
Superior performance, smaller footprint
The Lenovo ThinkStation P3 Ultra boasts a revolutionary 3.9L form factor in a space-efficient chassis. Ideal for demanding workflows that require flexible configurations and maximum space savings, it’s designed to go wherever today’s professionals need to be. Powered by Intel vPro® with Intel® Core™ processors and with a choice of optional NVIDIA® discrete graphics, this workstation breaks new ground with an intelligently compact design that doesn’t compromise on functionality.

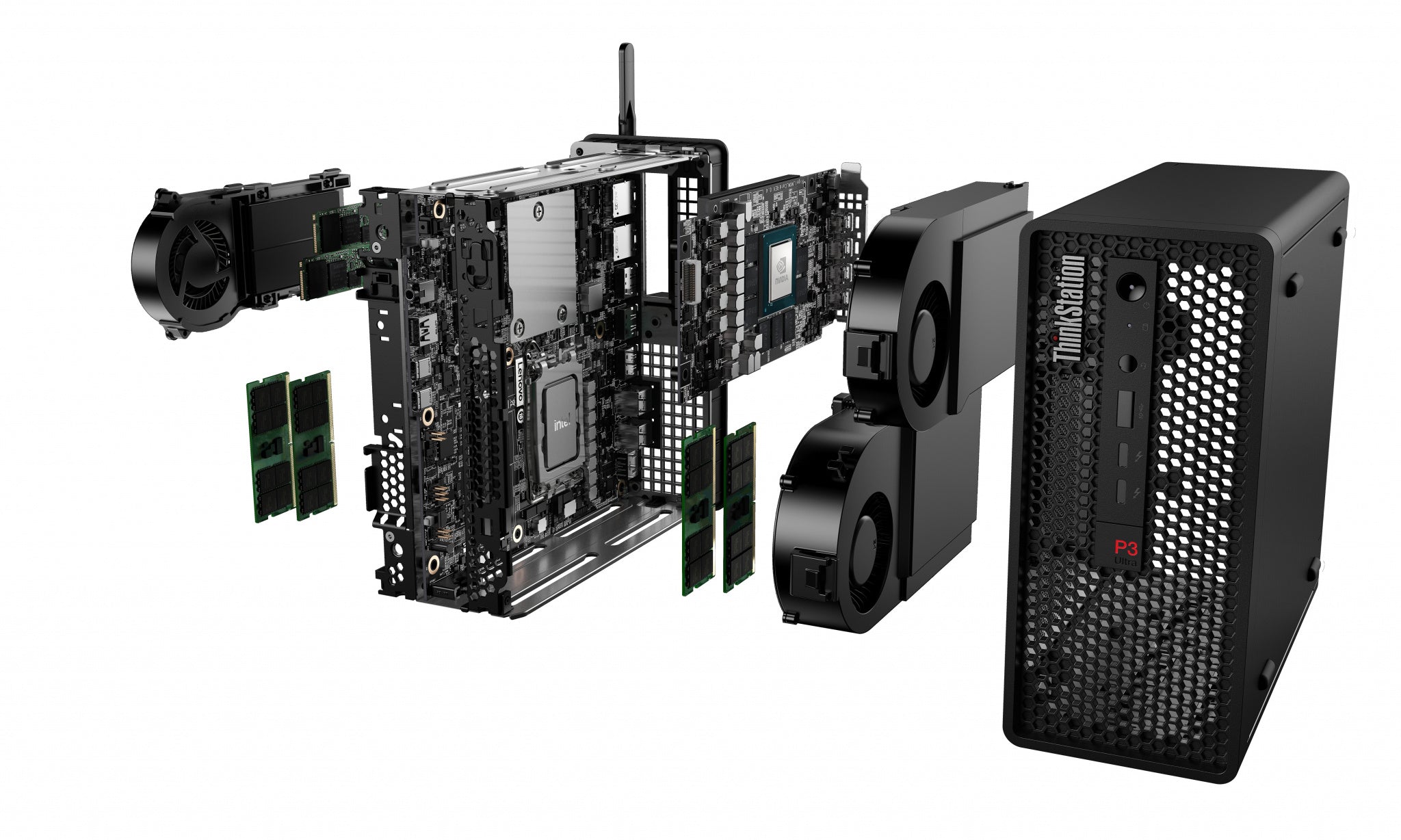

Configurable for today & tomorrow
No matter how heavy or complex your workflow needs are, the ThinkStation P3 Ultra can be configured to meet them—now and well into the future. With support for up to 128GB of memory and 9TB of storage, plus an array of high-speed ports, including three DisplayPorts and dual ethernet ports, this workstation packs an unimaginable level of power and performance. It also comes with a USB mouse and keyboard.
Makes your workflows flow
The ThinkStation P3 Ultra, with its optimal size and performance, is perfect for any industry, from architecture to healthcare and finance to education. MIL-SPEC-certified, it runs in even the most extreme conditions, from the Arctic to deserts. It also zips through high-performance workflows, such as CAD and Edge/IoT. And with its extensive list of ISV-certified applications, your most complex projects will be executed with ease.
See the complete list of ISV certifications
Remote management, made easy
The ThinkStation P3 Ultra supports the pluggable baseboard management controller (BMC). A specialized service processor, BMC uses sensors to track the physical condition of hardware such as PCs and network servers. It enables advanced remote monitoring and systems management, including installing BIOS updates and monitoring fan speeds, in this critical time of digital transformation.
All the security you need
The ThinkStation P3 Ultra comes with ThinkShield—a suite of hardware and software designed to safeguard both your workstation and data. It includes essential security features like Trusted Platform Module (TPM) to encrypt your sensitive data and programs to prevent unauthorized system access. It also has a self-healing BIOS should the BIOS be corrupted or maliciously attacked. For extra peace of mind, this PC supports Windows firmware updates.
| Processor | |
|---|---|
| Processor base power | 65 W |
| Maximum turbo power | 219 W |
| Number of processors installed | 1 |
| Bus type | DMI4 |
| Processor cache type | Smart Cache |
| Processor cache | 33 MB |
| Efficient-core base frequency | 1.5 GHz |
| Performance-core base frequency | 2.1 GHz |
| Efficient-core Max Turbo Frequency | 4.2 GHz |
| Performance-core Max Turbo Frequency | 5.3 GHz |
| Efficient cores | 12 |
| Performance cores | 8 |
| Processor boost frequency | 5.4 GHz |
| Processor threads | 28 |
| Processor cores | 20 |
| Processor model | i7-14700 |
| Processor generation | Intel® Core™ i7 (14th gen) |
| Processor family | Intel® Core™ i7 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Memory channels | Dual-channel |
| Memory data transfer rate | 4000 MT/s |
| Non-ECC | Yes |
| Memory slots | 4x SO-DIMM |
| Memory layout (slots x size) | 1 x 32 GB |
| Internal memory type | DDR5-SDRAM |
| Maximum internal memory | 128 GB |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Card reader integrated | No |
| M.2 SSD size | 2280 (22 x 80 mm) |
| SSD form factor | M.2 |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD capacity | 1 TB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 1 TB |
| Number of storage drives installed | 1 |
| Storage media | SSD |
| Optical drive type | No |
| Total storage capacity | 1 TB |
| Graphics | |
|---|---|
| Graphics card Mini DisplayPort ports quantity | 4 |
| On-board graphics card model | Intel UHD Graphics 770 |
| On-board graphics card family | Intel® UHD Graphics |
| On-board GPU manufacturer | Intel |
| Number of discrete graphics cards | 1 |
| Discrete graphics memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| Discrete graphics card model | NVIDIA RTX A1000 |
| Discrete GPU manufacturer | NVIDIA |
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Network | |
|---|---|
| Bluetooth version | 5.1 |
| Bluetooth | Yes |
| Antenna type | 2x2 |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| LAN controller | Intel® I210-AT, Intel I225-LM |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 1000,2500,100 Mbit/s |
| Ethernet LAN | Yes |

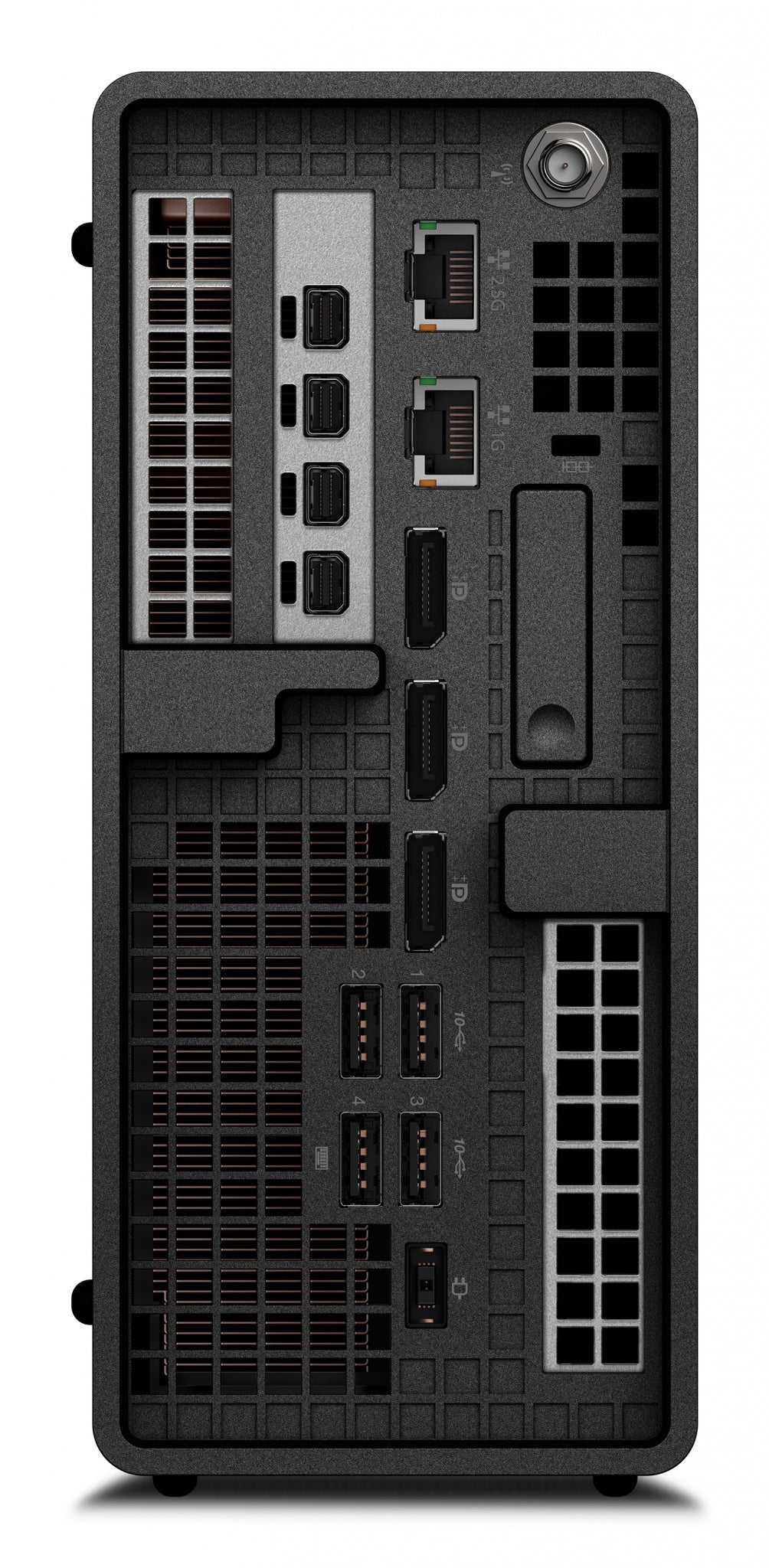

| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 3 |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| Design | |
|---|---|
| Product colour | Black |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |

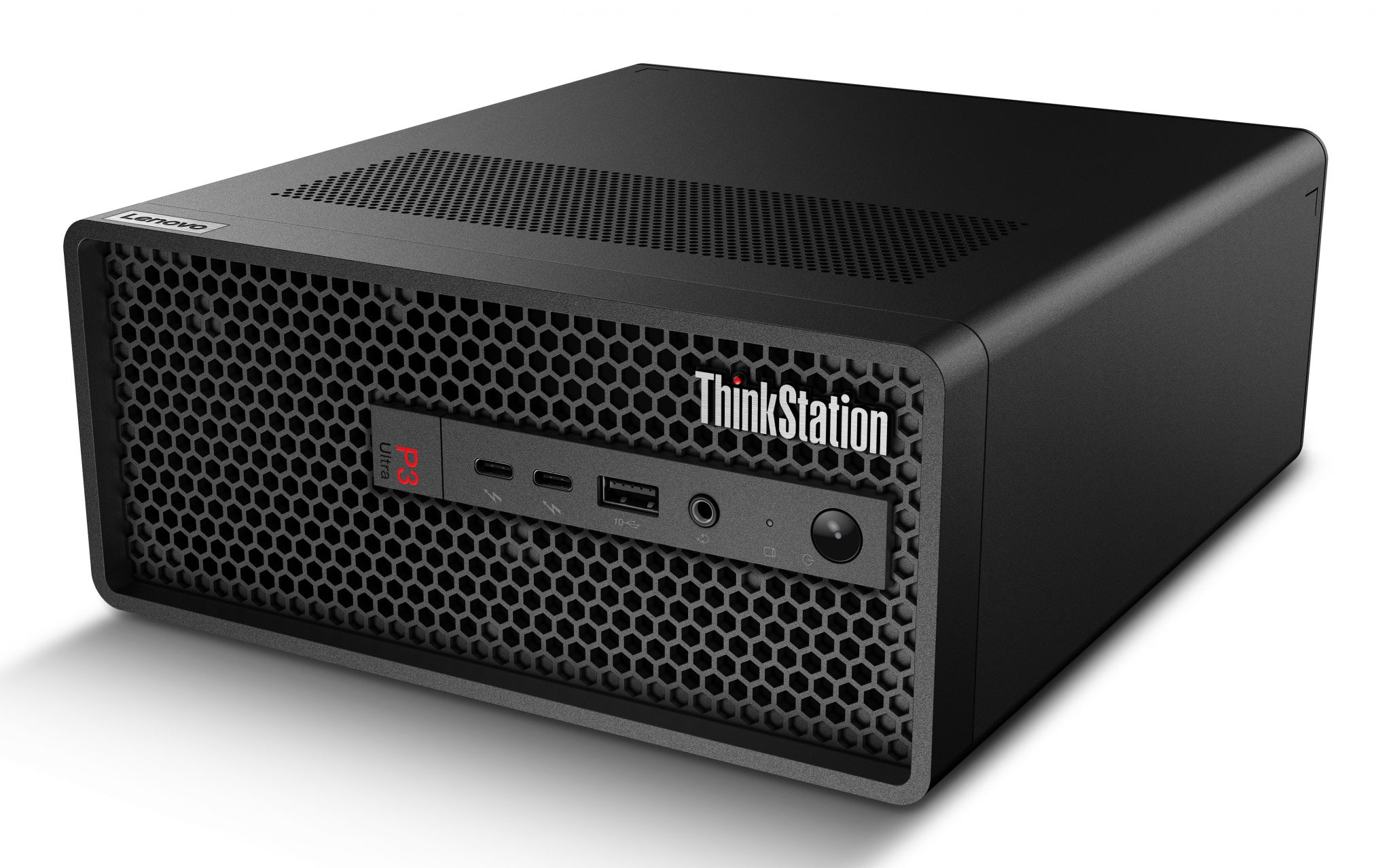

| Placement supported | Horizontal/Vertical |
| Volume | 3.9 L |
| Chassis type | Mini Tower |
| Performance | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| BIOS type | UEFI |
| Password protection type | BIOS, Power on, Supervisor |
| Password protection | Yes |
| Number of speakers | 1 |
| Built-in speaker(s) | Yes |
| Audio system | High Definition Audio |
| Audio chip | Realtek ALC897-Q |
| Motherboard chipset | Intel W680 |
| Product type | Workstation |
| Software | |
|---|---|
| Operating system language | English |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Processor special features | |
|---|---|
| CPU configuration (max) | 1 |
| Power | |
|---|---|
| Power supply input frequency | 50 - 60 Hz |
| Power supply input voltage | 100 - 240 V |
| Power supply | 300 W |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 12192 m |
| Operating altitude | 0 - 3048 m |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Certificates | |
|---|---|
| Certification | MIL-STD-810H |
| Compliance certificates | RoHS |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR, EPEAT Gold, TCO |
| Weight & dimensions | |
|---|---|
| Weight | 3.6 kg |
| Height | 202 mm |
| Depth | 223 mm |
| Width | 87 mm |
| Packaging content | |
|---|---|
| Keyboard included | Yes |
| Keyboard connectivity | Wired |
| Mouse included | Yes |
| Mouse connectivity | Wired |
| Display included | No |
| General | |
|---|---|
| Product family | ThinkStation |
| Product series | P |
