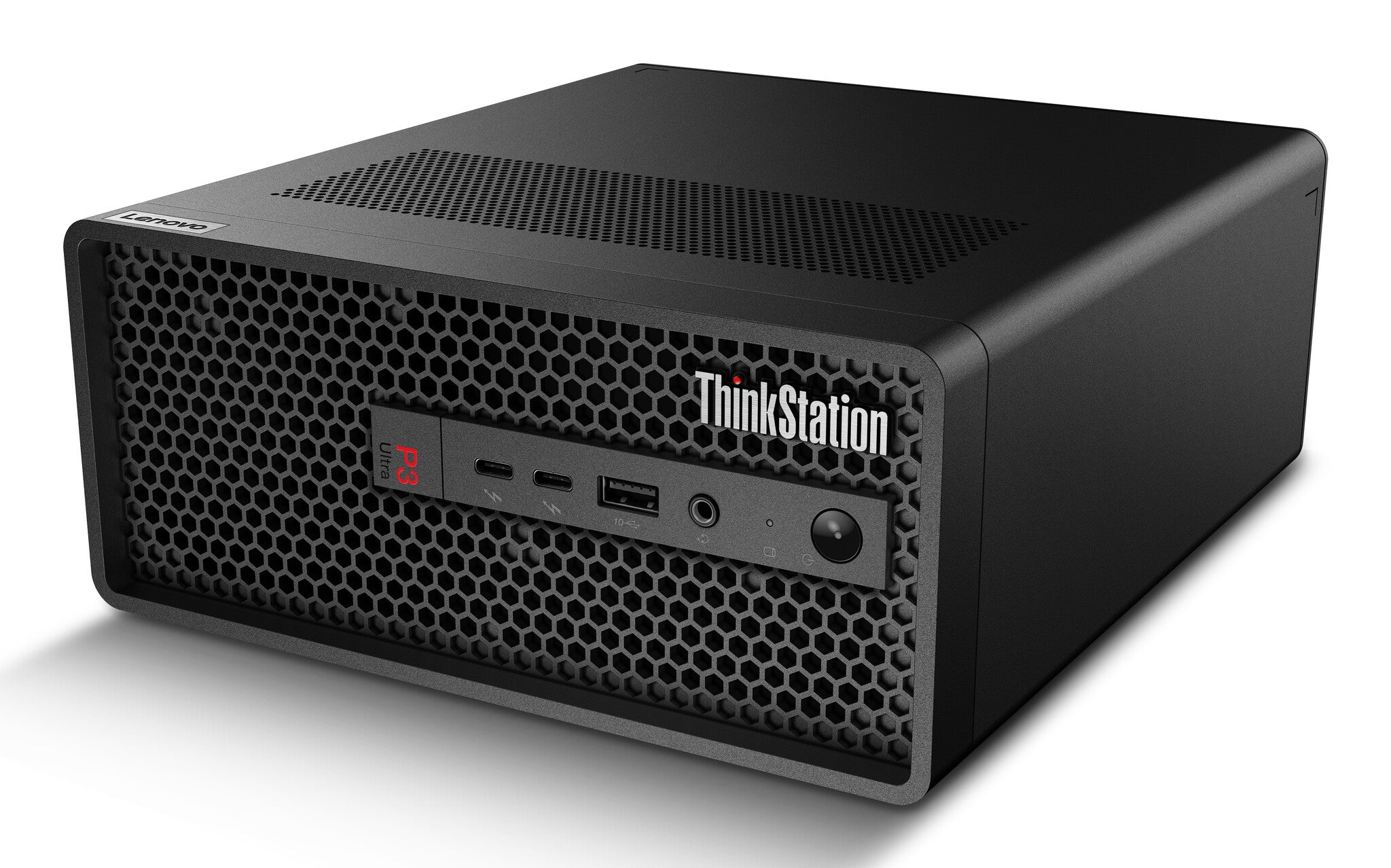

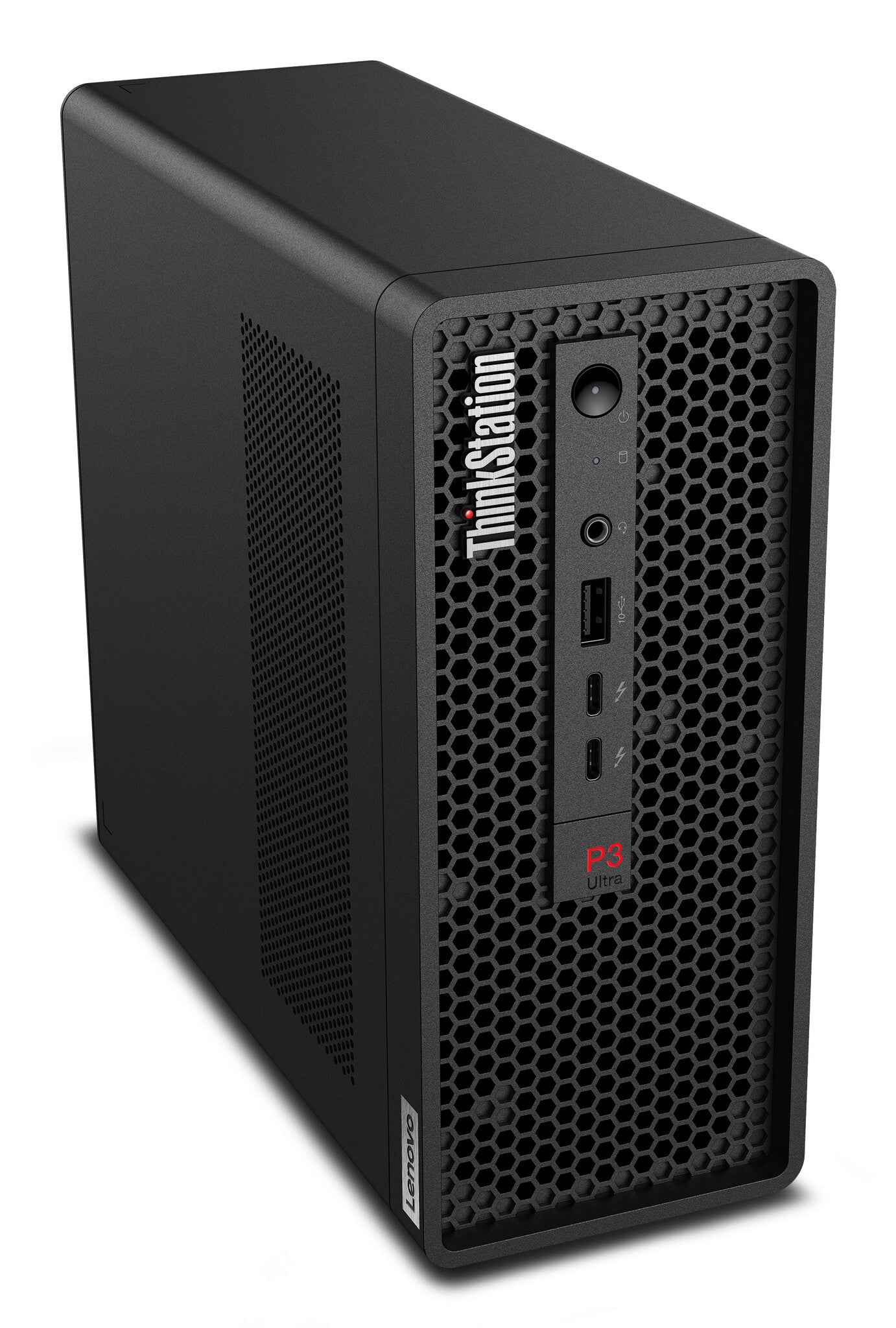

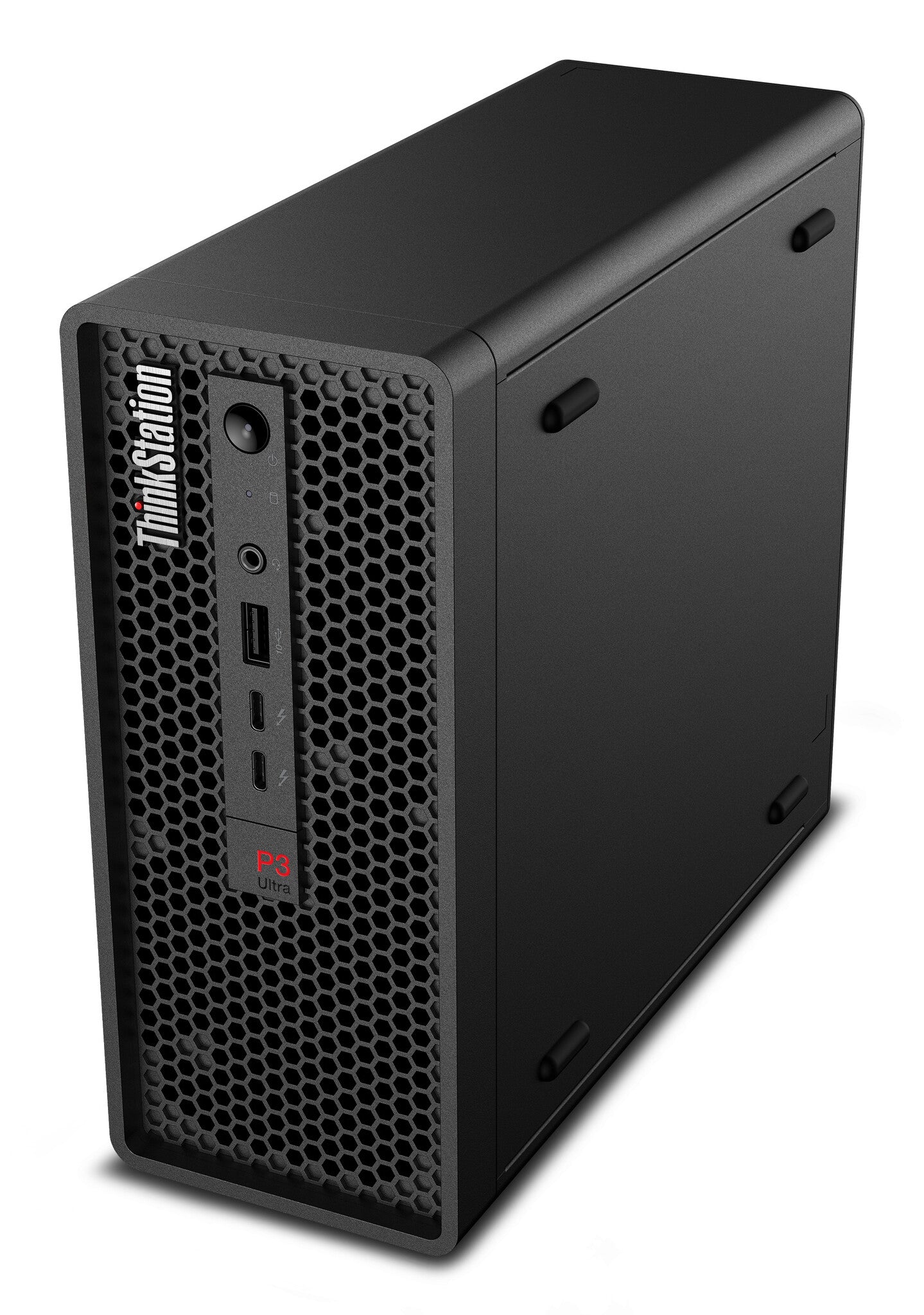

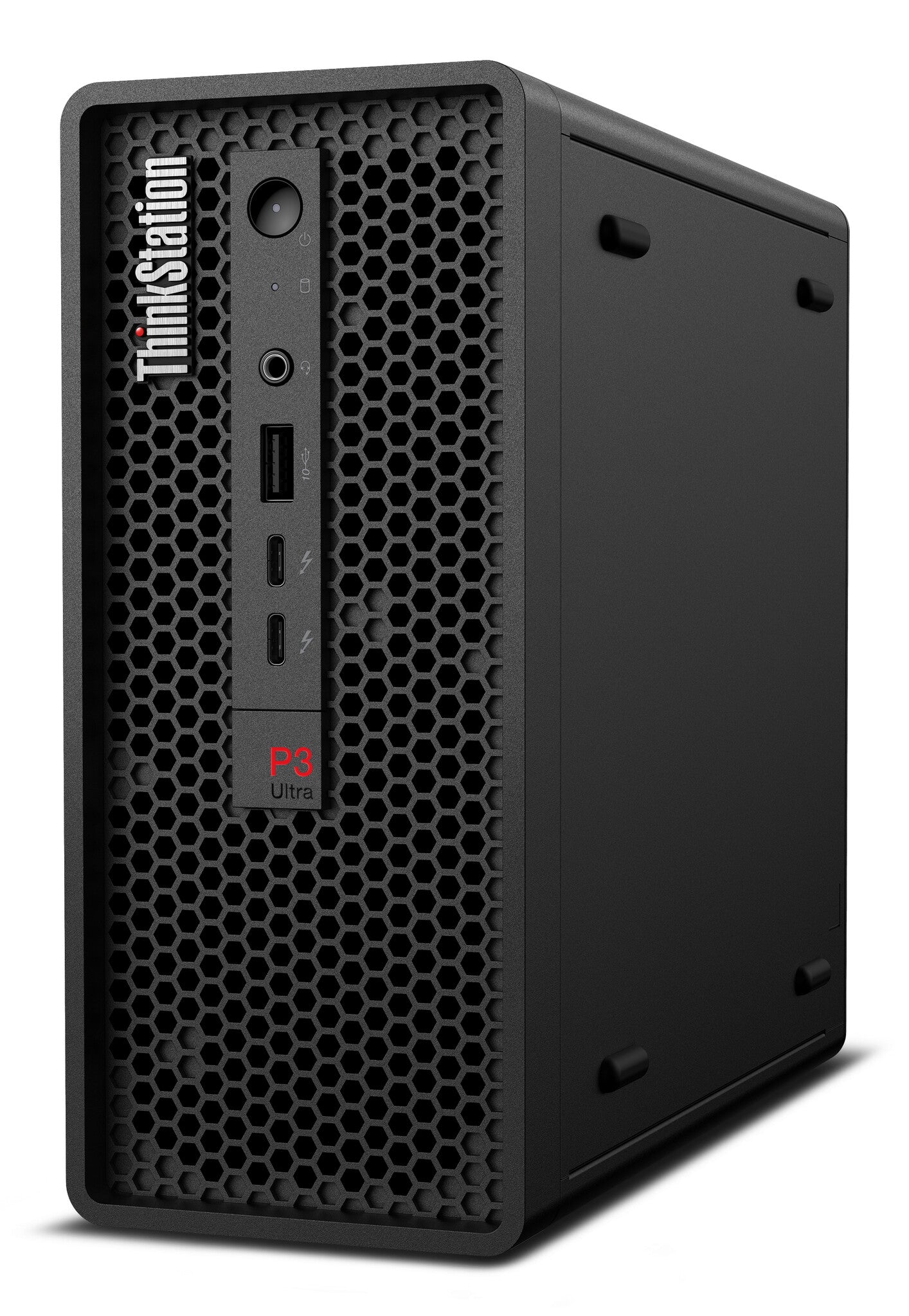

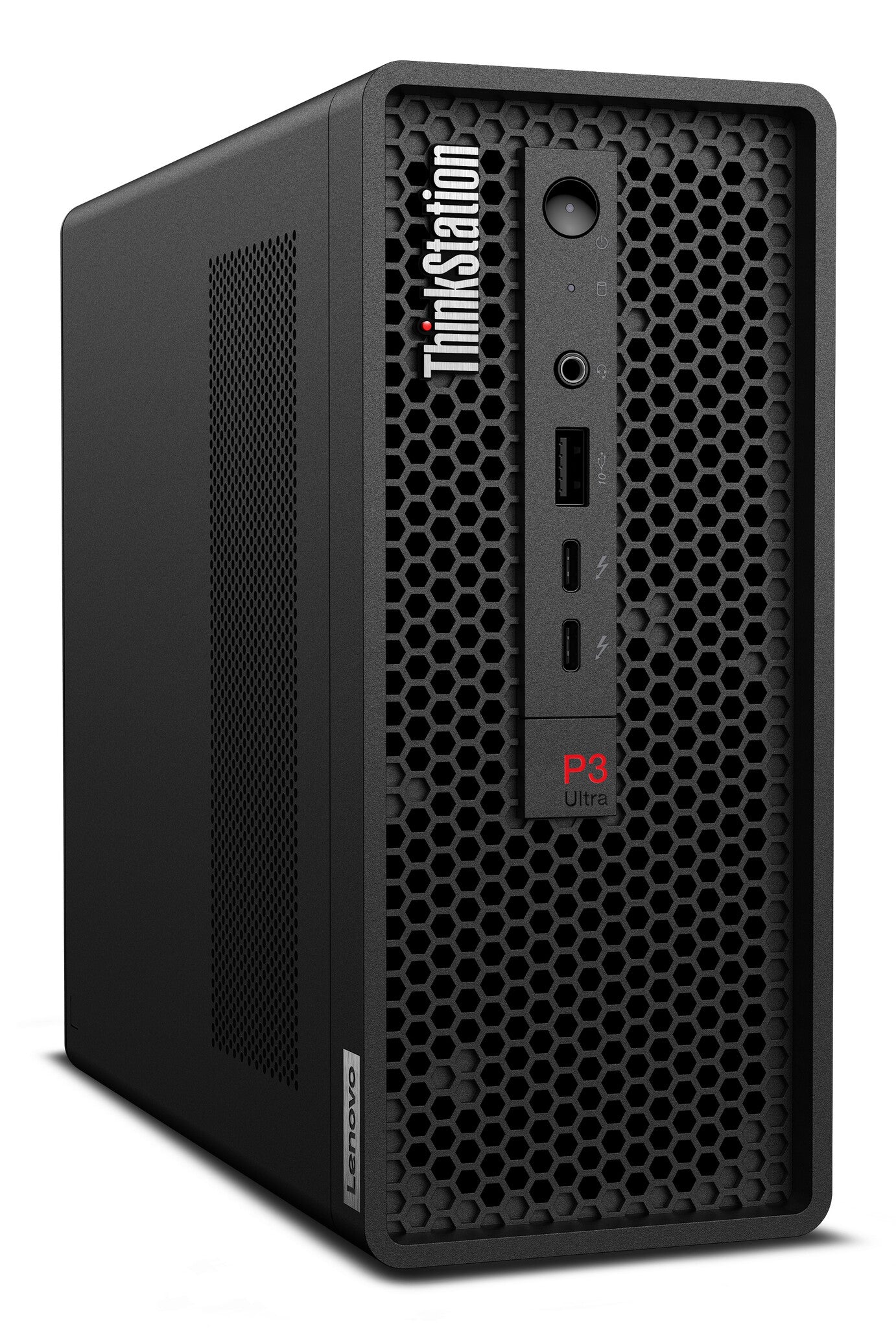

Lenovo ThinkStation P3 Ultra SFF Intel® Core™ i7 i7-14700 16 GB DDR5-SDRAM 512 GB SSD NVIDIA T400 Windows 11 Pro Mini Tower Workstation Black
£1,505.99
Couldn't load pickup availability
- Intel Core i7-14700, 20C (8P + 12E)/28T, Max Turbo up to 5.4GHz, P-core 2.1/5.3GHz, E-core 1.5/4.2GHz, 33MB
- 2x 8GB SO-DIMM DDR5-4800 Non-ECC
- 1x 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal
- 1x NVIDIA T400 4GB
- Windows 11 Pro
Redefining the power of small

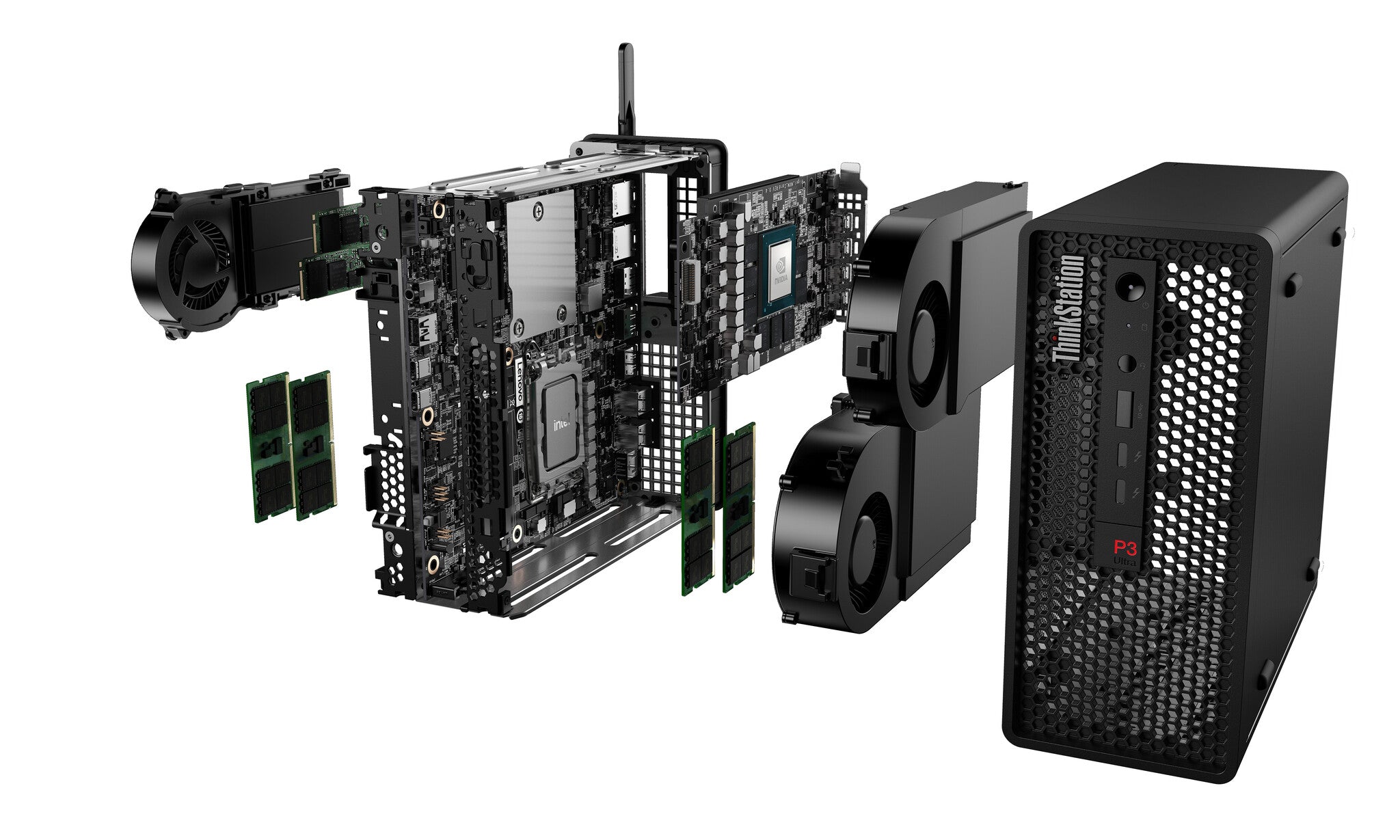

- Packs amazing power into an industry-first 3.9L chassis small form factor
- Blazingly-fast Intel vPro® with Intel® Core™ processors, vast memory
- Choice of optional professional discrete graphics
- ISV-certified, handles complex workflows with ease
- Supports remote monitoring & system management
- Designed for compact spaces, suitable for any industry
| Processor | |
|---|---|
| Processor base power | 65 W |
| Maximum turbo power | 219 W |
| Processor cache type | Smart Cache |
| Processor cache | 33 MB |
| Efficient-core base frequency | 1.5 GHz |
| Performance-core base frequency | 2.1 GHz |
| Efficient-core Max Turbo Frequency | 4.2 GHz |
| Performance-core Max Turbo Frequency | 5.3 GHz |
| Efficient cores | 12 |
| Performance cores | 8 |
| Processor boost frequency | 5.4 GHz |
| Processor threads | 28 |
| Processor cores | 20 |
| Processor model | i7-14700 |
| Processor generation | Intel® Core™ i7 (14th gen) |
| Processor family | Intel® Core™ i7 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Memory clock speed | 4800 MHz |
| Memory slots | 4x SO-DIMM |
| Memory layout (slots x size) | 2 x 8 GB |
| Internal memory type | DDR5-SDRAM |
| Maximum internal memory | 128 GB |
| Internal memory | 16 GB |
| Storage | |
|---|---|
| SSD form factor | M.2 |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 512 GB |
| Storage media | SSD |
| Optical drive type | No |
| Total storage capacity | 512 GB |
| Graphics | |
|---|---|
| On-board graphics card model | Intel UHD Graphics 770 |
| On-board graphics card family | Intel® UHD Graphics |
| On-board GPU manufacturer | Intel |
| Number of discrete graphics cards | 1 |
| Discrete graphics card memory | 4 GB |
| Discrete graphics card model | NVIDIA T400 |
| Discrete GPU manufacturer | NVIDIA |
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |

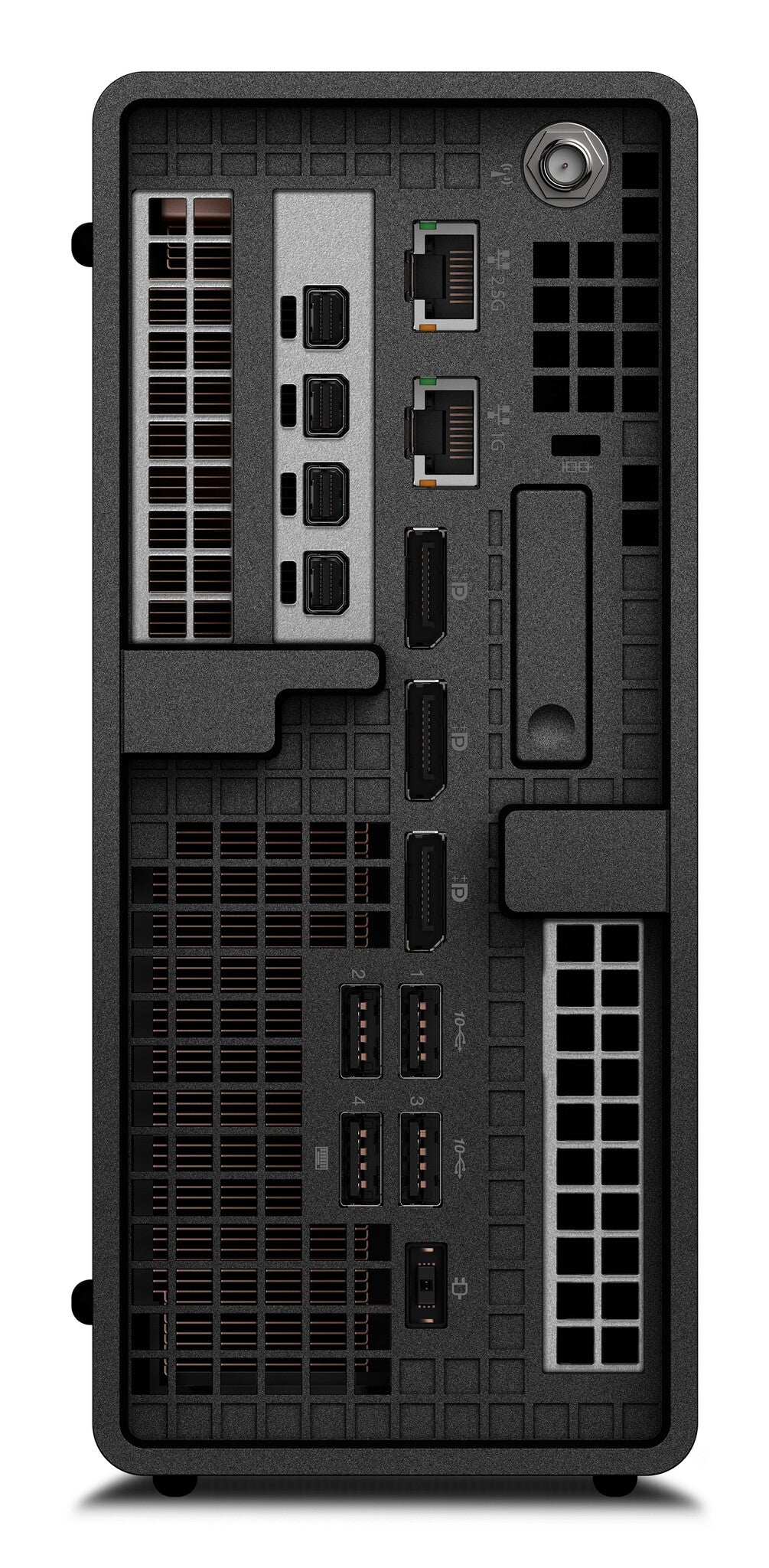

| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 3 |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| Design | |
|---|---|
| Product colour | Black |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Placement supported | Horizontal/Vertical |
| Volume | 3.9 L |
| Chassis type | Mini Tower |
| Performance | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Audio system | High Definition Audio |
| Audio chip | Realtek ALC897-Q |
| Motherboard chipset | Intel W680 |
| Product type | Workstation |
| Software | |
|---|---|
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Power | |
|---|---|
| Power supply input frequency | 50 - 60 Hz |
| Power supply input voltage | 100 - 240 V |
| Power supply | 230 W |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 12192 m |
| Operating altitude | 0 - 3048 m |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Weight & dimensions | |
|---|---|
| Weight | 3.6 kg |
| Height | 202 mm |
| Depth | 223 mm |
| Width | 87 mm |
| Packaging content | |
|---|---|
| Keyboard included | Yes |
| Mouse included | Yes |
| Display included | No |
| General | |
|---|---|
| Product family | ThinkStation |
| Product series | P |
