iiyama SDM31201BC-1L PC/workstation Intel® Core™ i3 i3-1220P 8 GB DDR4-SDRAM 256 GB SSD Windows 11 IoT Enterprise Mini PC Black
£596.99
Couldn't load pickup availability
- Mini PC Black
- Intel® Core™ i3 i3-1220P Processor cores: 10
- 8 GB DDR4-SDRAM
- 256 GB SSD
- Intel® UHD Graphics
- Ethernet LAN 100,10,1000 Mbit/s Wi-Fi 6 (802.11ax) Bluetooth 5.3
- Windows 11 IoT Enterprise 64-bit

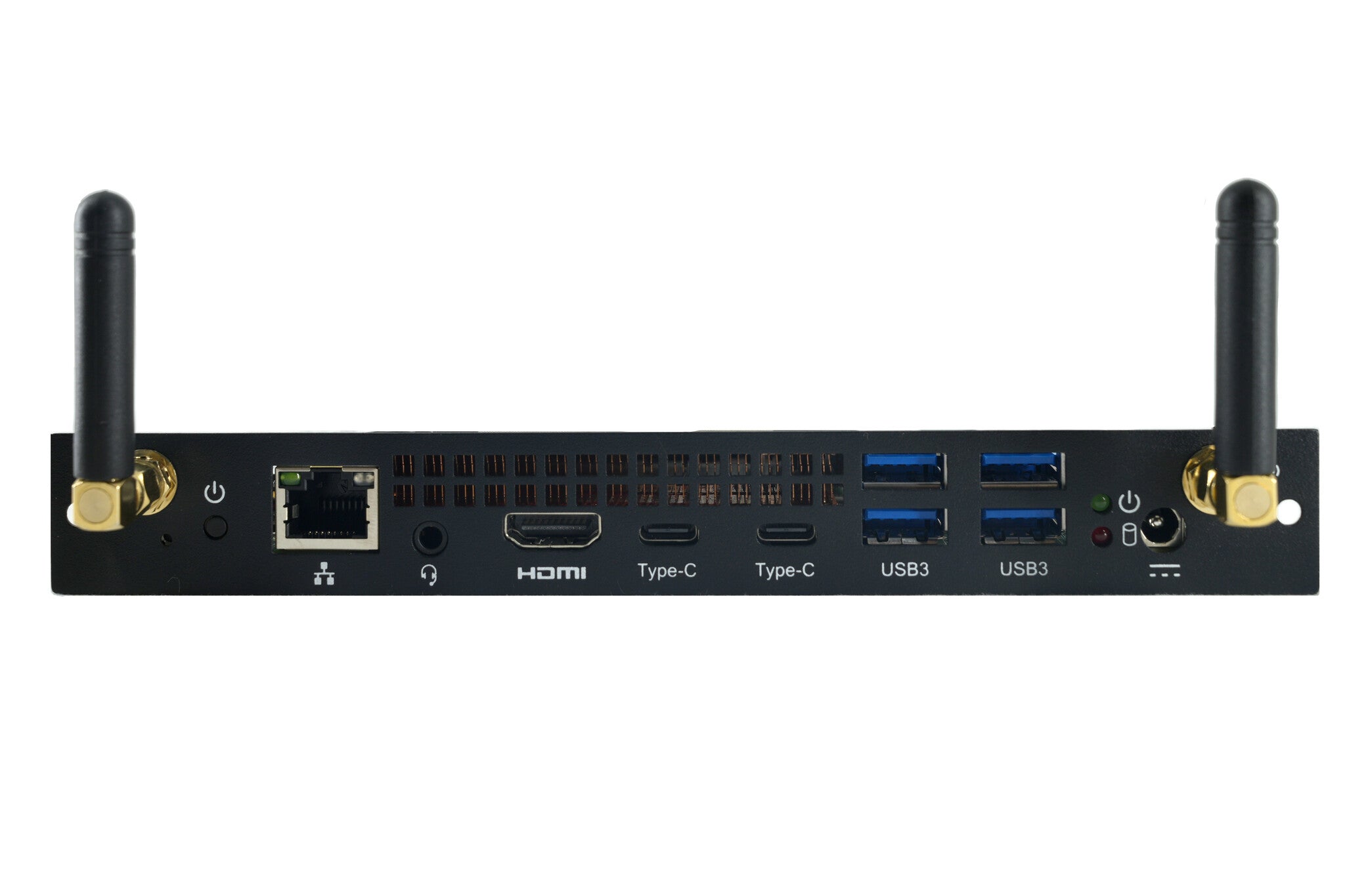

This mini SDM-L PC with an Intel® Core i3 processor turns your iiyama large format display from the ProLite LH75 SERIES (50" and larger) into a stand-alone solution. It comes equipped with a powerful Intel® processor, integrated Ultra HD graphics, and a fast SSD. It features four USB 3.2 Gen 1 ports and two Type-C ports (USB 3.2 + DP ALT).
| Processor | |
|---|---|
| Processor base power | 28 W |
| Maximum turbo power | 64 W |
| Processor cache type | Smart Cache |
| Processor cache | 12 MB |
| Efficient-core Max Turbo Frequency | 3.3 GHz |
| Performance-core Max Turbo Frequency | 4.4 GHz |
| Efficient cores | 8 |
| Performance cores | 2 |
| Processor threads | 12 |
| Processor cores | 10 |
| Processor model | i3-1220P |
| Processor generation | 12th gen Intel® Core™ i3 |
| Processor family | Intel® Core™ i3 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Internal memory type | DDR4-SDRAM |
| Internal memory | 8 GB |
| Storage | |
|---|---|
| SSD form factor | M.2 |
| SSD interface | M.2 |
| SSD capacity | 256 GB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 256 GB |
| Storage media | SSD |
| Optical drive type | No |
| Total storage capacity | 256 GB |
| Graphics | |
|---|---|
| On-board graphics card model | Intel® UHD Graphics |
| On-board graphics card family | Intel® UHD Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Network | |
|---|---|
| Bluetooth version | 5.3 |
| Bluetooth | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| Ethernet LAN data rates | 100,10,1000 Mbit/s |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPort version | 1.4 |
| HDMI version | 2.0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Design | |
|---|---|
| Product colour | Black |
| Chassis type | Mini PC |
| Performance | |
|---|---|
| Audio system | High Definition Audio |
| Product type | Mini PC |
| Software | |
|---|---|
| Compatible operating systems | Windows 11 loT Enterprise (SAC) 64Bit |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 IoT Enterprise |
| Power | |
|---|---|
| Power consumption (typical) | 72 W |
| Power consumption (standby) | 0.5 W |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | -5 - 45 °C |
| Weight & dimensions | |
|---|---|
| Package weight | 610 g |
| Weight | 400 g |
| Height | 25 mm |
| Depth | 195 mm |
| Width | 110 mm |
| Packaging content | |
|---|---|
| Display included | No |
